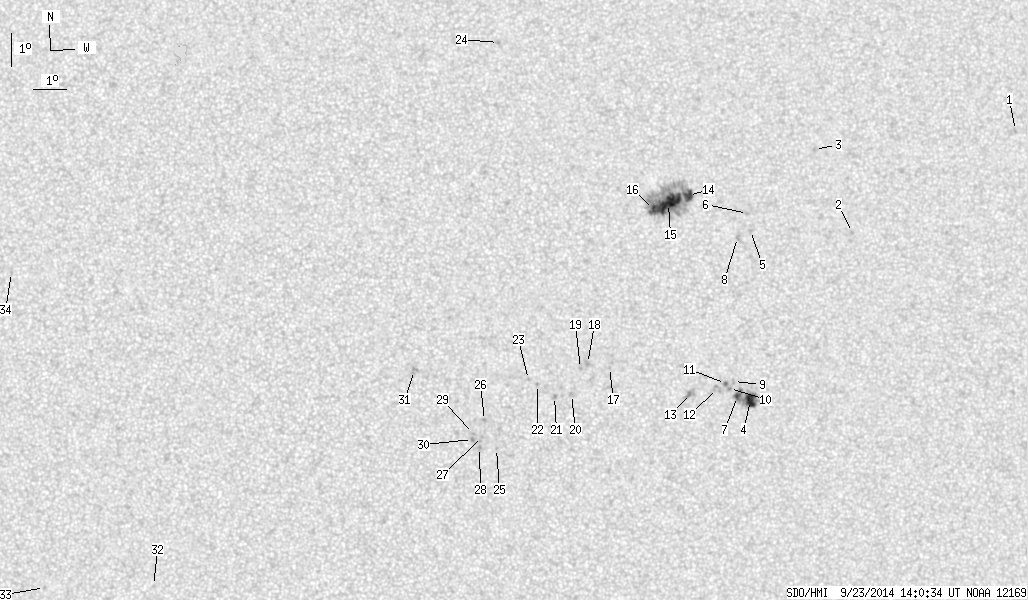

SDO HMI 2014-09-23 14:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.76 | 194.53 | 25.93 | 97.40 | 8.84 | 289.44 | 6.82 | 276.97 | 0.1403 | -472.4 | -338.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-23 14:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.59 | 0.00 | 0.83 | 12.97 | 300.75 | 18.12 | 289.91 | 0.3238 | -795.0 | -700.8 | |
| 0.00 | 1.42 | 0.00 | 0.72 | 10.07 | 295.38 | 12.76 | 284.52 | 0.2257 | -891.0 | -772.1 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 12.60 | 294.30 | 11.68 | 296.83 | 0.2224 | -979.0 | -746.8 | |
| 9.91 | 28.93 | 4.98 | 14.53 | 5.09 | 292.09 | 9.47 | 259.03 | 0.1676 | -1123.9 | -833.3 | |
| 0.00 | 1.59 | 0.00 | 0.80 | 10.20 | 292.21 | 9.59 | 289.31 | 0.1745 | -749.0 | -571.7 | |
| 0.00 | 1.50 | 0.00 | 0.76 | 10.72 | 292.13 | 9.51 | 292.23 | 0.1762 | -947.0 | -728.5 | |
| 2.57 | -4.00 | 1.29 | -4.00 | 5.22 | 291.69 | 9.07 | 259.30 | 0.1605 | -1191.8 | 999999 | |
| 0.00 | 1.77 | 0.00 | 0.89 | 10.00 | 291.80 | 9.18 | 288.90 | 0.1668 | -965.0 | -738.0 | |
| 0.00 | 1.68 | 0.00 | 0.84 | 5.67 | 291.58 | 8.96 | 262.00 | 0.1571 | -664.0 | -575.2 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 5.47 | 291.45 | 8.83 | 260.54 | 0.1556 | -1127.0 | -986.4 | |
| 0.53 | 2.12 | 0.27 | 1.06 | 5.62 | 291.33 | 8.71 | 261.39 | 0.1531 | -954.0 | -826.6 | |
| 0.00 | 5.04 | 0.00 | 2.53 | 5.47 | 291.09 | 8.46 | 260.15 | 0.1494 | -482.0 | -688.0 | |
| 0.00 | 6.55 | 0.00 | 3.27 | 5.34 | 290.26 | 7.64 | 258.03 | 0.1359 | -1061.0 | -807.9 | |
| 6.55 | 110.14 | 3.28 | 55.12 | 11.29 | 290.32 | 7.70 | 300.00 | 0.1524 | -994.0 | -495.5 | |
| 27.25 | -14.00 | 13.63 | -14.00 | 11.06 | 289.70 | 7.08 | 300.66 | 0.1412 | -1224.2 | 999999 | |
| 4.95 | -14.00 | 2.48 | -14.00 | 10.89 | 289.23 | 6.61 | 301.23 | 0.1328 | -1142.1 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.48 | 6.16 | 287.81 | 5.18 | 260.92 | 0.0914 | 749.0 | 564.4 | |
| 0.00 | 2.65 | 0.00 | 1.32 | 6.28 | 287.14 | 4.52 | 261.12 | 0.0796 | 1029.0 | 847.7 | |
| 0.00 | 1.50 | 0.00 | 0.75 | 6.14 | 286.93 | 4.30 | 258.74 | 0.0764 | 949.0 | 720.5 | |
| 0.00 | 2.92 | 0.00 | 1.45 | 5.36 | 286.65 | 4.02 | 247.82 | 0.0758 | 737.0 | 675.2 | |
| 0.00 | 2.12 | 0.00 | 1.05 | 5.30 | 286.13 | 3.51 | 244.15 | 0.0681 | 957.0 | 834.6 | |
| 0.00 | 1.33 | 0.00 | 0.66 | 5.67 | 285.62 | 3.00 | 245.95 | 0.0573 | 958.0 | 724.8 | |
| 0.00 | 1.24 | 0.00 | 0.61 | 5.82 | 285.35 | 2.73 | 246.48 | 0.0519 | 921.0 | 687.9 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 15.99 | 284.52 | 1.90 | 348.50 | 0.1602 | -872.0 | -661.1 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 3.75 | 284.37 | 1.75 | 208.24 | 0.0648 | 796.0 | 658.4 | |
| 0.00 | 1.50 | 0.00 | 0.75 | 4.59 | 284.02 | 1.39 | 209.91 | 0.0488 | 883.0 | 725.6 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 4.11 | 283.95 | 1.33 | 204.64 | 0.0558 | 891.0 | 794.5 | |
| 0.00 | 1.77 | 0.00 | 0.88 | 3.78 | 283.86 | 1.24 | 200.98 | 0.0605 | 888.0 | 732.3 | |
| 0.00 | 1.24 | 0.00 | 0.61 | 4.20 | 283.68 | 1.06 | 200.65 | 0.0525 | 1034.0 | 867.0 | |
| 0.00 | 1.95 | 0.00 | 0.97 | 4.02 | 283.65 | 1.03 | 198.98 | 0.0553 | 898.0 | 821.5 | |
| 0.00 | 3.72 | 0.00 | 1.84 | 6.10 | 281.90 | -0.72 | 141.68 | 0.0202 | 700.0 | 738.9 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -0.45 | 274.02 | -8.60 | 130.65 | 0.1981 | 615.0 | 491.1 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -0.58 | 270.69 | -11.94 | 122.04 | 0.2451 | 851.0 | 717.8 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 8.88 | 269.52 | -13.10 | 80.89 | 0.2278 | 849.0 | 522.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
