SDO HMI 2014-09-23 14:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 233.47 | 1305.26 | 170.00 | 946.42 | -11.00 | 239.32 | -43.31 | 112.47 | 0.7288 | -21.0 | -3.9 | |
|
previous
or next observation for the same group /

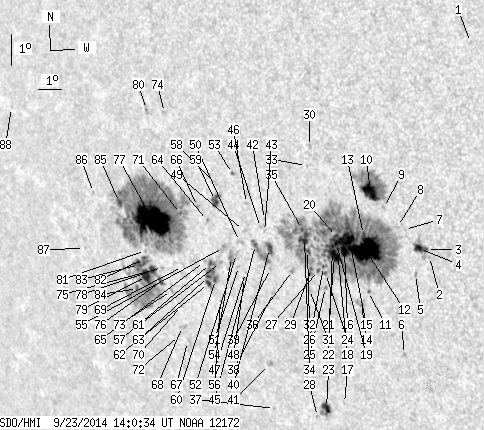

back to the solar disc SDO HMI 2014-09-23 14:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.65 | -4.12 | 248.65 | -33.97 | 107.17 | 0.5855 | 657.0 | 476.0 | |
| 0.00 | 0.53 | 0.00 | 0.34 | -10.91 | 246.48 | -36.14 | 116.17 | 0.6476 | -442.0 | -331.8 | |
| 0.62 | 17.43 | 0.40 | 11.33 | -10.70 | 246.40 | -36.23 | 115.82 | 0.6474 | -518.4 | 52.1 | |
| 4.51 | -3.00 | 2.94 | -3.00 | -10.69 | 246.09 | -36.53 | 115.61 | 0.6509 | 635.4 | 999999 | |
| 0.00 | 1.95 | 0.00 | 1.28 | -11.53 | 245.86 | -36.77 | 116.63 | 0.6584 | -650.0 | -508.0 | |
| 0.00 | 1.15 | 0.00 | 0.78 | -14.14 | 244.97 | -37.66 | 119.57 | 0.6834 | 549.0 | 445.2 | |
| 0.00 | 0.53 | 0.00 | 0.35 | -10.13 | 245.64 | -36.99 | 114.54 | 0.6534 | 674.0 | 477.5 | |
| 0.00 | 1.50 | 0.00 | 0.98 | -10.05 | 245.38 | -37.24 | 114.28 | 0.6561 | 207.0 | 209.0 | |
| 0.00 | 1.59 | 0.00 | 1.05 | -9.49 | 244.91 | -37.71 | 113.22 | 0.6588 | 555.0 | 434.1 | |
| 18.40 | 64.14 | 12.13 | 42.19 | -9.03 | 244.47 | -38.15 | 112.32 | 0.6618 | 965.5 | 484.2 | |
| 0.53 | 1.50 | 0.36 | 1.02 | -12.21 | 243.91 | -38.71 | 116.37 | 0.6846 | 446.2 | 308.4 | |
| 43.35 | 560.42 | 29.07 | 380.33 | -10.88 | 244.01 | -38.61 | 114.63 | 0.6764 | 1041.5 | 309.7 | |
| 0.27 | -12.00 | 0.18 | -12.00 | -10.41 | 244.01 | -38.62 | 113.98 | 0.6741 | 746.0 | 999999 | |
| 0.00 | 5.31 | 0.00 | 3.63 | -12.62 | 243.56 | -39.07 | 116.70 | 0.6907 | -502.0 | -320.6 | |
| 5.48 | -12.00 | 3.71 | -12.00 | -10.64 | 243.42 | -39.20 | 113.97 | 0.6822 | 944.0 | 999999 | |
| 5.93 | -12.00 | 4.03 | -12.00 | -10.98 | 243.17 | -39.46 | 114.28 | 0.6867 | 761.3 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -15.95 | 242.15 | -40.47 | 120.11 | 0.7237 | 518.0 | 489.3 | |
| 2.30 | -12.00 | 1.57 | -12.00 | -10.94 | 242.89 | -39.73 | 114.08 | 0.6897 | 688.5 | 999999 | |
| 1.50 | -12.00 | 1.02 | -12.00 | -10.78 | 242.88 | -39.74 | 113.86 | 0.6891 | 670.5 | 999999 | |
| 2.83 | -12.00 | 1.92 | -12.00 | -10.56 | 242.92 | -39.71 | 113.58 | 0.6876 | 644.5 | 999999 | |
| 8.32 | -12.00 | 5.69 | -12.00 | -11.17 | 242.74 | -39.89 | 114.30 | 0.6926 | 672.0 | 999999 | |
| 0.27 | -12.00 | 0.18 | -12.00 | -10.89 | 242.70 | -39.92 | 113.91 | 0.6916 | 645.0 | 999999 | |
| 5.75 | 11.06 | 4.17 | 8.04 | -16.17 | 241.35 | -41.27 | 119.91 | 0.7333 | 689.0 | 431.3 | |
| 0.44 | -12.00 | 0.31 | -12.00 | -11.77 | 242.27 | -40.36 | 114.85 | 0.7009 | 509.0 | 999999 | |
| 0.00 | 1.50 | 0.00 | 1.05 | -12.22 | 242.18 | -40.44 | 115.39 | 0.7040 | 530.0 | 378.6 | |
| 0.53 | -12.00 | 0.37 | -12.00 | -11.56 | 242.23 | -40.40 | 114.54 | 0.7003 | 462.2 | 999999 | |
| 0.88 | 1.95 | 0.61 | 1.35 | -11.70 | 242.00 | -40.63 | 114.60 | 0.7036 | 482.2 | 324.4 | |
| 0.00 | 0.97 | 0.00 | 0.71 | -16.47 | 240.89 | -41.73 | 120.01 | 0.7395 | 446.0 | 362.7 | |
| 0.71 | -12.00 | 0.49 | -12.00 | -11.66 | 241.72 | -40.90 | 114.40 | 0.7065 | 454.0 | 999999 | |
| 0.00 | 1.77 | 0.00 | 1.20 | -7.80 | 242.22 | -40.40 | 109.45 | 0.6834 | 605.0 | 498.9 | |
| 0.00 | 4.07 | 0.00 | 2.86 | -12.34 | 241.51 | -41.11 | 115.18 | 0.7121 | 259.0 | 266.6 | |
| 2.48 | -12.00 | 1.72 | -12.00 | -11.10 | 241.66 | -40.97 | 113.63 | 0.7045 | 508.8 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.36 | -8.41 | 242.02 | -40.60 | 110.19 | 0.6883 | 412.0 | 384.3 | |
| 7.52 | -12.00 | 5.23 | -12.00 | -10.73 | 241.60 | -41.03 | 113.10 | 0.7035 | 531.3 | 999999 | |
| 1.15 | -12.00 | 0.80 | -12.00 | -10.45 | 241.56 | -41.06 | 112.71 | 0.7026 | 506.1 | 999999 | |
| 0.00 | 2.30 | 0.00 | 1.63 | -11.79 | 240.92 | -41.71 | 114.15 | 0.7161 | 572.0 | 405.3 | |
| 0.00 | 1.15 | 0.00 | 0.87 | -16.37 | 239.08 | -43.54 | 118.88 | 0.7571 | -424.0 | -416.4 | |
| 0.00 | 1.50 | 0.00 | 1.09 | -12.57 | 239.97 | -42.65 | 114.65 | 0.7300 | 501.0 | 364.4 | |
| 0.00 | 1.33 | 0.00 | 0.95 | -11.81 | 240.00 | -42.63 | 113.69 | 0.7262 | 399.0 | 289.5 | |
| 4.16 | 25.65 | 2.97 | 18.41 | -11.17 | 240.08 | -42.55 | 112.91 | 0.7225 | 628.3 | 37.9 | |
| 0.00 | 2.57 | 0.00 | 1.91 | -14.93 | 239.25 | -43.37 | 117.23 | 0.7485 | -723.0 | -594.4 | |
| 0.00 | 0.88 | 0.00 | 0.63 | -10.26 | 240.03 | -42.59 | 111.71 | 0.7191 | -579.0 | -497.9 | |
| 0.00 | 0.88 | 0.00 | 0.63 | -10.64 | 239.96 | -42.66 | 112.18 | 0.7215 | 277.0 | 218.2 | |
| 0.00 | 0.71 | 0.00 | 0.51 | -10.53 | 239.82 | -42.81 | 111.96 | 0.7227 | 166.0 | 88.0 | |
| 1.24 | -40.00 | 0.89 | -40.00 | -11.09 | 239.50 | -43.12 | 112.53 | 0.7285 | 349.9 | 999999 | |
| 0.00 | 1.50 | 0.00 | 1.08 | -9.82 | 239.35 | -43.27 | 110.81 | 0.7249 | -754.0 | -655.9 | |
| 0.00 | 0.88 | 0.00 | 0.65 | -12.03 | 238.90 | -43.73 | 113.43 | 0.7391 | 516.0 | 436.1 | |
| 0.00 | 1.33 | 0.00 | 0.98 | -12.22 | 238.81 | -43.81 | 113.64 | 0.7409 | 392.0 | 352.4 | |
| 0.00 | 1.06 | 0.00 | 0.77 | -10.69 | 239.07 | -43.55 | 111.81 | 0.7316 | -536.0 | -488.1 | |
| 0.00 | 2.74 | 0.00 | 2.00 | -11.05 | 238.83 | -43.79 | 112.17 | 0.7357 | 456.0 | 292.2 | |
| 0.00 | 1.42 | 0.00 | 1.04 | -11.86 | 238.63 | -43.99 | 113.09 | 0.7413 | -370.0 | -297.5 | |
| 0.00 | 2.21 | 0.00 | 1.62 | -11.45 | 238.63 | -44.00 | 112.57 | 0.7396 | 154.0 | 114.8 | |
| 0.53 | 1.50 | 0.38 | 1.08 | -8.92 | 238.90 | -43.72 | 109.44 | 0.7264 | -635.3 | -582.2 | |
| 0.00 | 6.63 | 0.00 | 4.89 | -11.60 | 238.38 | -44.24 | 112.65 | 0.7428 | -382.0 | -348.5 | |
| 0.00 | 3.45 | 0.00 | 2.55 | -11.31 | 238.10 | -44.53 | 112.15 | 0.7447 | -670.0 | -492.7 | |
| 0.00 | 0.97 | 0.00 | 0.74 | -13.06 | 237.58 | -45.04 | 114.10 | 0.7574 | -659.0 | -547.6 | |
| 0.00 | 1.42 | 0.00 | 1.05 | -11.80 | 237.87 | -44.76 | 112.66 | 0.7492 | -433.0 | -336.7 | |
| 0.00 | 0.53 | 0.00 | 0.39 | -9.33 | 238.16 | -44.47 | 109.64 | 0.7363 | -761.0 | -662.7 | |
| 5.75 | 9.20 | 4.22 | 6.75 | -9.84 | 238.03 | -44.60 | 110.25 | 0.7397 | -771.6 | -587.8 | |
| 1.95 | 21.76 | 1.47 | 16.41 | -12.37 | 237.52 | -45.10 | 113.21 | 0.7551 | -924.0 | -594.1 | |
| 1.24 | -60.00 | 0.93 | -60.00 | -11.87 | 237.41 | -45.21 | 112.54 | 0.7543 | -626.3 | 999999 | |
| 2.21 | -60.00 | 1.68 | -60.00 | -12.53 | 237.18 | -45.44 | 113.25 | 0.7593 | -758.9 | 999999 | |
| 1.95 | -60.00 | 1.47 | -60.00 | -12.30 | 237.23 | -45.39 | 112.99 | 0.7579 | -731.1 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.99 | -10.51 | 237.56 | -45.06 | 110.89 | 0.7473 | -781.0 | -643.7 | |
| 0.00 | 1.33 | 0.00 | 1.00 | -11.83 | 237.16 | -45.46 | 112.38 | 0.7568 | -595.0 | -547.1 | |
| 0.00 | 1.06 | 0.00 | 0.79 | -10.10 | 237.20 | -45.42 | 110.22 | 0.7496 | -682.0 | -581.8 | |
| 0.00 | 0.71 | 0.00 | 0.56 | -14.51 | 235.73 | -46.89 | 114.98 | 0.7820 | 352.0 | 336.1 | |
| 0.00 | 3.10 | 0.00 | 2.44 | -14.03 | 235.64 | -46.99 | 114.38 | 0.7811 | -442.0 | -405.5 | |
| 0.00 | 0.80 | 0.00 | 0.61 | -12.08 | 236.13 | -46.50 | 112.23 | 0.7685 | -552.0 | -511.3 | |
| 0.00 | 0.88 | 0.00 | 0.69 | -13.35 | 235.77 | -46.85 | 113.62 | 0.7770 | -511.0 | -456.5 | |
| 0.80 | 391.72 | 0.60 | 305.29 | -10.39 | 236.40 | -46.23 | 110.25 | 0.7593 | -913.6 | -322.2 | |
| 0.00 | 0.35 | 0.00 | 0.28 | -14.34 | 235.41 | -47.21 | 114.64 | 0.7845 | -431.0 | -309.8 | |
| 0.00 | 1.50 | 0.00 | 1.18 | -12.91 | 235.43 | -47.19 | 112.93 | 0.7787 | -584.0 | -516.2 | |
| 0.00 | 2.12 | 0.00 | 1.59 | -7.26 | 236.21 | -46.42 | 106.21 | 0.7506 | -112.0 | -149.2 | |
| 0.00 | 1.24 | 0.00 | 0.97 | -12.20 | 235.19 | -47.43 | 111.97 | 0.7785 | -599.0 | -579.9 | |
| 2.12 | 118.98 | 1.68 | 95.89 | -12.66 | 234.99 | -47.64 | 112.44 | 0.7822 | -633.0 | -312.8 | |
| 68.82 | -71.00 | 53.66 | -71.00 | -10.70 | 235.07 | -47.55 | 110.09 | 0.7743 | -822.8 | 999999 | |
| 4.60 | -76.00 | 3.65 | -76.00 | -12.34 | 234.70 | -47.92 | 111.93 | 0.7840 | -786.0 | 999999 | |
| 9.73 | -76.00 | 7.79 | -76.00 | -12.56 | 234.37 | -48.26 | 112.06 | 0.7881 | -759.3 | 999999 | |
| 0.00 | 3.89 | 0.00 | 2.95 | -7.24 | 235.41 | -47.22 | 105.89 | 0.7593 | -553.0 | -488.2 | |
| 0.00 | 0.88 | 0.00 | 0.70 | -11.72 | 234.52 | -48.10 | 111.12 | 0.7835 | -595.0 | -565.1 | |
| 1.33 | -76.00 | 1.06 | -76.00 | -11.99 | 234.41 | -48.21 | 111.39 | 0.7855 | -705.3 | 999999 | |
| 8.85 | -76.00 | 7.10 | -76.00 | -12.20 | 234.13 | -48.49 | 111.53 | 0.7891 | -500.6 | 999999 | |
| 1.15 | -76.00 | 0.93 | -76.00 | -12.99 | 233.83 | -48.79 | 112.35 | 0.7949 | -570.2 | 999999 | |
| 3.27 | -71.00 | 2.62 | -71.00 | -10.30 | 233.63 | -48.99 | 109.04 | 0.7877 | -326.5 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.80 | -10.10 | 232.44 | -50.18 | 108.36 | 0.7989 | -305.0 | -292.4 | |
| 0.00 | 0.80 | 0.00 | 0.67 | -11.94 | 231.56 | -51.06 | 110.23 | 0.8132 | -388.0 | -353.8 | |
| 0.00 | 0.80 | 0.00 | 0.70 | -7.81 | 228.84 | -53.79 | 104.47 | 0.8277 | -470.0 | -368.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
