SDO HMI 2014-09-23 15:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.63 | 189.45 | 26.40 | 94.95 | 9.05 | 289.29 | 7.22 | 278.65 | 0.1475 | -497.3 | -287.7 | |
|
previous
or next observation for the same group /

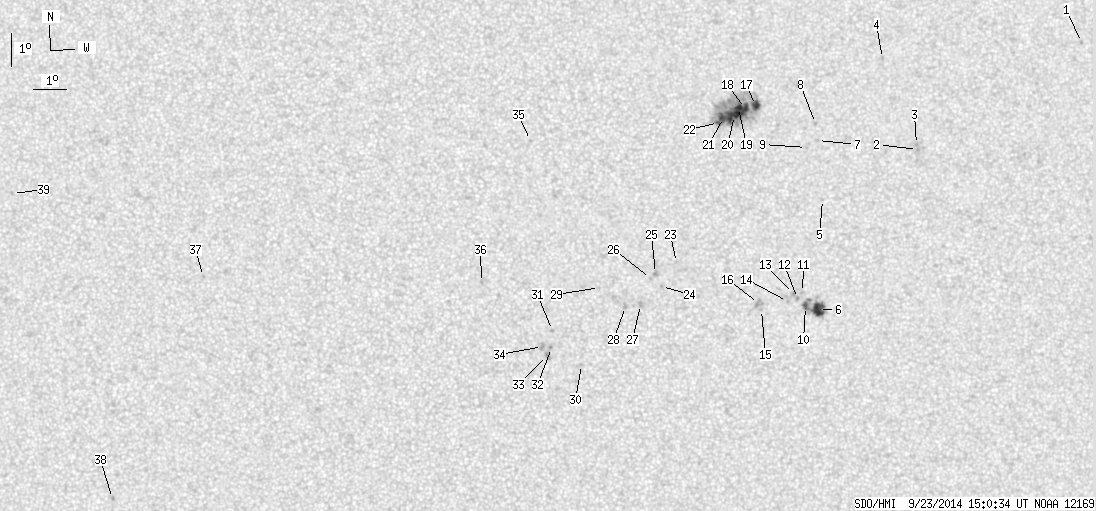

back to the solar disc SDO HMI 2014-09-23 15:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.51 | 12.89 | 300.71 | 18.64 | 289.24 | 0.3314 | -882.0 | -748.8 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 9.84 | 295.29 | 13.22 | 283.15 | 0.2325 | -835.0 | -728.5 | |
| 0.00 | 1.59 | 0.00 | 0.81 | 9.99 | 295.27 | 13.20 | 283.81 | 0.2326 | -1035.0 | -836.0 | |
| 0.00 | 1.50 | 0.00 | 0.77 | 12.61 | 294.32 | 12.25 | 295.87 | 0.2311 | -928.0 | -718.4 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 8.41 | 292.29 | 10.22 | 278.58 | 0.1782 | -746.0 | -552.4 | |
| 10.97 | 23.44 | 5.52 | 11.79 | 5.11 | 292.09 | 10.02 | 259.77 | 0.1769 | -1161.0 | -836.0 | |
| 0.00 | 1.68 | 0.00 | 0.85 | 10.19 | 292.19 | 10.12 | 288.38 | 0.1830 | -760.0 | -600.8 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 10.71 | 292.14 | 10.07 | 291.11 | 0.1850 | -992.0 | -811.5 | |
| 0.00 | 0.88 | 0.00 | 0.45 | 9.99 | 291.84 | 9.77 | 287.83 | 0.1763 | -904.0 | -720.2 | |
| 2.57 | -6.00 | 1.29 | -6.00 | 5.21 | 291.69 | 9.62 | 259.89 | 0.1699 | -1209.1 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 5.63 | 291.61 | 9.54 | 262.29 | 0.1672 | -743.0 | -623.4 | |
| 0.00 | 1.50 | 0.00 | 0.76 | 5.45 | 291.45 | 9.38 | 261.08 | 0.1650 | -1192.0 | -976.8 | |
| 0.00 | 1.68 | 0.00 | 0.84 | 5.61 | 291.33 | 9.26 | 261.88 | 0.1625 | -971.0 | -819.4 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 5.37 | 291.15 | 9.07 | 260.23 | 0.1601 | -905.0 | -728.7 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 5.15 | 290.35 | 8.28 | 257.71 | 0.1474 | -750.0 | -571.0 | |
| 0.00 | 4.78 | 0.00 | 2.39 | 5.33 | 290.26 | 8.19 | 258.80 | 0.1452 | -977.0 | -834.1 | |
| 5.40 | 114.63 | 2.71 | 57.43 | 11.29 | 290.30 | 8.23 | 298.38 | 0.1603 | -1025.5 | -490.2 | |
| 4.95 | -17.00 | 2.48 | -17.00 | 11.20 | 289.99 | 7.92 | 298.80 | 0.1549 | -1071.0 | 999999 | |
| 5.22 | -17.00 | 2.62 | -17.00 | 11.23 | 289.77 | 7.70 | 299.64 | 0.1519 | -1165.9 | 999999 | |
| 14.59 | -17.00 | 7.31 | -17.00 | 11.00 | 289.64 | 7.57 | 298.63 | 0.1480 | -1307.6 | 999999 | |
| 7.25 | -17.00 | 3.63 | -17.00 | 10.94 | 289.30 | 7.23 | 299.38 | 0.1424 | -1204.3 | 999999 | |
| 1.68 | -17.00 | 0.84 | -17.00 | 10.79 | 289.14 | 7.07 | 298.96 | 0.1388 | -1046.2 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 6.60 | 287.78 | 5.71 | 266.23 | 0.0995 | 812.0 | 665.5 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 5.88 | 287.32 | 5.24 | 258.14 | 0.0933 | 827.0 | 605.6 | |
| 0.00 | 2.83 | 0.00 | 1.41 | 6.28 | 287.14 | 5.07 | 262.05 | 0.0890 | 1115.0 | 868.1 | |
| 0.00 | 0.97 | 0.00 | 0.48 | 6.13 | 286.98 | 4.91 | 260.08 | 0.0868 | 1016.0 | 763.8 | |
| 0.00 | 2.92 | 0.00 | 1.45 | 5.35 | 286.67 | 4.60 | 250.35 | 0.0852 | 801.0 | 742.7 | |
| 0.00 | 2.39 | 0.00 | 1.19 | 5.30 | 286.22 | 4.15 | 247.68 | 0.0782 | 963.0 | 825.6 | |
| 0.00 | 0.97 | 0.00 | 0.48 | 5.87 | 285.44 | 3.36 | 251.46 | 0.0619 | 862.0 | 596.5 | |
| 0.00 | 0.97 | 0.00 | 0.48 | 3.56 | 284.88 | 2.81 | 219.18 | 0.0777 | 730.0 | 550.2 | |
| 0.00 | 1.59 | 0.00 | 0.79 | 4.59 | 284.01 | 1.94 | 218.66 | 0.0542 | 926.0 | 711.7 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 4.08 | 283.98 | 1.90 | 213.01 | 0.0611 | 975.0 | 826.8 | |
| 0.00 | 3.89 | 0.00 | 1.93 | 3.84 | 283.86 | 1.78 | 209.34 | 0.0636 | 1020.0 | 785.2 | |
| 0.00 | 3.45 | 0.00 | 1.71 | 4.11 | 283.71 | 1.63 | 209.38 | 0.0582 | 1040.0 | 866.2 | |
| 0.00 | 1.33 | 0.00 | 0.66 | 10.31 | 283.37 | 1.30 | 338.87 | 0.0620 | 836.0 | 613.6 | |
| 0.00 | 1.24 | 0.00 | 0.61 | 6.04 | 281.87 | -0.20 | 168.16 | 0.0173 | 941.0 | 772.6 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 6.15 | 273.43 | -8.64 | 95.18 | 0.1507 | 863.0 | 709.2 | |
| 0.00 | 1.42 | 0.00 | 0.72 | -0.60 | 270.69 | -11.38 | 123.38 | 0.2374 | 823.0 | 685.8 | |
| 0.00 | 1.42 | 0.00 | 0.72 | 8.51 | 267.45 | -14.62 | 83.12 | 0.2525 | 791.0 | 652.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
