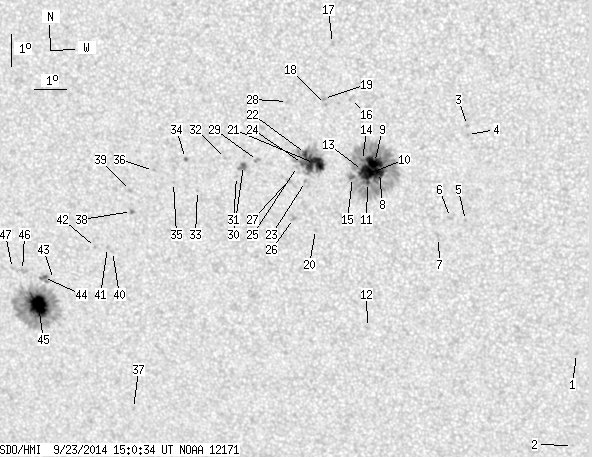

SDO HMI 2014-09-23 15:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 99.58 | 462.33 | 54.01 | 252.35 | -10.55 | 265.36 | -16.72 | 137.41 | 0.4114 | 343.9 | 93.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-23 15:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.57 | -14.55 | 276.02 | -6.06 | 164.44 | 0.3824 | 769.0 | 573.4 | |
| 0.00 | 0.71 | 0.00 | 0.39 | -17.57 | 275.79 | -6.28 | 165.90 | 0.4299 | 588.0 | 514.2 | |
| 0.00 | 1.50 | 0.00 | 0.78 | -7.39 | 272.84 | -9.24 | 147.21 | 0.2952 | 945.0 | 680.6 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -7.67 | 272.83 | -9.24 | 147.70 | 0.2992 | 914.0 | 776.3 | |
| 0.00 | 0.62 | 0.00 | 0.33 | -10.36 | 272.69 | -9.38 | 151.64 | 0.3389 | 765.0 | 607.1 | |
| 0.00 | 1.95 | 0.00 | 1.03 | -10.28 | 272.23 | -9.84 | 150.35 | 0.3414 | 684.0 | 638.6 | |
| 0.00 | 2.57 | 0.00 | 1.36 | -10.92 | 271.84 | -10.24 | 150.30 | 0.3537 | 513.0 | 556.8 | |
| 8.31 | 199.10 | 4.38 | 104.95 | -8.92 | 270.07 | -12.00 | 142.91 | 0.3421 | 1134.3 | 378.2 | |
| 14.95 | -8.00 | 7.87 | -8.00 | -8.61 | 269.93 | -12.14 | 142.02 | 0.3395 | 1369.4 | 999999 | |
| 14.15 | -8.00 | 7.47 | -8.00 | -8.96 | 269.73 | -12.34 | 142.20 | 0.3460 | 1094.9 | 999999 | |
| 1.42 | -8.00 | 0.75 | -8.00 | -9.24 | 269.69 | -12.38 | 142.61 | 0.3501 | 825.8 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.72 | -13.84 | 269.47 | -12.60 | 149.04 | 0.4135 | 760.0 | 624.2 | |
| 3.71 | -8.00 | 1.96 | -8.00 | -8.87 | 269.55 | -12.53 | 141.63 | 0.3467 | 974.3 | 999999 | |
| 0.27 | -8.00 | 0.14 | -8.00 | -8.55 | 269.56 | -12.52 | 141.08 | 0.3426 | 754.7 | 999999 | |
| 0.88 | -8.00 | 0.47 | -8.00 | -9.09 | 269.22 | -12.85 | 141.33 | 0.3529 | 703.6 | 999999 | |
| 0.00 | 2.30 | 0.00 | 1.20 | -6.63 | 269.27 | -12.80 | 136.62 | 0.3218 | -100.0 | -193.2 | |
| 0.00 | 2.12 | 0.00 | 1.11 | -4.95 | 268.73 | -13.35 | 131.57 | 0.3087 | 720.0 | 619.7 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -6.84 | 268.46 | -13.61 | 135.28 | 0.3336 | 812.0 | 656.2 | |
| 0.00 | 1.95 | 0.00 | 1.02 | -6.66 | 268.40 | -13.67 | 134.77 | 0.3321 | 782.0 | 737.0 | |
| 0.00 | 0.71 | 0.00 | 0.38 | -10.76 | 267.99 | -14.08 | 141.60 | 0.3865 | 710.0 | 520.4 | |
| 21.49 | 56.87 | 11.41 | 30.18 | -8.69 | 268.05 | -14.02 | 138.10 | 0.3602 | 1067.3 | 539.2 | |
| 2.74 | -21.00 | 1.45 | -21.00 | -8.39 | 267.78 | -14.29 | 136.98 | 0.3595 | 954.6 | 999999 | |
| 0.00 | 1.42 | 0.00 | 0.75 | -9.26 | 267.74 | -14.33 | 138.53 | 0.3704 | 725.0 | 619.8 | |
| 1.68 | -21.00 | 0.89 | -21.00 | -8.70 | 267.67 | -14.40 | 137.36 | 0.3644 | 787.7 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.85 | -8.80 | 267.51 | -14.56 | 137.22 | 0.3674 | 610.0 | 538.8 | |
| 0.00 | 3.18 | 0.00 | 1.71 | -10.44 | 267.31 | -14.76 | 139.73 | 0.3893 | 773.0 | 623.7 | |
| 0.00 | 1.86 | 0.00 | 0.99 | -9.25 | 267.21 | -14.86 | 137.46 | 0.3760 | 482.0 | 375.3 | |
| 0.00 | 1.50 | 0.00 | 0.79 | -6.78 | 267.27 | -14.80 | 132.74 | 0.3469 | 835.0 | 608.6 | |
| 0.00 | 1.95 | 0.00 | 1.04 | -8.65 | 266.26 | -15.81 | 134.56 | 0.3798 | -932.0 | -804.2 | |
| 1.68 | 5.40 | 0.90 | 2.90 | -8.82 | 265.81 | -16.27 | 134.07 | 0.3869 | 1008.3 | 740.4 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -9.18 | 265.57 | -16.51 | 134.30 | 0.3936 | 745.0 | 627.2 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -8.62 | 265.24 | -16.83 | 132.72 | 0.3913 | 667.0 | 486.9 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -9.66 | 264.30 | -17.78 | 133.04 | 0.4135 | 636.0 | 525.6 | |
| 0.35 | 1.59 | 0.19 | 0.86 | -8.67 | 263.97 | -18.11 | 130.70 | 0.4070 | -896.8 | -776.8 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -9.44 | 263.54 | -18.53 | 131.44 | 0.4201 | -709.0 | -521.1 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -9.09 | 262.91 | -19.16 | 129.86 | 0.4239 | -681.0 | -517.9 | |
| 0.00 | 1.15 | 0.00 | 0.67 | -16.75 | 261.61 | -20.46 | 139.76 | 0.5203 | 641.0 | 489.1 | |
| 0.00 | 1.95 | 0.00 | 1.08 | -10.41 | 262.12 | -19.95 | 131.03 | 0.4468 | -1036.0 | -895.5 | |
| 0.00 | 1.59 | 0.00 | 0.88 | -9.75 | 262.13 | -19.94 | 129.90 | 0.4400 | -835.0 | -617.4 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -11.70 | 261.40 | -20.67 | 132.17 | 0.4683 | -719.0 | -589.9 | |
| 0.00 | 1.42 | 0.00 | 0.79 | -11.58 | 261.25 | -20.83 | 131.76 | 0.4688 | -800.0 | -601.3 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -11.60 | 260.85 | -21.22 | 131.25 | 0.4736 | -775.0 | -646.3 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -12.69 | 259.36 | -22.71 | 131.03 | 0.5013 | -240.0 | -317.2 | |
| 1.59 | 5.04 | 0.91 | 2.89 | -12.64 | 259.03 | -23.04 | 130.54 | 0.5046 | -954.3 | -735.4 | |
| 26.36 | 144.26 | 15.22 | 83.40 | -13.55 | 258.77 | -23.30 | 131.60 | 0.5163 | -1146.3 | -349.0 | |
| 0.00 | 4.51 | 0.00 | 2.60 | -12.45 | 258.34 | -23.73 | 129.42 | 0.5107 | -854.0 | -701.3 | |
| 0.00 | 1.42 | 0.00 | 0.82 | -12.40 | 258.01 | -24.06 | 128.96 | 0.5141 | -579.0 | -452.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
