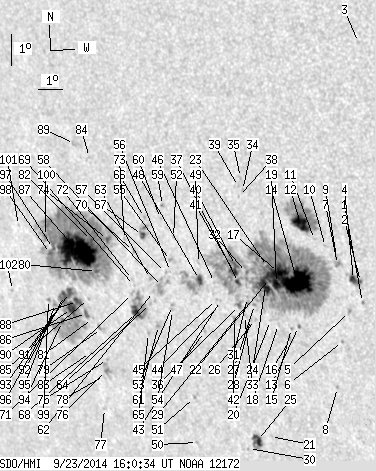

SDO HMI 2014-09-23 16:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 253.65 | 1342.77 | 181.01 | 954.71 | -11.02 | 239.44 | -42.08 | 113.12 | 0.7153 | 6.0 | -10.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-23 16:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.79 | -11.36 | 246.50 | -35.03 | 117.55 | 0.6369 | 541.0 | 360.7 | |
| 0.27 | 11.05 | 0.17 | 7.07 | -10.70 | 246.51 | -35.01 | 116.62 | 0.6328 | -677.7 | 181.4 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -3.26 | 247.09 | -34.43 | 105.54 | 0.5881 | -19.0 | -65.2 | |
| 3.71 | -2.00 | 2.38 | -2.00 | -10.66 | 246.26 | -35.26 | 116.38 | 0.6356 | 669.3 | 999999 | |
| 0.00 | 2.03 | 0.00 | 1.32 | -11.69 | 245.96 | -35.56 | 117.64 | 0.6452 | -780.0 | -576.3 | |
| 0.00 | 0.88 | 0.00 | 0.58 | -12.67 | 245.54 | -35.98 | 118.71 | 0.6559 | -570.0 | -531.8 | |
| 0.00 | 3.45 | 0.00 | 2.22 | -10.23 | 245.71 | -35.81 | 115.41 | 0.6398 | 355.0 | 291.5 | |
| 0.00 | 0.88 | 0.00 | 0.59 | -14.17 | 245.08 | -36.44 | 120.42 | 0.6702 | 557.0 | 486.6 | |
| 0.00 | 1.33 | 0.00 | 0.85 | -9.97 | 245.71 | -35.81 | 115.05 | 0.6384 | -477.0 | -324.7 | |
| 0.00 | 1.24 | 0.00 | 0.80 | -9.69 | 245.33 | -36.19 | 114.40 | 0.6415 | 504.0 | 386.7 | |
| 0.00 | 0.62 | 0.00 | 0.40 | -9.50 | 244.93 | -36.59 | 113.89 | 0.6453 | 720.0 | 525.1 | |
| 16.54 | 64.91 | 10.73 | 42.05 | -9.03 | 244.46 | -37.06 | 112.95 | 0.6487 | 1010.5 | 518.6 | |
| 0.53 | 1.59 | 0.35 | 1.06 | -12.32 | 243.90 | -37.62 | 117.17 | 0.6727 | 551.3 | 426.1 | |
| 48.11 | 576.35 | 31.74 | 384.49 | -10.91 | 244.09 | -37.44 | 115.37 | 0.6629 | 1122.9 | 308.2 | |
| 0.00 | 0.97 | 0.00 | 0.65 | -12.40 | 243.61 | -37.91 | 117.11 | 0.6765 | 541.0 | 388.1 | |
| 0.00 | 1.95 | 0.00 | 1.31 | -12.73 | 243.51 | -38.01 | 117.48 | 0.6794 | -453.0 | -556.7 | |
| 19.01 | -14.00 | 12.65 | -14.00 | -10.65 | 243.39 | -38.13 | 114.59 | 0.6697 | 931.8 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.72 | -12.31 | 243.12 | -38.41 | 116.69 | 0.6816 | 279.0 | 311.9 | |
| 8.84 | -14.00 | 5.91 | -14.00 | -11.01 | 243.25 | -38.27 | 115.01 | 0.6731 | 770.2 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.54 | -12.21 | 242.82 | -38.70 | 116.37 | 0.6844 | 271.0 | 160.3 | |
| 0.00 | 0.35 | 0.00 | 0.25 | -15.99 | 242.03 | -39.49 | 120.77 | 0.7138 | 317.0 | 357.0 | |
| 3.10 | -14.00 | 2.07 | -14.00 | -10.87 | 243.00 | -38.52 | 114.67 | 0.6754 | 700.7 | 999999 | |
| 0.88 | -14.00 | 0.59 | -14.00 | -10.49 | 242.98 | -38.54 | 114.14 | 0.6737 | 606.6 | 999999 | |
| 10.88 | -14.00 | 7.32 | -14.00 | -11.11 | 242.81 | -38.71 | 114.88 | 0.6788 | 716.6 | 999999 | |
| 7.25 | 12.29 | 5.16 | 8.76 | -16.17 | 241.46 | -40.06 | 120.64 | 0.7207 | 685.0 | 424.0 | |
| 0.00 | 0.97 | 0.00 | 0.66 | -12.23 | 242.22 | -39.30 | 116.04 | 0.6913 | 566.0 | 454.1 | |
| 0.00 | 1.33 | 0.00 | 0.90 | -11.75 | 242.26 | -39.26 | 115.43 | 0.6883 | 566.0 | 476.0 | |
| 0.00 | 1.06 | 0.00 | 0.73 | -12.24 | 242.02 | -39.50 | 115.94 | 0.6937 | 469.0 | 344.8 | |
| 0.00 | 1.50 | 0.00 | 1.03 | -11.70 | 242.03 | -39.49 | 115.24 | 0.6907 | 514.0 | 473.6 | |
| 0.00 | 0.88 | 0.00 | 0.64 | -16.47 | 241.01 | -40.51 | 120.73 | 0.7270 | 542.0 | 502.8 | |
| 0.00 | 1.06 | 0.00 | 0.72 | -11.55 | 242.02 | -39.50 | 115.02 | 0.6901 | 435.0 | 360.5 | |
| 0.53 | -14.00 | 0.36 | -14.00 | -10.75 | 242.11 | -39.41 | 114.01 | 0.6851 | 602.8 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.55 | -12.13 | 241.80 | -39.72 | 115.67 | 0.6956 | 521.0 | 356.1 | |
| 0.00 | 1.24 | 0.00 | 0.82 | -8.17 | 242.31 | -39.21 | 110.56 | 0.6706 | 705.0 | 594.1 | |
| 0.00 | 0.97 | 0.00 | 0.65 | -7.77 | 242.28 | -39.24 | 109.98 | 0.6692 | 558.0 | 514.6 | |
| 1.24 | 9.11 | 0.85 | 6.26 | -11.83 | 241.65 | -39.87 | 115.19 | 0.6957 | 482.3 | 72.6 | |
| 2.39 | -14.00 | 1.63 | -14.00 | -11.10 | 241.74 | -39.78 | 114.26 | 0.6911 | 583.8 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.53 | -8.37 | 242.13 | -39.39 | 110.75 | 0.6737 | 536.0 | 423.3 | |
| 0.00 | 0.97 | 0.00 | 0.65 | -8.06 | 242.17 | -39.35 | 110.33 | 0.6718 | 637.0 | 567.1 | |
| 2.30 | -14.00 | 1.57 | -14.00 | -10.56 | 241.70 | -39.82 | 113.53 | 0.6889 | 622.8 | 999999 | |
| 3.01 | -14.00 | 2.05 | -14.00 | -10.79 | 241.63 | -39.89 | 113.79 | 0.6909 | 640.3 | 999999 | |
| 0.00 | 2.39 | 0.00 | 1.65 | -12.29 | 241.36 | -40.16 | 115.64 | 0.7013 | 569.0 | 486.0 | |
| 0.00 | 0.62 | 0.00 | 0.43 | -11.73 | 240.90 | -40.62 | 114.65 | 0.7037 | 683.0 | 544.3 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -11.90 | 240.79 | -40.73 | 114.81 | 0.7057 | 428.0 | 433.0 | |
| 0.00 | 0.80 | 0.00 | 0.55 | -11.71 | 240.74 | -40.78 | 114.54 | 0.7054 | 609.0 | 507.3 | |
| 0.00 | 1.15 | 0.00 | 0.80 | -11.17 | 240.76 | -40.77 | 113.84 | 0.7026 | -202.0 | -139.9 | |
| 0.00 | 1.24 | 0.00 | 0.88 | -12.78 | 240.04 | -41.48 | 115.55 | 0.7182 | 487.0 | 320.1 | |
| 3.98 | 26.09 | 2.79 | 18.38 | -11.13 | 240.15 | -41.37 | 113.46 | 0.7092 | 670.1 | 30.6 | |
| 0.00 | 0.71 | 0.00 | 0.49 | -10.62 | 240.20 | -41.32 | 112.82 | 0.7064 | 363.0 | 261.9 | |
| 0.00 | 1.15 | 0.00 | 0.86 | -16.45 | 238.87 | -42.65 | 119.47 | 0.7486 | -640.0 | -501.8 | |
| 0.00 | 1.15 | 0.00 | 0.84 | -14.97 | 239.13 | -42.39 | 117.81 | 0.7386 | -704.0 | -596.8 | |
| 0.00 | 0.71 | 0.00 | 0.50 | -9.88 | 239.29 | -42.23 | 111.39 | 0.7134 | -635.0 | -582.2 | |
| 0.00 | 0.97 | 0.00 | 0.70 | -12.06 | 238.86 | -42.66 | 114.00 | 0.7278 | 577.0 | 438.2 | |
| 0.00 | 0.71 | 0.00 | 0.51 | -12.22 | 238.82 | -42.70 | 114.19 | 0.7289 | 388.0 | 311.9 | |
| 0.00 | 1.59 | 0.00 | 1.13 | -10.63 | 239.04 | -42.48 | 112.24 | 0.7194 | -743.0 | -655.4 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -10.98 | 238.98 | -42.54 | 112.67 | 0.7216 | 337.0 | 416.7 | |
| 0.00 | 0.88 | 0.00 | 0.63 | -11.03 | 238.76 | -42.76 | 112.63 | 0.7243 | 351.0 | 234.8 | |
| 0.00 | 13.27 | 0.00 | 9.56 | -11.49 | 238.55 | -42.97 | 113.11 | 0.7286 | -42.0 | -119.5 | |
| 0.00 | 1.24 | 0.00 | 0.87 | -8.91 | 238.99 | -42.53 | 109.96 | 0.7129 | -654.0 | -630.9 | |
| 0.00 | 0.88 | 0.00 | 0.63 | -9.33 | 238.84 | -42.68 | 110.44 | 0.7162 | -657.0 | -552.6 | |
| 0.00 | 1.24 | 0.00 | 0.91 | -12.76 | 238.12 | -43.40 | 114.52 | 0.7389 | 483.0 | 363.9 | |
| 0.00 | 1.33 | 0.00 | 0.96 | -11.68 | 238.13 | -43.39 | 113.16 | 0.7340 | -379.0 | -378.4 | |
| 0.00 | 1.06 | 0.00 | 0.77 | -11.27 | 238.08 | -43.44 | 112.62 | 0.7328 | -580.0 | -487.5 | |
| 0.00 | 0.80 | 0.00 | 0.58 | -12.08 | 237.92 | -43.60 | 113.56 | 0.7380 | -386.0 | -356.3 | |
| 0.00 | 1.24 | 0.00 | 0.92 | -13.05 | 237.63 | -43.90 | 114.64 | 0.7454 | -669.0 | -518.7 | |
| 0.00 | 0.80 | 0.00 | 0.57 | -9.35 | 238.17 | -43.35 | 110.17 | 0.7240 | -745.0 | -635.8 | |
| 2.83 | 7.43 | 2.04 | 5.35 | -9.93 | 237.99 | -43.53 | 110.84 | 0.7283 | -810.8 | -687.1 | |
| 8.49 | 29.72 | 6.30 | 21.96 | -12.42 | 237.25 | -44.27 | 113.67 | 0.7466 | -903.1 | -628.4 | |
| 0.00 | 0.62 | 0.00 | 0.46 | -11.56 | 237.34 | -44.18 | 112.63 | 0.7420 | -686.0 | -619.3 | |
| 0.00 | 1.24 | 0.00 | 0.90 | -10.47 | 237.51 | -44.01 | 111.33 | 0.7358 | -822.0 | -650.1 | |
| 0.00 | 2.03 | 0.00 | 1.50 | -11.82 | 237.20 | -44.32 | 112.90 | 0.7446 | -619.0 | -542.8 | |
| 0.00 | 1.06 | 0.00 | 0.78 | -11.37 | 237.30 | -44.23 | 112.37 | 0.7418 | -545.0 | -467.8 | |
| 0.00 | 1.06 | 0.00 | 0.78 | -10.13 | 237.19 | -44.33 | 110.73 | 0.7379 | -670.0 | -565.8 | |
| 2.21 | 394.96 | 1.64 | 301.33 | -10.19 | 236.44 | -45.08 | 110.49 | 0.7463 | -879.8 | -345.2 | |
| 0.00 | 0.88 | 0.00 | 0.68 | -14.07 | 235.58 | -45.94 | 114.90 | 0.7708 | -657.0 | -616.1 | |
| 0.88 | 7.16 | 0.69 | 5.57 | -14.43 | 235.44 | -46.08 | 115.27 | 0.7737 | -311.0 | -224.0 | |
| 0.00 | 0.44 | 0.00 | 0.35 | -15.69 | 234.99 | -46.54 | 116.56 | 0.7834 | 294.0 | 237.6 | |
| 0.00 | 2.21 | 0.00 | 1.73 | -14.60 | 235.30 | -46.22 | 115.41 | 0.7758 | 41.0 | 116.7 | |
| 0.00 | 3.98 | 0.00 | 3.06 | -13.08 | 235.56 | -45.96 | 113.69 | 0.7669 | -425.0 | -487.8 | |
| 1.42 | -74.00 | 1.07 | -74.00 | -11.26 | 235.75 | -45.77 | 111.53 | 0.7578 | -798.8 | 999999 | |
| 0.00 | 1.33 | 0.00 | 1.02 | -12.79 | 235.23 | -46.29 | 113.19 | 0.7692 | -585.0 | -425.1 | |
| 0.27 | -74.00 | 0.20 | -74.00 | -10.29 | 235.72 | -45.80 | 110.30 | 0.7544 | -1095.0 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.49 | -13.91 | 234.86 | -46.67 | 114.37 | 0.7774 | 261.0 | 174.9 | |
| 0.00 | 0.80 | 0.00 | 0.59 | -7.67 | 236.07 | -45.45 | 107.10 | 0.7413 | -601.0 | -596.6 | |
| 0.00 | 1.15 | 0.00 | 0.88 | -12.16 | 235.20 | -46.32 | 112.40 | 0.7670 | -644.0 | -554.9 | |
| 1.95 | 109.40 | 1.51 | 86.17 | -12.65 | 234.99 | -46.53 | 112.91 | 0.7710 | -717.4 | -363.9 | |
| 74.02 | -74.00 | 56.51 | -74.00 | -10.66 | 235.03 | -46.49 | 110.48 | 0.7631 | -917.3 | 999999 | |
| 4.42 | -86.00 | 3.44 | -86.00 | -12.30 | 234.67 | -46.85 | 112.35 | 0.7730 | -828.7 | 999999 | |
| 0.00 | 2.12 | 0.00 | 1.58 | -7.29 | 235.47 | -46.06 | 106.38 | 0.7467 | -622.0 | -498.3 | |
| 8.49 | -86.00 | 6.65 | -86.00 | -12.56 | 234.34 | -47.18 | 112.51 | 0.7773 | -797.3 | 999999 | |
| 4.60 | -86.00 | 3.59 | -86.00 | -12.05 | 234.37 | -47.15 | 111.90 | 0.7751 | -757.4 | 999999 | |
| 3.63 | -86.00 | 2.85 | -86.00 | -12.16 | 234.11 | -47.41 | 111.94 | 0.7781 | -507.0 | 999999 | |
| 2.48 | -86.00 | 1.95 | -86.00 | -12.36 | 234.02 | -47.50 | 112.14 | 0.7798 | -412.4 | 999999 | |
| 1.68 | -86.00 | 1.34 | -86.00 | -13.02 | 233.81 | -47.71 | 112.84 | 0.7843 | -563.9 | 999999 | |
| 0.00 | 3.18 | 0.00 | 2.53 | -12.46 | 233.63 | -47.89 | 112.09 | 0.7841 | -282.0 | -209.5 | |
| 0.00 | 1.42 | 0.00 | 1.13 | -12.66 | 233.58 | -47.94 | 112.31 | 0.7853 | 5.0 | -62.2 | |
| 0.88 | -74.00 | 0.69 | -74.00 | -10.70 | 233.94 | -47.58 | 110.08 | 0.7746 | -77.1 | 999999 | |
| 1.59 | -74.00 | 1.25 | -74.00 | -10.87 | 233.77 | -47.76 | 110.22 | 0.7770 | 207.4 | 999999 | |
| 0.00 | 1.42 | 0.00 | 1.13 | -12.36 | 233.33 | -48.19 | 111.85 | 0.7867 | -304.0 | -239.9 | |
| 1.24 | -74.00 | 0.97 | -74.00 | -10.35 | 233.65 | -47.87 | 109.53 | 0.7764 | -465.5 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -10.12 | 232.44 | -49.08 | 108.79 | 0.7880 | -438.0 | -381.3 | |
| 0.00 | 0.97 | 0.00 | 0.80 | -12.24 | 231.66 | -49.86 | 111.03 | 0.8027 | -336.0 | -338.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
