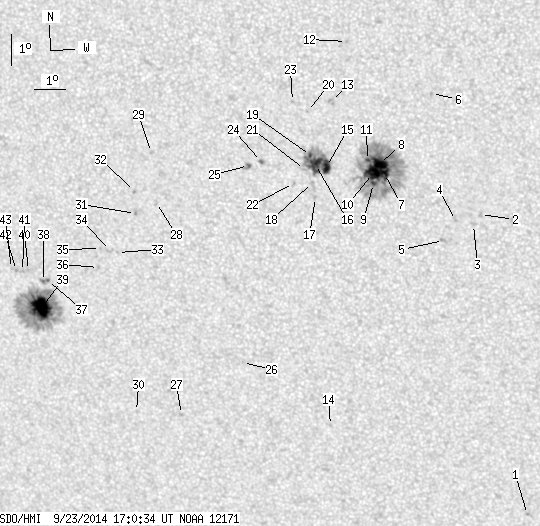

SDO HMI 2014-09-23 17:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 93.10 | 453.11 | 50.31 | 246.04 | -10.63 | 265.36 | -15.61 | 139.66 | 0.4009 | 241.0 | 112.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-23 17:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.64 | -19.88 | 274.15 | -6.82 | 166.10 | 0.4669 | 778.0 | 667.6 | |
| 0.00 | 2.39 | 0.00 | 1.25 | -10.15 | 273.02 | -7.95 | 155.14 | 0.3253 | 742.0 | 551.1 | |
| 0.00 | 2.21 | 0.00 | 1.16 | -10.46 | 272.80 | -8.17 | 154.95 | 0.3316 | 652.0 | 492.7 | |
| 0.00 | 0.80 | 0.00 | 0.42 | -10.35 | 272.24 | -8.73 | 153.32 | 0.3338 | 723.0 | 611.7 | |
| 0.00 | 2.56 | 0.00 | 1.35 | -10.99 | 271.85 | -9.12 | 153.16 | 0.3461 | 750.0 | 630.8 | |
| 0.00 | 1.50 | 0.00 | 0.78 | -6.40 | 271.60 | -9.37 | 144.92 | 0.2827 | 828.0 | 704.1 | |
| 6.63 | 201.44 | 3.48 | 105.72 | -8.92 | 270.09 | -10.88 | 145.59 | 0.3314 | 1168.9 | 395.3 | |
| 14.06 | -7.00 | 7.37 | -7.00 | -8.61 | 269.94 | -11.03 | 144.69 | 0.3286 | 1480.0 | 999999 | |
| 2.12 | -7.00 | 1.12 | -7.00 | -9.24 | 269.74 | -11.23 | 145.28 | 0.3391 | 804.3 | 999999 | |
| 16.71 | -7.00 | 8.78 | -7.00 | -8.93 | 269.72 | -11.25 | 144.70 | 0.3351 | 1139.0 | 999999 | |
| 1.68 | -7.00 | 0.88 | -7.00 | -8.52 | 269.57 | -11.40 | 143.64 | 0.3310 | 822.8 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -4.85 | 269.02 | -11.95 | 134.53 | 0.2907 | 947.0 | 773.2 | |
| 0.00 | 3.63 | 0.00 | 1.89 | -6.72 | 268.51 | -12.46 | 137.58 | 0.3190 | 714.0 | 610.3 | |
| 0.00 | 0.71 | 0.00 | 0.39 | -17.04 | 267.97 | -13.00 | 152.01 | 0.4601 | 747.0 | 510.0 | |
| 7.78 | 51.47 | 4.11 | 27.18 | -8.74 | 268.29 | -12.68 | 141.07 | 0.3467 | 1257.5 | 689.2 | |
| 12.91 | -15.00 | 6.82 | -15.00 | -8.69 | 267.95 | -13.02 | 140.22 | 0.3496 | 1020.7 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -9.72 | 267.91 | -13.06 | 141.98 | 0.3631 | 787.0 | 644.7 | |
| 0.00 | 1.33 | 0.00 | 0.70 | -9.26 | 267.83 | -13.13 | 141.00 | 0.3579 | 891.0 | 610.0 | |
| 1.50 | -15.00 | 0.79 | -15.00 | -8.41 | 267.80 | -13.16 | 139.39 | 0.3476 | 1049.9 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -7.05 | 267.76 | -13.21 | 136.57 | 0.3314 | 709.0 | 529.9 | |
| 0.00 | 1.33 | 0.00 | 0.70 | -8.86 | 267.60 | -13.37 | 139.78 | 0.3553 | 445.0 | 368.9 | |
| 0.00 | 1.86 | 0.00 | 0.99 | -9.30 | 267.24 | -13.73 | 139.83 | 0.3647 | 498.0 | 369.2 | |
| 0.00 | 1.24 | 0.00 | 0.65 | -6.75 | 267.30 | -13.67 | 134.96 | 0.3332 | 863.0 | 624.5 | |
| 0.44 | 2.03 | 0.24 | 1.08 | -8.64 | 266.26 | -14.71 | 136.65 | 0.3673 | -954.0 | -745.5 | |
| 0.97 | 4.42 | 0.52 | 2.36 | -8.78 | 265.84 | -15.12 | 136.10 | 0.3735 | 993.5 | 684.2 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -15.07 | 265.28 | -15.69 | 144.89 | 0.4560 | 715.0 | 555.7 | |
| 0.00 | 1.50 | 0.00 | 0.86 | -16.84 | 263.13 | -17.84 | 143.67 | 0.4970 | 519.0 | 454.4 | |
| 0.00 | 2.21 | 0.00 | 1.21 | -10.05 | 262.85 | -18.12 | 133.18 | 0.4217 | -776.0 | -614.9 | |
| 0.00 | 1.86 | 0.00 | 1.01 | -8.48 | 262.78 | -18.19 | 130.22 | 0.4061 | -679.0 | -441.4 | |
| 0.00 | 0.97 | 0.00 | 0.56 | -16.80 | 261.64 | -19.33 | 141.41 | 0.5101 | 617.0 | 441.5 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -10.42 | 262.15 | -18.82 | 132.74 | 0.4337 | -996.0 | -894.8 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -9.73 | 262.16 | -18.81 | 131.55 | 0.4263 | -795.0 | -658.1 | |
| 0.00 | 0.44 | 0.00 | 0.25 | -11.68 | 261.48 | -19.49 | 133.83 | 0.4548 | -676.0 | -586.6 | |
| 0.00 | 2.56 | 0.00 | 1.43 | -11.63 | 261.26 | -19.71 | 133.41 | 0.4567 | -519.0 | -542.6 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -11.58 | 260.93 | -20.04 | 132.86 | 0.4598 | -657.0 | -489.0 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -12.18 | 260.82 | -20.15 | 133.67 | 0.4675 | -845.0 | -604.9 | |
| 0.62 | 4.86 | 0.35 | 2.77 | -12.68 | 259.09 | -21.88 | 132.09 | 0.4918 | -925.1 | -783.4 | |
| 0.53 | -37.00 | 0.30 | -37.00 | -12.71 | 258.96 | -22.01 | 131.97 | 0.4937 | -977.2 | 999999 | |
| 27.15 | 146.08 | 15.55 | 83.77 | -13.55 | 258.81 | -22.16 | 133.04 | 0.5038 | -1288.7 | -349.2 | |
| 0.00 | 1.15 | 0.00 | 0.65 | -12.39 | 258.49 | -22.48 | 130.86 | 0.4958 | -791.0 | -647.8 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -12.43 | 258.28 | -22.69 | 130.67 | 0.4985 | -940.0 | -773.3 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -12.41 | 258.09 | -22.88 | 130.38 | 0.5006 | -812.0 | -692.4 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -12.35 | 257.92 | -23.05 | 130.10 | 0.5019 | -695.0 | -561.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
