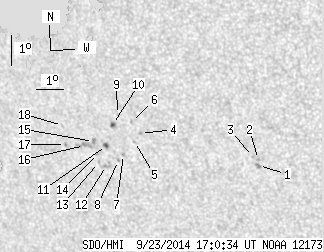

SDO HMI 2014-09-23 17:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.39 | 33.62 | 1.56 | 21.97 | -15.27 | 246.60 | -34.37 | 123.43 | 0.6543 | -336.5 | -351.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-23 17:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.48 | 0.00 | 1.53 | -15.49 | 251.62 | -29.35 | 127.89 | 0.6008 | 786.0 | 651.6 | |
| 0.00 | 1.06 | 0.00 | 0.66 | -15.30 | 251.65 | -29.32 | 127.66 | 0.5989 | 673.0 | 627.2 | |
| 0.00 | 1.24 | 0.00 | 0.77 | -15.21 | 251.44 | -29.52 | 127.35 | 0.6004 | 731.0 | 653.4 | |
| 0.00 | 0.88 | 0.00 | 0.57 | -14.74 | 247.43 | -33.54 | 123.28 | 0.6416 | -783.0 | -680.7 | |
| 0.00 | 0.97 | 0.00 | 0.63 | -15.01 | 247.15 | -33.82 | 123.44 | 0.6465 | -555.0 | -561.5 | |
| 0.00 | 1.06 | 0.00 | 0.68 | -14.40 | 247.15 | -33.82 | 122.62 | 0.6424 | -644.0 | -562.9 | |
| 0.00 | 1.24 | 0.00 | 0.81 | -15.47 | 246.65 | -34.32 | 123.66 | 0.6551 | -774.0 | -619.3 | |
| 0.00 | 1.33 | 0.00 | 0.87 | -15.68 | 246.42 | -34.55 | 123.76 | 0.6591 | -651.0 | -515.5 | |
| 0.00 | 0.53 | 0.00 | 0.34 | -14.18 | 246.66 | -34.31 | 121.95 | 0.6464 | -708.0 | -647.8 | |
| 1.15 | 2.30 | 0.75 | 1.50 | -14.52 | 246.41 | -34.56 | 122.22 | 0.6514 | -827.2 | -728.8 | |
| 1.24 | 2.21 | 0.81 | 1.45 | -15.22 | 246.05 | -34.92 | 122.89 | 0.6600 | -773.1 | -644.0 | |
| 0.00 | 4.78 | 0.00 | 3.16 | -15.88 | 245.92 | -35.05 | 123.65 | 0.6658 | -496.0 | -492.9 | |
| 0.00 | 0.80 | 0.00 | 0.53 | -15.80 | 245.63 | -35.34 | 123.34 | 0.6685 | -467.0 | -373.0 | |
| 0.00 | 1.24 | 0.00 | 0.82 | -15.51 | 245.65 | -35.32 | 122.97 | 0.6663 | -638.0 | -587.0 | |
| 0.00 | 2.48 | 0.00 | 1.64 | -15.13 | 245.57 | -35.40 | 122.41 | 0.6646 | -815.0 | -720.8 | |
| 0.00 | 6.72 | 0.00 | 4.47 | -15.28 | 245.20 | -35.77 | 122.35 | 0.6698 | -785.0 | -617.1 | |
| 0.00 | 1.06 | 0.00 | 0.71 | -15.31 | 244.46 | -36.51 | 121.86 | 0.6780 | 153.0 | 90.6 | |
| 0.00 | 1.24 | 0.00 | 0.83 | -14.69 | 244.46 | -36.51 | 121.06 | 0.6741 | 310.0 | 337.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
