SDO HMI 2014-09-23 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.04 | 31.12 | 1.32 | 20.25 | -15.25 | 246.40 | -34.02 | 123.65 | 0.6503 | -492.6 | -453.0 | |
|
previous
or next observation for the same group /

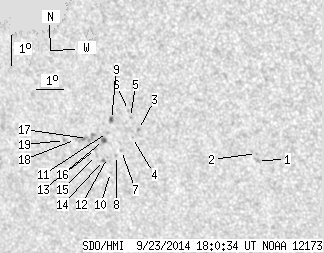

back to the solar disc SDO HMI 2014-09-23 18:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.12 | 0.00 | 1.31 | -15.52 | 251.60 | -28.82 | 128.44 | 0.5952 | 841.0 | 673.9 | |
| 0.00 | 0.88 | 0.00 | 0.54 | -15.29 | 251.60 | -28.82 | 128.13 | 0.5933 | 763.0 | 635.5 | |
| 0.00 | 1.24 | 0.00 | 0.79 | -14.79 | 247.39 | -33.03 | 123.77 | 0.6362 | -799.0 | -681.8 | |
| 0.00 | 0.62 | 0.00 | 0.40 | -15.07 | 247.12 | -33.30 | 123.92 | 0.6412 | -637.0 | -544.0 | |
| 0.00 | 0.80 | 0.00 | 0.51 | -14.42 | 247.16 | -33.26 | 123.08 | 0.6362 | -655.0 | -542.8 | |
| 0.00 | 0.71 | 0.00 | 0.45 | -14.20 | 247.12 | -33.30 | 122.75 | 0.6351 | -774.0 | -643.6 | |
| 0.00 | 0.80 | 0.00 | 0.52 | -15.52 | 246.62 | -33.80 | 124.14 | 0.6498 | -807.0 | -702.8 | |
| 0.00 | 1.15 | 0.00 | 0.75 | -15.70 | 246.40 | -34.02 | 124.20 | 0.6535 | -713.0 | -563.1 | |
| 0.80 | 2.56 | 0.51 | 1.66 | -14.54 | 246.43 | -33.99 | 122.68 | 0.6452 | -890.2 | -737.8 | |
| 0.00 | 0.35 | 0.00 | 0.23 | -16.28 | 246.06 | -34.36 | 124.69 | 0.6612 | -539.0 | -488.0 | |
| 0.00 | 1.24 | 0.00 | 0.81 | -14.97 | 246.20 | -34.22 | 123.08 | 0.6507 | -742.0 | -649.6 | |
| 0.00 | 0.62 | 0.00 | 0.41 | -15.79 | 246.04 | -34.38 | 124.04 | 0.6580 | -669.0 | -565.6 | |
| 1.24 | 3.09 | 0.81 | 2.02 | -15.25 | 245.99 | -34.42 | 123.29 | 0.6548 | -852.5 | -670.9 | |
| 0.00 | 1.24 | 0.00 | 0.81 | -15.90 | 245.87 | -34.55 | 124.06 | 0.6606 | -640.0 | -491.4 | |
| 0.00 | 1.41 | 0.00 | 0.93 | -15.76 | 245.63 | -34.79 | 123.69 | 0.6622 | -426.0 | -333.3 | |
| 0.00 | 1.68 | 0.00 | 1.11 | -15.56 | 245.63 | -34.79 | 123.43 | 0.6609 | -697.0 | -514.9 | |
| 0.00 | 8.05 | 0.00 | 5.30 | -15.22 | 245.39 | -35.03 | 122.81 | 0.6613 | -557.0 | -652.2 | |
| 0.00 | 1.06 | 0.00 | 0.70 | -15.29 | 244.92 | -35.50 | 122.56 | 0.6669 | -594.0 | -499.6 | |
| 0.00 | 1.50 | 0.00 | 1.00 | -15.36 | 244.48 | -35.94 | 122.33 | 0.6720 | -235.0 | -75.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
