SDO HMI 2014-09-23 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.50 | 182.02 | 25.48 | 91.78 | 8.63 | 289.29 | 9.43 | 271.27 | 0.1823 | -331.8 | -225.5 | |
|
previous
or next observation for the same group /

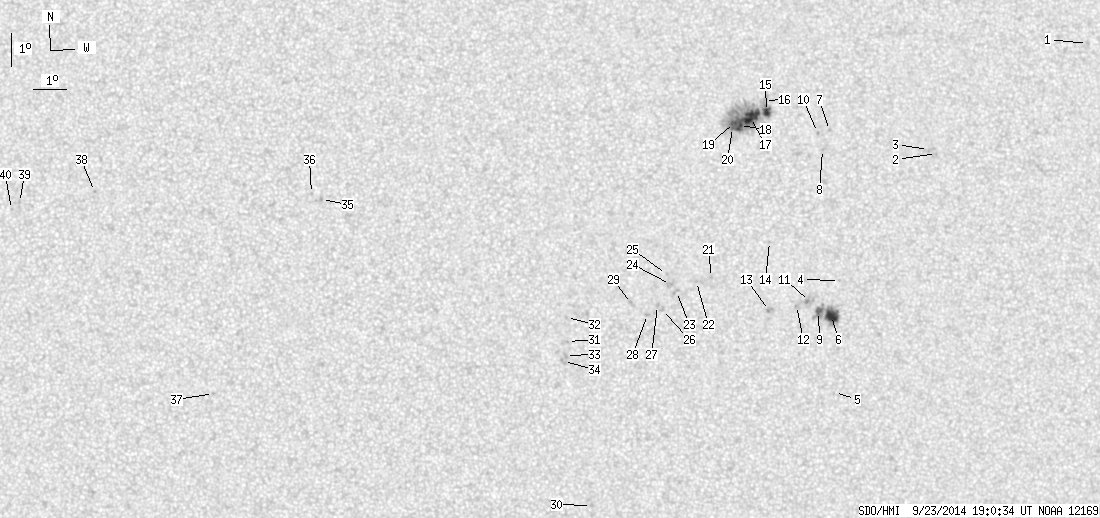

back to the solar disc SDO HMI 2014-09-23 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.50 | 0.00 | 0.80 | 13.02 | 300.67 | 20.81 | 287.98 | 0.3655 | -741.0 | -668.6 | |
| 0.00 | 0.88 | 0.00 | 0.46 | 9.89 | 295.58 | 15.71 | 281.59 | 0.2735 | -756.0 | -623.3 | |
| 0.00 | 3.18 | 0.00 | 1.64 | 10.02 | 295.33 | 15.46 | 282.21 | 0.2699 | -468.0 | -430.0 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 6.17 | 292.40 | 12.54 | 266.85 | 0.2171 | -670.0 | -498.3 | |
| 0.00 | 0.35 | 0.00 | 0.18 | 2.80 | 292.18 | 12.32 | 251.66 | 0.2255 | 618.0 | 540.2 | |
| 11.94 | 33.51 | 6.05 | 16.99 | 5.12 | 292.13 | 12.26 | 261.87 | 0.2147 | -1133.9 | -746.8 | |
| 0.00 | 1.50 | 0.00 | 0.76 | 10.69 | 292.24 | 12.38 | 287.61 | 0.2220 | -858.0 | -634.2 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 10.12 | 292.00 | 12.14 | 285.37 | 0.2156 | -861.0 | -740.5 | |
| 2.74 | -6.00 | 1.39 | -6.00 | 5.25 | 291.73 | 11.86 | 262.18 | 0.2076 | -1182.2 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 10.64 | 291.86 | 12.00 | 287.85 | 0.2156 | -871.0 | -750.9 | |
| 0.00 | 3.27 | 0.00 | 1.65 | 5.56 | 291.46 | 11.59 | 263.48 | 0.2022 | -907.0 | -782.4 | |
| 0.00 | 1.24 | 0.00 | 0.63 | 5.45 | 291.06 | 11.19 | 262.64 | 0.1957 | -850.0 | -747.6 | |
| 0.00 | 2.74 | 0.00 | 1.38 | 5.32 | 290.22 | 10.36 | 261.25 | 0.1820 | -914.0 | -834.7 | |
| 0.00 | 0.88 | 0.00 | 0.45 | 7.40 | 290.27 | 10.40 | 272.76 | 0.1801 | 745.0 | 560.9 | |
| 5.31 | 87.45 | 2.68 | 44.05 | 11.31 | 290.30 | 10.43 | 293.40 | 0.1944 | -983.1 | -550.3 | |
| 0.00 | 6.45 | 0.00 | 3.26 | 11.64 | 290.25 | 10.38 | 295.08 | 0.1958 | -130.0 | -212.0 | |
| 18.39 | -15.00 | 9.27 | -15.00 | 11.14 | 289.79 | 9.93 | 293.54 | 0.1854 | -1209.7 | 999999 | |
| 6.37 | -15.00 | 3.20 | -15.00 | 10.90 | 289.44 | 9.58 | 293.05 | 0.1784 | -1295.9 | 999999 | |
| 4.42 | -15.00 | 2.22 | -15.00 | 11.00 | 289.29 | 9.43 | 293.85 | 0.1766 | -1262.1 | 999999 | |
| 1.33 | -15.00 | 0.67 | -15.00 | 10.85 | 289.22 | 9.36 | 293.20 | 0.1746 | -1177.9 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 6.35 | 288.46 | 8.60 | 266.07 | 0.1497 | 633.0 | 589.8 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 6.24 | 288.00 | 8.14 | 265.01 | 0.1419 | 793.0 | 639.3 | |
| 0.00 | 2.65 | 0.00 | 1.33 | 5.95 | 287.39 | 7.52 | 262.34 | 0.1320 | 676.0 | 613.6 | |
| 0.00 | 4.69 | 0.00 | 2.34 | 6.16 | 287.21 | 7.34 | 263.78 | 0.1284 | 892.0 | 722.3 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 6.47 | 287.09 | 7.23 | 266.06 | 0.1259 | 818.0 | 716.7 | |
| 0.00 | 2.39 | 0.00 | 1.19 | 5.42 | 286.96 | 7.09 | 257.62 | 0.1264 | 716.0 | 648.0 | |
| 0.00 | 1.95 | 0.00 | 0.97 | 5.54 | 286.80 | 6.94 | 258.32 | 0.1234 | 1049.0 | 794.7 | |
| 0.00 | 2.03 | 0.00 | 1.01 | 5.27 | 286.50 | 6.63 | 255.58 | 0.1193 | 1061.0 | 747.3 | |
| 0.00 | 3.54 | 0.00 | 1.76 | 5.61 | 286.01 | 6.15 | 257.42 | 0.1098 | 842.0 | 667.6 | |
| 0.00 | 1.41 | 0.00 | 0.71 | -0.47 | 284.77 | 4.91 | 213.39 | 0.1561 | 762.0 | 547.9 | |
| 0.00 | 0.97 | 0.00 | 0.48 | 4.49 | 284.07 | 4.20 | 239.11 | 0.0855 | 1005.0 | 857.4 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 5.21 | 284.04 | 4.18 | 246.79 | 0.0793 | 913.0 | 667.8 | |
| 0.00 | 2.65 | 0.00 | 1.32 | 4.07 | 284.00 | 4.14 | 234.66 | 0.0886 | 1082.0 | 810.6 | |
| 0.00 | 3.27 | 0.00 | 1.63 | 3.89 | 283.94 | 4.08 | 232.62 | 0.0897 | 691.0 | 718.1 | |
| 0.00 | 1.50 | 0.00 | 0.75 | 8.78 | 276.62 | -3.24 | 61.03 | 0.0642 | 1065.0 | 817.0 | |
| 0.00 | 1.24 | 0.00 | 0.61 | 8.96 | 276.31 | -3.55 | 60.85 | 0.0704 | 816.0 | 516.9 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 2.91 | 273.38 | -6.48 | 122.11 | 0.1337 | 980.0 | 770.9 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 8.93 | 269.66 | -10.21 | 78.59 | 0.1794 | 792.0 | 677.2 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 8.55 | 267.34 | -12.52 | 82.14 | 0.2174 | 998.0 | 817.6 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 8.33 | 267.10 | -12.76 | 83.24 | 0.2211 | 767.0 | 668.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
