SDO HMI 2014-09-23 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89.29 | 459.26 | 48.28 | 247.76 | -10.55 | 265.51 | -14.35 | 142.17 | 0.3873 | 233.4 | 151.3 | |
|
previous
or next observation for the same group /

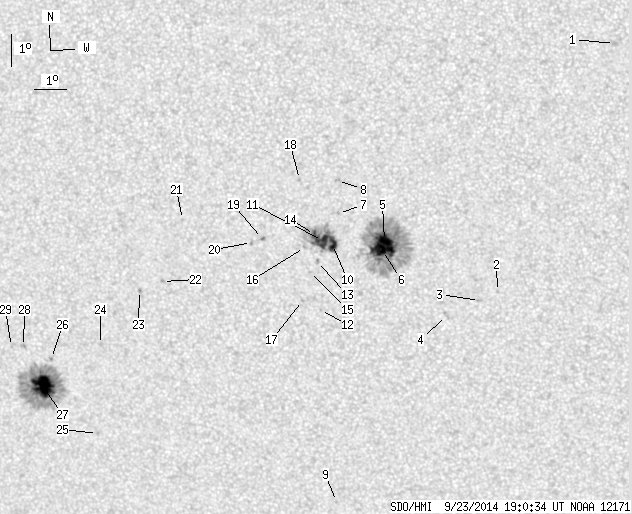

back to the solar disc SDO HMI 2014-09-23 19:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.74 | 0.00 | 1.38 | -2.45 | 277.03 | -2.83 | 163.27 | 0.1723 | 877.0 | 655.5 | |
| 0.00 | 1.24 | 0.00 | 0.65 | -10.15 | 273.39 | -6.47 | 159.35 | 0.3159 | 746.0 | 549.9 | |
| 0.00 | 1.86 | 0.00 | 0.97 | -10.44 | 272.83 | -7.03 | 158.07 | 0.3237 | 726.0 | 570.9 | |
| 0.00 | 2.65 | 0.00 | 1.40 | -10.93 | 271.80 | -8.06 | 155.83 | 0.3378 | 586.0 | 553.9 | |
| 12.20 | 210.18 | 6.37 | 109.88 | -8.61 | 269.95 | -9.91 | 147.53 | 0.3184 | 1537.1 | 416.7 | |
| 21.93 | -5.00 | 11.47 | -5.00 | -8.92 | 269.88 | -9.98 | 147.87 | 0.3234 | 1206.6 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -7.80 | 268.55 | -11.31 | 142.50 | 0.3206 | 844.0 | 666.3 | |
| 0.00 | 2.21 | 0.00 | 1.15 | -6.77 | 268.55 | -11.31 | 140.46 | 0.3073 | 727.0 | 680.6 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -17.00 | 268.06 | -11.80 | 154.19 | 0.4512 | 523.0 | 451.4 | |
| 8.13 | 60.21 | 4.28 | 31.66 | -8.77 | 268.34 | -11.53 | 143.77 | 0.3356 | 1259.0 | 600.1 | |
| 11.58 | -10.00 | 6.09 | -10.00 | -8.65 | 268.03 | -11.83 | 142.84 | 0.3371 | 1082.8 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -10.85 | 267.89 | -11.98 | 146.17 | 0.3677 | 736.0 | 631.1 | |
| 0.00 | 2.03 | 0.00 | 1.07 | -9.31 | 267.85 | -12.01 | 143.59 | 0.3475 | 724.0 | 553.9 | |
| 2.12 | -10.00 | 1.12 | -10.00 | -8.47 | 267.79 | -12.08 | 141.94 | 0.3371 | 1068.9 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.28 | -9.63 | 267.62 | -12.24 | 143.61 | 0.3539 | 621.0 | 630.8 | |
| 0.00 | 1.50 | 0.00 | 0.79 | -8.88 | 267.46 | -12.40 | 141.95 | 0.3458 | 613.0 | 491.9 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -10.55 | 267.34 | -12.53 | 144.49 | 0.3688 | 735.0 | 633.1 | |
| 0.00 | 1.24 | 0.00 | 0.65 | -6.77 | 267.38 | -12.49 | 137.63 | 0.3200 | 760.0 | 609.9 | |
| 0.00 | 1.86 | 0.00 | 0.98 | -8.64 | 266.16 | -13.70 | 138.67 | 0.3562 | -933.0 | -763.0 | |
| 0.00 | 1.59 | 0.00 | 0.85 | -8.77 | 265.81 | -14.05 | 138.20 | 0.3616 | 994.0 | 767.7 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -8.12 | 263.66 | -16.20 | 132.86 | 0.3784 | 731.0 | 564.9 | |
| 0.00 | 1.68 | 0.00 | 0.91 | -10.09 | 262.93 | -16.93 | 135.21 | 0.4088 | -829.0 | -649.1 | |
| 0.00 | 1.33 | 0.00 | 0.72 | -10.40 | 262.18 | -17.69 | 134.49 | 0.4207 | -960.0 | -795.1 | |
| 0.00 | 2.12 | 0.00 | 1.18 | -12.16 | 260.80 | -19.07 | 135.23 | 0.4553 | -747.0 | -627.5 | |
| 0.00 | 1.24 | 0.00 | 0.70 | -15.03 | 260.45 | -19.41 | 138.95 | 0.4908 | -743.0 | -560.6 | |
| 0.00 | 1.33 | 0.00 | 0.75 | -12.68 | 259.15 | -20.72 | 133.65 | 0.4789 | -1030.0 | -913.8 | |
| 33.33 | 153.59 | 18.95 | 87.35 | -13.59 | 258.80 | -21.06 | 134.56 | 0.4922 | -1286.2 | -327.6 | |
| 0.00 | 2.39 | 0.00 | 1.35 | -12.34 | 258.25 | -21.61 | 131.91 | 0.4855 | -831.0 | -751.3 | |
| 0.00 | 0.80 | 0.00 | 0.45 | -12.35 | 257.85 | -22.01 | 131.42 | 0.4902 | -673.0 | -563.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
