SDO HMI 2014-09-23 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 19.18 | 0.00 | 10.67 | -16.37 | 287.92 | 8.61 | 200.31 | 0.4473 | 640.5 | 506.8 | |
|
previous
or next observation for the same group /

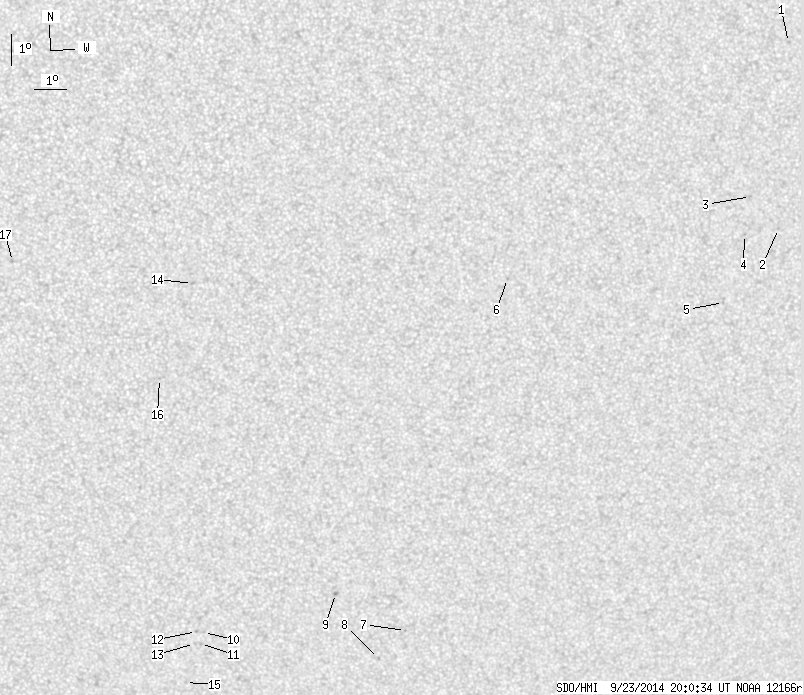

back to the solar disc SDO HMI 2014-09-23 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.41 | 0.00 | 0.77 | -4.36 | 300.54 | 21.22 | 242.37 | 0.4092 | 685.0 | 503.0 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -10.12 | 300.49 | 21.18 | 231.14 | 0.4586 | 624.0 | 516.6 | |
| 0.00 | 1.33 | 0.00 | 0.73 | -9.08 | 299.51 | 20.20 | 231.65 | 0.4366 | 705.0 | 520.3 | |
| 0.00 | 0.71 | 0.00 | 0.39 | -10.26 | 299.39 | 20.08 | 229.38 | 0.4469 | 866.0 | 778.2 | |
| 0.00 | 0.71 | 0.00 | 0.39 | -12.39 | 298.86 | 19.54 | 225.12 | 0.4630 | 702.0 | 563.0 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -11.37 | 291.88 | 12.57 | 214.31 | 0.3801 | 835.0 | 676.8 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -22.93 | 289.29 | 9.98 | 197.79 | 0.5245 | -717.0 | -541.6 | |
| 0.00 | 1.33 | 0.00 | 0.78 | -23.88 | 288.46 | 9.15 | 195.86 | 0.5345 | 742.0 | 498.4 | |
| 0.00 | 1.59 | 0.00 | 0.91 | -21.60 | 286.91 | 7.60 | 194.42 | 0.4955 | 912.0 | 761.2 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -22.89 | 282.65 | 3.33 | 186.14 | 0.5032 | 652.0 | 492.6 | |
| 0.00 | 1.24 | 0.00 | 0.71 | -23.27 | 282.56 | 3.25 | 185.89 | 0.5088 | 696.0 | 563.4 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -22.85 | 282.42 | 3.10 | 185.73 | 0.5023 | 811.0 | 723.4 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -23.27 | 282.36 | 3.05 | 185.54 | 0.5085 | 590.0 | 508.8 | |
| 0.00 | 1.68 | 0.00 | 0.88 | -11.35 | 282.12 | 2.81 | 188.67 | 0.3200 | 776.0 | 550.1 | |
| 0.00 | 1.24 | 0.00 | 0.72 | -24.63 | 282.09 | 2.78 | 184.81 | 0.5285 | 644.0 | 439.9 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -14.39 | 281.12 | 1.81 | 184.80 | 0.3677 | 684.0 | 491.6 | |
| 0.00 | 1.77 | 0.00 | 0.92 | -10.65 | 276.60 | -2.71 | 171.30 | 0.3082 | 681.0 | 483.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
