SDO HMI 2014-09-23 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 86.30 | 482.21 | 46.33 | 259.57 | -10.56 | 265.47 | -13.85 | 143.20 | 0.3827 | 202.3 | 118.4 | |
|
previous
or next observation for the same group /

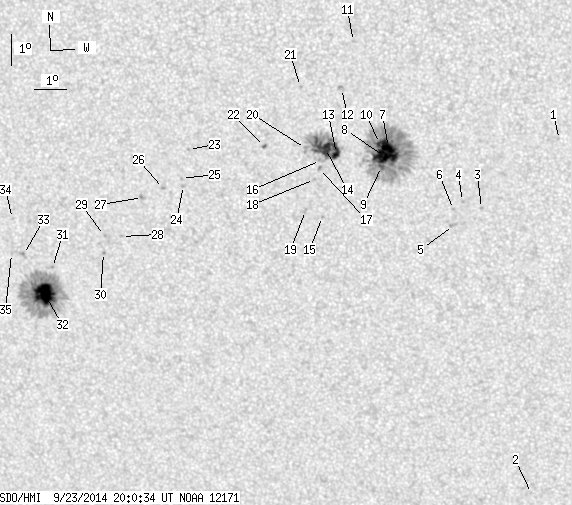

back to the solar disc SDO HMI 2014-09-23 20:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.44 | 0.00 | 0.23 | -8.27 | 275.26 | -4.05 | 165.12 | 0.2738 | 453.0 | 481.2 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -19.71 | 274.14 | -5.18 | 169.30 | 0.4591 | 700.0 | 449.7 | |
| 0.00 | 1.24 | 0.00 | 0.65 | -10.46 | 272.83 | -6.48 | 159.68 | 0.3209 | 826.0 | 649.4 | |
| 0.00 | 1.33 | 0.00 | 0.69 | -10.25 | 272.25 | -7.06 | 157.77 | 0.3211 | 747.0 | 647.1 | |
| 0.00 | 3.27 | 0.00 | 1.72 | -11.01 | 271.96 | -7.36 | 157.84 | 0.3346 | 739.0 | 624.5 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -10.51 | 271.97 | -7.34 | 157.28 | 0.3268 | 748.0 | 596.6 | |
| 13.26 | 217.87 | 6.91 | 113.69 | -8.59 | 270.02 | -9.30 | 149.16 | 0.3129 | 1551.2 | 383.2 | |
| 21.93 | -7.00 | 11.45 | -7.00 | -8.88 | 269.89 | -9.43 | 149.27 | 0.3181 | 1201.4 | 999999 | |
| 2.56 | -7.00 | 1.34 | -7.00 | -9.19 | 269.78 | -9.53 | 149.51 | 0.3234 | 849.7 | 999999 | |
| 3.45 | -7.00 | 1.80 | -7.00 | -8.47 | 269.74 | -9.57 | 148.22 | 0.3136 | 1071.9 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -5.33 | 269.01 | -10.30 | 139.96 | 0.2779 | 732.0 | 568.3 | |
| 0.00 | 3.71 | 0.00 | 1.93 | -6.79 | 268.61 | -10.70 | 142.07 | 0.3012 | 703.0 | 613.0 | |
| 6.28 | 60.30 | 3.29 | 31.64 | -8.82 | 268.40 | -10.91 | 145.35 | 0.3304 | 1195.3 | 674.4 | |
| 9.99 | -13.00 | 5.24 | -13.00 | -8.67 | 268.07 | -11.25 | 144.27 | 0.3316 | 1100.8 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -10.81 | 267.90 | -11.42 | 147.37 | 0.3622 | 722.0 | 648.8 | |
| 0.00 | 2.03 | 0.00 | 1.07 | -9.05 | 267.90 | -11.41 | 144.53 | 0.3383 | 113.0 | 242.9 | |
| 0.00 | 1.77 | 0.00 | 0.93 | -9.30 | 267.86 | -11.45 | 144.87 | 0.3420 | 827.0 | 636.5 | |
| 0.00 | 1.41 | 0.00 | 0.75 | -9.65 | 267.69 | -11.62 | 145.06 | 0.3483 | 865.0 | 602.9 | |
| 0.00 | 2.12 | 0.00 | 1.13 | -10.63 | 267.37 | -11.94 | 145.92 | 0.3644 | 684.0 | 530.4 | |
| 0.00 | 2.83 | 0.00 | 1.49 | -8.68 | 267.45 | -11.87 | 142.82 | 0.3378 | 256.0 | 331.4 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -6.76 | 267.35 | -11.96 | 138.84 | 0.3141 | 753.0 | 570.8 | |
| 0.62 | 1.86 | 0.33 | 0.98 | -8.65 | 266.17 | -13.14 | 139.90 | 0.3505 | -896.0 | -675.2 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -8.82 | 263.77 | -15.54 | 135.40 | 0.3786 | -700.0 | -482.8 | |
| 0.00 | 1.86 | 0.00 | 1.00 | -9.95 | 263.56 | -15.75 | 137.07 | 0.3942 | -632.0 | -546.5 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -9.74 | 263.51 | -15.80 | 136.59 | 0.3922 | -822.0 | -628.2 | |
| 0.00 | 1.41 | 0.00 | 0.76 | -10.07 | 262.92 | -16.39 | 136.12 | 0.4026 | -831.0 | -693.5 | |
| 0.00 | 2.56 | 0.00 | 1.39 | -10.38 | 262.23 | -17.08 | 135.47 | 0.4137 | -836.0 | -511.3 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -11.64 | 261.48 | -17.83 | 136.32 | 0.4361 | -785.0 | -612.5 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -11.63 | 260.93 | -18.38 | 135.43 | 0.4420 | -794.0 | -635.4 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -12.17 | 260.86 | -18.45 | 136.19 | 0.4488 | -765.0 | -694.9 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -12.72 | 259.15 | -20.16 | 134.50 | 0.4733 | -1018.0 | -904.2 | |
| 28.21 | 160.57 | 15.97 | 90.98 | -13.57 | 258.81 | -20.50 | 135.30 | 0.4860 | -1340.3 | -355.6 | |
| 0.00 | 2.39 | 0.00 | 1.35 | -12.34 | 258.23 | -21.08 | 132.63 | 0.4796 | -932.0 | -778.0 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -11.21 | 257.96 | -21.35 | 130.46 | 0.4714 | -639.0 | -477.7 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -12.33 | 257.83 | -21.48 | 132.08 | 0.4839 | -724.0 | -584.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
