SDO HMI 2014-09-23 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.76 | 170.99 | 23.70 | 86.58 | 8.91 | 289.76 | 11.00 | 276.31 | 0.2029 | -526.3 | -351.5 | |
|
previous
or next observation for the same group /

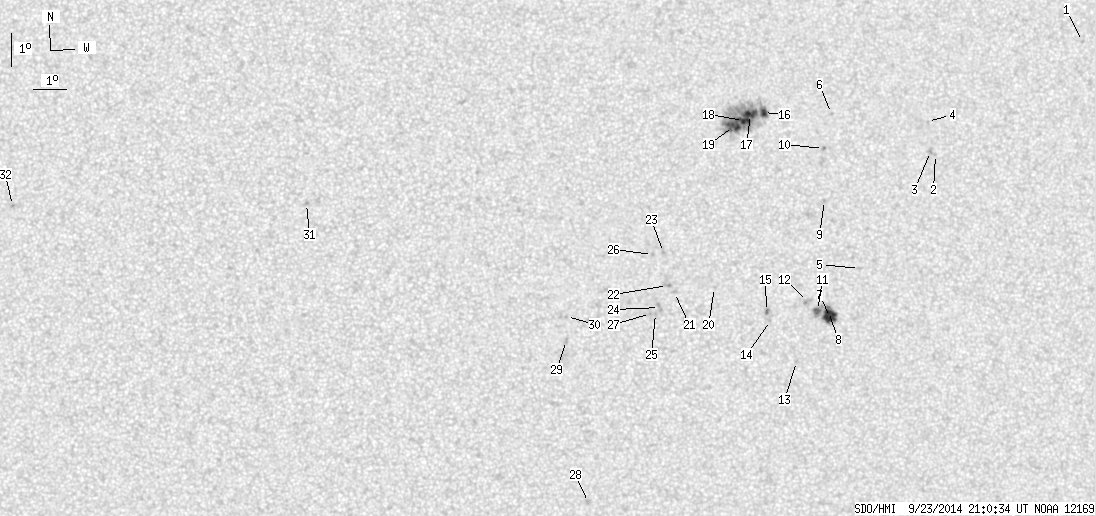

back to the solar disc SDO HMI 2014-09-23 21:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.15 | 0.00 | 0.62 | 13.06 | 300.67 | 21.91 | 287.40 | 0.3825 | -775.0 | -656.1 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 9.86 | 295.65 | 16.89 | 280.82 | 0.2927 | -767.0 | -601.8 | |
| 0.00 | 2.56 | 0.00 | 1.33 | 9.95 | 295.49 | 16.73 | 281.22 | 0.2904 | -967.0 | -802.2 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 10.86 | 295.45 | 16.69 | 284.33 | 0.2924 | -527.0 | -452.8 | |
| 0.00 | 2.21 | 0.00 | 1.13 | 6.51 | 293.11 | 14.35 | 268.82 | 0.2474 | -34.0 | -31.3 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 11.20 | 292.42 | 13.66 | 288.23 | 0.2450 | -734.0 | -532.1 | |
| 9.64 | 27.41 | 4.91 | 13.95 | 5.06 | 292.17 | 13.41 | 262.41 | 0.2341 | -1091.2 | -799.3 | |
| 3.18 | -7.00 | 1.62 | -7.00 | 5.25 | 292.11 | 13.35 | 263.15 | 0.2326 | -1192.8 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.63 | 8.59 | 292.08 | 13.33 | 277.65 | 0.2310 | -919.0 | -723.2 | |
| 0.00 | 1.50 | 0.00 | 0.77 | 10.15 | 292.12 | 13.36 | 284.29 | 0.2357 | -884.0 | -786.8 | |
| 2.56 | -7.00 | 1.30 | -7.00 | 5.29 | 291.77 | 13.01 | 263.11 | 0.2268 | -1174.7 | 999999 | |
| 0.00 | 3.36 | 0.00 | 1.71 | 5.57 | 291.47 | 12.71 | 264.17 | 0.2211 | -1009.0 | -802.3 | |
| 0.00 | 1.41 | 0.00 | 0.72 | 3.77 | 291.09 | 12.33 | 255.82 | 0.2208 | -826.0 | -542.6 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 5.03 | 290.31 | 11.55 | 260.80 | 0.2030 | -758.0 | -641.5 | |
| 0.62 | 2.65 | 0.31 | 1.34 | 5.30 | 290.19 | 11.43 | 262.05 | 0.2002 | -954.0 | -790.8 | |
| 3.89 | 98.86 | 1.97 | 49.98 | 11.29 | 290.29 | 11.53 | 291.41 | 0.2114 | -1012.9 | -569.8 | |
| 8.22 | -16.00 | 4.16 | -16.00 | 11.24 | 289.88 | 11.12 | 291.84 | 0.2047 | -1145.8 | 999999 | |
| 8.75 | -16.00 | 4.43 | -16.00 | 11.06 | 289.65 | 10.89 | 291.39 | 0.2001 | -1299.2 | 999999 | |
| 9.90 | -16.00 | 5.00 | -16.00 | 10.89 | 289.33 | 10.57 | 291.09 | 0.1940 | -1225.1 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 6.06 | 288.61 | 9.85 | 264.98 | 0.1716 | 781.0 | 554.9 | |
| 0.00 | 2.21 | 0.00 | 1.11 | 5.93 | 287.38 | 8.62 | 263.29 | 0.1509 | 866.0 | 640.4 | |
| 0.00 | 2.65 | 0.00 | 1.33 | 6.15 | 287.17 | 8.41 | 264.55 | 0.1468 | 1039.0 | 856.3 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 7.14 | 287.07 | 8.31 | 271.38 | 0.1441 | 920.0 | 762.5 | |
| 0.00 | 3.80 | 0.00 | 1.90 | 5.49 | 286.92 | 8.16 | 259.80 | 0.1442 | 821.0 | 729.0 | |
| 0.00 | 1.41 | 0.00 | 0.71 | 5.31 | 286.79 | 8.03 | 258.41 | 0.1427 | 727.0 | 547.5 | |
| 0.00 | 1.59 | 0.00 | 0.80 | 7.09 | 286.73 | 7.97 | 271.00 | 0.1383 | 822.0 | 660.3 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 5.32 | 286.64 | 7.88 | 258.19 | 0.1401 | 884.0 | 730.7 | |
| 0.00 | 3.09 | 0.00 | 1.55 | -0.36 | 284.72 | 5.96 | 219.13 | 0.1653 | 768.0 | 696.5 | |
| 0.00 | 2.48 | 0.00 | 1.23 | 4.54 | 284.08 | 5.32 | 245.23 | 0.1023 | 959.0 | 741.1 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 5.26 | 284.09 | 5.33 | 251.99 | 0.0977 | 950.0 | 762.8 | |
| 0.00 | 1.50 | 0.00 | 0.75 | 8.69 | 276.22 | -2.54 | 56.19 | 0.0531 | 924.0 | 658.1 | |
| 0.00 | 1.24 | 0.00 | 0.63 | 8.51 | 267.20 | -11.56 | 81.81 | 0.2011 | 817.0 | 731.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
