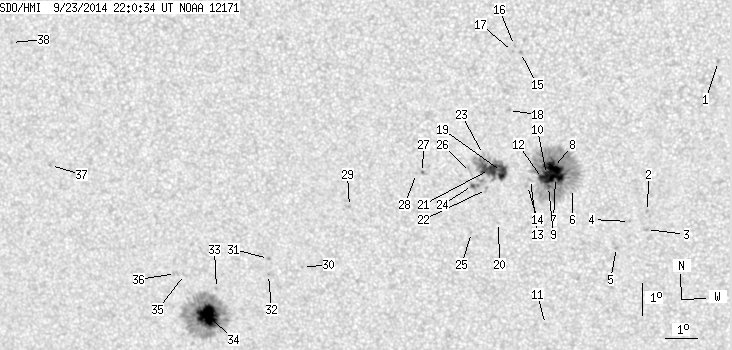

SDO HMI 2014-09-23 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 93.12 | 427.99 | 49.74 | 229.62 | -10.61 | 265.25 | -12.96 | 145.36 | 0.3753 | 336.8 | 120.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-23 22:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.50 | 0.00 | 0.76 | -5.23 | 275.09 | -3.12 | 165.66 | 0.2198 | 802.0 | 655.4 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -9.91 | 272.87 | -5.33 | 162.52 | 0.3061 | 810.0 | 718.4 | |
| 0.00 | 1.95 | 0.00 | 1.02 | -10.48 | 272.83 | -5.37 | 162.94 | 0.3153 | 705.0 | 606.2 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -10.23 | 272.32 | -5.89 | 161.15 | 0.3140 | 796.0 | 627.3 | |
| 0.00 | 1.33 | 0.00 | 0.70 | -11.06 | 271.90 | -6.31 | 160.79 | 0.3292 | 780.0 | 671.7 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -9.22 | 270.59 | -7.62 | 154.83 | 0.3091 | 83.0 | 108.9 | |
| 11.76 | 180.67 | 6.12 | 93.97 | -8.88 | 270.07 | -8.13 | 152.86 | 0.3078 | 1269.0 | 439.9 | |
| 15.74 | -7.00 | 8.18 | -7.00 | -8.57 | 270.02 | -8.19 | 152.23 | 0.3037 | 1468.9 | 999999 | |
| 1.86 | -7.00 | 0.97 | -7.00 | -9.17 | 269.85 | -8.36 | 152.66 | 0.3138 | 869.9 | 999999 | |
| 3.36 | -7.00 | 1.75 | -7.00 | -8.79 | 269.80 | -8.41 | 151.94 | 0.3086 | 1205.1 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.43 | -13.55 | 269.62 | -8.59 | 157.47 | 0.3805 | 775.0 | 598.1 | |
| 4.86 | -7.00 | 2.53 | -7.00 | -8.92 | 269.67 | -8.54 | 151.78 | 0.3115 | 966.0 | 999999 | |
| 0.00 | 2.03 | 0.00 | 1.06 | -8.96 | 269.30 | -8.91 | 150.82 | 0.3150 | 453.0 | 443.2 | |
| 0.00 | 1.24 | 0.00 | 0.65 | -9.15 | 269.20 | -9.00 | 150.84 | 0.3185 | 708.0 | 516.1 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -5.03 | 269.08 | -9.13 | 142.65 | 0.2617 | 969.0 | 791.9 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -4.81 | 268.90 | -9.31 | 141.60 | 0.2607 | 764.0 | 618.5 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -5.00 | 268.83 | -9.37 | 141.85 | 0.2639 | 858.0 | 658.5 | |
| 0.00 | 2.03 | 0.00 | 1.05 | -6.82 | 268.68 | -9.53 | 145.31 | 0.2902 | 933.0 | 693.7 | |
| 9.64 | 49.52 | 5.04 | 25.89 | -8.73 | 268.41 | -9.79 | 148.05 | 0.3191 | 1242.0 | 675.2 | |
| 0.00 | 0.71 | 0.00 | 0.37 | -10.33 | 268.27 | -9.94 | 150.20 | 0.3430 | 361.0 | 343.4 | |
| 15.21 | -19.00 | 7.95 | -19.00 | -8.67 | 268.04 | -10.16 | 146.99 | 0.3216 | 1075.4 | 999999 | |
| 0.00 | 2.12 | 0.00 | 1.11 | -9.30 | 267.93 | -10.27 | 147.75 | 0.3313 | 759.0 | 572.5 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -8.21 | 267.87 | -10.34 | 145.73 | 0.3168 | 438.0 | 355.9 | |
| 1.24 | 8.75 | 0.65 | 4.59 | -9.18 | 267.50 | -10.70 | 146.49 | 0.3336 | 775.4 | 509.7 | |
| 0.00 | 0.80 | 0.00 | 0.42 | -10.66 | 267.42 | -10.79 | 148.62 | 0.3548 | 674.0 | 563.2 | |
| 0.00 | 2.65 | 0.00 | 1.39 | -8.78 | 267.45 | -10.75 | 145.68 | 0.3285 | 574.0 | 452.2 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -8.81 | 265.96 | -12.25 | 142.18 | 0.3433 | -689.0 | -574.1 | |
| 0.00 | 0.71 | 0.00 | 0.37 | -8.85 | 265.77 | -12.43 | 141.82 | 0.3457 | 646.0 | 470.5 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -9.94 | 263.63 | -14.58 | 139.26 | 0.3816 | -823.0 | -689.7 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -11.92 | 262.03 | -16.18 | 139.55 | 0.4221 | -716.0 | -541.3 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -11.68 | 260.95 | -17.26 | 137.33 | 0.4304 | -859.0 | -681.6 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -12.19 | 260.92 | -17.29 | 138.08 | 0.4367 | -806.0 | -657.7 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -12.70 | 259.19 | -19.02 | 136.15 | 0.4607 | -903.0 | -759.2 | |
| 29.45 | 150.86 | 16.55 | 84.85 | -13.58 | 258.82 | -19.38 | 136.93 | 0.4743 | -1335.7 | -378.4 | |
| 0.00 | 1.24 | 0.00 | 0.69 | -12.30 | 258.18 | -20.03 | 134.03 | 0.4674 | -811.0 | -723.6 | |
| 0.00 | 3.54 | 0.00 | 1.98 | -12.28 | 257.88 | -20.32 | 133.58 | 0.4704 | -626.0 | -567.5 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -9.05 | 254.00 | -24.21 | 123.32 | 0.4866 | 765.0 | 597.8 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -5.30 | 252.92 | -25.29 | 115.36 | 0.4726 | 717.0 | 556.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
