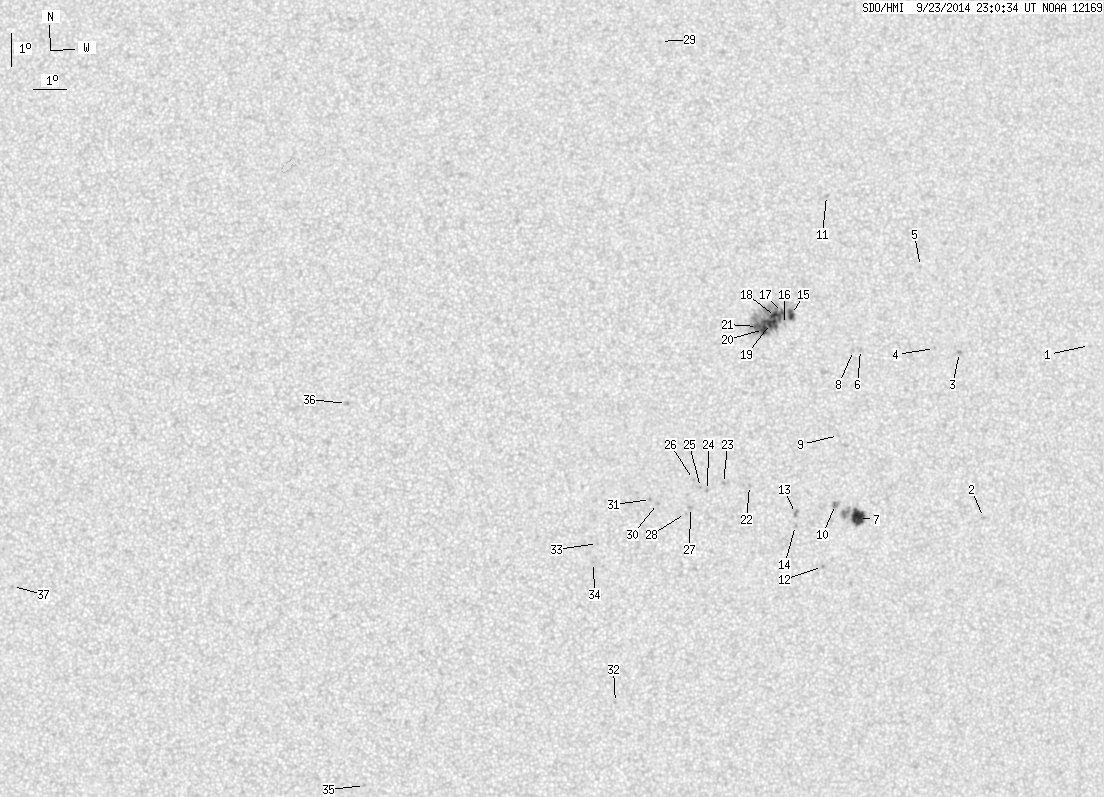

SDO HMI 2014-09-23 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.26 | 155.22 | 23.52 | 78.95 | 8.98 | 289.86 | 12.20 | 275.31 | 0.2235 | -431.1 | -396.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-23 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.50 | 0.00 | 0.80 | 10.00 | 299.80 | 22.15 | 279.31 | 0.3779 | -429.0 | -385.8 | |
| 0.00 | 1.86 | 0.00 | 0.97 | 4.98 | 296.12 | 18.46 | 264.69 | 0.3183 | 595.0 | 426.4 | |
| 0.00 | 1.77 | 0.00 | 0.92 | 9.97 | 295.57 | 17.92 | 280.70 | 0.3098 | -942.0 | -816.0 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 10.12 | 294.78 | 17.13 | 281.58 | 0.2972 | -676.0 | -566.8 | |
| 0.00 | 1.24 | 0.00 | 0.64 | 12.60 | 294.49 | 16.83 | 289.92 | 0.3019 | -808.0 | -552.1 | |
| 0.00 | 1.77 | 0.00 | 0.91 | 10.17 | 292.43 | 14.78 | 283.21 | 0.2590 | -700.0 | -577.0 | |
| 13.62 | 24.59 | 6.97 | 12.58 | 5.12 | 292.19 | 14.53 | 263.33 | 0.2527 | -1053.7 | -870.4 | |
| 0.00 | 0.88 | 0.00 | 0.45 | 10.14 | 292.21 | 14.55 | 283.28 | 0.2553 | -889.0 | -703.0 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 7.60 | 291.63 | 13.98 | 273.30 | 0.2409 | -682.0 | -486.5 | |
| 0.00 | 4.78 | 0.00 | 2.44 | 5.53 | 291.48 | 13.82 | 264.62 | 0.2400 | -1056.0 | -860.0 | |
| 0.00 | 1.68 | 0.00 | 0.87 | 14.85 | 291.62 | 13.97 | 300.92 | 0.2732 | -772.0 | -663.8 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 3.68 | 291.04 | 13.38 | 256.62 | 0.2385 | -812.0 | -691.7 | |
| 0.00 | 2.92 | 0.00 | 1.48 | 5.30 | 290.23 | 12.58 | 262.88 | 0.2195 | -1010.0 | -810.9 | |
| 0.00 | 1.68 | 0.00 | 0.85 | 4.94 | 290.23 | 12.57 | 261.24 | 0.2204 | -536.0 | -563.8 | |
| 4.07 | 85.70 | 2.07 | 43.49 | 11.29 | 290.31 | 12.66 | 289.79 | 0.2294 | -945.7 | -598.3 | |
| 0.00 | 1.42 | 0.00 | 0.72 | 10.99 | 290.08 | 12.42 | 288.85 | 0.2242 | -227.0 | -282.2 | |
| 1.33 | -15.00 | 0.67 | -15.00 | 11.35 | 290.03 | 12.38 | 290.45 | 0.2253 | -946.1 | 999999 | |
| 6.54 | -15.00 | 3.32 | -15.00 | 11.24 | 289.81 | 12.15 | 290.28 | 0.2211 | -1146.6 | 999999 | |
| 10.35 | -15.00 | 5.25 | -15.00 | 11.03 | 289.64 | 11.99 | 289.61 | 0.2174 | -1208.0 | 999999 | |
| 6.10 | -15.00 | 3.09 | -15.00 | 10.86 | 289.41 | 11.76 | 289.14 | 0.2128 | -1212.7 | 999999 | |
| 4.25 | -15.00 | 2.15 | -15.00 | 10.95 | 289.23 | 11.58 | 289.83 | 0.2104 | -1207.6 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 6.18 | 288.83 | 11.18 | 266.32 | 0.1940 | 755.0 | 577.5 | |
| 0.00 | 1.50 | 0.00 | 0.76 | 6.26 | 288.03 | 10.38 | 266.39 | 0.1802 | 871.0 | 753.3 | |
| 0.00 | 1.50 | 0.00 | 0.76 | 6.06 | 287.54 | 9.88 | 264.99 | 0.1721 | 869.0 | 710.5 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 6.15 | 287.32 | 9.67 | 265.41 | 0.1683 | 951.0 | 792.3 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 6.40 | 287.11 | 9.46 | 266.78 | 0.1643 | 921.0 | 731.4 | |
| 0.00 | 2.21 | 0.00 | 1.11 | 5.56 | 287.01 | 9.35 | 261.60 | 0.1642 | 921.0 | 721.3 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 5.38 | 286.85 | 9.20 | 260.36 | 0.1621 | 577.0 | 486.5 | |
| 0.00 | 1.24 | 0.00 | 0.64 | 19.68 | 286.59 | 8.94 | 326.46 | 0.2660 | -709.0 | -567.7 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 5.70 | 286.00 | 8.34 | 261.43 | 0.1467 | 892.0 | 800.5 | |
| 0.00 | 1.33 | 0.00 | 0.66 | 5.82 | 285.79 | 8.13 | 262.05 | 0.1428 | 945.0 | 708.1 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -0.28 | 284.68 | 7.02 | 224.10 | 0.1765 | 881.0 | 687.8 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 4.53 | 284.16 | 6.50 | 249.28 | 0.1213 | 838.0 | 638.1 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 3.96 | 284.03 | 6.38 | 244.57 | 0.1232 | 934.0 | 787.7 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -2.74 | 277.11 | -0.54 | 176.79 | 0.1706 | 941.0 | 727.0 | |
| 0.00 | 1.95 | 0.00 | 0.96 | 8.79 | 276.57 | -1.08 | 31.18 | 0.0363 | 930.0 | 792.0 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 3.16 | 266.45 | -11.21 | 108.49 | 0.2056 | 782.0 | 635.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
