SDO HMI 2014-09-23 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 263.48 | 1401.30 | 177.21 | 938.22 | -10.99 | 239.40 | -38.25 | 115.20 | 0.6718 | 8.9 | -6.5 | |
|
previous
or next observation for the same group /

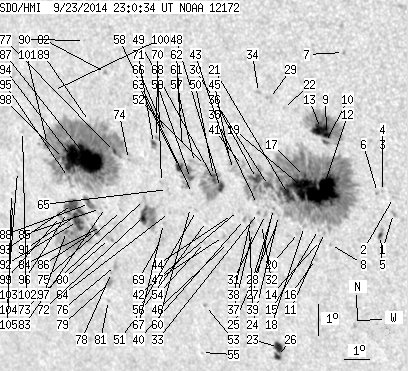

back to the solar disc SDO HMI 2014-09-23 23:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.39 | 0.00 | 1.46 | -11.45 | 246.79 | -30.86 | 120.81 | 0.5876 | 765.0 | 596.4 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -10.94 | 246.85 | -30.80 | 120.10 | 0.5833 | -296.0 | -243.6 | |
| 0.00 | 1.42 | 0.00 | 0.86 | -10.55 | 246.51 | -31.15 | 119.23 | 0.5849 | 800.0 | 684.8 | |
| 0.00 | 0.80 | 0.00 | 0.49 | -10.78 | 246.48 | -31.18 | 119.55 | 0.5868 | 244.0 | 299.2 | |
| 1.50 | 4.86 | 0.93 | 3.00 | -12.18 | 246.23 | -31.42 | 121.43 | 0.5995 | -856.5 | -617.5 | |
| 0.00 | 1.50 | 0.00 | 0.92 | -10.82 | 246.30 | -31.36 | 119.47 | 0.5893 | 752.0 | 601.6 | |
| 0.00 | 1.15 | 0.00 | 0.69 | -6.51 | 245.49 | -32.16 | 112.15 | 0.5732 | 799.0 | 606.3 | |
| 0.00 | 0.80 | 0.00 | 0.50 | -12.60 | 244.35 | -33.31 | 120.53 | 0.6245 | -590.0 | -458.6 | |
| 4.60 | 80.30 | 2.84 | 49.55 | -9.11 | 244.64 | -33.01 | 115.65 | 0.5990 | 1165.1 | 539.2 | |
| 1.33 | -9.00 | 0.82 | -9.00 | -9.36 | 244.58 | -33.07 | 115.99 | 0.6013 | 779.5 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.78 | -12.23 | 244.18 | -33.48 | 119.89 | 0.6240 | 403.0 | 407.9 | |
| 50.77 | 544.53 | 31.80 | 343.31 | -10.89 | 244.29 | -33.37 | 118.05 | 0.6142 | 1326.5 | 413.2 | |
| 14.06 | -9.00 | 8.70 | -9.00 | -8.94 | 244.44 | -33.21 | 115.25 | 0.6004 | 1116.4 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.84 | -12.49 | 243.99 | -33.66 | 120.12 | 0.6280 | -144.0 | -163.6 | |
| 0.00 | 0.88 | 0.00 | 0.56 | -12.15 | 243.97 | -33.69 | 119.62 | 0.6260 | 176.0 | 162.8 | |
| 0.00 | 1.24 | 0.00 | 0.79 | -13.12 | 243.71 | -33.95 | 120.78 | 0.6353 | -758.0 | -553.6 | |
| 1.68 | -12.00 | 1.06 | -12.00 | -10.49 | 243.68 | -33.98 | 117.03 | 0.6192 | 965.3 | 999999 | |
| 0.00 | 1.95 | 0.00 | 1.24 | -12.09 | 243.46 | -34.20 | 119.16 | 0.6316 | 393.0 | 250.1 | |
| 23.88 | -12.00 | 15.09 | -12.00 | -10.85 | 243.56 | -34.10 | 117.46 | 0.6228 | 960.6 | 999999 | |
| 0.00 | 2.83 | 0.00 | 1.81 | -12.30 | 243.20 | -34.45 | 119.27 | 0.6359 | -103.0 | -84.2 | |
| 8.49 | -12.00 | 5.41 | -12.00 | -11.11 | 243.00 | -34.65 | 117.45 | 0.6310 | 788.1 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.39 | -8.40 | 243.14 | -34.51 | 113.58 | 0.6138 | 560.0 | 492.7 | |
| 6.19 | 13.09 | 4.15 | 8.79 | -16.10 | 241.75 | -35.90 | 123.31 | 0.6765 | 832.6 | 565.2 | |
| 0.00 | 1.68 | 0.00 | 1.08 | -11.81 | 242.53 | -35.13 | 118.11 | 0.6409 | 549.0 | 431.7 | |
| 0.00 | 1.24 | 0.00 | 0.80 | -11.97 | 242.50 | -35.15 | 118.32 | 0.6421 | 525.0 | 405.3 | |
| 2.83 | -23.00 | 1.91 | -23.00 | -16.40 | 241.65 | -36.01 | 123.62 | 0.6796 | 636.3 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.57 | -11.60 | 242.37 | -35.29 | 117.71 | 0.6415 | 673.0 | 505.2 | |
| 0.00 | 0.97 | 0.00 | 0.63 | -11.76 | 242.31 | -35.35 | 117.89 | 0.6432 | 474.0 | 426.5 | |
| 0.00 | 3.71 | 0.00 | 2.34 | -8.13 | 242.65 | -35.00 | 112.86 | 0.6185 | 402.0 | 453.2 | |
| 3.89 | -12.00 | 2.50 | -12.00 | -10.88 | 242.28 | -35.37 | 116.63 | 0.6383 | 739.3 | 999999 | |
| 0.00 | 2.03 | 0.00 | 1.32 | -11.81 | 242.03 | -35.62 | 117.78 | 0.6467 | 604.0 | 483.8 | |
| 0.00 | 0.88 | 0.00 | 0.58 | -12.14 | 241.83 | -35.83 | 118.10 | 0.6510 | 492.0 | 372.7 | |
| 0.00 | 1.50 | 0.00 | 0.98 | -11.77 | 241.77 | -35.88 | 117.55 | 0.6494 | 657.0 | 526.9 | |
| 0.00 | 1.95 | 0.00 | 1.23 | -7.97 | 242.26 | -35.40 | 112.38 | 0.6227 | 724.0 | 616.2 | |
| 0.00 | 0.80 | 0.00 | 0.52 | -11.51 | 241.77 | -35.88 | 117.19 | 0.6480 | 187.0 | 193.7 | |
| 6.81 | -12.00 | 4.39 | -12.00 | -10.69 | 241.86 | -35.80 | 116.09 | 0.6423 | 737.5 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.81 | -12.42 | 241.44 | -36.21 | 118.23 | 0.6572 | 274.0 | 282.1 | |
| 0.00 | 2.30 | 0.00 | 1.50 | -12.04 | 241.43 | -36.23 | 117.70 | 0.6551 | 777.0 | 521.7 | |
| 0.00 | 1.24 | 0.00 | 0.81 | -12.24 | 241.36 | -36.30 | 117.93 | 0.6571 | 537.0 | 458.5 | |
| 0.00 | 1.59 | 0.00 | 1.04 | -12.03 | 241.20 | -36.46 | 117.53 | 0.6577 | 615.0 | 528.7 | |
| 0.00 | 3.71 | 0.00 | 2.40 | -10.31 | 241.38 | -36.28 | 115.25 | 0.6460 | 523.0 | 336.5 | |
| 0.00 | 0.88 | 0.00 | 0.58 | -11.76 | 241.01 | -36.64 | 117.04 | 0.6583 | 705.0 | 529.9 | |
| 0.00 | 4.25 | 0.00 | 2.76 | -10.47 | 241.01 | -36.64 | 115.24 | 0.6511 | -228.0 | -115.7 | |
| 0.00 | 0.62 | 0.00 | 0.41 | -11.90 | 240.76 | -36.90 | 117.08 | 0.6621 | 438.0 | 353.3 | |
| 0.00 | 2.74 | 0.00 | 1.78 | -10.25 | 240.93 | -36.73 | 114.89 | 0.6510 | -102.0 | -88.6 | |
| 0.00 | 0.97 | 0.00 | 0.65 | -12.82 | 240.45 | -37.21 | 118.12 | 0.6708 | 570.0 | 417.5 | |
| 0.00 | 1.50 | 0.00 | 1.00 | -12.64 | 240.29 | -37.37 | 117.77 | 0.6717 | 620.0 | 436.7 | |
| 4.33 | 49.26 | 2.85 | 32.59 | -11.08 | 240.42 | -37.23 | 115.73 | 0.6614 | 748.3 | -7.9 | |
| 2.30 | -48.00 | 1.52 | -48.00 | -10.87 | 240.22 | -37.43 | 115.32 | 0.6627 | 629.6 | 999999 | |
| 1.95 | -48.00 | 1.28 | -48.00 | -10.71 | 240.21 | -37.45 | 115.10 | 0.6620 | 611.1 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.65 | -12.21 | 239.70 | -37.96 | 116.83 | 0.6760 | 469.0 | 342.3 | |
| 0.00 | 0.97 | 0.00 | 0.64 | -10.42 | 239.94 | -37.71 | 114.53 | 0.6636 | 330.0 | 189.5 | |
| 0.00 | 1.42 | 0.00 | 0.98 | -14.94 | 239.13 | -38.52 | 120.05 | 0.6976 | -873.0 | -753.7 | |
| 0.00 | 0.71 | 0.00 | 0.48 | -12.89 | 239.50 | -38.16 | 117.62 | 0.6820 | 318.0 | 227.4 | |
| 0.00 | 0.35 | 0.00 | 0.25 | -16.50 | 238.61 | -39.04 | 121.69 | 0.7121 | -469.0 | -435.2 | |
| 0.00 | 1.68 | 0.00 | 1.13 | -11.88 | 239.36 | -38.29 | 116.19 | 0.6781 | 182.0 | 231.2 | |
| 0.00 | 3.54 | 0.00 | 2.35 | -10.36 | 239.52 | -38.13 | 114.20 | 0.6683 | -264.0 | -143.9 | |
| 0.00 | 1.33 | 0.00 | 0.89 | -11.35 | 239.29 | -38.36 | 115.43 | 0.6761 | 66.0 | 158.3 | |
| 1.95 | 26.00 | 1.30 | 17.41 | -10.88 | 239.29 | -38.37 | 114.78 | 0.6737 | 386.9 | -297.4 | |
| 0.00 | 0.80 | 0.00 | 0.54 | -11.81 | 239.14 | -38.52 | 115.95 | 0.6802 | 383.0 | 290.7 | |
| 0.00 | 1.50 | 0.00 | 1.00 | -9.89 | 239.12 | -38.53 | 113.32 | 0.6706 | -722.0 | -528.9 | |
| 0.00 | 0.53 | 0.00 | 0.35 | -8.92 | 239.17 | -38.48 | 112.00 | 0.6653 | -764.0 | -650.7 | |
| 4.33 | -59.00 | 2.91 | -59.00 | -10.56 | 238.90 | -38.75 | 114.13 | 0.6765 | -996.7 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.60 | -12.03 | 238.27 | -39.39 | 115.74 | 0.6914 | -648.0 | -541.0 | |
| 0.00 | 1.06 | 0.00 | 0.72 | -11.30 | 238.31 | -39.34 | 114.80 | 0.6871 | -219.0 | -167.8 | |
| 0.00 | 2.12 | 0.00 | 1.42 | -9.50 | 238.51 | -39.15 | 112.45 | 0.6760 | -778.0 | -551.1 | |
| 0.00 | 1.15 | 0.00 | 0.79 | -12.41 | 237.96 | -39.70 | 116.06 | 0.6967 | 390.0 | 221.2 | |
| 0.00 | 1.68 | 0.00 | 1.14 | -11.10 | 238.11 | -39.55 | 114.41 | 0.6885 | -651.0 | -498.3 | |
| 0.00 | 4.07 | 0.00 | 2.82 | -12.97 | 237.73 | -39.92 | 116.66 | 0.7021 | 146.0 | -17.4 | |
| 0.00 | 1.59 | 0.00 | 1.07 | -9.68 | 238.13 | -39.53 | 112.50 | 0.6814 | -880.0 | -732.1 | |
| 1.59 | 4.51 | 1.08 | 3.05 | -9.88 | 237.98 | -39.68 | 112.69 | 0.6841 | -873.6 | -695.0 | |
| 8.76 | 30.95 | 6.09 | 21.47 | -12.21 | 237.23 | -40.43 | 115.39 | 0.7039 | -957.4 | -676.7 | |
| 0.00 | 2.12 | 0.00 | 1.47 | -11.70 | 237.32 | -40.33 | 114.77 | 0.7003 | -793.0 | -632.3 | |
| 0.00 | 0.88 | 0.00 | 0.61 | -10.47 | 236.88 | -40.77 | 112.91 | 0.6995 | -840.0 | -705.4 | |
| 0.00 | 1.68 | 0.00 | 1.18 | -12.13 | 236.30 | -41.35 | 114.78 | 0.7138 | -410.0 | -310.1 | |
| 0.00 | 3.63 | 0.00 | 2.62 | -13.93 | 235.68 | -41.98 | 116.75 | 0.7293 | -315.0 | -350.1 | |
| 1.86 | 404.17 | 1.29 | 287.65 | -10.27 | 236.35 | -41.31 | 112.36 | 0.7047 | -1062.9 | -439.7 | |
| 0.00 | 0.97 | 0.00 | 0.71 | -14.18 | 235.45 | -42.20 | 116.93 | 0.7328 | -805.0 | -714.9 | |
| 0.00 | 5.93 | 0.00 | 4.32 | -14.51 | 235.29 | -42.36 | 117.26 | 0.7361 | -566.0 | -328.4 | |
| 0.00 | 2.92 | 0.00 | 2.09 | -13.08 | 235.62 | -42.04 | 115.63 | 0.7258 | 474.0 | 433.1 | |
| 0.00 | 1.33 | 0.00 | 0.98 | -15.11 | 235.10 | -42.55 | 117.89 | 0.7410 | 423.0 | 375.1 | |
| 0.00 | 1.86 | 0.00 | 1.27 | -7.81 | 236.33 | -41.32 | 109.03 | 0.6943 | -765.0 | -605.4 | |
| 0.00 | 0.88 | 0.00 | 0.63 | -12.09 | 235.65 | -42.00 | 114.39 | 0.7208 | -761.0 | -544.8 | |
| 0.00 | 2.30 | 0.00 | 1.65 | -12.72 | 235.36 | -42.30 | 115.04 | 0.7269 | -421.0 | -300.2 | |
| 0.00 | 0.88 | 0.00 | 0.63 | -12.14 | 235.43 | -42.22 | 114.34 | 0.7234 | -491.0 | -379.9 | |
| 2.48 | 116.56 | 1.79 | 85.53 | -12.87 | 235.07 | -42.58 | 115.08 | 0.7306 | -733.8 | -340.0 | |
| 45.90 | -77.00 | 32.58 | -77.00 | -10.64 | 235.25 | -42.40 | 112.31 | 0.7187 | -1226.9 | 999999 | |
| 4.69 | 9.02 | 3.37 | 6.49 | -12.02 | 235.00 | -42.66 | 113.96 | 0.7276 | -761.1 | -572.8 | |
| 0.00 | 2.12 | 0.00 | 1.49 | -9.40 | 235.46 | -42.20 | 110.78 | 0.7111 | -324.0 | -276.6 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -6.88 | 235.59 | -42.07 | 107.43 | 0.6996 | -488.0 | -511.7 | |
| 3.36 | -86.00 | 2.44 | -86.00 | -12.34 | 234.55 | -43.10 | 114.15 | 0.7339 | -886.4 | 999999 | |
| 12.20 | -86.00 | 8.92 | -86.00 | -12.64 | 234.36 | -43.30 | 114.43 | 0.7373 | -819.1 | 999999 | |
| 9.55 | -86.00 | 6.97 | -86.00 | -12.11 | 234.26 | -43.40 | 113.72 | 0.7360 | -721.8 | 999999 | |
| 25.12 | -77.00 | 18.05 | -77.00 | -10.58 | 234.51 | -43.14 | 111.87 | 0.7267 | -829.0 | 999999 | |
| 0.62 | -77.00 | 0.45 | -77.00 | -11.26 | 234.26 | -43.40 | 112.63 | 0.7323 | -363.9 | 999999 | |
| 1.77 | -86.00 | 1.30 | -86.00 | -12.39 | 233.99 | -43.67 | 113.93 | 0.7401 | -375.6 | 999999 | |
| 1.06 | -86.00 | 0.78 | -86.00 | -13.01 | 233.81 | -43.85 | 114.62 | 0.7447 | -586.2 | 999999 | |
| 1.33 | -77.00 | 0.96 | -77.00 | -10.67 | 234.16 | -43.50 | 111.83 | 0.7310 | -341.1 | 999999 | |
| 0.00 | 3.80 | 0.00 | 2.81 | -12.55 | 233.65 | -44.00 | 113.96 | 0.7444 | -330.0 | -301.8 | |
| 0.00 | 1.15 | 0.00 | 0.82 | -8.55 | 234.08 | -43.57 | 109.03 | 0.7233 | -585.0 | -403.6 | |
| 2.30 | -77.00 | 1.68 | -77.00 | -10.29 | 233.55 | -44.11 | 111.05 | 0.7361 | -514.0 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.72 | -9.97 | 232.53 | -45.13 | 110.19 | 0.7460 | -517.0 | -409.6 | |
| 0.00 | 0.88 | 0.00 | 0.67 | -11.27 | 232.06 | -45.60 | 111.62 | 0.7560 | -282.0 | -292.7 | |
| 0.00 | 0.62 | 0.00 | 0.47 | -12.32 | 231.61 | -46.05 | 112.72 | 0.7649 | -522.0 | -429.6 | |
| 0.00 | 0.62 | 0.00 | 0.47 | -12.00 | 231.63 | -46.02 | 112.34 | 0.7633 | -427.0 | -379.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
