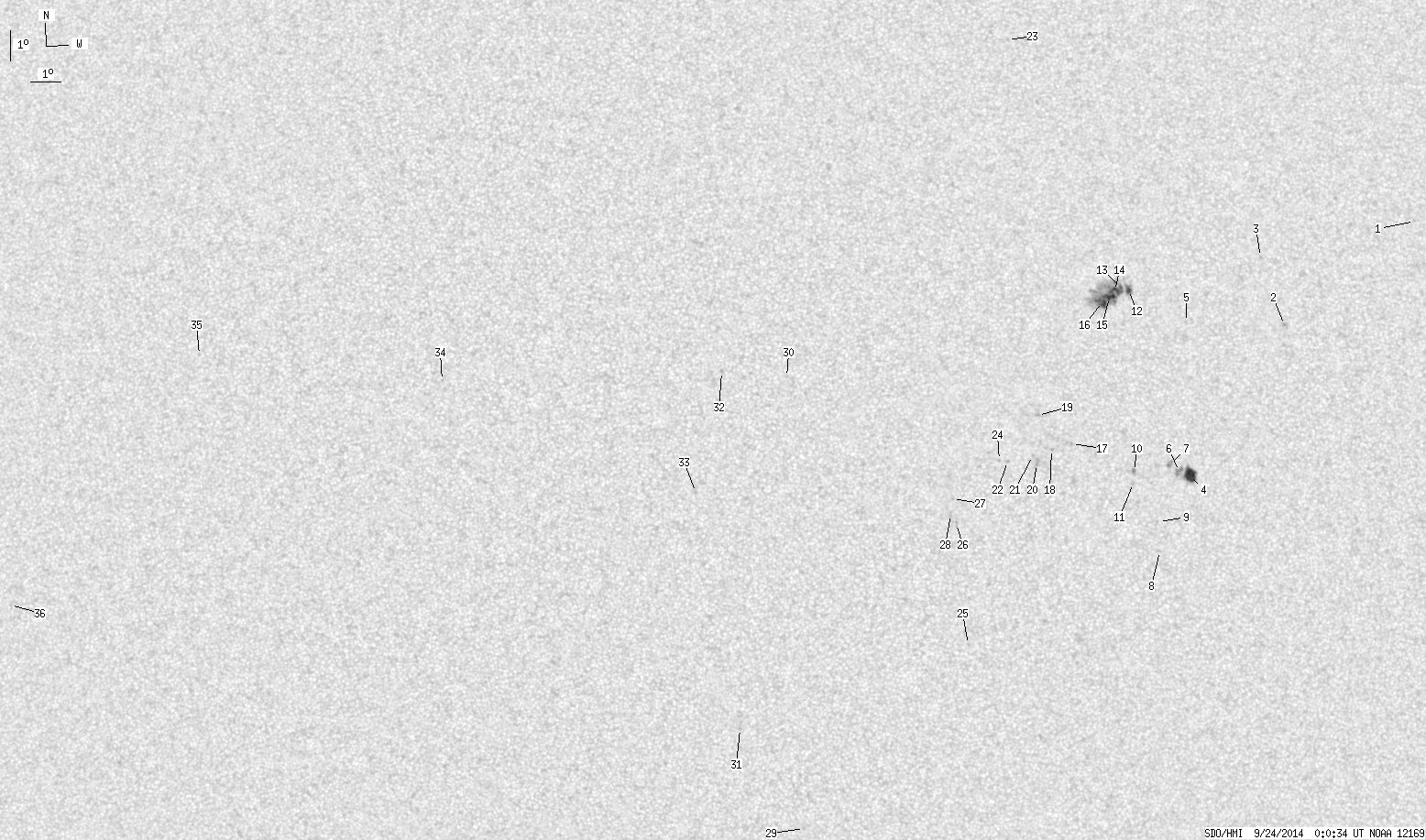

SDO HMI 2014-09-24 00:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.02 | 158.04 | 22.97 | 80.44 | 8.67 | 288.80 | 11.70 | 270.28 | 0.2252 | -341.3 | -294.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-24 00:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.67 | 13.14 | 300.56 | 23.46 | 286.73 | 0.4065 | -747.0 | -520.9 | |
| 0.00 | 1.86 | 0.00 | 0.97 | 9.95 | 295.63 | 18.53 | 280.38 | 0.3196 | -943.0 | -776.5 | |
| 0.00 | 1.24 | 0.00 | 0.65 | 12.21 | 294.94 | 17.84 | 287.81 | 0.3159 | -726.0 | -568.1 | |
| 13.80 | 18.31 | 7.08 | 9.39 | 5.13 | 292.17 | 15.06 | 263.68 | 0.2616 | -1038.0 | -652.1 | |
| 0.00 | 0.80 | 0.00 | 0.41 | 10.16 | 292.23 | 15.13 | 282.93 | 0.2647 | -837.0 | -686.7 | |
| 0.00 | 6.63 | 0.00 | 3.40 | 5.27 | 291.80 | 14.69 | 264.00 | 0.2551 | -1216.0 | -922.1 | |
| 0.00 | 4.51 | 0.00 | 2.31 | 5.52 | 291.49 | 14.39 | 264.83 | 0.2494 | -1001.0 | -813.0 | |
| 0.00 | 0.88 | 0.00 | 0.45 | 2.67 | 291.09 | 13.99 | 253.35 | 0.2532 | 767.0 | 508.5 | |
| 0.00 | 0.44 | 0.00 | 0.23 | 3.63 | 291.08 | 13.97 | 257.05 | 0.2484 | -527.0 | -582.2 | |
| 0.00 | 2.65 | 0.00 | 1.35 | 5.31 | 290.27 | 13.17 | 263.33 | 0.2294 | -1047.0 | -848.4 | |
| 0.00 | 1.24 | 0.00 | 0.63 | 4.92 | 290.23 | 13.13 | 261.62 | 0.2298 | -705.0 | -629.1 | |
| 3.18 | 86.68 | 1.62 | 44.07 | 11.27 | 290.30 | 13.19 | 289.07 | 0.2379 | -948.3 | -588.5 | |
| 1.86 | -12.00 | 0.95 | -12.00 | 11.34 | 290.05 | 12.94 | 289.65 | 0.2342 | -925.7 | 999999 | |
| 7.16 | -12.00 | 3.65 | -12.00 | 11.26 | 289.82 | 12.72 | 289.59 | 0.2302 | -1104.3 | 999999 | |
| 9.73 | -12.00 | 4.95 | -12.00 | 11.05 | 289.62 | 12.52 | 288.98 | 0.2260 | -1213.6 | 999999 | |
| 9.29 | -12.00 | 4.72 | -12.00 | 10.91 | 289.37 | 12.26 | 288.69 | 0.2212 | -1218.9 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.80 | 6.27 | 288.19 | 11.09 | 266.78 | 0.1923 | 809.0 | 644.6 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 6.11 | 287.51 | 10.41 | 265.58 | 0.1810 | 890.0 | 730.9 | |
| 0.00 | 1.77 | 0.00 | 0.89 | 7.23 | 287.07 | 9.97 | 271.85 | 0.1726 | 865.0 | 654.6 | |
| 0.00 | 5.48 | 0.00 | 2.76 | 5.64 | 287.01 | 9.91 | 262.59 | 0.1734 | 876.0 | 656.0 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 5.91 | 286.86 | 9.76 | 264.06 | 0.1703 | 788.0 | 655.4 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 5.75 | 286.03 | 8.93 | 262.38 | 0.1565 | 890.0 | 696.2 | |
| 0.00 | 1.33 | 0.00 | 0.68 | 19.68 | 286.56 | 9.46 | 324.97 | 0.2708 | -760.0 | -581.4 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 5.78 | 285.76 | 8.65 | 262.34 | 0.1517 | 872.0 | 643.1 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -0.26 | 284.67 | 7.57 | 226.36 | 0.1828 | 888.0 | 673.9 | |
| 0.00 | 2.65 | 0.00 | 1.33 | 3.73 | 284.30 | 7.19 | 245.74 | 0.1377 | 791.0 | 646.4 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 4.55 | 284.19 | 7.08 | 251.07 | 0.1305 | 841.0 | 710.9 | |
| 0.00 | 2.74 | 0.00 | 1.37 | 4.04 | 284.12 | 7.02 | 247.26 | 0.1327 | 743.0 | 668.0 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -6.34 | 279.28 | 2.17 | 189.26 | 0.2351 | 774.0 | 644.7 | |
| 0.00 | 0.97 | 0.00 | 0.48 | 8.61 | 278.73 | 1.62 | 314.75 | 0.0396 | 677.0 | 458.3 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -2.99 | 277.16 | 0.06 | 180.33 | 0.1745 | 816.0 | 666.3 | |
| 0.00 | 1.77 | 0.00 | 0.88 | 8.79 | 276.57 | -0.54 | 16.64 | 0.0325 | 905.0 | 714.7 | |
| 0.00 | 1.24 | 0.00 | 0.61 | 4.82 | 275.72 | -1.38 | 147.89 | 0.0454 | 850.0 | 616.4 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 8.40 | 267.25 | -9.85 | 81.30 | 0.1721 | 795.0 | 576.7 | |
| 0.00 | 0.88 | 0.00 | 0.46 | 9.01 | 258.91 | -18.19 | 82.47 | 0.3124 | 556.0 | 503.1 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 0.50 | 252.47 | -24.63 | 103.80 | 0.4310 | 592.0 | 383.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
