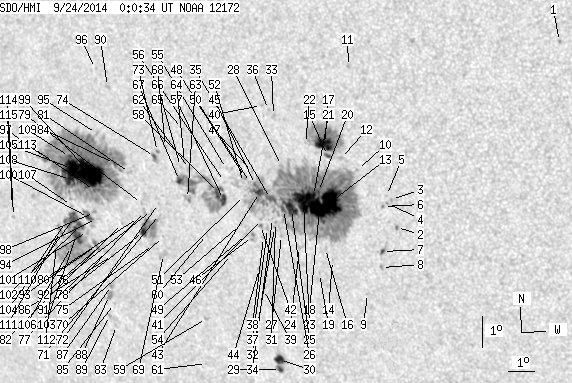

SDO HMI 2014-09-24 00:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 275.81 | 1374.85 | 183.40 | 914.19 | -11.00 | 239.38 | -37.72 | 115.54 | 0.6656 | 56.1 | -24.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-24 00:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.69 | -5.33 | 252.88 | -24.22 | 116.45 | 0.4582 | 777.0 | 568.0 | |
| 0.00 | 1.86 | 0.00 | 1.13 | -11.48 | 246.81 | -30.30 | 121.32 | 0.5809 | 716.0 | 603.0 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -10.60 | 246.73 | -30.37 | 119.93 | 0.5756 | 559.0 | 504.1 | |
| 0.00 | 1.15 | 0.00 | 0.70 | -10.73 | 246.58 | -30.53 | 120.01 | 0.5785 | 317.0 | 370.5 | |
| 0.00 | 0.97 | 0.00 | 0.59 | -10.48 | 246.57 | -30.54 | 119.62 | 0.5769 | 855.0 | 700.0 | |
| 0.00 | 1.33 | 0.00 | 0.81 | -10.84 | 246.42 | -30.68 | 120.04 | 0.5811 | 607.0 | 589.0 | |
| 1.33 | 3.27 | 0.82 | 2.01 | -12.28 | 246.21 | -30.90 | 121.99 | 0.5938 | -918.9 | -729.6 | |
| 0.00 | 2.03 | 0.00 | 1.26 | -12.79 | 246.10 | -31.00 | 122.65 | 0.5988 | -824.0 | -688.7 | |
| 0.00 | 1.33 | 0.00 | 0.83 | -13.66 | 245.47 | -31.64 | 123.36 | 0.6125 | 493.0 | 433.3 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -9.73 | 245.62 | -31.49 | 117.71 | 0.5837 | -220.0 | -239.7 | |
| 0.00 | 1.33 | 0.00 | 0.80 | -6.53 | 245.58 | -31.52 | 112.60 | 0.5648 | 777.0 | 608.7 | |
| 0.00 | 2.30 | 0.00 | 1.41 | -9.42 | 245.04 | -32.07 | 116.80 | 0.5890 | 701.0 | 602.7 | |
| 32.55 | 527.08 | 20.18 | 330.03 | -10.77 | 244.59 | -32.51 | 118.50 | 0.6030 | 1423.9 | 397.2 | |
| 0.00 | 0.62 | 0.00 | 0.39 | -12.69 | 244.33 | -32.77 | 121.07 | 0.6188 | -689.0 | -570.1 | |
| 1.42 | 78.46 | 0.87 | 48.12 | -9.36 | 244.57 | -32.53 | 116.37 | 0.5944 | 835.4 | 541.5 | |
| 0.00 | 1.50 | 0.00 | 0.95 | -12.32 | 244.13 | -32.98 | 120.39 | 0.6187 | 695.0 | 418.5 | |
| 16.45 | -15.00 | 10.10 | -15.00 | -9.02 | 244.50 | -32.60 | 115.80 | 0.5933 | 1158.2 | 999999 | |
| 26.00 | -13.00 | 16.24 | -13.00 | -11.09 | 244.08 | -33.03 | 118.58 | 0.6113 | 1214.4 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.62 | -13.14 | 243.78 | -33.32 | 121.28 | 0.6282 | -689.0 | -485.8 | |
| 3.18 | -13.00 | 1.98 | -13.00 | -10.52 | 244.11 | -32.99 | 117.77 | 0.6073 | 939.3 | 999999 | |
| 3.36 | -13.00 | 2.10 | -13.00 | -10.66 | 243.91 | -33.19 | 117.83 | 0.6106 | 1136.8 | 999999 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -9.03 | 243.81 | -33.30 | 115.34 | 0.6021 | 401.0 | 330.3 | |
| 25.21 | -13.00 | 15.83 | -13.00 | -10.87 | 243.52 | -33.59 | 117.86 | 0.6167 | 959.6 | 999999 | |
| 0.00 | 1.59 | 0.00 | 1.01 | -12.35 | 243.16 | -33.94 | 119.72 | 0.6303 | -197.0 | -162.8 | |
| 10.35 | -13.00 | 6.55 | -13.00 | -11.16 | 243.04 | -34.07 | 117.93 | 0.6243 | 775.6 | 999999 | |
| 2.03 | -13.00 | 1.29 | -13.00 | -11.18 | 242.74 | -34.37 | 117.75 | 0.6280 | 575.0 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.96 | -12.02 | 242.54 | -34.56 | 118.80 | 0.6355 | 389.0 | 426.8 | |
| 0.00 | 0.97 | 0.00 | 0.61 | -9.79 | 242.84 | -34.26 | 115.80 | 0.6185 | -63.0 | -60.5 | |
| 1.95 | 13.18 | 1.30 | 8.78 | -16.38 | 241.72 | -35.39 | 124.05 | 0.6729 | 674.0 | 571.0 | |
| 5.93 | -29.00 | 3.95 | -29.00 | -16.05 | 241.75 | -35.36 | 123.65 | 0.6704 | 851.4 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.62 | -11.62 | 242.38 | -34.73 | 118.12 | 0.6350 | 650.0 | 516.5 | |
| 0.00 | 0.71 | 0.00 | 0.45 | -11.78 | 242.31 | -34.79 | 118.31 | 0.6367 | 526.0 | 433.5 | |
| 0.00 | 1.68 | 0.00 | 1.05 | -8.24 | 242.72 | -34.39 | 113.41 | 0.6113 | 798.0 | 465.7 | |
| 0.00 | 0.44 | 0.00 | 0.28 | -11.50 | 242.28 | -34.82 | 117.88 | 0.6354 | 546.0 | 457.8 | |
| 4.51 | -13.00 | 2.87 | -13.00 | -10.86 | 242.29 | -34.81 | 116.99 | 0.6315 | 728.0 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.66 | -8.06 | 242.55 | -34.55 | 113.04 | 0.6125 | 783.0 | 625.4 | |
| 0.00 | 1.86 | 0.00 | 1.19 | -11.83 | 242.04 | -35.06 | 118.19 | 0.6402 | 548.0 | 442.7 | |
| 0.00 | 1.33 | 0.00 | 0.86 | -12.13 | 241.85 | -35.26 | 118.47 | 0.6443 | 409.0 | 343.0 | |
| 0.00 | 0.44 | 0.00 | 0.29 | -13.81 | 241.57 | -35.54 | 120.57 | 0.6578 | 568.0 | 472.6 | |
| 0.00 | 1.06 | 0.00 | 0.67 | -7.96 | 242.30 | -34.80 | 112.72 | 0.6151 | 748.0 | 622.5 | |
| 0.00 | 0.97 | 0.00 | 0.63 | -11.56 | 241.86 | -35.25 | 117.68 | 0.6408 | 351.0 | 242.5 | |
| 0.44 | 1.86 | 0.29 | 1.20 | -11.75 | 241.79 | -35.31 | 117.91 | 0.6427 | 610.8 | 487.3 | |
| 5.31 | -13.00 | 3.40 | -13.00 | -10.70 | 241.90 | -35.20 | 116.50 | 0.6352 | 771.2 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.64 | -13.14 | 241.53 | -35.57 | 119.64 | 0.6541 | 610.0 | 562.8 | |
| 0.80 | -13.00 | 0.51 | -13.00 | -10.46 | 241.79 | -35.32 | 116.08 | 0.6352 | 572.1 | 999999 | |
| 0.00 | 2.39 | 0.00 | 1.55 | -12.13 | 241.43 | -35.67 | 118.19 | 0.6492 | 677.0 | 585.6 | |
| 0.00 | 1.15 | 0.00 | 0.73 | -10.06 | 241.73 | -35.38 | 115.46 | 0.6337 | 141.0 | 174.2 | |
| 0.00 | 1.33 | 0.00 | 0.85 | -10.41 | 241.60 | -35.50 | 115.89 | 0.6371 | 321.0 | 367.8 | |
| 0.00 | 1.33 | 0.00 | 0.86 | -12.08 | 241.21 | -35.89 | 117.97 | 0.6514 | 599.0 | 491.8 | |
| 0.00 | 1.86 | 0.00 | 1.19 | -10.27 | 241.44 | -35.67 | 115.57 | 0.6383 | 564.0 | 462.1 | |
| 0.00 | 0.88 | 0.00 | 0.57 | -10.84 | 241.32 | -35.78 | 116.31 | 0.6430 | 350.0 | 223.0 | |
| 0.00 | 0.88 | 0.00 | 0.57 | -10.43 | 241.34 | -35.77 | 115.74 | 0.6404 | 275.0 | 266.3 | |
| 0.00 | 1.06 | 0.00 | 0.69 | -11.78 | 241.03 | -36.08 | 117.43 | 0.6518 | 734.0 | 571.4 | |
| 0.00 | 0.97 | 0.00 | 0.64 | -12.77 | 240.52 | -36.58 | 118.46 | 0.6634 | 437.0 | 345.6 | |
| 0.00 | 0.71 | 0.00 | 0.46 | -10.03 | 240.75 | -36.36 | 114.81 | 0.6454 | -289.0 | -205.2 | |
| 0.00 | 1.06 | 0.00 | 0.69 | -10.45 | 240.61 | -36.49 | 115.32 | 0.6492 | 160.0 | 103.1 | |
| 5.31 | 77.04 | 3.47 | 50.72 | -11.03 | 240.49 | -36.61 | 116.05 | 0.6538 | 685.9 | -155.4 | |
| 5.66 | -57.00 | 3.70 | -57.00 | -10.82 | 240.33 | -36.77 | 115.66 | 0.6546 | 634.5 | 999999 | |
| 0.00 | 2.21 | 0.00 | 1.51 | -14.92 | 239.14 | -37.97 | 120.39 | 0.6915 | -737.0 | -616.4 | |
| 0.00 | 1.24 | 0.00 | 0.82 | -12.20 | 239.65 | -37.45 | 117.13 | 0.6701 | 443.0 | 308.2 | |
| 0.00 | 0.97 | 0.00 | 0.68 | -16.41 | 238.80 | -38.30 | 122.06 | 0.7038 | -497.0 | -399.5 | |
| 0.00 | 2.92 | 0.00 | 1.93 | -10.14 | 239.31 | -37.79 | 114.10 | 0.6631 | -532.0 | -519.6 | |
| 0.00 | 4.86 | 0.00 | 3.24 | -11.10 | 239.09 | -38.01 | 115.29 | 0.6707 | 468.0 | 363.2 | |
| 0.00 | 1.24 | 0.00 | 0.82 | -9.94 | 239.15 | -37.96 | 113.71 | 0.6640 | -784.0 | -609.4 | |
| 0.00 | 0.35 | 0.00 | 0.23 | -8.90 | 239.21 | -37.90 | 112.29 | 0.6582 | -671.0 | -624.8 | |
| 0.00 | 0.62 | 0.00 | 0.41 | -10.11 | 238.97 | -38.14 | 113.85 | 0.6670 | -661.0 | -506.6 | |
| 3.01 | -57.00 | 2.00 | -57.00 | -10.55 | 238.86 | -38.24 | 114.41 | 0.6705 | -1003.2 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.65 | -9.52 | 238.46 | -38.64 | 112.75 | 0.6701 | -755.0 | -613.6 | |
| 0.00 | 5.66 | 0.00 | 3.89 | -12.98 | 237.82 | -39.29 | 117.05 | 0.6951 | 223.0 | 28.5 | |
| 0.00 | 0.44 | 0.00 | 0.30 | -12.40 | 237.93 | -39.18 | 116.35 | 0.6908 | 204.0 | 236.6 | |
| 0.00 | 0.71 | 0.00 | 0.48 | -11.70 | 237.89 | -39.21 | 115.40 | 0.6877 | -329.0 | -367.1 | |
| 0.00 | 0.71 | 0.00 | 0.48 | -11.35 | 237.91 | -39.19 | 114.95 | 0.6857 | -623.0 | -535.1 | |
| 0.00 | 1.50 | 0.00 | 1.01 | -9.70 | 238.12 | -38.98 | 112.82 | 0.6750 | -855.0 | -686.2 | |
| 1.42 | 4.33 | 0.95 | 2.91 | -9.87 | 237.98 | -39.12 | 112.97 | 0.6775 | -887.2 | -703.4 | |
| 0.00 | 1.42 | 0.00 | 0.98 | -12.69 | 237.47 | -39.63 | 116.46 | 0.6974 | -449.0 | -471.3 | |
| 0.00 | 0.80 | 0.00 | 0.54 | -11.60 | 237.59 | -39.52 | 115.09 | 0.6906 | -711.0 | -622.8 | |
| 0.00 | 2.65 | 0.00 | 1.82 | -11.65 | 237.30 | -39.81 | 115.00 | 0.6941 | -683.0 | -574.1 | |
| 3.80 | 27.33 | 2.63 | 18.79 | -12.30 | 237.14 | -39.96 | 115.77 | 0.6991 | -968.7 | -750.8 | |
| 0.00 | 1.15 | 0.00 | 0.79 | -11.41 | 237.22 | -39.88 | 114.63 | 0.6938 | -732.0 | -624.8 | |
| 0.00 | 0.62 | 0.00 | 0.43 | -11.87 | 237.02 | -40.08 | 115.13 | 0.6983 | -428.0 | -511.6 | |
| 0.00 | 2.39 | 0.00 | 1.64 | -10.46 | 236.90 | -40.21 | 113.19 | 0.6929 | -798.0 | -693.9 | |
| 0.00 | 0.88 | 0.00 | 0.62 | -12.11 | 236.33 | -40.78 | 115.07 | 0.7073 | -350.0 | -383.3 | |
| 0.00 | 1.42 | 0.00 | 1.03 | -15.46 | 235.35 | -41.76 | 118.76 | 0.7346 | 178.0 | 331.8 | |
| 1.68 | 406.43 | 1.16 | 286.89 | -10.22 | 236.33 | -40.77 | 112.57 | 0.6984 | -1099.5 | -424.2 | |
| 0.00 | 0.71 | 0.00 | 0.51 | -14.74 | 235.44 | -41.67 | 117.93 | 0.7300 | 442.0 | 342.2 | |
| 0.00 | 0.97 | 0.00 | 0.69 | -13.18 | 235.70 | -41.40 | 116.11 | 0.7194 | 374.0 | 339.1 | |
| 0.00 | 3.18 | 0.00 | 2.29 | -14.16 | 235.45 | -41.66 | 117.21 | 0.7270 | -583.0 | -499.6 | |
| 0.00 | 4.78 | 0.00 | 3.45 | -14.50 | 235.29 | -41.82 | 117.54 | 0.7303 | -675.0 | -414.6 | |
| 0.00 | 1.86 | 0.00 | 1.35 | -15.15 | 235.13 | -41.98 | 118.27 | 0.7353 | 476.0 | 358.0 | |
| 0.00 | 1.95 | 0.00 | 1.32 | -7.82 | 236.38 | -40.72 | 109.33 | 0.6872 | -836.0 | -630.8 | |
| 0.00 | 2.12 | 0.00 | 1.51 | -13.07 | 235.48 | -41.63 | 115.85 | 0.7213 | 269.0 | 237.0 | |
| 0.00 | 1.33 | 0.00 | 0.95 | -12.86 | 235.31 | -41.79 | 115.49 | 0.7221 | -215.0 | -213.1 | |
| 1.86 | 4.51 | 1.33 | 3.23 | -12.91 | 235.10 | -42.01 | 115.44 | 0.7247 | -693.0 | -535.1 | |
| 0.00 | 0.71 | 0.00 | 0.50 | -12.04 | 235.27 | -41.83 | 114.41 | 0.7187 | -649.0 | -500.2 | |
| 0.00 | 1.68 | 0.00 | 1.16 | -9.33 | 235.73 | -41.37 | 111.08 | 0.7013 | -520.0 | -439.1 | |
| 0.00 | 0.71 | 0.00 | 0.48 | -7.29 | 235.96 | -41.14 | 108.41 | 0.6901 | -690.0 | -594.5 | |
| 0.27 | -84.00 | 0.19 | -84.00 | -11.15 | 235.36 | -41.75 | 113.30 | 0.7136 | -746.7 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.82 | -11.86 | 235.22 | -41.88 | 114.15 | 0.7183 | -825.0 | -573.1 | |
| 46.97 | -84.00 | 33.04 | -84.00 | -10.62 | 235.28 | -41.82 | 112.57 | 0.7121 | -1226.3 | 999999 | |
| 3.63 | 10.08 | 2.59 | 7.19 | -12.04 | 234.94 | -42.16 | 114.24 | 0.7223 | -795.0 | -585.1 | |
| 0.00 | 1.77 | 0.00 | 1.27 | -12.49 | 234.81 | -42.30 | 114.75 | 0.7258 | -635.0 | -453.1 | |
| 3.63 | 104.37 | 2.61 | 75.93 | -12.32 | 234.55 | -42.56 | 114.40 | 0.7279 | -881.4 | -330.1 | |
| 12.29 | -102.00 | 8.90 | -102.00 | -12.63 | 234.32 | -42.79 | 114.67 | 0.7318 | -810.9 | 999999 | |
| 9.38 | -102.00 | 6.77 | -102.00 | -12.16 | 234.25 | -42.86 | 114.04 | 0.7304 | -738.2 | 999999 | |
| 21.58 | -84.00 | 15.36 | -84.00 | -10.53 | 234.51 | -42.59 | 112.07 | 0.7203 | -871.8 | 999999 | |
| 0.88 | -102.00 | 0.65 | -102.00 | -13.04 | 234.02 | -43.09 | 115.03 | 0.7368 | -586.6 | 999999 | |
| 0.00 | 1.59 | 0.00 | 1.15 | -11.71 | 234.29 | -42.81 | 113.49 | 0.7279 | -340.0 | -342.0 | |
| 6.46 | -84.00 | 4.62 | -84.00 | -10.88 | 234.41 | -42.70 | 112.48 | 0.7230 | -614.6 | 999999 | |
| 2.03 | -84.00 | 1.44 | -84.00 | -10.16 | 234.49 | -42.61 | 111.57 | 0.7189 | -841.4 | 999999 | |
| 1.77 | -102.00 | 1.28 | -102.00 | -12.21 | 233.98 | -43.12 | 113.98 | 0.7335 | -436.0 | 999999 | |
| 0.00 | 5.57 | 0.00 | 4.08 | -12.59 | 233.65 | -43.46 | 114.29 | 0.7388 | -322.0 | -290.7 | |
| 0.00 | 0.88 | 0.00 | 0.65 | -13.06 | 233.37 | -43.73 | 114.74 | 0.7438 | -328.0 | -265.9 | |
| 3.36 | -84.00 | 2.43 | -84.00 | -10.30 | 233.50 | -43.60 | 111.30 | 0.7306 | -517.9 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.94 | -12.29 | 231.68 | -45.43 | 112.97 | 0.7583 | -580.0 | -460.6 | |
| 0.00 | 0.97 | 0.00 | 0.73 | -12.04 | 231.69 | -45.41 | 112.66 | 0.7571 | -432.0 | -364.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
