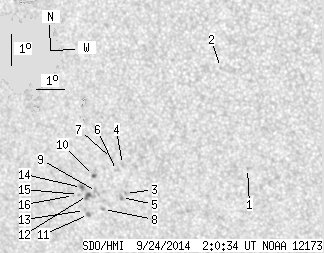

SDO HMI 2014-09-24 02:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.36 | 27.86 | 2.09 | 17.18 | -15.04 | 246.64 | -29.37 | 127.28 | 0.5972 | -603.6 | -578.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-24 02:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.52 | -14.14 | 251.72 | -24.29 | 131.29 | 0.5329 | 729.0 | 614.8 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -10.95 | 251.13 | -24.87 | 125.75 | 0.5108 | 585.0 | 479.8 | |
| 0.00 | 1.15 | 0.00 | 0.70 | -15.19 | 247.33 | -28.67 | 128.13 | 0.5908 | -780.0 | -591.1 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -14.25 | 247.36 | -28.64 | 126.85 | 0.5827 | -631.0 | -563.1 | |
| 0.00 | 2.30 | 0.00 | 1.41 | -15.33 | 247.17 | -28.83 | 128.16 | 0.5938 | -863.0 | -667.7 | |
| 0.00 | 1.77 | 0.00 | 1.08 | -14.46 | 247.12 | -28.88 | 126.91 | 0.5872 | -793.0 | -588.8 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -14.08 | 247.00 | -29.01 | 126.26 | 0.5855 | -819.0 | -706.3 | |
| 0.00 | 1.50 | 0.00 | 0.93 | -15.76 | 246.46 | -29.55 | 128.08 | 0.6051 | -770.0 | -565.8 | |
| 0.00 | 3.19 | 0.00 | 1.97 | -15.19 | 246.30 | -29.71 | 127.15 | 0.6023 | -769.0 | -722.2 | |
| 0.53 | 1.59 | 0.33 | 0.98 | -14.67 | 246.27 | -29.73 | 126.42 | 0.5985 | -885.7 | -823.2 | |
| 0.00 | 2.12 | 0.00 | 1.33 | -15.96 | 245.88 | -30.12 | 127.82 | 0.6130 | -836.0 | -690.2 | |
| 1.95 | 5.40 | 1.21 | 3.36 | -15.34 | 245.95 | -30.06 | 127.04 | 0.6073 | -909.4 | -718.9 | |
| 0.00 | 1.24 | 0.00 | 0.78 | -15.84 | 245.76 | -30.25 | 127.54 | 0.6134 | -582.0 | -488.0 | |
| 0.88 | 1.95 | 0.55 | 1.21 | -15.09 | 245.77 | -30.23 | 126.54 | 0.6073 | -914.6 | -747.2 | |
| 0.00 | 1.06 | 0.00 | 0.66 | -15.33 | 245.63 | -30.38 | 126.73 | 0.6108 | -741.0 | -611.7 | |
| 0.00 | 0.71 | 0.00 | 0.44 | -15.37 | 245.44 | -30.57 | 126.62 | 0.6132 | -660.0 | -544.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
