SDO HMI 2014-09-24 03:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.53 | 0.00 | 7.54 | -13.94 | 289.35 | 13.90 | 212.42 | 0.4514 | 644.4 | 516.9 | |
|
previous
or next observation for the same group /

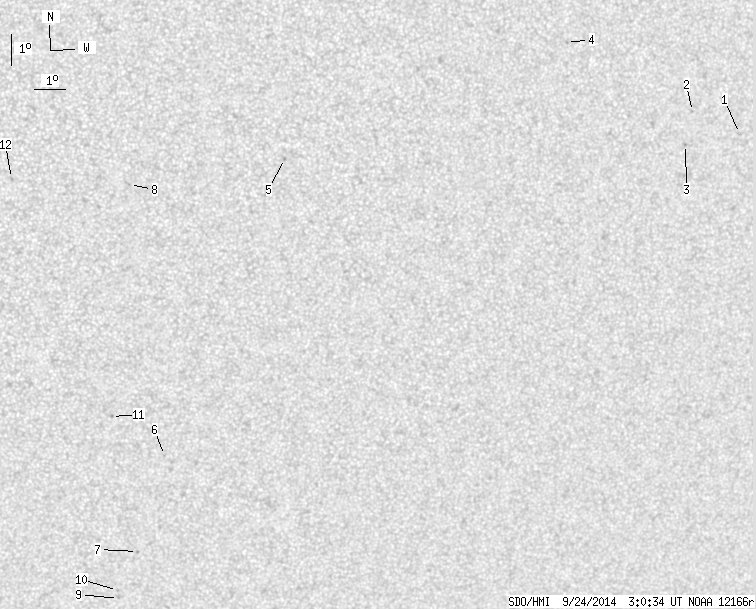

back to the solar disc SDO HMI 2014-09-24 03:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.04 | 0.00 | 1.18 | -10.00 | 301.44 | 25.99 | 236.98 | 0.5167 | 624.0 | 457.4 | |
| 0.00 | 1.24 | 0.00 | 0.70 | -9.22 | 299.79 | 24.34 | 236.54 | 0.4896 | 857.0 | 630.4 | |
| 0.00 | 1.15 | 0.00 | 0.66 | -10.25 | 299.64 | 24.18 | 234.63 | 0.4964 | 857.0 | 695.8 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -6.87 | 295.52 | 20.07 | 235.69 | 0.4141 | -689.0 | -598.2 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -10.18 | 286.73 | 11.28 | 213.29 | 0.3522 | 803.0 | 629.4 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -19.75 | 283.35 | 7.90 | 196.07 | 0.4693 | 673.0 | 499.8 | |
| 0.00 | 0.97 | 0.00 | 0.56 | -23.02 | 282.64 | 7.18 | 192.98 | 0.5147 | 808.0 | 730.4 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -10.90 | 281.95 | 6.50 | 199.91 | 0.3276 | 773.0 | 588.9 | |
| 0.00 | 0.35 | 0.00 | 0.21 | -24.66 | 282.10 | 6.64 | 191.34 | 0.5368 | 609.0 | 568.8 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -24.37 | 282.05 | 6.59 | 191.37 | 0.5325 | 731.0 | 529.6 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -18.41 | 281.60 | 6.14 | 193.33 | 0.4422 | 822.0 | 684.1 | |
| 0.00 | 1.33 | 0.00 | 0.69 | -10.66 | 278.32 | 2.87 | 189.20 | 0.3088 | 865.0 | 683.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
