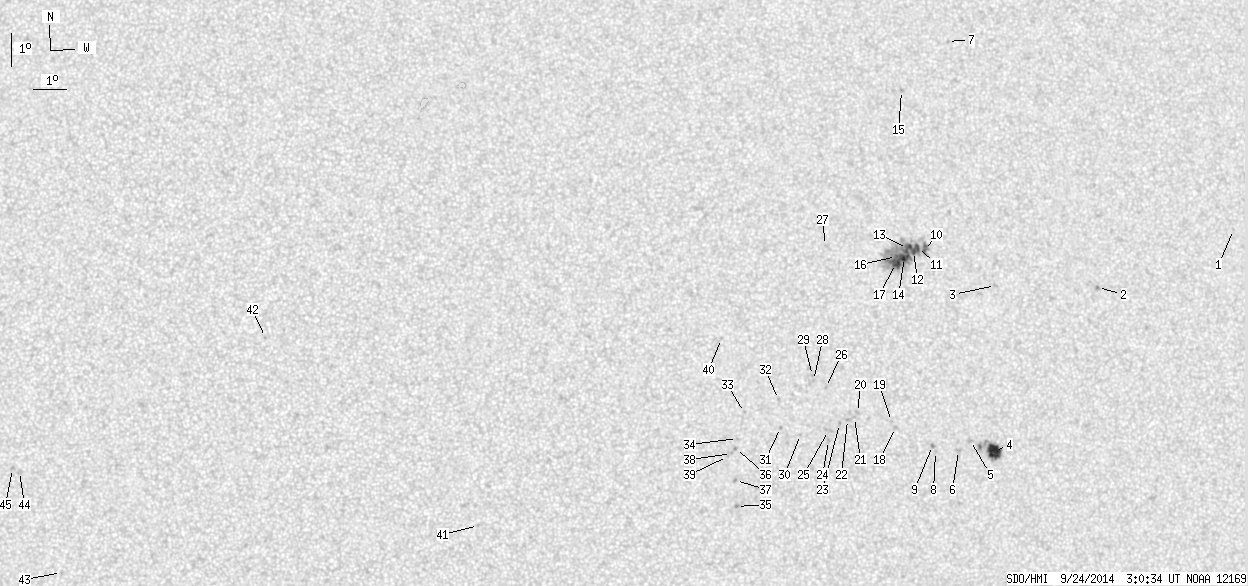

SDO HMI 2014-09-24 03:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.30 | 162.98 | 21.21 | 83.36 | 8.69 | 288.33 | 12.87 | 269.22 | 0.2478 | -186.7 | -214.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-24 03:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.80 | 0.00 | 0.44 | 11.46 | 300.38 | 24.92 | 282.13 | 0.4242 | -649.0 | -473.8 | |
| 0.00 | 1.59 | 0.00 | 0.84 | 9.93 | 295.74 | 20.28 | 279.70 | 0.3479 | -847.0 | -768.2 | |
| 0.00 | 1.86 | 0.00 | 0.96 | 10.12 | 292.46 | 17.01 | 281.68 | 0.2953 | -781.0 | -542.6 | |
| 14.07 | 25.22 | 7.28 | 13.04 | 5.13 | 292.22 | 16.76 | 264.51 | 0.2899 | -1056.9 | -753.7 | |
| 0.00 | 1.95 | 0.00 | 1.00 | 5.49 | 291.47 | 16.02 | 265.45 | 0.2768 | -942.0 | -761.8 | |
| 0.00 | 2.92 | 0.00 | 1.50 | 5.20 | 291.09 | 15.63 | 264.24 | 0.2709 | -841.0 | -585.8 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 17.56 | 291.46 | 16.01 | 305.51 | 0.3244 | -740.0 | -598.2 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 5.19 | 290.37 | 14.91 | 263.86 | 0.2589 | -708.0 | -573.0 | |
| 0.00 | 1.77 | 0.00 | 0.91 | 5.38 | 290.28 | 14.82 | 264.52 | 0.2570 | -959.0 | -798.7 | |
| 0.88 | 82.73 | 0.45 | 42.33 | 11.25 | 290.26 | 14.81 | 287.27 | 0.2637 | -982.2 | -577.4 | |
| 2.65 | -10.00 | 1.36 | -10.00 | 11.35 | 290.04 | 14.59 | 287.84 | 0.2606 | -891.3 | 999999 | |
| 2.65 | -10.00 | 1.36 | -10.00 | 11.23 | 289.91 | 14.46 | 287.54 | 0.2580 | -999.7 | 999999 | |
| 5.22 | -10.00 | 2.67 | -10.00 | 11.33 | 289.73 | 14.27 | 288.09 | 0.2554 | -1101.4 | 999999 | |
| 6.72 | -10.00 | 3.44 | -10.00 | 11.06 | 289.62 | 14.16 | 287.18 | 0.2525 | -1265.9 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.78 | 16.11 | 289.84 | 14.39 | 304.15 | 0.2897 | -842.0 | -680.1 | |
| 1.59 | -10.00 | 0.81 | -10.00 | 11.10 | 289.37 | 13.91 | 287.59 | 0.2486 | -1205.1 | 999999 | |
| 7.52 | -10.00 | 3.84 | -10.00 | 10.89 | 289.33 | 13.87 | 286.81 | 0.2470 | -1258.2 | 999999 | |
| 0.00 | 2.12 | 0.00 | 1.08 | 5.95 | 289.14 | 13.69 | 266.36 | 0.2369 | 787.0 | 569.2 | |
| 0.00 | 0.88 | 0.00 | 0.45 | 6.14 | 289.02 | 13.57 | 267.10 | 0.2346 | 777.0 | 658.9 | |
| 0.00 | 2.21 | 0.00 | 1.12 | 6.44 | 287.97 | 12.52 | 268.12 | 0.2165 | 747.0 | 584.2 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 6.29 | 287.88 | 12.42 | 267.40 | 0.2150 | 773.0 | 672.0 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 6.24 | 287.66 | 12.20 | 267.07 | 0.2113 | 854.0 | 654.8 | |
| 0.00 | 1.42 | 0.00 | 0.72 | 6.12 | 287.41 | 11.95 | 266.43 | 0.2073 | 837.0 | 652.6 | |
| 0.00 | 1.68 | 0.00 | 0.85 | 5.62 | 287.06 | 11.60 | 263.80 | 0.2022 | 825.0 | 594.5 | |
| 0.00 | 3.54 | 0.00 | 1.79 | 5.92 | 287.06 | 11.61 | 265.29 | 0.2017 | 775.0 | 666.6 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 7.22 | 287.00 | 11.55 | 271.75 | 0.1996 | 757.0 | 594.0 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 11.49 | 287.15 | 11.70 | 292.08 | 0.2154 | -790.0 | -673.0 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 7.44 | 286.64 | 11.18 | 272.90 | 0.1934 | 847.0 | 681.4 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 7.59 | 286.61 | 11.16 | 273.69 | 0.1930 | 867.0 | 619.2 | |
| 0.00 | 1.33 | 0.00 | 0.67 | 5.82 | 286.20 | 10.74 | 264.28 | 0.1872 | 634.0 | 386.9 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 6.05 | 285.59 | 10.13 | 265.13 | 0.1764 | 897.0 | 741.6 | |
| 0.00 | 1.50 | 0.00 | 0.76 | 6.89 | 285.54 | 10.09 | 269.94 | 0.1747 | 851.0 | 590.6 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 6.52 | 284.49 | 9.04 | 267.43 | 0.1569 | 672.0 | 525.2 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 5.74 | 284.26 | 8.81 | 262.29 | 0.1545 | 703.0 | 519.3 | |
| 0.00 | 1.77 | 0.00 | 0.89 | 3.70 | 284.20 | 8.75 | 249.64 | 0.1627 | 1016.0 | 846.7 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 5.45 | 284.20 | 8.74 | 260.29 | 0.1542 | 997.0 | 804.5 | |
| 0.00 | 1.42 | 0.00 | 0.71 | 4.48 | 284.18 | 8.73 | 254.25 | 0.1579 | 962.0 | 823.2 | |
| 0.00 | 0.62 | 0.00 | 0.31 | 5.30 | 284.07 | 8.62 | 259.18 | 0.1526 | 854.0 | 702.7 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 5.21 | 283.95 | 8.49 | 258.44 | 0.1508 | 799.0 | 591.2 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 8.76 | 283.83 | 8.38 | 282.47 | 0.1482 | 732.0 | 510.3 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 3.22 | 276.39 | 0.94 | 193.91 | 0.0684 | 774.0 | 580.2 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 8.85 | 269.92 | -5.53 | 71.07 | 0.1012 | 899.0 | 687.1 | |
| 0.00 | 1.50 | 0.00 | 0.76 | 1.67 | 263.77 | -11.69 | 114.09 | 0.2228 | 618.0 | 414.6 | |
| 0.00 | 3.19 | 0.00 | 1.62 | 4.68 | 262.44 | -13.02 | 99.48 | 0.2286 | 750.0 | 634.4 | |
| 0.00 | 2.04 | 0.00 | 1.04 | 4.77 | 262.22 | -13.24 | 98.95 | 0.2320 | 831.0 | 704.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
