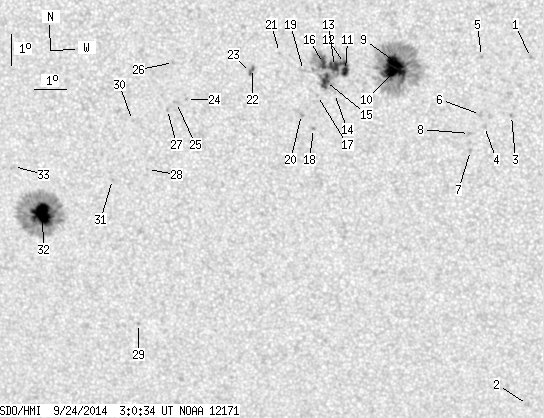

SDO HMI 2014-09-24 03:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 87.96 | 460.28 | 46.54 | 244.26 | -10.65 | 265.54 | -9.91 | 152.69 | 0.3509 | 248.4 | 130.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-24 03:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.36 | -8.36 | 274.23 | -1.22 | 175.44 | 0.2671 | 833.0 | 661.6 | |
| 0.00 | 2.83 | 0.00 | 1.57 | -19.56 | 274.06 | -1.39 | 177.07 | 0.4497 | 789.0 | 504.5 | |
| 0.00 | 1.50 | 0.00 | 0.78 | -10.18 | 273.64 | -1.81 | 173.98 | 0.2984 | 719.0 | 573.7 | |
| 0.00 | 2.39 | 0.00 | 1.24 | -10.53 | 272.81 | -2.64 | 171.44 | 0.3060 | 550.0 | 555.0 | |
| 0.00 | 1.50 | 0.00 | 0.77 | -8.33 | 272.74 | -2.71 | 169.96 | 0.2698 | 778.0 | 561.1 | |
| 0.00 | 2.04 | 0.00 | 1.06 | -10.15 | 272.69 | -2.76 | 170.87 | 0.3000 | 773.0 | 652.3 | |
| 0.00 | 1.86 | 0.00 | 0.97 | -11.29 | 272.38 | -3.08 | 170.47 | 0.3196 | 757.0 | 585.2 | |
| 0.00 | 1.86 | 0.00 | 0.97 | -10.75 | 272.35 | -3.10 | 170.10 | 0.3109 | 924.0 | 716.6 | |
| 14.95 | 183.95 | 7.72 | 95.09 | -8.54 | 270.12 | -5.34 | 161.03 | 0.2842 | 1486.0 | 444.8 | |
| 16.55 | -9.00 | 8.56 | -9.00 | -8.82 | 270.05 | -5.40 | 161.13 | 0.2890 | 1230.9 | 999999 | |
| 4.51 | 77.69 | 2.34 | 40.33 | -8.81 | 268.58 | -6.87 | 156.48 | 0.2977 | 1162.6 | 671.5 | |
| 2.30 | -11.00 | 1.19 | -11.00 | -8.59 | 268.56 | -6.90 | 156.10 | 0.2945 | 1207.1 | 999999 | |
| 7.61 | -11.00 | 3.95 | -11.00 | -8.69 | 268.25 | -7.21 | 155.30 | 0.2981 | 1230.6 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -9.54 | 268.23 | -7.23 | 156.39 | 0.3111 | 462.0 | 424.1 | |
| 7.17 | -11.00 | 3.73 | -11.00 | -9.16 | 267.96 | -7.49 | 155.11 | 0.3073 | 960.1 | 999999 | |
| 5.40 | -11.00 | 2.80 | -11.00 | -8.60 | 267.91 | -7.54 | 154.16 | 0.2991 | 1117.6 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -9.61 | 267.70 | -7.75 | 154.98 | 0.3157 | 801.0 | 555.2 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -10.65 | 267.55 | -7.90 | 155.91 | 0.3324 | 724.0 | 585.6 | |
| 0.00 | 4.25 | 0.00 | 2.21 | -8.83 | 267.29 | -8.16 | 152.69 | 0.3071 | 420.0 | 81.3 | |
| 0.00 | 1.77 | 0.00 | 0.93 | -10.21 | 267.20 | -8.26 | 154.38 | 0.3284 | 809.0 | 718.8 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -8.28 | 266.57 | -8.89 | 149.76 | 0.3049 | -682.0 | -512.8 | |
| 0.62 | 3.98 | 0.32 | 2.08 | -8.80 | 265.72 | -9.73 | 148.31 | 0.3194 | -990.7 | -790.4 | |
| 0.80 | -22.00 | 0.42 | -22.00 | -8.92 | 265.66 | -9.80 | 148.35 | 0.3218 | -982.2 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -9.81 | 263.64 | -11.81 | 144.88 | 0.3522 | -894.0 | -714.4 | |
| 0.00 | 2.74 | 0.00 | 1.45 | -9.92 | 263.32 | -12.13 | 144.34 | 0.3566 | -818.0 | -662.4 | |
| 0.00 | 1.33 | 0.00 | 0.70 | -8.66 | 263.28 | -12.18 | 142.06 | 0.3406 | -874.0 | -708.9 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -10.14 | 263.03 | -12.42 | 144.07 | 0.3623 | -816.0 | -666.8 | |
| 0.00 | 0.71 | 0.00 | 0.38 | -12.06 | 262.32 | -13.14 | 145.52 | 0.3943 | -798.0 | -661.9 | |
| 0.00 | 1.24 | 0.00 | 0.69 | -17.06 | 261.71 | -13.74 | 150.69 | 0.4658 | 744.0 | 599.7 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -10.52 | 261.92 | -13.54 | 142.31 | 0.3780 | -822.0 | -491.9 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -12.41 | 261.19 | -14.27 | 143.80 | 0.4092 | -725.0 | -562.0 | |
| 28.05 | 157.32 | 15.51 | 87.02 | -13.58 | 258.87 | -16.58 | 141.33 | 0.4459 | -1342.1 | -402.4 | |
| 0.00 | 2.48 | 0.00 | 1.36 | -12.11 | 258.04 | -17.42 | 137.73 | 0.4369 | -99.0 | -285.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
