SDO HMI 2014-09-24 03:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 279.35 | 1482.01 | 181.97 | 964.34 | -10.99 | 239.30 | -36.15 | 116.51 | 0.6471 | 42.5 | -25.2 | |
|
previous
or next observation for the same group /

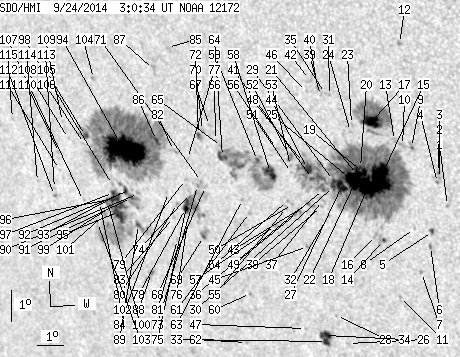

back to the solar disc SDO HMI 2014-09-24 03:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.58 | -11.51 | 246.88 | -28.57 | 122.88 | 0.5602 | 741.0 | 638.7 | |
| 0.00 | 1.86 | 0.00 | 1.11 | -10.66 | 246.69 | -28.76 | 121.41 | 0.5562 | 816.0 | 586.0 | |
| 0.00 | 1.33 | 0.00 | 0.79 | -10.48 | 246.68 | -28.78 | 121.11 | 0.5550 | 940.0 | 822.2 | |
| 0.00 | 1.06 | 0.00 | 0.63 | -10.79 | 246.61 | -28.84 | 121.54 | 0.5582 | 777.0 | 651.0 | |
| 0.97 | 2.21 | 0.59 | 1.34 | -12.37 | 246.25 | -29.20 | 123.60 | 0.5744 | -877.1 | -756.1 | |
| 0.00 | 1.77 | 0.00 | 1.07 | -12.85 | 246.12 | -29.34 | 124.19 | 0.5797 | -836.0 | -764.7 | |
| 0.00 | 1.33 | 0.00 | 0.81 | -13.71 | 245.68 | -29.77 | 125.03 | 0.5914 | 421.0 | 344.6 | |
| 0.00 | 0.97 | 0.00 | 0.59 | -12.31 | 245.62 | -29.83 | 122.95 | 0.5814 | 296.0 | 192.9 | |
| 0.35 | 3.27 | 0.21 | 1.95 | -9.74 | 245.81 | -29.65 | 119.20 | 0.5607 | -507.8 | -310.4 | |
| 0.00 | 2.92 | 0.00 | 1.75 | -9.70 | 245.49 | -29.96 | 118.87 | 0.5643 | 423.0 | 369.0 | |
| 0.00 | 1.24 | 0.00 | 0.77 | -14.54 | 244.80 | -30.65 | 125.41 | 0.6077 | 494.0 | 423.4 | |
| 0.00 | 1.95 | 0.00 | 1.15 | -6.52 | 245.66 | -29.80 | 113.81 | 0.5418 | 798.0 | 626.8 | |
| 0.00 | 2.74 | 0.00 | 1.65 | -9.56 | 245.23 | -30.23 | 118.43 | 0.5667 | 613.0 | 470.3 | |
| 0.88 | 5.75 | 0.55 | 3.55 | -12.77 | 244.45 | -31.00 | 122.61 | 0.5986 | -874.7 | -560.8 | |
| 36.72 | 530.71 | 22.34 | 325.76 | -10.76 | 244.60 | -30.86 | 119.77 | 0.5827 | 1440.6 | 414.7 | |
| 0.00 | 2.48 | 0.00 | 1.53 | -12.63 | 244.18 | -31.27 | 122.18 | 0.6007 | -416.0 | -359.2 | |
| 15.84 | 82.11 | 9.55 | 49.45 | -9.01 | 244.46 | -30.99 | 116.97 | 0.5728 | 1141.9 | 542.8 | |
| 23.98 | -15.00 | 14.70 | -15.00 | -11.11 | 244.09 | -31.36 | 119.89 | 0.5913 | 1257.8 | 999999 | |
| 3.72 | -15.00 | 2.27 | -15.00 | -10.67 | 244.04 | -31.42 | 119.19 | 0.5890 | 1192.9 | 999999 | |
| 0.27 | -15.00 | 0.16 | -15.00 | -10.49 | 243.91 | -31.54 | 118.82 | 0.5893 | 1059.7 | 999999 | |
| 6.81 | -15.00 | 4.18 | -15.00 | -10.72 | 243.78 | -31.68 | 119.06 | 0.5925 | 1129.5 | 999999 | |
| 10.00 | -15.00 | 6.16 | -15.00 | -11.01 | 243.63 | -31.82 | 119.38 | 0.5962 | 998.3 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.81 | -9.15 | 243.73 | -31.72 | 116.64 | 0.5829 | 516.0 | 429.5 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -9.38 | 243.68 | -31.78 | 116.94 | 0.5851 | 175.0 | 155.0 | |
| 6.37 | -15.00 | 3.93 | -15.00 | -10.84 | 243.44 | -32.02 | 118.97 | 0.5974 | 964.2 | 999999 | |
| 0.00 | 1.86 | 0.00 | 1.20 | -16.21 | 242.60 | -32.85 | 125.79 | 0.6444 | 409.0 | 298.7 | |
| 8.85 | -15.00 | 5.48 | -15.00 | -11.14 | 243.15 | -32.31 | 119.19 | 0.6029 | 788.8 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.63 | -15.32 | 242.32 | -33.13 | 124.39 | 0.6411 | 509.0 | 450.3 | |
| 1.06 | -15.00 | 0.66 | -15.00 | -10.97 | 242.88 | -32.58 | 118.73 | 0.6051 | 690.2 | 999999 | |
| 2.04 | -15.00 | 1.27 | -15.00 | -11.16 | 242.85 | -32.60 | 119.00 | 0.6066 | 641.4 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.70 | -8.30 | 243.03 | -32.43 | 114.80 | 0.5867 | 807.0 | 646.9 | |
| 0.00 | 1.24 | 0.00 | 0.78 | -12.10 | 242.54 | -32.91 | 120.12 | 0.6165 | 599.0 | 461.8 | |
| 3.72 | 13.45 | 2.43 | 8.77 | -16.20 | 241.78 | -33.68 | 125.12 | 0.6533 | 719.9 | 520.1 | |
| 6.11 | -33.00 | 3.98 | -33.00 | -16.01 | 241.78 | -33.68 | 124.86 | 0.6519 | 885.1 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.70 | -8.24 | 242.89 | -32.57 | 114.62 | 0.5882 | 737.0 | 642.5 | |
| 0.62 | -15.00 | 0.39 | -15.00 | -11.28 | 242.47 | -32.98 | 118.89 | 0.6120 | 535.1 | 999999 | |
| 0.00 | 3.54 | 0.00 | 2.22 | -11.63 | 242.39 | -33.07 | 119.34 | 0.6153 | 552.0 | 436.9 | |
| 0.00 | 1.06 | 0.00 | 0.67 | -11.83 | 242.32 | -33.13 | 119.57 | 0.6173 | 525.0 | 424.5 | |
| 0.00 | 0.62 | 0.00 | 0.38 | -8.32 | 242.70 | -32.75 | 114.60 | 0.5910 | 692.0 | 615.7 | |
| 0.00 | 1.24 | 0.00 | 0.76 | -8.08 | 242.61 | -32.84 | 114.17 | 0.5907 | 778.0 | 675.6 | |
| 1.33 | -15.00 | 0.83 | -15.00 | -10.96 | 242.11 | -33.34 | 118.15 | 0.6143 | 651.1 | 999999 | |
| 0.00 | 3.54 | 0.00 | 2.17 | -7.85 | 242.35 | -33.11 | 113.63 | 0.5929 | 590.0 | 521.3 | |
| 0.44 | 3.45 | 0.28 | 2.18 | -11.77 | 241.85 | -33.60 | 119.13 | 0.6225 | 660.6 | 490.5 | |
| 6.55 | -15.00 | 4.10 | -15.00 | -10.65 | 241.97 | -33.49 | 117.60 | 0.6142 | 772.8 | 999999 | |
| 0.00 | 1.59 | 0.00 | 1.02 | -13.15 | 241.61 | -33.85 | 120.89 | 0.6343 | 656.0 | 574.1 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -8.23 | 242.20 | -33.25 | 114.12 | 0.5969 | 448.0 | 374.2 | |
| 0.00 | 0.97 | 0.00 | 0.64 | -15.83 | 241.06 | -34.40 | 124.07 | 0.6585 | 528.0 | 386.7 | |
| 0.53 | -15.00 | 0.33 | -15.00 | -10.47 | 241.84 | -33.61 | 117.25 | 0.6146 | 561.8 | 999999 | |
| 0.00 | 4.60 | 0.00 | 2.93 | -12.08 | 241.40 | -34.05 | 119.25 | 0.6299 | 595.0 | 577.3 | |
| 0.00 | 1.15 | 0.00 | 0.73 | -11.84 | 241.25 | -34.21 | 118.80 | 0.6301 | 766.0 | 573.9 | |
| 0.00 | 1.15 | 0.00 | 0.73 | -10.82 | 241.35 | -34.10 | 117.41 | 0.6226 | 192.0 | 86.3 | |
| 0.00 | 4.07 | 0.00 | 2.56 | -10.35 | 241.38 | -34.08 | 116.74 | 0.6195 | 632.0 | 480.8 | |
| 0.00 | 1.15 | 0.00 | 0.73 | -10.60 | 241.34 | -34.11 | 117.09 | 0.6214 | -158.0 | -132.1 | |
| 0.00 | 0.97 | 0.00 | 0.62 | -11.73 | 241.08 | -34.38 | 118.51 | 0.6314 | 686.0 | 590.3 | |
| 0.00 | 2.21 | 0.00 | 1.41 | -11.95 | 241.01 | -34.45 | 118.78 | 0.6336 | 408.0 | 344.7 | |
| 0.00 | 1.77 | 0.00 | 1.12 | -10.10 | 240.89 | -34.57 | 116.05 | 0.6240 | -174.0 | -138.8 | |
| 0.00 | 2.92 | 0.00 | 1.88 | -12.56 | 240.50 | -34.95 | 119.27 | 0.6433 | 586.0 | 413.8 | |
| 10.09 | 101.93 | 6.44 | 65.66 | -10.88 | 240.56 | -34.89 | 116.95 | 0.6325 | 772.8 | -163.3 | |
| 1.15 | -58.00 | 0.74 | -58.00 | -10.53 | 240.12 | -35.33 | 116.16 | 0.6357 | 200.2 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.77 | -14.84 | 239.14 | -36.31 | 121.39 | 0.6728 | -567.0 | -588.6 | |
| 0.00 | 1.86 | 0.00 | 1.21 | -12.21 | 239.57 | -35.88 | 118.16 | 0.6520 | 478.0 | 393.0 | |
| 0.00 | 1.15 | 0.00 | 0.78 | -16.46 | 238.65 | -36.81 | 123.13 | 0.6884 | -622.0 | -490.2 | |
| 0.00 | 1.06 | 0.00 | 0.69 | -11.82 | 239.37 | -36.09 | 117.47 | 0.6521 | 554.0 | 479.8 | |
| 4.51 | -58.00 | 2.94 | -58.00 | -10.50 | 238.80 | -36.65 | 115.28 | 0.6514 | -986.6 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.63 | -10.19 | 238.81 | -36.65 | 114.84 | 0.6497 | -847.0 | -720.4 | |
| 0.00 | 0.53 | 0.00 | 0.35 | -10.02 | 238.60 | -36.86 | 114.47 | 0.6512 | -680.0 | -633.5 | |
| 0.00 | 1.59 | 0.00 | 1.04 | -9.56 | 238.43 | -37.02 | 113.72 | 0.6509 | -806.0 | -643.9 | |
| 0.00 | 1.33 | 0.00 | 0.88 | -11.51 | 237.99 | -37.46 | 116.18 | 0.6664 | -313.0 | -316.9 | |
| 0.97 | 6.55 | 0.66 | 4.40 | -13.12 | 237.64 | -37.81 | 118.13 | 0.6794 | -295.1 | 66.9 | |
| 0.00 | 1.33 | 0.00 | 0.87 | -9.74 | 238.14 | -37.32 | 113.80 | 0.6553 | -870.0 | -707.5 | |
| 0.00 | 1.15 | 0.00 | 0.76 | -11.36 | 237.86 | -37.59 | 115.89 | 0.6671 | -629.0 | -526.2 | |
| 0.80 | 3.89 | 0.52 | 2.55 | -9.88 | 237.96 | -37.49 | 113.89 | 0.6581 | -875.4 | -670.6 | |
| 0.00 | 1.06 | 0.00 | 0.71 | -11.50 | 237.68 | -37.77 | 115.98 | 0.6699 | -817.0 | -747.2 | |
| 0.00 | 2.21 | 0.00 | 1.48 | -11.78 | 237.37 | -38.09 | 116.16 | 0.6751 | -525.0 | -526.7 | |
| 2.65 | 40.08 | 1.79 | 26.85 | -12.04 | 237.20 | -38.25 | 116.42 | 0.6784 | -937.0 | -594.8 | |
| 0.00 | 0.53 | 0.00 | 0.36 | -12.72 | 237.08 | -38.37 | 117.25 | 0.6834 | -554.0 | -608.2 | |
| 0.00 | 0.88 | 0.00 | 0.59 | -10.67 | 237.42 | -38.03 | 114.68 | 0.6686 | -600.0 | -491.9 | |
| 3.19 | -75.00 | 2.15 | -75.00 | -12.28 | 237.09 | -38.37 | 116.66 | 0.6810 | -965.8 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.77 | -11.35 | 237.24 | -38.21 | 115.50 | 0.6743 | -832.0 | -692.0 | |
| 0.00 | 0.97 | 0.00 | 0.66 | -12.14 | 236.79 | -38.66 | 116.30 | 0.6836 | -813.0 | -635.0 | |
| 0.00 | 1.06 | 0.00 | 0.73 | -13.30 | 236.58 | -38.88 | 117.71 | 0.6922 | -531.0 | -465.1 | |
| 0.00 | 3.54 | 0.00 | 2.37 | -10.46 | 236.91 | -38.55 | 114.09 | 0.6736 | -699.0 | -639.7 | |
| 0.00 | 1.24 | 0.00 | 0.84 | -12.60 | 236.55 | -38.90 | 116.78 | 0.6888 | -605.0 | -509.7 | |
| 0.00 | 0.44 | 0.00 | 0.30 | -11.82 | 236.49 | -38.96 | 115.69 | 0.6853 | -78.0 | -113.2 | |
| 0.00 | 1.50 | 0.00 | 0.98 | -7.23 | 237.08 | -38.37 | 109.65 | 0.6562 | -576.0 | -462.5 | |
| 1.68 | 421.70 | 1.13 | 290.03 | -10.19 | 236.28 | -39.18 | 113.38 | 0.6796 | -1099.8 | -423.9 | |
| 0.00 | 4.42 | 0.00 | 2.93 | -7.96 | 236.46 | -39.00 | 110.37 | 0.6671 | -511.0 | -427.6 | |
| 0.53 | 5.22 | 0.37 | 3.68 | -14.46 | 235.29 | -40.16 | 118.43 | 0.7125 | -482.2 | -296.2 | |
| 1.68 | 125.38 | 1.17 | 88.63 | -12.94 | 235.08 | -40.37 | 116.37 | 0.7069 | -798.8 | -288.9 | |
| 0.00 | 1.50 | 0.00 | 1.04 | -11.94 | 235.27 | -40.18 | 115.17 | 0.6998 | -727.0 | -575.1 | |
| 1.59 | 19.64 | 1.11 | 13.66 | -12.10 | 234.96 | -40.50 | 115.20 | 0.7041 | -752.4 | -457.1 | |
| 0.00 | 2.48 | 0.00 | 1.72 | -11.84 | 234.97 | -40.49 | 114.87 | 0.7027 | -705.0 | -524.0 | |
| 1.95 | -91.00 | 1.36 | -91.00 | -11.89 | 234.75 | -40.70 | 114.82 | 0.7054 | -737.7 | 999999 | |
| 80.16 | -86.00 | 55.21 | -86.00 | -10.62 | 234.93 | -40.52 | 113.22 | 0.6972 | -1073.0 | 999999 | |
| 16.19 | -89.00 | 11.40 | -89.00 | -12.59 | 234.37 | -41.08 | 115.52 | 0.7129 | -843.9 | 999999 | |
| 6.81 | -89.00 | 4.79 | -89.00 | -12.19 | 234.25 | -41.21 | 114.93 | 0.7124 | -744.1 | 999999 | |
| 2.48 | -89.00 | 1.74 | -89.00 | -12.00 | 234.24 | -41.21 | 114.68 | 0.7115 | -768.8 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.93 | -11.74 | 234.25 | -41.20 | 114.35 | 0.7103 | -610.0 | -426.7 | |
| 2.04 | -89.00 | 1.44 | -89.00 | -12.46 | 234.07 | -41.38 | 115.18 | 0.7156 | -409.0 | 999999 | |
| 1.24 | -89.00 | 0.88 | -89.00 | -12.31 | 233.94 | -41.52 | 114.92 | 0.7164 | -329.3 | 999999 | |
| 0.00 | 2.83 | 0.00 | 2.02 | -12.74 | 233.73 | -41.73 | 115.36 | 0.7208 | -407.0 | -352.4 | |
| 0.00 | 0.97 | 0.00 | 0.69 | -12.37 | 233.59 | -41.86 | 114.81 | 0.7205 | -280.0 | -200.1 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -13.02 | 233.38 | -42.08 | 115.53 | 0.7259 | -234.0 | -266.7 | |
| 0.00 | 2.04 | 0.00 | 1.40 | -8.44 | 234.00 | -41.45 | 109.83 | 0.6985 | -579.0 | -461.3 | |
| 2.48 | -86.00 | 1.74 | -86.00 | -10.27 | 233.40 | -42.06 | 111.99 | 0.7132 | -588.8 | 999999 | |
| 0.00 | 1.68 | 0.00 | 1.19 | -10.53 | 233.31 | -42.14 | 112.28 | 0.7152 | 125.0 | 116.5 | |
| 0.00 | 0.53 | 0.00 | 0.38 | -12.36 | 232.93 | -42.53 | 114.46 | 0.7277 | -430.0 | -340.7 | |
| 0.00 | 0.97 | 0.00 | 0.69 | -10.43 | 232.66 | -42.79 | 111.84 | 0.7221 | -425.0 | -304.4 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -9.91 | 232.50 | -42.95 | 111.08 | 0.7217 | -319.0 | -323.7 | |
| 0.00 | 2.12 | 0.00 | 1.53 | -10.91 | 232.20 | -43.25 | 112.24 | 0.7292 | -393.0 | -397.2 | |
| 0.00 | 0.62 | 0.00 | 0.45 | -11.45 | 232.10 | -43.36 | 112.88 | 0.7327 | -439.0 | -392.1 | |
| 0.00 | 1.50 | 0.00 | 1.10 | -12.31 | 231.71 | -43.74 | 113.78 | 0.7405 | -621.0 | -483.0 | |
| 0.00 | 1.33 | 0.00 | 0.97 | -12.08 | 231.76 | -43.70 | 113.52 | 0.7391 | -443.0 | -326.2 | |
| 0.00 | 0.62 | 0.00 | 0.46 | -11.92 | 231.06 | -44.39 | 112.98 | 0.7458 | -486.0 | -371.0 | |
| 0.00 | 1.50 | 0.00 | 1.11 | -10.00 | 230.35 | -45.10 | 110.24 | 0.7458 | -466.0 | -368.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
