SDO HMI 2014-09-24 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 93.35 | 474.54 | 49.20 | 251.46 | -10.67 | 265.52 | -9.38 | 154.17 | 0.3475 | 379.9 | 107.5 | |
|
previous
or next observation for the same group /

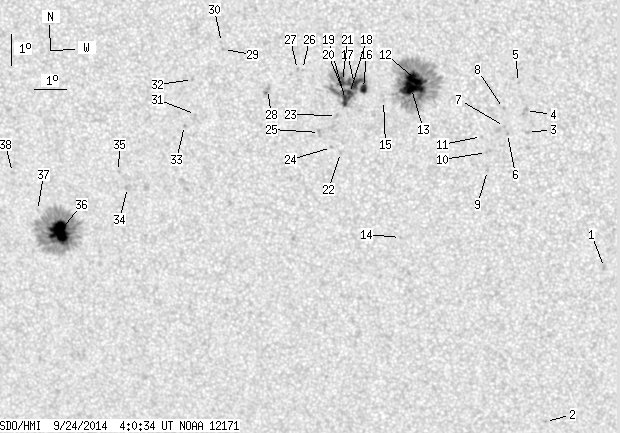

back to the solar disc SDO HMI 2014-09-24 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.30 | 0.00 | 1.23 | -14.50 | 275.95 | 1.04 | 182.75 | 0.3685 | 920.0 | 676.3 | |
| 0.00 | 1.06 | 0.00 | 0.59 | -19.57 | 274.09 | -0.82 | 178.27 | 0.4494 | 797.0 | 655.5 | |
| 0.00 | 1.77 | 0.00 | 0.92 | -10.19 | 273.58 | -1.32 | 175.60 | 0.2977 | 814.0 | 562.5 | |
| 0.00 | 3.36 | 0.00 | 1.74 | -9.49 | 273.52 | -1.38 | 175.21 | 0.2862 | 823.0 | 706.5 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -8.62 | 273.32 | -1.59 | 174.18 | 0.2719 | 763.0 | 568.0 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -10.22 | 272.97 | -1.94 | 173.59 | 0.2992 | 819.0 | 669.2 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -10.00 | 272.88 | -2.03 | 173.21 | 0.2957 | 833.0 | 649.2 | |
| 0.00 | 1.33 | 0.00 | 0.69 | -9.43 | 272.85 | -2.05 | 172.88 | 0.2864 | 864.0 | 672.5 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -11.39 | 272.35 | -2.56 | 172.10 | 0.3199 | 668.0 | 561.4 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -10.82 | 272.32 | -2.58 | 171.77 | 0.3106 | 870.0 | 741.1 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -10.32 | 272.17 | -2.73 | 171.04 | 0.3026 | 780.0 | 531.8 | |
| 17.87 | 188.57 | 9.22 | 97.37 | -8.54 | 270.18 | -4.73 | 163.06 | 0.2810 | 1443.0 | 420.8 | |
| 17.87 | -12.00 | 9.24 | -12.00 | -8.83 | 270.05 | -4.85 | 162.93 | 0.2862 | 1218.4 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.42 | -13.55 | 269.62 | -5.28 | 165.68 | 0.3634 | 637.0 | 533.9 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -9.21 | 269.19 | -5.72 | 160.57 | 0.2968 | 817.0 | 580.1 | |
| 4.60 | 76.72 | 2.38 | 39.79 | -8.84 | 268.58 | -6.32 | 158.22 | 0.2946 | 1115.5 | 625.6 | |
| 10.44 | -16.00 | 5.41 | -16.00 | -8.69 | 268.31 | -6.59 | 157.17 | 0.2939 | 1228.2 | 999999 | |
| 3.19 | -16.00 | 1.65 | -16.00 | -9.00 | 268.15 | -6.75 | 157.10 | 0.2998 | 1060.1 | 999999 | |
| 6.55 | -16.00 | 3.40 | -16.00 | -9.19 | 268.03 | -6.88 | 156.96 | 0.3035 | 895.2 | 999999 | |
| 1.42 | -16.00 | 0.73 | -16.00 | -8.94 | 267.97 | -6.94 | 156.46 | 0.3001 | 816.8 | 999999 | |
| 4.51 | -16.00 | 2.34 | -16.00 | -8.63 | 267.94 | -6.96 | 155.96 | 0.2955 | 1126.9 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -10.86 | 267.83 | -7.07 | 158.43 | 0.3304 | 679.0 | 569.8 | |
| 0.00 | 1.86 | 0.00 | 0.97 | -9.70 | 267.74 | -7.17 | 156.76 | 0.3132 | 752.0 | 548.6 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -10.71 | 267.56 | -7.35 | 157.50 | 0.3297 | 765.0 | 561.1 | |
| 0.00 | 3.45 | 0.00 | 1.81 | -10.24 | 267.20 | -7.71 | 155.93 | 0.3250 | 810.0 | 637.2 | |
| 0.00 | 0.71 | 0.00 | 0.37 | -8.28 | 266.73 | -8.18 | 151.77 | 0.2991 | -520.0 | -447.0 | |
| 0.00 | 1.42 | 0.00 | 0.73 | -8.28 | 266.57 | -8.33 | 151.33 | 0.3003 | -733.0 | -573.6 | |
| 0.00 | 4.34 | 0.00 | 2.26 | -8.92 | 265.63 | -9.27 | 149.73 | 0.3173 | -875.0 | -794.4 | |
| 0.00 | 1.24 | 0.00 | 0.65 | -7.70 | 264.31 | -10.60 | 144.10 | 0.3122 | 795.0 | 604.9 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -7.48 | 264.25 | -10.65 | 143.54 | 0.3098 | 747.0 | 584.9 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -9.75 | 263.37 | -11.53 | 145.43 | 0.3487 | -640.0 | -418.3 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -8.66 | 263.32 | -11.59 | 143.41 | 0.3346 | -917.0 | -760.9 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -10.11 | 263.02 | -11.89 | 145.19 | 0.3568 | -781.0 | -665.8 | |
| 0.00 | 3.27 | 0.00 | 1.77 | -12.12 | 261.13 | -13.77 | 144.32 | 0.4008 | -596.0 | -429.2 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -11.62 | 260.87 | -14.03 | 143.05 | 0.3968 | -747.0 | -602.7 | |
| 26.90 | 165.74 | 14.83 | 91.40 | -13.60 | 258.87 | -16.04 | 142.29 | 0.4408 | -1355.4 | -396.2 | |
| 0.00 | 0.80 | 0.00 | 0.44 | -12.95 | 258.20 | -16.70 | 140.21 | 0.4395 | -582.0 | -399.0 | |
| 0.00 | 1.50 | 0.00 | 0.83 | -11.76 | 257.48 | -17.43 | 137.17 | 0.4331 | -638.0 | -462.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
