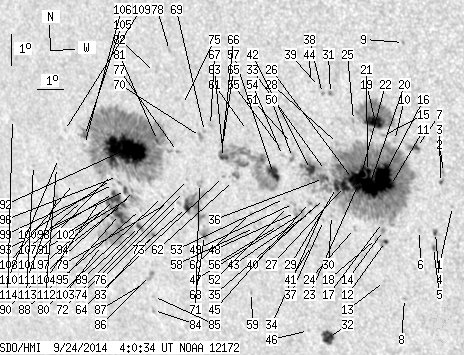

SDO HMI 2014-09-24 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 271.48 | 1480.19 | 174.88 | 955.45 | -10.99 | 239.38 | -35.53 | 116.93 | 0.6399 | 82.9 | -35.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-24 04:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.53 | -11.54 | 246.96 | -27.95 | 123.51 | 0.5529 | 659.0 | 586.2 | |
| 0.00 | 2.12 | 0.00 | 1.26 | -10.48 | 246.76 | -28.15 | 121.67 | 0.5472 | 821.0 | 721.2 | |
| 0.53 | 2.39 | 0.31 | 1.42 | -10.80 | 246.62 | -28.29 | 122.05 | 0.5514 | 778.3 | 673.9 | |
| 0.80 | 3.19 | 0.48 | 1.91 | -12.41 | 246.26 | -28.65 | 124.16 | 0.5680 | -854.2 | -642.9 | |
| 0.62 | 2.65 | 0.37 | 1.60 | -12.89 | 246.13 | -28.78 | 124.76 | 0.5734 | -895.0 | -687.3 | |
| 0.00 | 1.24 | 0.00 | 0.75 | -12.38 | 245.70 | -29.21 | 123.60 | 0.5744 | 170.0 | 192.6 | |
| 1.86 | 9.11 | 1.10 | 5.41 | -9.74 | 245.89 | -29.02 | 119.73 | 0.5527 | -483.8 | 126.4 | |
| 0.00 | 1.68 | 0.00 | 1.04 | -14.61 | 244.86 | -30.05 | 126.03 | 0.6014 | 603.0 | 417.2 | |
| 0.00 | 1.33 | 0.00 | 0.78 | -6.49 | 245.70 | -29.21 | 114.20 | 0.5336 | 607.0 | 567.1 | |
| 0.00 | 2.12 | 0.00 | 1.27 | -9.57 | 245.13 | -29.77 | 118.82 | 0.5610 | 593.0 | 547.6 | |
| 4.96 | 522.97 | 2.99 | 318.80 | -11.00 | 244.84 | -30.07 | 120.79 | 0.5747 | 1434.0 | 419.3 | |
| 1.33 | 5.84 | 0.81 | 3.59 | -12.80 | 244.43 | -30.47 | 123.11 | 0.5926 | -842.5 | -624.2 | |
| 0.00 | 0.97 | 0.00 | 0.60 | -14.10 | 244.21 | -30.69 | 124.75 | 0.6048 | 529.0 | 390.0 | |
| 0.00 | 2.04 | 0.00 | 1.25 | -12.46 | 244.41 | -30.50 | 122.58 | 0.5903 | -255.0 | -187.3 | |
| 0.00 | 1.50 | 0.00 | 0.90 | -9.44 | 244.76 | -30.15 | 118.30 | 0.5649 | 915.0 | 638.4 | |
| 32.12 | -11.00 | 19.44 | -11.00 | -10.77 | 244.58 | -30.32 | 120.21 | 0.5762 | 1454.3 | 999999 | |
| 0.00 | 2.21 | 0.00 | 1.35 | -12.20 | 244.41 | -30.50 | 122.21 | 0.5885 | 87.0 | 54.8 | |
| 0.00 | 2.04 | 0.00 | 1.25 | -12.73 | 244.12 | -30.78 | 122.73 | 0.5957 | -401.0 | -362.8 | |
| 17.96 | 76.81 | 10.77 | 45.99 | -9.01 | 244.52 | -30.39 | 117.44 | 0.5651 | 1160.0 | 524.0 | |
| 24.42 | -11.00 | 14.89 | -11.00 | -11.12 | 244.04 | -30.86 | 120.29 | 0.5852 | 1248.0 | 999999 | |
| 4.87 | -11.00 | 2.96 | -11.00 | -10.61 | 244.07 | -30.84 | 119.55 | 0.5814 | 1158.4 | 999999 | |
| 7.34 | -11.00 | 4.48 | -11.00 | -10.69 | 243.84 | -31.06 | 119.49 | 0.5847 | 1124.5 | 999999 | |
| 6.37 | -11.00 | 3.90 | -11.00 | -11.01 | 243.70 | -31.21 | 119.86 | 0.5887 | 1053.5 | 999999 | |
| 0.00 | 1.77 | 0.00 | 1.10 | -12.46 | 243.36 | -31.54 | 121.71 | 0.6027 | 570.0 | 446.7 | |
| 0.00 | 1.77 | 0.00 | 1.07 | -9.03 | 243.73 | -31.17 | 116.86 | 0.5752 | 402.0 | 425.8 | |
| 8.05 | -11.00 | 4.93 | -11.00 | -10.87 | 243.50 | -31.41 | 119.48 | 0.5901 | 955.6 | 999999 | |
| 6.55 | -11.00 | 4.03 | -11.00 | -11.14 | 243.18 | -31.73 | 119.64 | 0.5959 | 824.7 | 999999 | |
| 0.00 | 2.12 | 0.00 | 1.30 | -9.79 | 243.08 | -31.83 | 117.54 | 0.5883 | 331.0 | 237.0 | |
| 3.45 | -11.00 | 2.13 | -11.00 | -11.19 | 242.88 | -32.03 | 119.48 | 0.5998 | 633.3 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.50 | -12.10 | 242.58 | -32.33 | 120.57 | 0.6095 | 552.0 | 483.4 | |
| 0.00 | 2.12 | 0.00 | 1.29 | -8.24 | 242.99 | -31.92 | 115.06 | 0.5798 | 796.0 | 601.0 | |
| 10.26 | 13.18 | 6.64 | 8.54 | -16.07 | 241.82 | -33.09 | 125.41 | 0.6459 | 817.1 | 493.4 | |
| 0.00 | 1.06 | 0.00 | 0.66 | -10.68 | 242.54 | -32.36 | 118.46 | 0.6005 | 613.0 | 476.2 | |
| 0.00 | 0.80 | 0.00 | 0.50 | -11.83 | 242.36 | -32.55 | 120.01 | 0.6103 | 438.0 | 386.4 | |
| 0.00 | 1.15 | 0.00 | 0.72 | -11.57 | 242.39 | -32.51 | 119.66 | 0.6082 | 537.0 | 446.9 | |
| 4.60 | -11.00 | 2.85 | -11.00 | -10.94 | 242.44 | -32.47 | 118.77 | 0.6035 | 739.1 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.72 | -12.28 | 242.26 | -32.65 | 120.58 | 0.6145 | 559.0 | 410.1 | |
| 0.00 | 1.42 | 0.00 | 0.86 | -8.26 | 242.70 | -32.21 | 114.89 | 0.5837 | 822.0 | 620.4 | |
| 0.00 | 0.88 | 0.00 | 0.54 | -8.05 | 242.61 | -32.30 | 114.49 | 0.5836 | 683.0 | 643.9 | |
| 0.00 | 1.42 | 0.00 | 0.89 | -11.82 | 242.03 | -32.87 | 119.74 | 0.6141 | 640.0 | 491.2 | |
| 0.00 | 3.98 | 0.00 | 2.53 | -13.11 | 241.70 | -33.21 | 121.32 | 0.6267 | 562.0 | 542.6 | |
| 6.37 | -11.00 | 3.96 | -11.00 | -10.68 | 242.00 | -32.91 | 118.06 | 0.6072 | 773.7 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.72 | -12.06 | 241.82 | -33.09 | 119.92 | 0.6183 | 514.0 | 462.8 | |
| 0.00 | 0.71 | 0.00 | 0.43 | -7.91 | 242.30 | -32.61 | 114.06 | 0.5868 | 577.0 | 524.9 | |
| 0.00 | 2.12 | 0.00 | 1.33 | -11.74 | 241.82 | -33.08 | 119.47 | 0.6161 | 661.0 | 601.6 | |
| 0.00 | 0.88 | 0.00 | 0.58 | -15.89 | 241.10 | -33.81 | 124.61 | 0.6525 | 573.0 | 433.8 | |
| 0.00 | 4.16 | 0.00 | 2.63 | -12.11 | 241.48 | -33.43 | 119.74 | 0.6226 | 687.0 | 593.1 | |
| 0.00 | 3.63 | 0.00 | 2.30 | -12.09 | 241.26 | -33.65 | 119.55 | 0.6251 | 491.0 | 493.5 | |
| 0.00 | 2.39 | 0.00 | 1.51 | -11.81 | 241.22 | -33.68 | 119.13 | 0.6237 | 538.0 | 480.1 | |
| 0.00 | 4.07 | 0.00 | 2.55 | -10.35 | 241.38 | -33.53 | 117.12 | 0.6127 | 683.0 | 514.5 | |
| 0.00 | 0.97 | 0.00 | 0.61 | -9.91 | 241.43 | -33.47 | 116.51 | 0.6094 | 468.0 | 311.2 | |
| 0.00 | 0.71 | 0.00 | 0.45 | -11.92 | 241.02 | -33.88 | 119.14 | 0.6268 | 546.0 | 423.6 | |
| 0.00 | 0.97 | 0.00 | 0.62 | -11.67 | 240.91 | -34.00 | 118.71 | 0.6266 | 535.0 | 463.6 | |
| 0.00 | 1.24 | 0.00 | 0.78 | -10.31 | 241.02 | -33.89 | 116.81 | 0.6169 | -25.0 | 26.4 | |
| 0.00 | 2.30 | 0.00 | 1.44 | -10.03 | 240.94 | -33.97 | 116.35 | 0.6162 | -212.0 | -125.6 | |
| 0.00 | 1.42 | 0.00 | 0.91 | -12.56 | 240.55 | -34.35 | 119.69 | 0.6363 | 617.0 | 504.5 | |
| 11.06 | 114.68 | 7.01 | 73.29 | -10.91 | 240.61 | -34.30 | 117.39 | 0.6255 | 779.3 | -181.8 | |
| 0.00 | 0.88 | 0.00 | 0.57 | -12.69 | 239.63 | -35.28 | 119.22 | 0.6478 | 314.0 | 244.1 | |
| 0.00 | 0.97 | 0.00 | 0.65 | -14.80 | 239.14 | -35.77 | 121.72 | 0.6666 | -654.0 | -556.7 | |
| 0.00 | 1.33 | 0.00 | 0.86 | -12.25 | 239.55 | -35.36 | 118.55 | 0.6461 | 477.0 | 384.2 | |
| 0.00 | 0.71 | 0.00 | 0.45 | -9.61 | 239.80 | -35.10 | 114.98 | 0.6278 | -802.0 | -581.9 | |
| 0.00 | 1.15 | 0.00 | 0.74 | -11.24 | 239.06 | -35.85 | 116.82 | 0.6459 | 147.0 | 153.1 | |
| 3.54 | -57.00 | 2.29 | -57.00 | -10.53 | 238.78 | -36.13 | 115.65 | 0.6453 | -1028.4 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.69 | -11.14 | 238.69 | -36.21 | 116.44 | 0.6497 | 325.0 | 246.0 | |
| 0.00 | 2.12 | 0.00 | 1.37 | -10.16 | 238.79 | -36.11 | 115.12 | 0.6430 | -739.0 | -746.4 | |
| 0.27 | -57.00 | 0.17 | -57.00 | -10.38 | 238.72 | -36.18 | 115.39 | 0.6451 | -962.3 | 999999 | |
| 0.00 | 1.86 | 0.00 | 1.20 | -9.56 | 238.41 | -36.49 | 114.03 | 0.6444 | -778.0 | -612.6 | |
| 1.59 | 6.46 | 1.06 | 4.31 | -13.09 | 237.64 | -37.26 | 118.43 | 0.6730 | -134.9 | 72.3 | |
| 0.00 | 0.97 | 0.00 | 0.63 | -9.76 | 238.16 | -36.75 | 114.17 | 0.6486 | -807.0 | -677.8 | |
| 0.00 | 3.63 | 0.00 | 2.36 | -9.93 | 237.98 | -36.92 | 114.31 | 0.6516 | -1001.0 | -734.3 | |
| 0.00 | 3.89 | 0.00 | 2.57 | -11.43 | 237.73 | -37.18 | 116.24 | 0.6627 | -666.0 | -670.8 | |
| 0.00 | 1.24 | 0.00 | 0.82 | -11.34 | 237.28 | -37.63 | 115.84 | 0.6674 | -757.0 | -658.9 | |
| 3.45 | 38.40 | 2.31 | 25.55 | -12.24 | 237.09 | -37.82 | 116.95 | 0.6745 | -983.7 | -643.1 | |
| 0.00 | 1.06 | 0.00 | 0.71 | -11.74 | 237.06 | -37.85 | 116.24 | 0.6721 | -593.0 | -483.0 | |
| 0.00 | 0.97 | 0.00 | 0.64 | -8.98 | 237.42 | -37.49 | 112.62 | 0.6536 | -456.0 | -339.5 | |
| 0.00 | 1.77 | 0.00 | 1.19 | -12.14 | 236.79 | -38.11 | 116.62 | 0.6773 | -811.0 | -632.5 | |
| 0.00 | 1.50 | 0.00 | 1.00 | -10.48 | 237.02 | -37.89 | 114.50 | 0.6659 | -794.0 | -670.2 | |
| 0.00 | 1.68 | 0.00 | 1.09 | -7.32 | 237.10 | -37.80 | 110.06 | 0.6495 | -734.0 | -523.3 | |
| 0.00 | 0.80 | 0.00 | 0.54 | -12.13 | 236.40 | -38.50 | 116.39 | 0.6818 | -629.0 | -551.7 | |
| 0.00 | 0.97 | 0.00 | 0.66 | -11.96 | 236.19 | -38.71 | 116.03 | 0.6832 | -527.0 | -384.2 | |
| 0.88 | 431.38 | 0.59 | 294.24 | -10.19 | 236.28 | -38.63 | 113.67 | 0.6732 | -1122.5 | -426.0 | |
| 0.00 | 0.53 | 0.00 | 0.35 | -8.05 | 236.44 | -38.46 | 110.77 | 0.6610 | -460.0 | -515.7 | |
| 0.62 | 4.96 | 0.43 | 3.42 | -13.22 | 235.61 | -39.30 | 117.34 | 0.6965 | 574.6 | 149.3 | |
| 0.00 | 2.12 | 0.00 | 1.50 | -15.70 | 235.07 | -39.84 | 120.19 | 0.7158 | 414.0 | 322.1 | |
| 0.00 | 0.71 | 0.00 | 0.50 | -15.24 | 235.18 | -39.73 | 119.67 | 0.7121 | 351.0 | 335.2 | |
| 0.00 | 4.51 | 0.00 | 3.16 | -14.56 | 235.21 | -39.70 | 118.83 | 0.7081 | -553.0 | -253.5 | |
| 0.00 | 1.06 | 0.00 | 0.75 | -14.85 | 234.86 | -40.05 | 118.99 | 0.7133 | 367.0 | 274.2 | |
| 0.00 | 1.24 | 0.00 | 0.85 | -12.45 | 235.23 | -39.68 | 116.12 | 0.6966 | -256.0 | -329.7 | |
| 2.39 | 4.07 | 1.65 | 2.82 | -13.00 | 235.08 | -39.82 | 116.75 | 0.7011 | -806.9 | -631.7 | |
| 0.00 | 4.78 | 0.00 | 3.28 | -11.86 | 235.10 | -39.81 | 115.26 | 0.6951 | -679.0 | -551.2 | |
| 0.62 | 122.47 | 0.43 | 85.79 | -12.06 | 234.94 | -39.97 | 115.44 | 0.6979 | -886.7 | -362.8 | |
| 73.27 | -81.00 | 50.03 | -81.00 | -10.58 | 234.95 | -39.95 | 113.47 | 0.6905 | -1112.0 | 999999 | |
| 1.95 | -91.00 | 1.35 | -91.00 | -11.89 | 234.73 | -40.18 | 115.09 | 0.6994 | -797.1 | 999999 | |
| 2.48 | -91.00 | 1.72 | -91.00 | -12.35 | 234.52 | -40.38 | 115.58 | 0.7040 | -884.6 | 999999 | |
| 12.48 | -91.00 | 8.72 | -91.00 | -12.68 | 234.34 | -40.57 | 115.91 | 0.7077 | -818.7 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.73 | -11.47 | 234.48 | -40.42 | 114.40 | 0.7002 | -608.0 | -503.8 | |
| 8.05 | -91.00 | 5.62 | -91.00 | -12.21 | 234.22 | -40.68 | 115.24 | 0.7067 | -724.2 | 999999 | |
| 2.21 | -91.00 | 1.54 | -91.00 | -12.02 | 234.22 | -40.69 | 114.99 | 0.7058 | -755.0 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.49 | -11.74 | 234.27 | -40.63 | 114.64 | 0.7038 | -507.0 | -451.0 | |
| 0.00 | 0.80 | 0.00 | 0.55 | -11.58 | 234.22 | -40.69 | 114.41 | 0.7037 | -347.0 | -278.8 | |
| 0.00 | 0.71 | 0.00 | 0.49 | -11.42 | 234.25 | -40.66 | 114.22 | 0.7026 | -332.0 | -228.1 | |
| 1.95 | -91.00 | 1.37 | -91.00 | -12.42 | 234.02 | -40.89 | 115.40 | 0.7100 | -394.9 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.89 | -13.75 | 233.38 | -41.53 | 116.75 | 0.7235 | 132.0 | 113.5 | |
| 0.00 | 0.35 | 0.00 | 0.25 | -12.33 | 233.59 | -41.32 | 115.05 | 0.7143 | -366.0 | -351.0 | |
| 2.21 | -81.00 | 1.55 | -81.00 | -10.27 | 233.34 | -41.56 | 112.22 | 0.7075 | -606.5 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.74 | -10.56 | 233.29 | -41.61 | 112.58 | 0.7094 | 139.0 | 126.2 | |
| 0.00 | 0.80 | 0.00 | 0.57 | -12.36 | 232.88 | -42.03 | 114.71 | 0.7222 | -403.0 | -352.4 | |
| 0.00 | 0.35 | 0.00 | 0.25 | -11.84 | 232.61 | -42.30 | 113.90 | 0.7228 | -511.0 | -369.2 | |
| 0.00 | 1.15 | 0.00 | 0.81 | -10.18 | 232.53 | -42.38 | 111.71 | 0.7163 | -367.0 | -330.4 | |
| 0.00 | 0.27 | 0.00 | 0.19 | -11.09 | 232.12 | -42.79 | 112.70 | 0.7249 | -275.0 | -355.7 | |
| 0.00 | 1.15 | 0.00 | 0.84 | -12.32 | 231.84 | -43.07 | 114.13 | 0.7333 | -377.0 | -459.6 | |
| 0.00 | 0.88 | 0.00 | 0.64 | -11.39 | 231.98 | -42.93 | 113.01 | 0.7277 | -378.0 | -356.5 | |
| 0.00 | 0.97 | 0.00 | 0.71 | -11.41 | 231.00 | -43.91 | 112.57 | 0.7384 | -475.0 | -365.1 | |
| 0.00 | 1.33 | 0.00 | 0.97 | -10.02 | 230.36 | -44.55 | 110.50 | 0.7398 | -519.0 | -391.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
