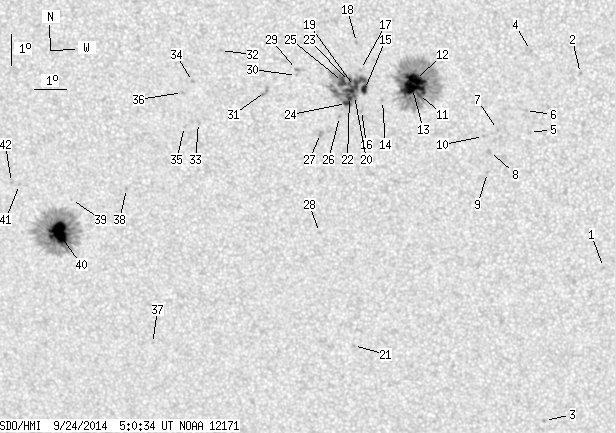

SDO HMI 2014-09-24 05:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 94.60 | 480.79 | 49.77 | 254.33 | -10.67 | 265.51 | -8.84 | 155.60 | 0.3438 | 378.4 | 103.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-24 05:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.33 | 0.00 | 0.71 | -14.50 | 275.93 | 1.57 | 184.14 | 0.3690 | 852.0 | 630.1 | |
| 0.00 | 1.68 | 0.00 | 0.86 | -8.34 | 275.20 | 0.84 | 183.15 | 0.2661 | 928.0 | 664.1 | |
| 0.00 | 1.33 | 0.00 | 0.74 | -19.54 | 274.08 | -0.28 | 179.41 | 0.4487 | 771.0 | 602.8 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -7.62 | 273.68 | -0.68 | 177.35 | 0.2539 | 834.0 | 698.5 | |
| 0.00 | 1.42 | 0.00 | 0.73 | -10.19 | 273.64 | -0.71 | 177.62 | 0.2971 | 734.0 | 617.2 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -9.50 | 273.52 | -0.83 | 177.11 | 0.2856 | 882.0 | 751.9 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -10.09 | 272.67 | -1.69 | 174.35 | 0.2967 | 758.0 | 722.0 | |
| 0.00 | 2.83 | 0.00 | 1.47 | -10.79 | 272.42 | -1.94 | 173.78 | 0.3086 | 981.0 | 661.1 | |
| 0.00 | 1.42 | 0.00 | 0.74 | -11.45 | 272.35 | -2.01 | 173.81 | 0.3197 | 630.0 | 430.2 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -10.32 | 272.24 | -2.12 | 173.02 | 0.3011 | 869.0 | 606.0 | |
| 1.50 | 181.68 | 0.78 | 93.73 | -9.01 | 270.26 | -4.09 | 165.64 | 0.2856 | 687.6 | 431.5 | |
| 15.31 | -11.00 | 7.89 | -11.00 | -8.54 | 270.18 | -4.18 | 164.93 | 0.2784 | 1497.1 | 999999 | |
| 18.58 | -11.00 | 9.60 | -11.00 | -8.82 | 270.08 | -4.27 | 164.87 | 0.2834 | 1212.1 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -9.21 | 269.16 | -5.20 | 162.21 | 0.2939 | 900.0 | 706.5 | |
| 4.16 | 87.52 | 2.15 | 45.34 | -8.87 | 268.62 | -5.74 | 160.08 | 0.2915 | 1148.3 | 577.3 | |
| 0.00 | 3.01 | 0.00 | 1.56 | -9.53 | 268.51 | -5.85 | 160.51 | 0.3024 | 598.0 | 515.3 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -8.24 | 268.50 | -5.85 | 158.95 | 0.2823 | 753.0 | 622.4 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -7.41 | 268.40 | -5.96 | 157.45 | 0.2699 | 925.0 | 701.7 | |
| 13.19 | -15.00 | 6.83 | -15.00 | -8.78 | 268.31 | -6.05 | 159.00 | 0.2918 | 1189.6 | 999999 | |
| 1.33 | -15.00 | 0.69 | -15.00 | -9.06 | 268.31 | -6.05 | 159.33 | 0.2963 | 973.5 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -17.08 | 268.06 | -6.30 | 165.57 | 0.4223 | 769.0 | 627.2 | |
| 3.54 | -15.00 | 1.84 | -15.00 | -9.09 | 268.15 | -6.21 | 158.89 | 0.2977 | 921.8 | 999999 | |
| 2.12 | -15.00 | 1.10 | -15.00 | -8.62 | 268.16 | -6.20 | 158.33 | 0.2903 | 1150.3 | 999999 | |
| 3.01 | -15.00 | 1.56 | -15.00 | -9.31 | 268.06 | -6.30 | 158.86 | 0.3017 | 874.5 | 999999 | |
| 5.84 | -15.00 | 3.02 | -15.00 | -8.63 | 267.95 | -6.41 | 157.66 | 0.2917 | 1113.9 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -9.72 | 267.83 | -6.52 | 158.68 | 0.3094 | 795.0 | 592.5 | |
| 0.00 | 3.10 | 0.00 | 1.62 | -10.27 | 267.24 | -7.12 | 157.60 | 0.3215 | 811.0 | 689.0 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -13.42 | 267.12 | -7.24 | 160.59 | 0.3705 | 720.0 | 534.8 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -8.27 | 266.54 | -7.81 | 152.85 | 0.2961 | -857.0 | -742.1 | |
| 0.00 | 0.44 | 0.00 | 0.23 | -8.46 | 266.54 | -7.82 | 153.12 | 0.2989 | -719.0 | -552.4 | |
| 0.00 | 4.16 | 0.00 | 2.17 | -8.98 | 265.58 | -8.78 | 151.15 | 0.3140 | -880.0 | -811.8 | |
| 0.00 | 1.42 | 0.00 | 0.74 | -7.72 | 264.22 | -10.14 | 145.34 | 0.3081 | 792.0 | 646.9 | |
| 0.00 | 1.86 | 0.00 | 0.98 | -9.99 | 263.47 | -10.89 | 147.33 | 0.3461 | -801.0 | -639.5 | |
| 0.00 | 1.24 | 0.00 | 0.65 | -8.71 | 263.33 | -11.03 | 144.84 | 0.3299 | -946.0 | -748.2 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -10.13 | 263.03 | -11.33 | 146.50 | 0.3519 | -655.0 | -655.8 | |
| 0.00 | 1.42 | 0.00 | 0.74 | -9.06 | 263.00 | -11.35 | 144.67 | 0.3377 | -878.0 | -666.4 | |
| 0.00 | 0.62 | 0.00 | 0.35 | -17.14 | 261.64 | -12.72 | 152.62 | 0.4593 | 660.0 | 526.1 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -12.14 | 261.12 | -13.24 | 145.41 | 0.3961 | -954.0 | -772.2 | |
| 0.00 | 0.71 | 0.00 | 0.39 | -12.54 | 259.35 | -15.01 | 142.59 | 0.4178 | -625.0 | -458.0 | |
| 26.02 | 167.16 | 14.31 | 91.93 | -13.61 | 258.86 | -15.49 | 143.26 | 0.4358 | -1361.0 | -407.1 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -12.12 | 257.71 | -16.65 | 139.03 | 0.4290 | -749.0 | -575.8 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -12.06 | 257.46 | -16.90 | 138.52 | 0.4310 | -798.0 | -697.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
