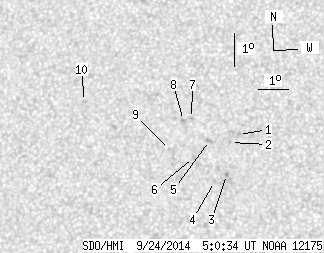

SDO HMI 2014-09-24 05:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.48 | 0.00 | 8.08 | 16.65 | 258.43 | -15.93 | 56.74 | 0.3157 | 867.0 | 685.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-24 05:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.04 | 0.00 | 1.06 | 16.84 | 259.80 | -14.56 | 54.03 | 0.2986 | 893.0 | 689.2 | |
| 0.00 | 1.24 | 0.00 | 0.64 | 16.59 | 259.56 | -14.80 | 55.16 | 0.2996 | 775.0 | 604.9 | |
| 0.00 | 1.68 | 0.00 | 0.87 | 15.61 | 259.51 | -14.85 | 58.11 | 0.2921 | 943.0 | 785.6 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 15.38 | 259.13 | -15.22 | 59.37 | 0.2956 | 788.0 | 658.8 | |
| 0.00 | 2.48 | 0.00 | 1.29 | 16.63 | 258.88 | -15.48 | 56.17 | 0.3093 | 895.0 | 743.2 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 16.09 | 258.40 | -15.96 | 58.40 | 0.3116 | 1009.0 | 836.4 | |
| 0.00 | 1.68 | 0.00 | 0.88 | 17.28 | 258.23 | -16.13 | 55.39 | 0.3237 | 874.0 | 556.6 | |
| 0.00 | 1.77 | 0.00 | 0.93 | 17.21 | 257.97 | -16.38 | 55.96 | 0.3266 | 983.0 | 725.3 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 16.31 | 257.60 | -16.76 | 58.93 | 0.3246 | 662.0 | 550.6 | |
| 0.00 | 1.50 | 0.00 | 0.80 | 17.68 | 254.64 | -19.72 | 59.14 | 0.3760 | 848.0 | 630.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
