SDO HMI 2014-09-24 06:41:04 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 288.78 | 1497.31 | 182.30 | 949.13 | -10.98 | 239.34 | -34.11 | 117.89 | 0.6227 | 99.0 | -55.9 | |
|
previous
or next observation for the same group /

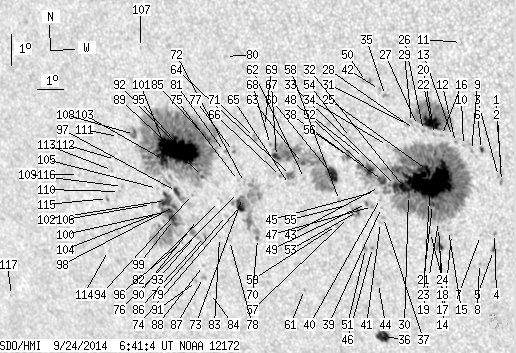

back to the solar disc SDO HMI 2014-09-24 06:41:04 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.95 | 0.00 | 1.14 | -10.75 | 246.75 | -26.70 | 123.49 | 0.5313 | 828.0 | 700.1 | |
| 0.00 | 1.42 | 0.00 | 0.82 | -10.44 | 246.78 | -26.67 | 123.02 | 0.5284 | 861.0 | 603.4 | |
| 0.00 | 1.50 | 0.00 | 0.88 | -10.60 | 246.66 | -26.78 | 123.16 | 0.5312 | 676.0 | 524.4 | |
| 0.00 | 1.15 | 0.00 | 0.68 | -12.42 | 246.33 | -27.11 | 125.66 | 0.5500 | -959.0 | -809.2 | |
| 0.80 | 2.74 | 0.47 | 1.63 | -12.97 | 246.23 | -27.21 | 126.38 | 0.5557 | -956.7 | -747.1 | |
| 1.15 | 2.30 | 0.67 | 1.34 | -9.78 | 246.15 | -27.29 | 121.35 | 0.5312 | -636.8 | -477.7 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -12.52 | 245.83 | -27.61 | 125.31 | 0.5566 | 656.0 | 490.2 | |
| 0.00 | 1.15 | 0.00 | 0.69 | -13.42 | 245.68 | -27.76 | 126.49 | 0.5657 | 634.0 | 456.1 | |
| 0.00 | 1.33 | 0.00 | 0.78 | -9.83 | 245.80 | -27.64 | 121.10 | 0.5359 | 556.0 | 470.1 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -9.69 | 245.54 | -27.90 | 120.63 | 0.5382 | 550.0 | 478.3 | |
| 0.00 | 0.97 | 0.00 | 0.56 | -6.47 | 245.72 | -27.72 | 115.35 | 0.5136 | 622.0 | 398.9 | |
| 0.00 | 1.24 | 0.00 | 0.73 | -9.61 | 245.27 | -28.17 | 120.26 | 0.5410 | 759.0 | 615.9 | |
| 0.00 | 0.53 | 0.00 | 0.31 | -9.43 | 245.18 | -28.26 | 119.88 | 0.5408 | 676.0 | 589.5 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -12.54 | 244.81 | -28.63 | 124.37 | 0.5688 | -417.0 | -424.8 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -12.42 | 244.72 | -28.72 | 124.10 | 0.5689 | -819.0 | -666.8 | |
| 0.00 | 1.06 | 0.00 | 0.63 | -9.42 | 244.80 | -28.64 | 119.53 | 0.5456 | 940.0 | 794.6 | |
| 2.04 | 9.03 | 1.23 | 5.46 | -12.95 | 244.37 | -29.07 | 124.56 | 0.5772 | -1007.2 | -530.7 | |
| 0.00 | 0.97 | 0.00 | 0.59 | -12.35 | 244.38 | -29.06 | 123.68 | 0.5724 | 167.0 | 127.0 | |
| 0.00 | 0.97 | 0.00 | 0.59 | -12.16 | 244.40 | -29.04 | 123.41 | 0.5707 | -109.0 | -63.2 | |
| 0.00 | 1.50 | 0.00 | 0.89 | -9.40 | 244.56 | -28.88 | 119.29 | 0.5485 | 719.0 | 537.6 | |
| 2.04 | 502.30 | 1.22 | 301.23 | -11.63 | 244.25 | -29.19 | 122.48 | 0.5684 | 618.5 | 418.5 | |
| 15.75 | 81.24 | 9.30 | 47.90 | -9.03 | 244.49 | -28.95 | 118.63 | 0.5468 | 1178.1 | 518.1 | |
| 90.00 | -21.00 | 53.84 | -21.00 | -10.90 | 244.27 | -29.18 | 121.39 | 0.5629 | 1288.7 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.48 | -12.53 | 244.07 | -29.37 | 123.66 | 0.5774 | 334.0 | 178.9 | |
| 5.49 | -21.00 | 3.28 | -21.00 | -10.56 | 244.20 | -29.24 | 120.80 | 0.5613 | 1150.8 | 999999 | |
| 0.00 | 1.42 | 0.00 | 0.84 | -9.30 | 244.18 | -29.26 | 118.81 | 0.5526 | 777.0 | 521.5 | |
| 0.00 | 1.15 | 0.00 | 0.68 | -9.16 | 243.99 | -29.46 | 118.41 | 0.5541 | 483.0 | 429.6 | |
| 0.00 | 0.53 | 0.00 | 0.32 | -9.29 | 243.87 | -29.57 | 118.52 | 0.5565 | 558.0 | 452.8 | |
| 0.00 | 1.15 | 0.00 | 0.68 | -9.07 | 243.78 | -29.66 | 118.11 | 0.5561 | 373.0 | 410.5 | |
| 1.33 | -21.00 | 0.80 | -21.00 | -11.39 | 243.43 | -30.01 | 121.41 | 0.5766 | 470.9 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.74 | -9.15 | 243.64 | -29.81 | 118.10 | 0.5585 | 588.0 | 494.0 | |
| 6.73 | -21.00 | 4.07 | -21.00 | -11.15 | 243.32 | -30.12 | 120.94 | 0.5763 | 843.7 | 999999 | |
| 4.16 | -21.00 | 2.52 | -21.00 | -11.10 | 243.00 | -30.44 | 120.61 | 0.5798 | 714.8 | 999999 | |
| 0.00 | 1.42 | 0.00 | 0.85 | -9.85 | 242.86 | -30.58 | 118.58 | 0.5730 | -161.0 | -116.4 | |
| 0.00 | 2.21 | 0.00 | 1.32 | -8.29 | 242.94 | -30.50 | 116.17 | 0.5618 | 805.0 | 665.0 | |
| 9.03 | 11.68 | 5.74 | 7.43 | -16.01 | 241.84 | -31.60 | 126.56 | 0.6293 | 803.9 | 541.7 | |
| 0.00 | 1.95 | 0.00 | 1.20 | -12.15 | 242.44 | -31.00 | 121.70 | 0.5940 | 651.0 | 521.1 | |
| 4.42 | -21.00 | 2.70 | -21.00 | -10.97 | 242.56 | -30.89 | 120.05 | 0.5844 | 784.4 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.60 | -11.84 | 242.41 | -31.03 | 121.21 | 0.5921 | 517.0 | 432.6 | |
| 0.00 | 2.30 | 0.00 | 1.41 | -11.55 | 242.41 | -31.03 | 120.79 | 0.5901 | 561.0 | 464.0 | |
| 0.00 | 1.95 | 0.00 | 1.20 | -12.32 | 242.31 | -31.13 | 121.84 | 0.5967 | 331.0 | 352.3 | |
| 0.00 | 1.95 | 0.00 | 1.17 | -8.11 | 242.74 | -30.70 | 115.74 | 0.5633 | 797.0 | 602.4 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -11.17 | 242.42 | -31.02 | 120.24 | 0.5873 | 301.0 | 348.8 | |
| 0.00 | 1.77 | 0.00 | 1.11 | -14.29 | 241.95 | -31.49 | 124.33 | 0.6152 | 313.0 | 307.2 | |
| 0.00 | 2.48 | 0.00 | 1.52 | -11.34 | 242.26 | -31.18 | 120.35 | 0.5905 | 28.0 | 153.7 | |
| 0.00 | 1.50 | 0.00 | 0.94 | -13.14 | 241.91 | -31.53 | 122.68 | 0.6073 | 706.0 | 601.2 | |
| 0.00 | 1.24 | 0.00 | 0.76 | -11.82 | 242.09 | -31.35 | 120.93 | 0.5959 | 666.0 | 538.4 | |
| 6.81 | -21.00 | 4.16 | -21.00 | -10.69 | 242.09 | -31.35 | 119.24 | 0.5882 | 787.4 | 999999 | |
| 0.53 | 2.12 | 0.33 | 1.31 | -11.74 | 241.88 | -31.56 | 120.65 | 0.5978 | 750.5 | 564.0 | |
| 0.00 | 3.72 | 0.00 | 2.23 | -7.89 | 242.30 | -31.14 | 115.05 | 0.5676 | 645.0 | 612.7 | |
| 0.00 | 2.30 | 0.00 | 1.44 | -13.19 | 241.65 | -31.79 | 122.53 | 0.6107 | 600.0 | 483.5 | |
| 0.00 | 1.33 | 0.00 | 0.81 | -10.29 | 241.95 | -31.49 | 118.53 | 0.5872 | 8.0 | 143.9 | |
| 1.59 | 6.99 | 0.99 | 4.34 | -12.02 | 241.52 | -31.92 | 120.76 | 0.6040 | 740.1 | 537.6 | |
| 0.00 | 0.80 | 0.00 | 0.49 | -9.69 | 241.55 | -31.89 | 117.31 | 0.5883 | 292.0 | 319.4 | |
| 0.00 | 0.88 | 0.00 | 0.55 | -11.82 | 241.26 | -32.18 | 120.26 | 0.6058 | 744.0 | 511.8 | |
| 0.80 | 6.46 | 0.49 | 3.97 | -10.29 | 241.41 | -32.03 | 118.12 | 0.5939 | 693.4 | 512.0 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -12.23 | 241.17 | -32.28 | 120.79 | 0.6097 | 374.0 | 331.3 | |
| 0.00 | 1.42 | 0.00 | 0.88 | -11.71 | 240.91 | -32.53 | 119.83 | 0.6093 | 500.0 | 443.1 | |
| 0.00 | 1.77 | 0.00 | 1.11 | -12.52 | 240.69 | -32.76 | 120.82 | 0.6173 | 601.0 | 449.3 | |
| 11.68 | 125.13 | 7.26 | 78.41 | -10.90 | 240.76 | -32.68 | 118.54 | 0.6058 | 803.4 | -245.1 | |
| 0.00 | 0.88 | 0.00 | 0.58 | -14.68 | 239.14 | -34.30 | 122.61 | 0.6494 | -622.0 | -577.6 | |
| 0.00 | 1.24 | 0.00 | 0.78 | -11.10 | 239.71 | -33.74 | 118.05 | 0.6198 | -180.0 | -189.8 | |
| 1.24 | -60.00 | 0.78 | -60.00 | -10.63 | 239.69 | -33.75 | 117.36 | 0.6170 | 172.1 | 999999 | |
| 2.48 | 5.66 | 1.57 | 3.59 | -11.04 | 239.19 | -34.25 | 117.61 | 0.6256 | 508.1 | 397.1 | |
| 0.00 | 3.36 | 0.00 | 2.14 | -11.33 | 239.12 | -34.32 | 117.97 | 0.6283 | -206.0 | -55.1 | |
| 0.00 | 1.24 | 0.00 | 0.79 | -11.10 | 238.81 | -34.63 | 117.43 | 0.6305 | 323.0 | 228.6 | |
| 3.54 | -60.00 | 2.25 | -60.00 | -10.47 | 238.75 | -34.69 | 116.48 | 0.6276 | -993.8 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.79 | -10.11 | 238.57 | -34.87 | 115.84 | 0.6276 | -731.0 | -655.5 | |
| 0.00 | 0.97 | 0.00 | 0.62 | -9.56 | 238.42 | -35.03 | 114.93 | 0.6264 | -762.0 | -642.8 | |
| 0.62 | 65.93 | 0.41 | 42.96 | -13.15 | 237.63 | -35.81 | 119.47 | 0.6568 | -595.3 | -550.4 | |
| 0.00 | 2.74 | 0.00 | 1.75 | -9.93 | 237.99 | -35.45 | 115.21 | 0.6336 | -884.0 | -721.6 | |
| 0.00 | 2.04 | 0.00 | 1.32 | -11.39 | 237.42 | -36.03 | 116.90 | 0.6488 | -550.0 | -567.8 | |
| 0.27 | -70.00 | 0.17 | -70.00 | -11.87 | 237.26 | -36.18 | 117.48 | 0.6534 | -904.7 | 999999 | |
| 7.52 | -70.00 | 4.93 | -70.00 | -12.14 | 237.15 | -36.29 | 117.76 | 0.6563 | -1009.5 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.63 | -11.34 | 237.19 | -36.25 | 116.69 | 0.6512 | -744.0 | -625.4 | |
| 0.00 | 0.80 | 0.00 | 0.52 | -11.73 | 237.14 | -36.31 | 117.19 | 0.6540 | -312.0 | -444.1 | |
| 0.00 | 1.42 | 0.00 | 0.92 | -10.43 | 237.13 | -36.31 | 115.38 | 0.6468 | -875.0 | -655.5 | |
| 0.00 | 2.12 | 0.00 | 1.41 | -13.30 | 236.53 | -36.92 | 118.93 | 0.6702 | -673.0 | -484.5 | |
| 0.00 | 1.42 | 0.00 | 0.94 | -12.50 | 236.55 | -36.89 | 117.87 | 0.6653 | -346.0 | -412.8 | |
| 0.00 | 1.24 | 0.00 | 0.79 | -7.47 | 237.18 | -36.26 | 111.10 | 0.6308 | -637.0 | -508.9 | |
| 0.00 | 0.97 | 0.00 | 0.63 | -10.46 | 236.79 | -36.65 | 115.20 | 0.6511 | -834.0 | -763.9 | |
| 0.00 | 0.44 | 0.00 | 0.29 | -12.07 | 236.35 | -37.09 | 117.16 | 0.6651 | -495.0 | -613.2 | |
| 0.00 | 1.24 | 0.00 | 0.83 | -13.23 | 236.15 | -37.29 | 118.59 | 0.6740 | -403.0 | -308.4 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -15.08 | 235.43 | -38.01 | 120.55 | 0.6927 | 469.0 | 481.3 | |
| 1.15 | 469.46 | 0.75 | 313.72 | -10.12 | 236.22 | -37.22 | 114.38 | 0.6561 | -1092.5 | -414.6 | |
| 0.00 | 1.68 | 0.00 | 1.13 | -13.24 | 235.56 | -37.88 | 118.23 | 0.6807 | 625.0 | 378.6 | |
| 0.00 | 2.39 | 0.00 | 1.63 | -14.58 | 235.26 | -38.18 | 119.79 | 0.6917 | -504.0 | -351.6 | |
| 0.00 | 0.97 | 0.00 | 0.66 | -14.19 | 235.34 | -38.10 | 119.33 | 0.6886 | -781.0 | -585.0 | |
| 0.80 | -85.00 | 0.53 | -85.00 | -11.32 | 235.81 | -37.63 | 115.80 | 0.6672 | -586.0 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.42 | -12.72 | 235.38 | -38.06 | 117.42 | 0.6798 | 354.0 | 143.7 | |
| 0.00 | 1.15 | 0.00 | 0.79 | -14.73 | 234.95 | -38.49 | 119.79 | 0.6959 | 405.0 | 280.8 | |
| 0.27 | -85.00 | 0.18 | -85.00 | -10.96 | 235.60 | -37.85 | 115.17 | 0.6678 | -886.0 | 999999 | |
| 0.00 | 8.23 | 0.00 | 5.58 | -13.24 | 235.21 | -38.23 | 118.00 | 0.6846 | -628.0 | -535.9 | |
| 0.00 | 0.88 | 0.00 | 0.59 | -11.93 | 235.32 | -38.12 | 116.33 | 0.6762 | -606.0 | -587.7 | |
| 43.80 | -85.00 | 29.15 | -85.00 | -10.58 | 235.22 | -38.22 | 114.43 | 0.6702 | -1244.5 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.67 | -13.51 | 234.60 | -38.84 | 117.99 | 0.6929 | -786.0 | -593.5 | |
| 3.36 | -85.00 | 2.27 | -85.00 | -11.88 | 234.70 | -38.74 | 115.89 | 0.6830 | -826.5 | 999999 | |
| 1.95 | 92.39 | 1.32 | 63.45 | -12.37 | 234.54 | -38.91 | 116.45 | 0.6875 | -910.5 | -350.8 | |
| 7.26 | -98.00 | 4.96 | -98.00 | -12.79 | 234.42 | -39.02 | 116.93 | 0.6910 | -897.5 | 999999 | |
| 5.04 | -98.00 | 3.45 | -98.00 | -12.55 | 234.22 | -39.22 | 116.50 | 0.6920 | -689.8 | 999999 | |
| 26.99 | -85.00 | 18.16 | -85.00 | -10.51 | 234.49 | -38.95 | 113.92 | 0.6785 | -890.4 | 999999 | |
| 10.09 | -98.00 | 6.89 | -98.00 | -12.20 | 234.21 | -39.23 | 116.04 | 0.6903 | -712.2 | 999999 | |
| 5.84 | -85.00 | 3.95 | -85.00 | -10.93 | 234.38 | -39.06 | 114.42 | 0.6818 | -689.5 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.79 | -12.65 | 233.81 | -39.64 | 116.39 | 0.6971 | -349.0 | -265.2 | |
| 0.00 | 0.80 | 0.00 | 0.54 | -11.84 | 233.95 | -39.49 | 115.41 | 0.6914 | -366.0 | -277.9 | |
| 0.00 | 1.15 | 0.00 | 0.79 | -12.38 | 233.61 | -39.83 | 115.92 | 0.6979 | -399.0 | -314.9 | |
| 0.00 | 0.97 | 0.00 | 0.65 | -7.44 | 233.91 | -39.53 | 109.34 | 0.6712 | -628.0 | -502.1 | |
| 2.21 | -85.00 | 1.51 | -85.00 | -10.19 | 233.30 | -40.14 | 112.84 | 0.6908 | -630.2 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.68 | -11.90 | 232.53 | -40.91 | 114.69 | 0.7076 | -594.0 | -459.7 | |
| 0.00 | 1.06 | 0.00 | 0.74 | -12.07 | 232.37 | -41.07 | 114.83 | 0.7102 | -528.0 | -422.0 | |
| 0.00 | 1.24 | 0.00 | 0.86 | -10.31 | 232.64 | -40.80 | 112.66 | 0.6989 | -398.0 | -343.1 | |
| 0.00 | 0.97 | 0.00 | 0.68 | -11.05 | 232.39 | -41.05 | 113.51 | 0.7052 | -590.0 | -392.8 | |
| 0.00 | 1.33 | 0.00 | 0.93 | -11.42 | 232.21 | -41.23 | 113.89 | 0.7090 | -541.0 | -445.9 | |
| 0.00 | 0.62 | 0.00 | 0.45 | -14.02 | 231.51 | -41.93 | 116.86 | 0.7290 | -518.0 | -440.0 | |
| 0.00 | 2.04 | 0.00 | 1.44 | -12.33 | 231.83 | -41.61 | 114.88 | 0.7175 | -606.0 | -495.7 | |
| 0.00 | 1.06 | 0.00 | 0.76 | -11.66 | 230.75 | -42.69 | 113.47 | 0.7262 | -265.0 | -233.8 | |
| 0.00 | 0.27 | 0.00 | 0.21 | -15.88 | 226.78 | -46.66 | 116.71 | 0.7853 | -541.0 | -494.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
