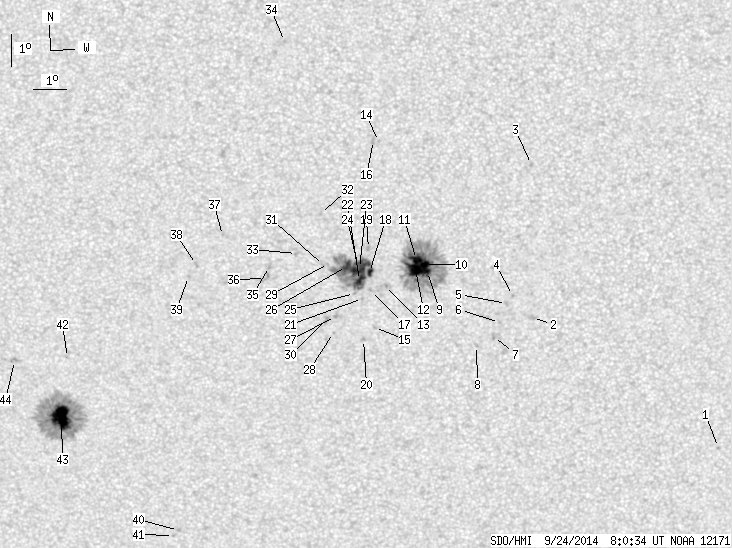

SDO HMI 2014-09-24 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.19 | 514.57 | 54.09 | 270.92 | -10.58 | 265.56 | -7.16 | 160.19 | 0.3319 | 460.6 | 121.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-24 08:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.42 | 0.00 | 0.76 | -14.47 | 279.43 | 6.71 | 197.22 | 0.3838 | 740.0 | 607.3 | |
| 0.00 | 3.81 | 0.00 | 1.97 | -10.27 | 273.62 | 0.91 | 183.00 | 0.2983 | 791.0 | 608.6 | |
| 0.00 | 1.68 | 0.00 | 0.85 | -5.50 | 273.59 | 0.87 | 184.00 | 0.2178 | 899.0 | 700.2 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -9.57 | 273.01 | 0.30 | 181.02 | 0.2863 | 928.0 | 761.0 | |
| 0.00 | 2.57 | 0.00 | 1.33 | -9.82 | 272.83 | 0.11 | 180.38 | 0.2905 | 914.0 | 609.5 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -10.42 | 272.61 | -0.10 | 179.66 | 0.3005 | 833.0 | 696.0 | |
| 0.00 | 2.04 | 0.00 | 1.06 | -10.86 | 272.43 | -0.29 | 179.08 | 0.3079 | 967.0 | 774.8 | |
| 0.00 | 1.86 | 0.00 | 0.97 | -11.15 | 271.91 | -0.81 | 177.45 | 0.3129 | 661.0 | 524.9 | |
| 3.63 | 184.85 | 1.87 | 95.19 | -8.82 | 270.42 | -2.29 | 171.74 | 0.2764 | 1117.1 | 422.7 | |
| 6.64 | -9.00 | 3.42 | -9.00 | -8.61 | 270.33 | -2.38 | 171.30 | 0.2730 | 1471.5 | 999999 | |
| 8.85 | -9.00 | 4.55 | -9.00 | -8.45 | 270.09 | -2.62 | 170.34 | 0.2711 | 1456.9 | 999999 | |
| 15.49 | -9.00 | 7.98 | -9.00 | -8.76 | 270.06 | -2.66 | 170.41 | 0.2764 | 1225.2 | 999999 | |
| 0.00 | 1.42 | 0.00 | 0.73 | -9.27 | 269.14 | -3.58 | 167.58 | 0.2877 | 841.0 | 699.7 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -4.80 | 268.97 | -3.75 | 162.29 | 0.2152 | 784.0 | 604.1 | |
| 0.00 | 1.59 | 0.00 | 0.83 | -10.59 | 268.79 | -3.93 | 167.41 | 0.3105 | 707.0 | 528.2 | |
| 0.00 | 2.92 | 0.00 | 1.48 | -4.77 | 268.82 | -3.90 | 161.58 | 0.2155 | 804.0 | 721.0 | |
| 0.00 | 1.33 | 0.00 | 0.69 | -9.43 | 268.68 | -4.04 | 166.18 | 0.2920 | 643.0 | 561.9 | |
| 3.72 | 92.12 | 1.92 | 47.59 | -8.86 | 268.66 | -4.06 | 165.62 | 0.2829 | 1110.5 | 496.1 | |
| 0.00 | 2.39 | 0.00 | 1.23 | -8.12 | 268.63 | -4.08 | 164.85 | 0.2708 | 995.0 | 781.3 | |
| 0.00 | 2.21 | 0.00 | 1.16 | -10.97 | 268.44 | -4.27 | 166.64 | 0.3180 | 880.0 | 666.7 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -9.68 | 268.43 | -4.29 | 165.58 | 0.2971 | 602.0 | 495.2 | |
| 8.58 | -18.00 | 4.44 | -18.00 | -9.12 | 268.35 | -4.37 | 164.81 | 0.2884 | 1004.0 | 999999 | |
| 17.17 | -18.00 | 8.86 | -18.00 | -8.74 | 268.35 | -4.36 | 164.47 | 0.2823 | 1190.8 | 999999 | |
| 2.39 | -18.00 | 1.23 | -18.00 | -8.59 | 268.29 | -4.42 | 164.12 | 0.2800 | 1191.7 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -9.53 | 268.19 | -4.53 | 164.66 | 0.2957 | 606.0 | 487.4 | |
| 7.34 | -18.00 | 3.79 | -18.00 | -8.68 | 267.96 | -4.76 | 163.08 | 0.2831 | 1034.2 | 999999 | |
| 0.00 | 2.12 | 0.00 | 1.11 | -10.26 | 267.59 | -5.12 | 163.47 | 0.3101 | 813.0 | 709.2 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -10.76 | 267.52 | -5.19 | 163.72 | 0.3185 | 503.0 | 419.2 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -8.59 | 267.41 | -5.31 | 161.16 | 0.2845 | 329.0 | 405.0 | |
| 0.00 | 3.36 | 0.00 | 1.75 | -10.35 | 267.32 | -5.40 | 162.72 | 0.3130 | 860.0 | 648.9 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -8.66 | 267.25 | -5.46 | 160.73 | 0.2864 | 556.0 | 440.6 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -7.04 | 267.19 | -5.53 | 158.42 | 0.2612 | 875.0 | 703.4 | |
| 0.00 | 2.30 | 0.00 | 1.19 | -8.29 | 266.43 | -6.28 | 157.61 | 0.2855 | -783.0 | -645.0 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -1.77 | 266.14 | -6.57 | 142.94 | 0.1907 | 838.0 | 769.7 | |
| 0.00 | 2.30 | 0.00 | 1.19 | -8.71 | 265.60 | -7.12 | 155.58 | 0.2975 | -891.0 | -632.5 | |
| 0.00 | 4.78 | 0.00 | 2.48 | -9.09 | 265.47 | -7.25 | 155.70 | 0.3041 | -704.0 | -740.2 | |
| 0.00 | 0.62 | 0.00 | 0.32 | -7.77 | 264.18 | -8.54 | 149.86 | 0.2943 | 706.0 | 581.3 | |
| 0.00 | 2.21 | 0.00 | 1.15 | -8.69 | 263.36 | -9.36 | 149.09 | 0.3144 | -789.0 | -675.2 | |
| 0.00 | 1.42 | 0.00 | 0.74 | -9.07 | 263.10 | -9.62 | 149.02 | 0.3220 | -822.0 | -701.9 | |
| 0.00 | 1.86 | 0.00 | 1.03 | -17.23 | 262.44 | -10.28 | 157.34 | 0.4443 | 867.0 | 701.9 | |
| 0.00 | 1.33 | 0.00 | 0.73 | -17.40 | 262.27 | -10.45 | 157.16 | 0.4477 | 708.0 | 584.7 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -11.71 | 259.22 | -13.50 | 144.23 | 0.3928 | -709.0 | -418.8 | |
| 29.38 | 175.30 | 16.03 | 95.64 | -13.64 | 258.92 | -13.80 | 146.40 | 0.4206 | -1290.0 | -354.1 | |
| 0.00 | 3.81 | 0.00 | 2.07 | -11.86 | 257.53 | -15.19 | 141.20 | 0.4109 | -756.0 | -732.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
