SDO HMI 2014-09-24 09:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.75 | 132.62 | 18.67 | 69.01 | 9.01 | 289.28 | 17.11 | 275.90 | 0.3014 | -324.0 | -276.7 | |
|
previous
or next observation for the same group /

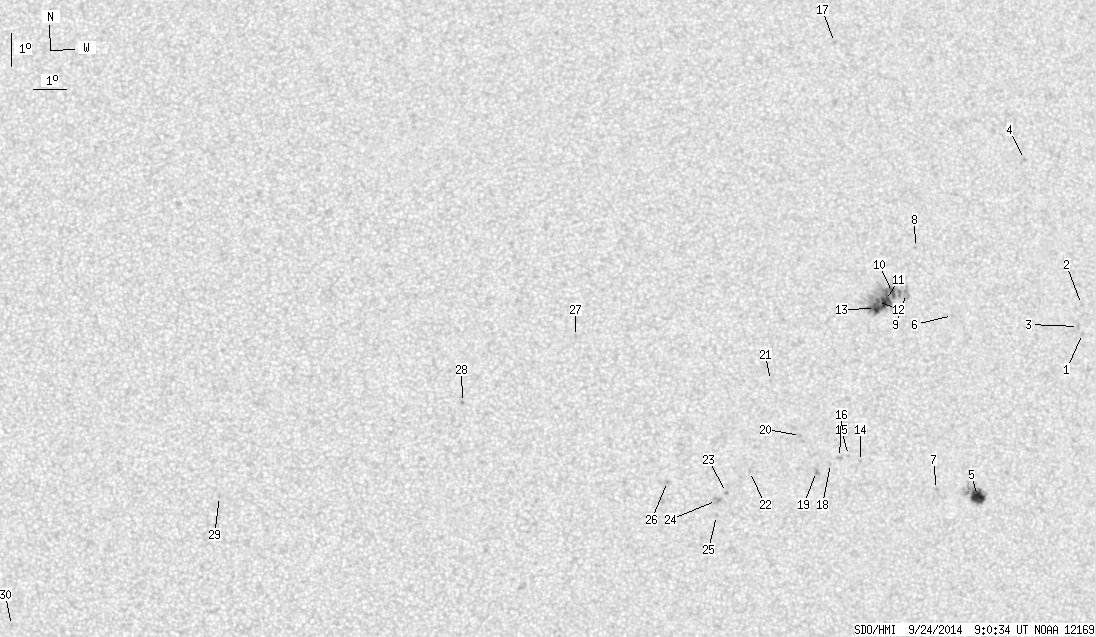

back to the solar disc SDO HMI 2014-09-24 09:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.42 | 0.00 | 0.77 | 9.86 | 295.94 | 23.77 | 278.65 | 0.4035 | -829.0 | -630.6 | |
| 0.00 | 1.33 | 0.00 | 0.72 | 10.74 | 295.98 | 23.81 | 280.79 | 0.4055 | -662.0 | -495.0 | |
| 0.00 | 2.30 | 0.00 | 1.24 | 10.08 | 295.83 | 23.66 | 279.21 | 0.4020 | -704.0 | -529.0 | |
| 0.00 | 1.15 | 0.00 | 0.62 | 15.20 | 294.51 | 22.34 | 292.48 | 0.3987 | -790.0 | -621.8 | |
| 12.30 | 26.90 | 6.49 | 14.18 | 5.12 | 292.25 | 20.08 | 265.80 | 0.3443 | -1068.9 | -706.2 | |
| 0.00 | 1.06 | 0.00 | 0.56 | 10.60 | 291.72 | 19.55 | 282.00 | 0.3377 | -790.0 | -566.0 | |
| 0.00 | 1.50 | 0.00 | 0.79 | 5.39 | 290.94 | 18.77 | 266.18 | 0.3225 | -738.0 | -585.6 | |
| 0.00 | 1.15 | 0.00 | 0.60 | 12.69 | 290.67 | 18.50 | 288.85 | 0.3285 | -904.0 | -665.4 | |
| 0.00 | 6.28 | 0.00 | 3.28 | 11.32 | 290.28 | 18.11 | 284.97 | 0.3169 | -726.0 | -654.8 | |
| 3.27 | 61.76 | 1.70 | 32.09 | 11.37 | 289.83 | 17.66 | 285.42 | 0.3099 | -987.1 | -615.6 | |
| 10.71 | -10.00 | 5.57 | -10.00 | 11.13 | 289.59 | 17.42 | 284.84 | 0.3052 | -1147.9 | 999999 | |
| 1.77 | -10.00 | 0.92 | -10.00 | 11.11 | 289.33 | 17.16 | 284.95 | 0.3010 | -1205.5 | 999999 | |
| 7.70 | -10.00 | 3.99 | -10.00 | 10.90 | 289.25 | 17.08 | 284.32 | 0.2990 | -1218.6 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.46 | 6.32 | 288.56 | 16.39 | 268.64 | 0.2818 | 725.0 | 617.9 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 6.51 | 288.19 | 16.02 | 269.27 | 0.2754 | 822.0 | 607.6 | |
| 0.00 | 1.86 | 0.00 | 0.96 | 6.46 | 287.90 | 15.74 | 269.03 | 0.2707 | 915.0 | 763.7 | |
| 0.00 | 1.95 | 0.00 | 1.03 | 19.02 | 288.58 | 16.41 | 308.61 | 0.3434 | -662.0 | -404.6 | |
| 0.00 | 1.42 | 0.00 | 0.73 | 6.29 | 287.62 | 15.45 | 268.34 | 0.2660 | 822.0 | 579.5 | |
| 0.00 | 2.74 | 0.00 | 1.41 | 6.07 | 287.17 | 15.00 | 267.36 | 0.2588 | 882.0 | 834.8 | |
| 0.00 | 1.42 | 0.00 | 0.72 | 7.16 | 286.70 | 14.53 | 271.62 | 0.2502 | 902.0 | 737.2 | |
| 0.00 | 0.88 | 0.00 | 0.45 | 8.85 | 285.83 | 13.66 | 278.75 | 0.2371 | 707.0 | 499.9 | |
| 0.00 | 1.68 | 0.00 | 0.85 | 6.13 | 285.08 | 12.91 | 266.95 | 0.2235 | 808.0 | 591.3 | |
| 0.00 | 1.24 | 0.00 | 0.63 | 5.52 | 284.36 | 12.19 | 263.80 | 0.2123 | 941.0 | 816.9 | |
| 0.00 | 4.60 | 0.00 | 2.33 | 5.29 | 284.04 | 11.87 | 262.48 | 0.2076 | 849.0 | 800.9 | |
| 0.00 | 1.68 | 0.00 | 0.85 | 4.83 | 284.03 | 11.86 | 260.33 | 0.2088 | 757.0 | 616.8 | |
| 0.00 | 1.77 | 0.00 | 0.89 | 5.89 | 282.54 | 10.38 | 264.57 | 0.1808 | 912.0 | 720.8 | |
| 0.00 | 1.59 | 0.00 | 0.80 | 10.31 | 279.82 | 7.65 | 294.30 | 0.1444 | 865.0 | 665.9 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 8.37 | 276.32 | 4.15 | 288.93 | 0.0761 | 1001.0 | 828.5 | |
| 0.00 | 0.97 | 0.00 | 0.48 | 5.56 | 268.95 | -3.22 | 113.73 | 0.0614 | 875.0 | 682.2 | |
| 0.00 | 0.88 | 0.00 | 0.45 | 1.60 | 262.65 | -9.51 | 119.16 | 0.1901 | 852.0 | 654.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
