SDO HMI 2014-09-24 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.56 | 0.00 | 5.42 | -15.50 | 288.13 | 16.51 | 215.13 | 0.4824 | 698.1 | 574.5 | |
|
previous
or next observation for the same group /

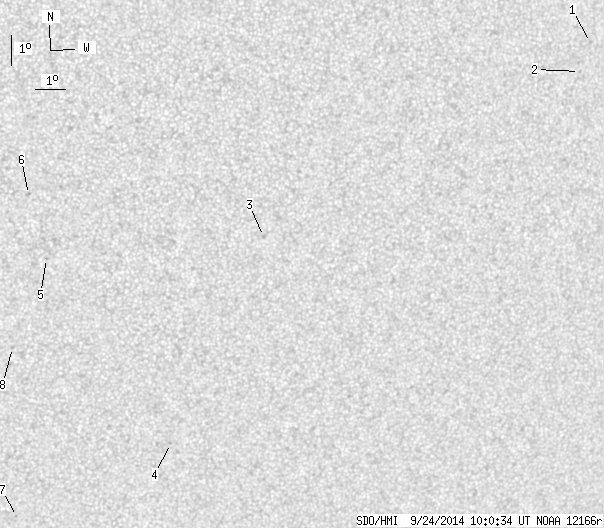

back to the solar disc SDO HMI 2014-09-24 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.42 | 0.00 | 0.83 | -9.39 | 300.10 | 28.47 | 240.38 | 0.5432 | 766.0 | 628.2 | |
| 0.00 | 0.71 | 0.00 | 0.42 | -10.28 | 299.80 | 28.18 | 238.69 | 0.5459 | 438.0 | 441.5 | |
| 0.00 | 1.59 | 0.00 | 0.90 | -15.03 | 289.62 | 18.00 | 218.97 | 0.4765 | 635.0 | 500.3 | |
| 0.00 | 1.15 | 0.00 | 0.68 | -21.83 | 287.22 | 15.59 | 207.58 | 0.5411 | 828.0 | 586.8 | |
| 0.00 | 1.15 | 0.00 | 0.63 | -15.51 | 282.66 | 11.04 | 205.88 | 0.4245 | 738.0 | 590.5 | |
| 0.00 | 1.68 | 0.00 | 0.90 | -13.42 | 281.99 | 10.37 | 206.79 | 0.3901 | 792.0 | 624.8 | |
| 0.00 | 0.62 | 0.00 | 0.37 | -24.21 | 282.28 | 10.66 | 198.10 | 0.5449 | 664.0 | 597.9 | |
| 0.00 | 1.24 | 0.00 | 0.69 | -18.42 | 281.73 | 10.11 | 201.31 | 0.4603 | 724.0 | 581.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
