SDO HMI 2014-09-24 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.63 | 118.20 | 13.98 | 61.68 | 8.76 | 289.46 | 17.84 | 275.20 | 0.3135 | -382.4 | -362.7 | |
|
previous
or next observation for the same group /

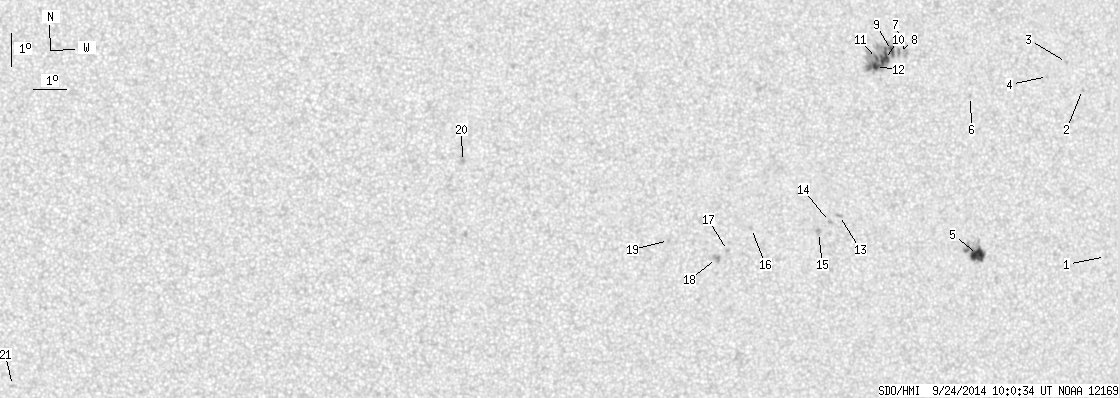

back to the solar disc SDO HMI 2014-09-24 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.68 | 4.86 | 296.46 | 24.84 | 266.48 | 0.4211 | 653.0 | 564.6 | |
| 0.00 | 1.24 | 0.00 | 0.67 | 9.92 | 296.00 | 24.38 | 278.66 | 0.4130 | -615.0 | -592.7 | |
| 0.00 | 1.24 | 0.00 | 0.67 | 10.76 | 295.53 | 23.91 | 280.82 | 0.4071 | -641.0 | -453.9 | |
| 0.00 | 1.06 | 0.00 | 0.57 | 10.37 | 294.86 | 23.24 | 280.05 | 0.3959 | -934.0 | -646.9 | |
| 12.21 | 27.07 | 6.46 | 14.32 | 5.12 | 292.27 | 20.65 | 265.99 | 0.3537 | -1043.1 | -610.1 | |
| 0.00 | 1.68 | 0.00 | 0.89 | 9.88 | 292.29 | 20.67 | 279.52 | 0.3541 | -718.0 | -621.3 | |
| 0.00 | 5.40 | 0.00 | 2.83 | 11.29 | 290.27 | 18.65 | 284.56 | 0.3255 | -804.0 | -650.6 | |
| 0.00 | 3.10 | 0.00 | 1.62 | 11.30 | 290.05 | 18.43 | 284.73 | 0.3219 | -893.0 | -750.6 | |
| 3.18 | 56.36 | 1.66 | 29.36 | 11.37 | 289.83 | 18.20 | 285.08 | 0.3186 | -954.3 | -705.7 | |
| 7.17 | -9.00 | 3.74 | -9.00 | 11.11 | 289.58 | 17.96 | 284.42 | 0.3138 | -1153.8 | 999999 | |
| 1.33 | -9.00 | 0.69 | -9.00 | 11.15 | 289.33 | 17.71 | 284.71 | 0.3099 | -1144.7 | 999999 | |
| 2.74 | -9.00 | 1.43 | -9.00 | 10.91 | 289.28 | 17.66 | 283.98 | 0.3083 | -1234.0 | 999999 | |
| 0.00 | 2.30 | 0.00 | 1.19 | 6.47 | 287.92 | 16.30 | 269.17 | 0.2801 | 785.0 | 599.4 | |
| 0.00 | 1.77 | 0.00 | 0.91 | 6.30 | 287.60 | 15.98 | 268.50 | 0.2749 | 778.0 | 614.0 | |
| 0.00 | 3.27 | 0.00 | 1.68 | 5.98 | 287.24 | 15.62 | 267.23 | 0.2693 | 743.0 | 720.6 | |
| 0.00 | 1.59 | 0.00 | 0.81 | 6.17 | 285.15 | 13.53 | 267.34 | 0.2340 | 859.0 | 652.2 | |
| 0.00 | 1.24 | 0.00 | 0.63 | 5.53 | 284.39 | 12.77 | 264.20 | 0.2222 | 957.0 | 776.8 | |
| 0.00 | 4.95 | 0.00 | 2.51 | 5.30 | 284.05 | 12.43 | 262.94 | 0.2169 | 1074.0 | 851.4 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 5.88 | 282.58 | 10.96 | 264.85 | 0.1907 | 794.0 | 632.3 | |
| 0.00 | 1.86 | 0.00 | 0.92 | 8.36 | 276.32 | 4.70 | 286.85 | 0.0850 | 853.0 | 747.6 | |
| 0.00 | 1.59 | 0.00 | 0.80 | 1.57 | 262.68 | -8.94 | 120.84 | 0.1817 | 837.0 | 591.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
