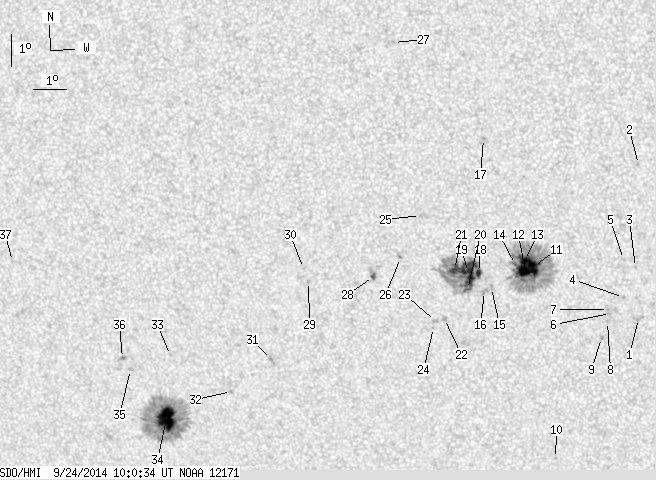

SDO HMI 2014-09-24 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 99.45 | 497.84 | 51.97 | 261.46 | -10.55 | 265.52 | -6.10 | 163.30 | 0.3262 | 443.3 | 100.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-24 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.78 | 0.00 | 2.48 | -10.28 | 273.60 | 1.98 | 186.53 | 0.2999 | 566.0 | 604.6 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -5.48 | 273.58 | 1.96 | 188.96 | 0.2194 | 837.0 | 610.7 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -8.68 | 273.50 | 1.88 | 186.84 | 0.2730 | 919.0 | 723.2 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -9.62 | 273.14 | 1.52 | 185.22 | 0.2880 | 956.0 | 713.2 | |
| 0.00 | 1.42 | 0.00 | 0.73 | -8.43 | 273.13 | 1.51 | 185.61 | 0.2681 | 782.0 | 706.9 | |
| 0.00 | 0.62 | 0.00 | 0.32 | -10.12 | 272.74 | 1.12 | 183.74 | 0.2959 | 758.0 | 606.4 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -9.99 | 272.68 | 1.06 | 183.57 | 0.2937 | 890.0 | 705.7 | |
| 0.00 | 1.59 | 0.00 | 0.83 | -10.37 | 272.65 | 1.03 | 183.39 | 0.3000 | 799.0 | 613.4 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -10.87 | 272.47 | 0.85 | 182.71 | 0.3083 | 888.0 | 751.7 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -14.74 | 271.04 | -0.58 | 178.49 | 0.3718 | 769.0 | 588.8 | |
| 9.47 | 172.96 | 4.87 | 89.01 | -8.64 | 270.40 | -1.23 | 175.51 | 0.2713 | 1385.7 | 422.0 | |
| 15.04 | -11.00 | 7.74 | -11.00 | -8.80 | 270.15 | -1.47 | 174.67 | 0.2743 | 1210.2 | 999999 | |
| 8.58 | -11.00 | 4.41 | -11.00 | -8.45 | 270.12 | -1.50 | 174.45 | 0.2685 | 1406.3 | 999999 | |
| 0.97 | -11.00 | 0.50 | -11.00 | -8.58 | 269.85 | -1.77 | 173.49 | 0.2711 | 947.8 | 999999 | |
| 0.00 | 2.30 | 0.00 | 1.19 | -9.30 | 269.11 | -2.51 | 171.24 | 0.2848 | 847.0 | 666.2 | |
| 0.00 | 3.98 | 0.00 | 2.06 | -9.43 | 268.90 | -2.72 | 170.57 | 0.2875 | 727.0 | 637.1 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -4.68 | 268.90 | -2.72 | 166.82 | 0.2084 | 1036.0 | 812.5 | |
| 3.01 | 104.04 | 1.55 | 53.68 | -8.87 | 268.72 | -2.90 | 169.61 | 0.2787 | 1153.6 | 440.2 | |
| 25.66 | -18.00 | 13.23 | -18.00 | -8.84 | 268.41 | -3.21 | 168.53 | 0.2791 | 1148.7 | 999999 | |
| 1.68 | -18.00 | 0.87 | -18.00 | -9.37 | 268.38 | -3.24 | 168.78 | 0.2880 | 738.1 | 999999 | |
| 6.64 | -18.00 | 3.42 | -18.00 | -8.74 | 267.99 | -3.63 | 166.98 | 0.2792 | 1007.6 | 999999 | |
| 0.00 | 2.57 | 0.00 | 1.33 | -10.28 | 267.66 | -3.96 | 167.10 | 0.3055 | 900.0 | 724.0 | |
| 0.00 | 2.74 | 0.00 | 1.43 | -10.38 | 267.39 | -4.23 | 166.31 | 0.3081 | 732.0 | 531.9 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -10.57 | 267.32 | -4.30 | 166.26 | 0.3115 | 627.0 | 455.1 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -7.07 | 266.97 | -4.65 | 161.65 | 0.2565 | 766.0 | 665.1 | |
| 0.00 | 1.42 | 0.00 | 0.73 | -8.38 | 266.35 | -5.27 | 161.02 | 0.2809 | -822.0 | -682.5 | |
| 0.00 | 1.50 | 0.00 | 0.76 | -1.77 | 266.20 | -5.42 | 148.07 | 0.1794 | 868.0 | 652.4 | |
| 1.42 | 5.75 | 0.73 | 2.98 | -8.99 | 265.51 | -6.11 | 159.04 | 0.2952 | -1050.9 | -749.3 | |
| 0.00 | 1.59 | 0.00 | 0.83 | -9.17 | 263.51 | -8.11 | 153.31 | 0.3114 | -966.0 | -761.7 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -8.77 | 263.37 | -8.25 | 152.29 | 0.3065 | -819.0 | -661.4 | |
| 0.00 | 2.57 | 0.00 | 1.36 | -11.65 | 262.29 | -9.33 | 153.47 | 0.3569 | -908.0 | -742.7 | |
| 0.00 | 1.59 | 0.00 | 0.85 | -12.70 | 261.00 | -10.62 | 151.76 | 0.3816 | 615.0 | 513.3 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -11.60 | 259.14 | -12.48 | 146.15 | 0.3818 | -721.0 | -512.9 | |
| 26.98 | 170.04 | 14.65 | 92.33 | -13.62 | 258.91 | -12.71 | 148.48 | 0.4110 | -1233.5 | -378.5 | |
| 0.00 | 1.95 | 0.00 | 1.05 | -12.08 | 257.85 | -13.77 | 144.23 | 0.3999 | -850.0 | -592.4 | |
| 0.00 | 2.39 | 0.00 | 1.29 | -11.74 | 257.61 | -14.01 | 143.25 | 0.3977 | -977.0 | -827.6 | |
| 0.00 | 0.71 | 0.00 | 0.38 | -8.79 | 254.27 | -17.35 | 132.11 | 0.3989 | 760.0 | 606.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
