SDO HMI 2014-09-24 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 268.78 | 1547.55 | 166.25 | 957.35 | -10.98 | 239.60 | -32.02 | 119.45 | 0.5976 | 37.6 | -16.1 | |
|
previous
or next observation for the same group /

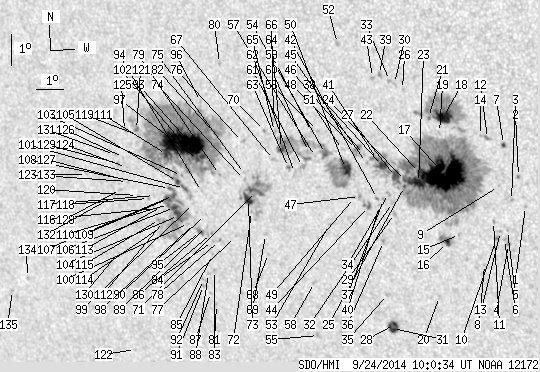

back to the solar disc SDO HMI 2014-09-24 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.71 | -11.75 | 247.05 | -24.57 | 127.32 | 0.5140 | 619.0 | 388.9 | |
| 0.00 | 1.33 | 0.00 | 0.76 | -10.81 | 246.90 | -24.72 | 125.65 | 0.5076 | 603.0 | 615.6 | |
| 0.00 | 1.24 | 0.00 | 0.72 | -11.59 | 246.59 | -25.03 | 126.55 | 0.5180 | 610.0 | 480.3 | |
| 0.00 | 1.24 | 0.00 | 0.72 | -13.00 | 246.34 | -25.28 | 128.44 | 0.5334 | -869.0 | -755.6 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -12.55 | 246.35 | -25.27 | 127.78 | 0.5293 | -765.0 | -616.7 | |
| 0.00 | 1.50 | 0.00 | 0.88 | -12.85 | 246.22 | -25.40 | 128.08 | 0.5334 | 152.0 | -96.8 | |
| 1.06 | 2.30 | 0.61 | 1.32 | -9.83 | 246.48 | -25.14 | 123.57 | 0.5045 | -701.1 | -511.2 | |
| 0.00 | 1.24 | 0.00 | 0.72 | -12.60 | 246.11 | -25.51 | 127.58 | 0.5325 | 639.0 | 447.2 | |
| 0.00 | 0.53 | 0.00 | 0.31 | -11.17 | 246.19 | -25.43 | 125.44 | 0.5192 | -587.0 | -410.0 | |
| 0.00 | 1.95 | 0.00 | 1.14 | -12.83 | 245.95 | -25.67 | 127.76 | 0.5364 | 692.0 | 581.9 | |
| 0.00 | 1.42 | 0.00 | 0.83 | -12.29 | 245.90 | -25.72 | 126.89 | 0.5322 | 583.0 | 398.5 | |
| 0.00 | 2.83 | 0.00 | 1.63 | -9.67 | 245.95 | -25.67 | 122.75 | 0.5098 | 744.0 | 561.9 | |
| 0.00 | 1.15 | 0.00 | 0.68 | -13.69 | 245.43 | -26.19 | 128.48 | 0.5499 | 647.0 | 455.6 | |
| 0.00 | 1.06 | 0.00 | 0.61 | -9.59 | 245.72 | -25.90 | 122.37 | 0.5120 | 668.0 | 499.5 | |
| 0.00 | 1.24 | 0.00 | 0.73 | -12.77 | 244.68 | -26.94 | 126.34 | 0.5507 | -733.0 | -671.4 | |
| 2.74 | 11.85 | 1.63 | 7.07 | -13.05 | 244.23 | -27.39 | 126.30 | 0.5583 | -894.2 | -508.0 | |
| 83.16 | 665.21 | 48.84 | 390.89 | -10.89 | 244.37 | -27.25 | 123.13 | 0.5391 | 1188.5 | 403.5 | |
| 14.51 | -17.00 | 8.42 | -17.00 | -9.06 | 244.50 | -27.12 | 120.30 | 0.5235 | 1098.8 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.88 | -9.57 | 244.32 | -27.30 | 120.97 | 0.5296 | 352.0 | 371.8 | |
| 0.00 | 1.15 | 0.00 | 0.70 | -14.82 | 243.71 | -27.91 | 128.33 | 0.5789 | 631.0 | 470.2 | |
| 0.35 | -17.00 | 0.21 | -17.00 | -9.12 | 243.98 | -27.64 | 119.92 | 0.5306 | 643.0 | 999999 | |
| 1.33 | -17.00 | 0.79 | -17.00 | -10.87 | 243.50 | -28.12 | 122.29 | 0.5496 | 786.0 | 999999 | |
| 8.40 | -17.00 | 4.99 | -17.00 | -11.19 | 243.43 | -28.19 | 122.72 | 0.5529 | 797.6 | 999999 | |
| 0.27 | -17.00 | 0.16 | -17.00 | -11.16 | 242.98 | -28.64 | 122.25 | 0.5581 | 685.3 | 999999 | |
| 0.80 | -17.00 | 0.48 | -17.00 | -11.35 | 242.93 | -28.69 | 122.50 | 0.5603 | 544.0 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.36 | -8.29 | 243.15 | -28.47 | 117.82 | 0.5354 | 742.0 | 594.9 | |
| 6.64 | -17.00 | 3.96 | -17.00 | -11.05 | 242.64 | -28.98 | 121.78 | 0.5615 | 725.0 | 999999 | |
| 2.74 | 10.53 | 1.71 | 6.56 | -15.83 | 241.96 | -29.67 | 128.03 | 0.6067 | 859.8 | 544.5 | |
| 0.00 | 2.39 | 0.00 | 1.44 | -12.23 | 242.47 | -29.15 | 123.41 | 0.5725 | 640.0 | 472.7 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -8.12 | 242.89 | -28.73 | 117.31 | 0.5377 | 628.0 | 639.2 | |
| 5.13 | -28.00 | 3.20 | -28.00 | -15.97 | 241.86 | -29.76 | 128.12 | 0.6088 | 751.3 | 999999 | |
| 0.00 | 2.65 | 0.00 | 1.60 | -11.89 | 242.44 | -29.18 | 122.87 | 0.5702 | 641.0 | 504.4 | |
| 0.00 | 1.77 | 0.00 | 1.04 | -8.04 | 242.72 | -28.90 | 117.03 | 0.5393 | 748.0 | 648.0 | |
| 0.00 | 2.30 | 0.00 | 1.38 | -11.61 | 242.34 | -29.29 | 122.35 | 0.5694 | 690.0 | 548.6 | |
| 0.00 | 2.12 | 0.00 | 1.31 | -14.87 | 241.86 | -29.76 | 126.62 | 0.6000 | 570.0 | 519.8 | |
| 0.00 | 1.59 | 0.00 | 0.97 | -13.16 | 241.96 | -29.66 | 124.30 | 0.5855 | 658.0 | 545.8 | |
| 0.00 | 1.15 | 0.00 | 0.69 | -11.81 | 242.13 | -29.49 | 122.48 | 0.5733 | 747.0 | 585.9 | |
| 5.13 | -17.00 | 3.07 | -17.00 | -10.73 | 242.22 | -29.40 | 120.91 | 0.5643 | 818.4 | 999999 | |
| 0.00 | 2.92 | 0.00 | 1.72 | -7.87 | 242.39 | -29.23 | 116.48 | 0.5426 | 825.0 | 628.0 | |
| 0.00 | 0.80 | 0.00 | 0.48 | -12.01 | 241.97 | -29.65 | 122.63 | 0.5768 | 696.0 | 585.3 | |
| 0.88 | -17.00 | 0.53 | -17.00 | -10.55 | 242.07 | -29.55 | 120.50 | 0.5650 | 694.8 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.80 | -11.79 | 241.92 | -29.70 | 122.26 | 0.5757 | 624.0 | 594.7 | |
| 0.00 | 1.77 | 0.00 | 1.04 | -7.98 | 242.13 | -29.49 | 116.46 | 0.5466 | 636.0 | 528.8 | |
| 1.06 | 5.40 | 0.65 | 3.28 | -12.07 | 241.57 | -30.05 | 122.36 | 0.5820 | 731.8 | 610.7 | |
| 0.00 | 1.24 | 0.00 | 0.75 | -10.67 | 241.67 | -29.96 | 120.34 | 0.5708 | 529.0 | 405.4 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -10.42 | 241.62 | -30.00 | 119.92 | 0.5695 | 333.0 | 296.5 | |
| 0.00 | 2.03 | 0.00 | 1.24 | -11.77 | 241.29 | -30.33 | 121.68 | 0.5832 | 790.0 | 665.5 | |
| 0.00 | 7.87 | 0.00 | 4.75 | -10.28 | 241.35 | -30.27 | 119.48 | 0.5719 | 663.0 | 576.3 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -11.81 | 241.10 | -30.52 | 121.59 | 0.5857 | 598.0 | 469.2 | |
| 12.83 | 53.97 | 7.80 | 32.91 | -10.91 | 240.89 | -30.73 | 120.06 | 0.5819 | 775.8 | 7.8 | |
| 0.00 | 1.68 | 0.00 | 1.02 | -10.31 | 240.85 | -30.77 | 119.12 | 0.5783 | 266.0 | 124.5 | |
| 0.00 | 2.30 | 0.00 | 1.37 | -7.00 | 240.98 | -30.64 | 113.95 | 0.5556 | 259.0 | 323.3 | |
| 0.00 | 1.24 | 0.00 | 0.77 | -12.73 | 240.08 | -31.54 | 122.08 | 0.6044 | 502.0 | 348.1 | |
| 2.65 | 61.13 | 1.62 | 37.68 | -10.48 | 240.23 | -31.40 | 118.87 | 0.5872 | 187.3 | -381.2 | |
| 0.00 | 2.39 | 0.00 | 1.54 | -16.38 | 239.07 | -32.55 | 126.23 | 0.6421 | -534.0 | -536.2 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -9.77 | 240.02 | -31.60 | 117.64 | 0.5851 | -709.0 | -643.2 | |
| 0.00 | 0.62 | 0.00 | 0.38 | -10.60 | 239.85 | -31.77 | 118.76 | 0.5926 | 154.0 | 152.7 | |
| 0.00 | 1.68 | 0.00 | 1.07 | -14.65 | 239.24 | -32.38 | 124.06 | 0.6277 | -703.0 | -573.1 | |
| 0.00 | 0.80 | 0.00 | 0.49 | -9.81 | 239.80 | -31.82 | 117.54 | 0.5882 | -775.0 | -635.0 | |
| 0.00 | 1.77 | 0.00 | 1.09 | -10.45 | 239.62 | -32.01 | 118.37 | 0.5945 | -268.0 | -251.1 | |
| 0.00 | 3.01 | 0.00 | 1.86 | -10.94 | 239.34 | -32.28 | 118.89 | 0.6011 | 550.0 | 439.7 | |
| 0.00 | 2.57 | 0.00 | 1.59 | -11.15 | 239.02 | -32.60 | 118.96 | 0.6063 | 216.0 | 78.6 | |
| 0.44 | 2.57 | 0.28 | 1.60 | -11.01 | 238.82 | -32.80 | 118.59 | 0.6078 | 365.6 | 128.2 | |
| 4.34 | -54.00 | 2.69 | -54.00 | -10.42 | 238.64 | -32.98 | 117.60 | 0.6064 | -928.0 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.38 | -9.90 | 238.44 | -33.18 | 116.68 | 0.6055 | -710.0 | -572.6 | |
| 0.00 | 1.33 | 0.00 | 0.82 | -9.53 | 238.45 | -33.17 | 116.12 | 0.6032 | -811.0 | -697.5 | |
| 0.00 | 1.33 | 0.00 | 0.83 | -10.79 | 238.30 | -33.32 | 117.89 | 0.6128 | -254.0 | -232.1 | |
| 0.00 | 0.88 | 0.00 | 0.57 | -13.82 | 237.67 | -33.95 | 121.71 | 0.6398 | -436.0 | -406.5 | |
| 0.00 | 1.33 | 0.00 | 0.85 | -13.22 | 237.65 | -33.97 | 120.86 | 0.6359 | -741.0 | -636.5 | |
| 0.00 | 1.06 | 0.00 | 0.66 | -9.90 | 238.08 | -33.54 | 116.42 | 0.6100 | -817.0 | -761.8 | |
| 5.49 | 56.09 | 3.49 | 35.69 | -11.86 | 237.49 | -34.13 | 118.84 | 0.6292 | -1014.0 | -578.4 | |
| 0.00 | 0.88 | 0.00 | 0.57 | -12.51 | 237.24 | -34.38 | 119.58 | 0.6362 | -641.0 | -562.4 | |
| 6.37 | -71.00 | 4.07 | -71.00 | -12.14 | 237.19 | -34.43 | 119.02 | 0.6345 | -959.5 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.96 | -11.51 | 237.13 | -34.49 | 118.09 | 0.6313 | -732.0 | -597.2 | |
| 0.00 | 0.62 | 0.00 | 0.39 | -11.31 | 237.16 | -34.46 | 117.83 | 0.6298 | -660.0 | -624.0 | |
| 0.00 | 1.59 | 0.00 | 1.01 | -10.30 | 237.22 | -34.40 | 116.42 | 0.6230 | -837.0 | -750.3 | |
| 0.00 | 0.53 | 0.00 | 0.35 | -13.36 | 236.50 | -35.12 | 120.23 | 0.6501 | -630.0 | -560.7 | |
| 0.00 | 1.33 | 0.00 | 0.87 | -13.54 | 235.86 | -35.76 | 120.01 | 0.6584 | 402.0 | 260.5 | |
| 0.00 | 1.06 | 0.00 | 0.68 | -11.41 | 236.20 | -35.42 | 117.32 | 0.6417 | -612.0 | -457.6 | |
| 0.00 | 0.80 | 0.00 | 0.50 | -7.91 | 236.63 | -34.99 | 112.49 | 0.6170 | -651.0 | -569.4 | |
| 0.00 | 1.06 | 0.00 | 0.71 | -15.64 | 235.34 | -36.28 | 122.42 | 0.6773 | 581.0 | 486.3 | |
| 1.24 | 459.07 | 0.79 | 299.13 | -10.09 | 236.20 | -35.42 | 115.44 | 0.6342 | -1091.0 | -390.8 | |
| 0.00 | 1.06 | 0.00 | 0.71 | -14.53 | 235.49 | -36.13 | 121.07 | 0.6687 | -855.0 | -698.4 | |
| 0.00 | 0.71 | 0.00 | 0.47 | -13.59 | 235.59 | -36.04 | 119.89 | 0.6619 | 114.0 | 88.2 | |
| 0.00 | 0.97 | 0.00 | 0.64 | -14.01 | 235.51 | -36.11 | 120.40 | 0.6653 | -677.0 | -500.7 | |
| 0.00 | 1.24 | 0.00 | 0.81 | -13.33 | 235.59 | -36.03 | 119.55 | 0.6602 | 543.0 | 375.6 | |
| 0.00 | 1.06 | 0.00 | 0.71 | -15.26 | 235.19 | -36.43 | 121.82 | 0.6766 | 470.0 | 363.2 | |
| 0.00 | 1.24 | 0.00 | 0.83 | -14.64 | 235.23 | -36.39 | 121.05 | 0.6723 | -352.0 | -282.1 | |
| 0.00 | 0.80 | 0.00 | 0.52 | -13.12 | 235.44 | -36.18 | 119.16 | 0.6607 | 473.0 | 331.4 | |
| 0.00 | 0.27 | 0.00 | 0.17 | -12.74 | 235.46 | -36.16 | 118.66 | 0.6581 | 364.0 | 303.0 | |
| 0.00 | 1.24 | 0.00 | 0.83 | -15.05 | 234.96 | -36.66 | 121.39 | 0.6778 | 499.0 | 406.6 | |
| 0.00 | 2.39 | 0.00 | 1.60 | -14.85 | 235.00 | -36.62 | 121.16 | 0.6762 | 391.0 | 292.6 | |
| 3.54 | -82.00 | 2.29 | -82.00 | -10.89 | 235.64 | -35.98 | 116.21 | 0.6454 | -966.4 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.35 | -12.01 | 235.43 | -36.19 | 117.64 | 0.6542 | -690.0 | -519.0 | |
| 1.59 | 5.22 | 1.05 | 3.45 | -13.30 | 235.18 | -36.45 | 119.23 | 0.6648 | -799.7 | -557.8 | |
| 0.00 | 1.24 | 0.00 | 0.79 | -9.15 | 235.79 | -35.83 | 113.82 | 0.6341 | -183.0 | -155.4 | |
| 1.68 | -82.00 | 1.09 | -82.00 | -11.00 | 235.43 | -36.19 | 116.23 | 0.6485 | -731.2 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.47 | -13.06 | 234.99 | -36.63 | 118.78 | 0.6655 | -690.0 | -496.9 | |
| 0.00 | 0.80 | 0.00 | 0.52 | -12.42 | 235.06 | -36.56 | 117.95 | 0.6609 | -386.0 | -461.7 | |
| 0.00 | 0.71 | 0.00 | 0.47 | -13.08 | 234.75 | -36.87 | 118.65 | 0.6683 | -591.0 | -582.9 | |
| 1.77 | -82.00 | 1.17 | -82.00 | -11.96 | 234.79 | -36.84 | 117.16 | 0.6615 | -783.8 | 999999 | |
| 68.39 | -82.00 | 44.55 | -82.00 | -10.53 | 234.96 | -36.66 | 115.28 | 0.6514 | -1040.4 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.81 | -11.55 | 234.74 | -36.89 | 116.56 | 0.6598 | -764.0 | -631.2 | |
| 7.08 | 71.40 | 4.71 | 47.66 | -12.85 | 234.40 | -37.22 | 118.11 | 0.6709 | -868.8 | -437.3 | |
| 2.03 | -82.00 | 1.34 | -82.00 | -11.76 | 234.55 | -37.07 | 116.73 | 0.6631 | -807.5 | 999999 | |
| 3.72 | -104.00 | 2.47 | -104.00 | -12.60 | 234.29 | -37.33 | 117.71 | 0.6708 | -819.0 | 999999 | |
| 2.21 | -104.00 | 1.47 | -104.00 | -12.22 | 234.32 | -37.30 | 117.21 | 0.6683 | -866.9 | 999999 | |
| 0.80 | -104.00 | 0.53 | -104.00 | -12.01 | 234.20 | -37.42 | 116.85 | 0.6685 | -658.1 | 999999 | |
| 4.07 | -104.00 | 2.71 | -104.00 | -12.33 | 234.11 | -37.52 | 117.23 | 0.6714 | -618.8 | 999999 | |
| 1.68 | -104.00 | 1.12 | -104.00 | -12.52 | 234.07 | -37.55 | 117.47 | 0.6728 | -473.9 | 999999 | |
| 1.86 | -82.00 | 1.23 | -82.00 | -10.93 | 234.25 | -37.37 | 115.40 | 0.6620 | -616.0 | 999999 | |
| 0.00 | 1.59 | 0.00 | 1.07 | -13.09 | 233.78 | -37.85 | 118.03 | 0.6794 | -699.0 | -604.2 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -12.61 | 233.78 | -37.84 | 117.40 | 0.6766 | -295.0 | -359.3 | |
| 0.00 | 1.24 | 0.00 | 0.84 | -13.25 | 233.67 | -37.95 | 118.19 | 0.6815 | -169.0 | -206.4 | |
| 0.00 | 1.77 | 0.00 | 1.19 | -13.03 | 233.63 | -37.99 | 117.87 | 0.6807 | -345.0 | -301.0 | |
| 0.00 | 1.15 | 0.00 | 0.77 | -12.69 | 233.53 | -38.09 | 117.36 | 0.6799 | -281.0 | -230.5 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -12.28 | 233.57 | -38.05 | 116.82 | 0.6772 | -428.0 | -434.7 | |
| 0.00 | 1.33 | 0.00 | 0.89 | -12.39 | 233.31 | -38.31 | 116.82 | 0.6808 | -455.0 | -359.6 | |
| 0.00 | 1.15 | 0.00 | 0.77 | -10.41 | 233.24 | -38.38 | 114.09 | 0.6712 | 21.0 | -97.0 | |
| 0.00 | 0.53 | 0.00 | 0.36 | -12.33 | 232.89 | -38.73 | 116.48 | 0.6852 | -334.0 | -341.5 | |
| 0.80 | 8.85 | 0.53 | 5.89 | -10.22 | 233.19 | -38.43 | 113.80 | 0.6709 | -714.7 | -324.3 | |
| 0.00 | 0.88 | 0.00 | 0.64 | -17.39 | 231.69 | -39.93 | 122.19 | 0.7261 | -516.0 | -407.7 | |
| 0.00 | 1.33 | 0.00 | 0.90 | -11.91 | 232.57 | -39.06 | 115.74 | 0.6867 | -658.0 | -487.9 | |
| 0.00 | 0.62 | 0.00 | 0.42 | -11.46 | 232.60 | -39.02 | 115.16 | 0.6840 | -626.0 | -514.0 | |
| 0.00 | 1.86 | 0.00 | 1.25 | -10.29 | 232.71 | -38.91 | 113.63 | 0.6769 | -469.0 | -371.7 | |
| 0.00 | 0.88 | 0.00 | 0.60 | -11.15 | 232.53 | -39.09 | 114.70 | 0.6832 | -296.0 | -357.0 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -11.86 | 232.42 | -39.21 | 115.58 | 0.6882 | -483.0 | -475.3 | |
| 0.00 | 1.50 | 0.00 | 1.03 | -12.19 | 232.24 | -39.38 | 115.92 | 0.6919 | -441.0 | -362.1 | |
| 0.00 | 1.59 | 0.00 | 1.08 | -11.36 | 232.30 | -39.32 | 114.85 | 0.6869 | -599.0 | -522.8 | |
| 0.00 | 0.97 | 0.00 | 0.68 | -14.24 | 231.75 | -39.87 | 118.30 | 0.7080 | -341.0 | -326.9 | |
| 0.00 | 1.68 | 0.00 | 1.14 | -11.09 | 232.19 | -39.43 | 114.42 | 0.6869 | -477.0 | -368.0 | |
| 0.00 | 0.97 | 0.00 | 0.67 | -12.44 | 231.91 | -39.71 | 116.06 | 0.6968 | -612.0 | -493.3 | |
| 0.00 | 1.06 | 0.00 | 0.74 | -11.82 | 230.93 | -40.69 | 114.70 | 0.7047 | -449.0 | -318.8 | |
| 0.00 | 1.42 | 0.00 | 1.07 | -15.39 | 227.66 | -43.96 | 117.45 | 0.7565 | -444.0 | -392.4 | |
| 0.00 | 1.15 | 0.00 | 0.88 | -15.88 | 226.86 | -44.76 | 117.63 | 0.7667 | -541.0 | -439.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
