SDO HMI 2014-09-24 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.33 | 0.00 | 5.82 | 16.40 | 259.48 | -12.14 | 50.52 | 0.2628 | 880.1 | 685.4 | |
|
previous
or next observation for the same group /

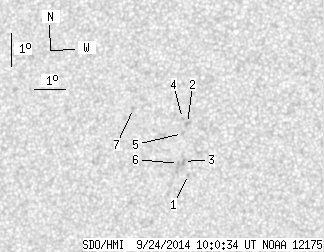

back to the solar disc SDO HMI 2014-09-24 10:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.36 | 15.30 | 259.93 | -11.69 | 53.02 | 0.2457 | 847.0 | 622.8 | |
| 0.00 | 2.83 | 0.00 | 1.45 | 16.85 | 259.81 | -11.81 | 48.40 | 0.2632 | 913.0 | 740.7 | |
| 0.00 | 1.95 | 0.00 | 1.00 | 15.69 | 259.75 | -11.87 | 52.13 | 0.2520 | 953.0 | 824.4 | |
| 0.00 | 1.06 | 0.00 | 0.55 | 17.00 | 259.64 | -11.98 | 48.35 | 0.2669 | 813.0 | 633.2 | |
| 0.00 | 1.33 | 0.00 | 0.68 | 16.54 | 259.67 | -11.95 | 49.65 | 0.2617 | 909.0 | 724.8 | |
| 0.00 | 1.77 | 0.00 | 0.91 | 15.63 | 259.60 | -12.03 | 52.68 | 0.2534 | 982.0 | 655.3 | |
| 0.00 | 1.68 | 0.00 | 0.87 | 17.27 | 258.04 | -13.58 | 50.96 | 0.2900 | 744.0 | 492.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
