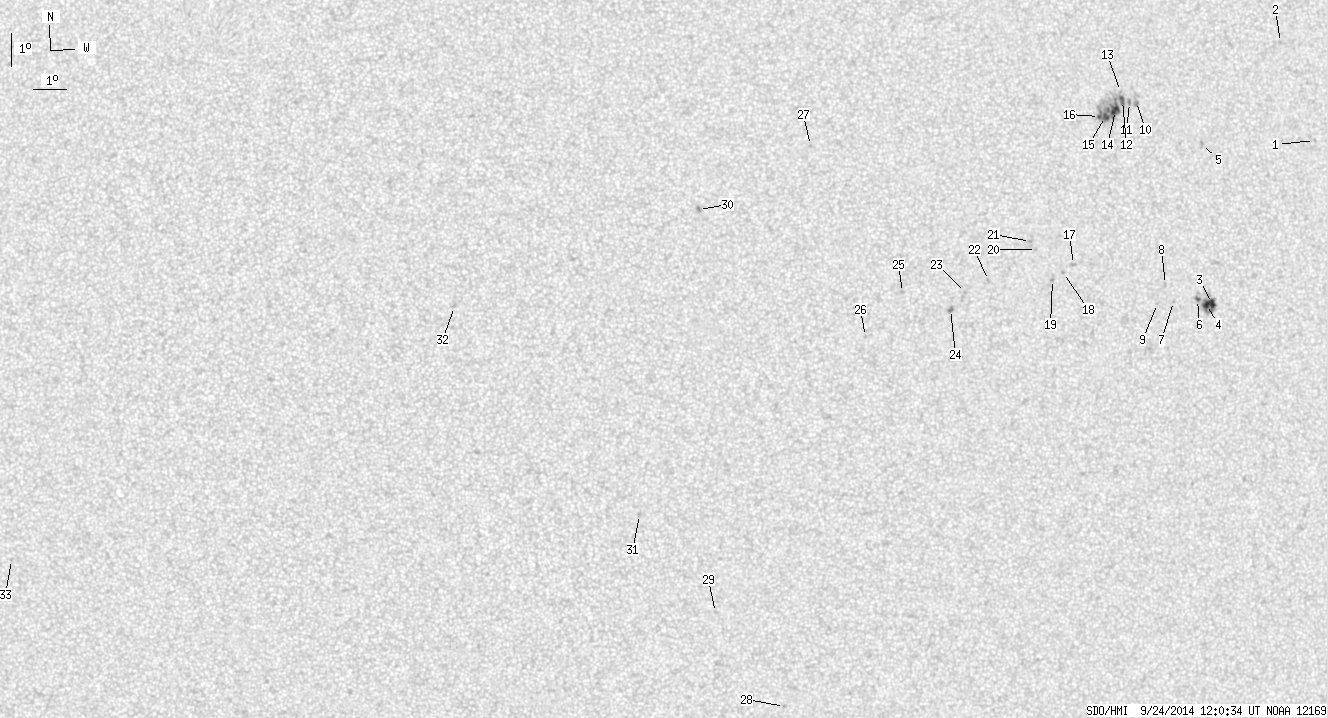

SDO HMI 2014-09-24 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.98 | 113.24 | 10.57 | 59.28 | 8.13 | 288.31 | 17.79 | 270.52 | 0.3167 | -143.1 | -314.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-24 12:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.42 | 0.00 | 0.78 | 9.88 | 296.08 | 25.55 | 278.35 | 0.4313 | -607.0 | -509.1 | |
| 0.00 | 1.33 | 0.00 | 0.73 | 12.89 | 295.21 | 24.69 | 285.62 | 0.4245 | -796.0 | -588.7 | |
| 3.54 | 18.40 | 1.89 | 9.81 | 5.15 | 292.41 | 21.88 | 266.44 | 0.3735 | -924.7 | -651.9 | |
| 4.42 | -3.00 | 2.36 | -3.00 | 5.13 | 292.21 | 21.69 | 266.33 | 0.3704 | -1169.8 | 999999 | |
| 0.00 | 2.56 | 0.00 | 1.37 | 9.95 | 292.31 | 21.79 | 279.37 | 0.3721 | -675.0 | -618.9 | |
| 0.97 | 3.63 | 0.52 | 1.93 | 5.29 | 291.93 | 21.40 | 266.69 | 0.3655 | -1020.5 | -735.2 | |
| 0.00 | 1.24 | 0.00 | 0.66 | 5.27 | 291.15 | 20.62 | 266.41 | 0.3530 | -710.0 | -529.8 | |
| 0.00 | 1.86 | 0.00 | 0.98 | 5.79 | 290.91 | 20.39 | 267.83 | 0.3483 | -747.0 | -557.5 | |
| 0.00 | 1.15 | 0.00 | 0.61 | 5.23 | 290.63 | 20.11 | 266.14 | 0.3446 | -791.0 | -573.9 | |
| 0.00 | 4.25 | 0.00 | 2.24 | 11.33 | 290.28 | 19.76 | 284.05 | 0.3432 | -727.0 | -712.1 | |
| 0.00 | 2.48 | 0.00 | 1.30 | 11.31 | 290.05 | 19.53 | 284.12 | 0.3395 | -916.0 | -743.2 | |
| 2.30 | 46.70 | 1.21 | 24.48 | 11.38 | 289.83 | 19.30 | 284.45 | 0.3361 | -945.7 | -756.4 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 11.65 | 289.78 | 19.26 | 285.27 | 0.3363 | -633.0 | -523.4 | |
| 4.95 | -12.00 | 2.60 | -12.00 | 11.09 | 289.58 | 19.06 | 283.72 | 0.3313 | -1135.0 | 999999 | |
| 2.92 | -12.00 | 1.53 | -12.00 | 10.92 | 289.25 | 18.72 | 283.40 | 0.3254 | -1208.4 | 999999 | |
| 0.88 | -12.00 | 0.46 | -12.00 | 10.93 | 289.05 | 18.53 | 283.53 | 0.3223 | -1162.6 | 999999 | |
| 0.00 | 2.92 | 0.00 | 1.51 | 6.51 | 287.99 | 17.47 | 269.51 | 0.2996 | 791.0 | 625.8 | |
| 0.00 | 1.24 | 0.00 | 0.64 | 6.28 | 287.67 | 17.14 | 268.68 | 0.2944 | 774.0 | 587.4 | |
| 0.00 | 1.33 | 0.00 | 0.69 | 6.08 | 287.31 | 16.79 | 267.93 | 0.2887 | 946.0 | 779.3 | |
| 0.00 | 0.88 | 0.00 | 0.46 | 7.00 | 286.84 | 16.32 | 271.10 | 0.2801 | 815.0 | 671.1 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 7.25 | 286.66 | 16.14 | 271.98 | 0.2771 | 908.0 | 783.4 | |
| 0.00 | 1.68 | 0.00 | 0.86 | 6.12 | 285.30 | 14.78 | 267.54 | 0.2550 | 769.0 | 643.6 | |
| 0.00 | 1.06 | 0.00 | 0.54 | 5.78 | 284.58 | 14.05 | 265.93 | 0.2432 | 828.0 | 618.4 | |
| 0.00 | 3.10 | 0.00 | 1.58 | 5.29 | 284.10 | 13.57 | 263.63 | 0.2362 | 1012.0 | 890.9 | |
| 0.00 | 1.59 | 0.00 | 0.81 | 5.84 | 282.62 | 12.10 | 265.30 | 0.2101 | 859.0 | 653.4 | |
| 0.00 | 1.24 | 0.00 | 0.63 | 4.55 | 281.46 | 10.93 | 258.00 | 0.1941 | 692.0 | 549.6 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 10.33 | 279.90 | 9.38 | 290.54 | 0.1720 | 788.0 | 611.8 | |
| 0.00 | 1.59 | 0.00 | 0.82 | -6.65 | 278.99 | 8.47 | 211.98 | 0.2775 | 800.0 | 610.4 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -3.72 | 276.86 | 6.34 | 210.78 | 0.2162 | 791.0 | 579.5 | |
| 0.00 | 2.30 | 0.00 | 1.15 | 8.46 | 276.41 | 5.89 | 284.66 | 0.1054 | 965.0 | 840.9 | |
| 0.00 | 2.21 | 0.00 | 1.11 | -0.71 | 274.56 | 4.03 | 207.79 | 0.1515 | 734.0 | 526.7 | |
| 0.00 | 1.95 | 0.00 | 0.96 | 5.59 | 268.99 | -1.53 | 132.27 | 0.0361 | 780.0 | 598.0 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -2.28 | 255.49 | -15.04 | 121.15 | 0.3043 | 656.0 | 386.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
