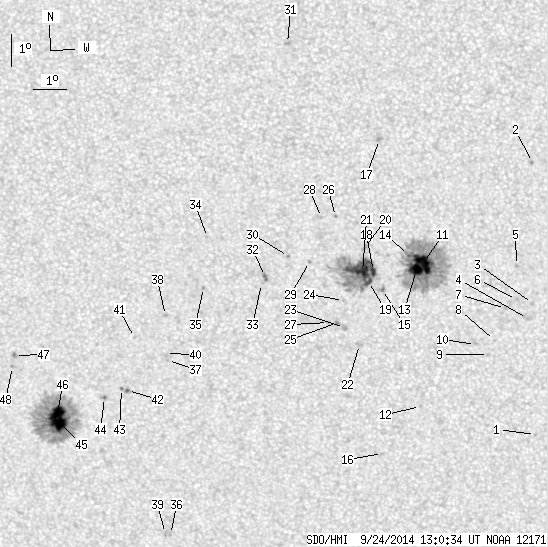

SDO HMI 2014-09-24 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.13 | 536.98 | 39.90 | 281.25 | -10.55 | 265.72 | -4.26 | 168.85 | 0.3189 | 320.2 | 166.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-24 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.47 | -14.03 | 273.81 | 3.83 | 190.26 | 0.3655 | -739.0 | -541.0 | |
| 0.00 | 1.50 | 0.00 | 0.76 | -5.47 | 273.63 | 3.65 | 196.41 | 0.2255 | 944.0 | 758.7 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -9.86 | 273.66 | 3.69 | 192.35 | 0.2975 | 879.0 | 712.6 | |
| 0.00 | 4.24 | 0.00 | 2.21 | -10.33 | 273.51 | 3.54 | 191.54 | 0.3047 | 782.0 | 598.2 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -8.66 | 273.16 | 3.19 | 191.53 | 0.2762 | 773.0 | 636.9 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -9.73 | 273.17 | 3.20 | 190.83 | 0.2937 | 984.0 | 783.9 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -10.01 | 272.84 | 2.86 | 189.56 | 0.2974 | 802.0 | 749.5 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -11.02 | 272.51 | 2.53 | 188.00 | 0.3131 | 638.0 | 536.8 | |
| 0.00 | 1.59 | 0.00 | 0.83 | -11.46 | 272.33 | 2.35 | 187.25 | 0.3200 | 697.0 | 508.1 | |
| 0.00 | 0.62 | 0.00 | 0.32 | -11.14 | 271.93 | 1.95 | 186.13 | 0.3140 | 666.0 | 565.7 | |
| 17.77 | 195.69 | 9.14 | 100.67 | -8.56 | 270.33 | 0.36 | 181.32 | 0.2690 | 1365.7 | 392.0 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -13.11 | 270.24 | 0.26 | 180.75 | 0.3449 | 829.0 | 589.3 | |
| 12.38 | -11.00 | 6.37 | -11.00 | -8.77 | 270.12 | 0.14 | 180.52 | 0.2726 | 1204.6 | 999999 | |
| 0.27 | -11.00 | 0.14 | -11.00 | -8.34 | 269.88 | -0.10 | 179.63 | 0.2652 | 859.7 | 999999 | |
| 0.00 | 3.18 | 0.00 | 1.64 | -9.40 | 269.08 | -0.89 | 176.88 | 0.2836 | 883.0 | 769.8 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -14.62 | 269.06 | -0.92 | 177.59 | 0.3699 | 669.0 | 555.0 | |
| 0.00 | 2.56 | 0.00 | 1.30 | -4.75 | 269.01 | -0.97 | 175.26 | 0.2048 | 935.0 | 794.1 | |
| 3.63 | 98.07 | 1.87 | 50.53 | -8.84 | 268.81 | -1.16 | 175.78 | 0.2744 | 1175.2 | 630.9 | |
| 3.36 | -18.00 | 1.73 | -18.00 | -9.15 | 268.66 | -1.32 | 175.32 | 0.2798 | 858.9 | 999999 | |
| 0.00 | 3.09 | 0.00 | 1.59 | -8.09 | 268.54 | -1.43 | 174.55 | 0.2622 | 951.0 | 754.8 | |
| 9.99 | -18.00 | 5.15 | -18.00 | -8.84 | 268.48 | -1.50 | 174.58 | 0.2749 | 1225.2 | 999999 | |
| 0.00 | 3.36 | 0.00 | 1.75 | -11.13 | 268.37 | -1.60 | 174.95 | 0.3133 | 777.0 | 619.6 | |
| 0.00 | 3.18 | 0.00 | 1.66 | -10.60 | 267.92 | -2.06 | 173.32 | 0.3052 | 778.0 | 591.0 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -9.75 | 267.89 | -2.08 | 172.90 | 0.2911 | 633.0 | 377.3 | |
| 0.00 | 1.59 | 0.00 | 0.83 | -10.44 | 267.70 | -2.27 | 172.57 | 0.3030 | 834.0 | 794.7 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -7.13 | 267.67 | -2.31 | 170.68 | 0.2479 | 858.0 | 662.8 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -10.44 | 267.43 | -2.55 | 171.68 | 0.3037 | 832.0 | 663.8 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -7.16 | 267.24 | -2.73 | 169.02 | 0.2497 | 889.0 | 709.4 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -8.53 | 266.86 | -3.11 | 168.64 | 0.2737 | 670.0 | 552.6 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -8.38 | 266.23 | -3.75 | 166.26 | 0.2735 | -916.0 | -750.6 | |
| 0.00 | 2.65 | 0.00 | 1.33 | -1.82 | 266.24 | -3.73 | 156.93 | 0.1668 | 934.0 | 731.0 | |
| 0.00 | 3.45 | 0.00 | 1.78 | -9.01 | 265.52 | -4.46 | 164.40 | 0.2868 | -1112.0 | -864.4 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -9.23 | 265.39 | -4.58 | 164.20 | 0.2909 | -602.0 | -576.9 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -7.81 | 263.77 | -6.21 | 157.16 | 0.2774 | 686.0 | 558.7 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -9.37 | 263.62 | -6.36 | 158.73 | 0.3026 | -875.0 | -785.0 | |
| 0.00 | 1.59 | 0.00 | 0.87 | -17.32 | 262.34 | -7.63 | 162.83 | 0.4314 | 697.0 | 489.7 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -11.69 | 262.45 | -7.53 | 158.10 | 0.3453 | -840.0 | -695.8 | |
| 0.00 | 1.86 | 0.00 | 0.97 | -10.27 | 262.43 | -7.55 | 156.37 | 0.3239 | -870.0 | -601.5 | |
| 0.00 | 1.68 | 0.00 | 0.92 | -17.29 | 262.18 | -7.79 | 162.48 | 0.4316 | 836.0 | 738.9 | |
| 0.00 | 0.80 | 0.00 | 0.42 | -11.47 | 262.39 | -7.58 | 157.71 | 0.3423 | -433.0 | -479.6 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -10.98 | 261.45 | -8.53 | 154.63 | 0.3412 | -686.0 | -538.3 | |
| 0.53 | 1.50 | 0.28 | 0.80 | -12.67 | 261.18 | -8.80 | 155.97 | 0.3681 | 702.2 | 597.4 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -12.61 | 260.99 | -8.98 | 155.45 | 0.3685 | 631.0 | 595.2 | |
| 0.00 | 2.39 | 0.00 | 1.28 | -12.91 | 260.45 | -9.53 | 154.51 | 0.3765 | -826.0 | -704.6 | |
| 14.94 | 177.03 | 8.07 | 95.53 | -13.77 | 259.00 | -10.98 | 152.28 | 0.3994 | -1089.4 | -363.1 | |
| 13.26 | -45.00 | 7.15 | -45.00 | -13.45 | 258.95 | -11.03 | 151.79 | 0.3952 | -1277.2 | 999999 | |
| 0.00 | 2.48 | 0.00 | 1.33 | -11.63 | 257.68 | -12.29 | 146.60 | 0.3805 | -1013.0 | -824.9 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -11.98 | 257.60 | -12.37 | 146.95 | 0.3859 | -774.0 | -619.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
