SDO HMI 2014-09-24 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 291.34 | 1496.28 | 177.51 | 909.14 | -10.94 | 239.59 | -30.39 | 120.75 | 0.5776 | -29.7 | -8.4 | |
|
previous
or next observation for the same group /

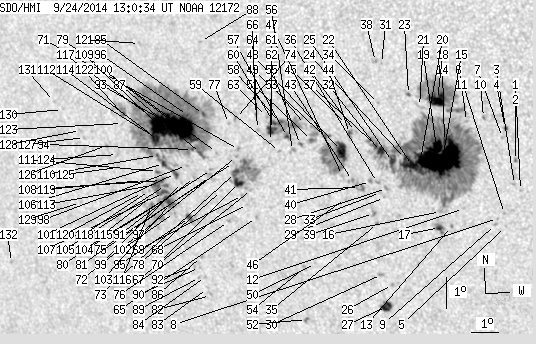

back to the solar disc SDO HMI 2014-09-24 13:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.55 | -11.80 | 247.05 | -22.93 | 129.34 | 0.4950 | 551.0 | 455.4 | |
| 0.00 | 1.50 | 0.00 | 0.85 | -10.86 | 246.96 | -23.01 | 127.70 | 0.4872 | 594.0 | 504.0 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -11.62 | 246.87 | -23.11 | 128.82 | 0.4955 | 705.0 | 508.9 | |
| 0.71 | 1.33 | 0.40 | 0.75 | -9.86 | 246.71 | -23.26 | 125.73 | 0.4813 | -582.4 | -516.9 | |
| 0.00 | 0.62 | 0.00 | 0.36 | -12.98 | 246.43 | -23.54 | 130.41 | 0.5133 | -854.0 | -619.7 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -12.56 | 246.44 | -23.53 | 129.79 | 0.5092 | -741.0 | -565.6 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -10.15 | 246.59 | -23.39 | 126.08 | 0.4854 | -737.0 | -564.4 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -12.74 | 246.19 | -23.79 | 129.75 | 0.5138 | 630.0 | 537.8 | |
| 0.00 | 1.33 | 0.00 | 0.77 | -12.93 | 246.10 | -23.87 | 129.95 | 0.5166 | 598.0 | 446.7 | |
| 0.00 | 1.41 | 0.00 | 0.80 | -9.55 | 246.00 | -23.97 | 124.38 | 0.4875 | 608.0 | 514.3 | |
| 0.00 | 1.06 | 0.00 | 0.60 | -9.71 | 245.42 | -24.55 | 124.00 | 0.4961 | 405.0 | 389.2 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -12.48 | 245.06 | -24.91 | 128.06 | 0.5244 | -270.0 | -237.4 | |
| 0.00 | 1.41 | 0.00 | 0.83 | -13.08 | 244.59 | -25.39 | 128.44 | 0.5352 | -807.0 | -648.8 | |
| 1.24 | 550.11 | 0.71 | 318.93 | -10.38 | 244.62 | -25.35 | 124.25 | 0.5116 | 1040.8 | 398.8 | |
| 70.03 | -14.00 | 40.50 | -14.00 | -10.92 | 244.51 | -25.47 | 125.00 | 0.5175 | 1168.6 | 999999 | |
| 0.00 | 2.03 | 0.00 | 1.19 | -12.61 | 244.26 | -25.71 | 127.39 | 0.5349 | -372.0 | -204.1 | |
| 2.21 | 8.31 | 1.30 | 4.89 | -13.13 | 244.17 | -25.80 | 128.06 | 0.5405 | -786.3 | -527.4 | |
| 15.56 | 90.28 | 8.91 | 51.59 | -9.07 | 244.49 | -25.48 | 121.93 | 0.5026 | 1082.0 | 506.2 | |
| 10.08 | -14.00 | 5.82 | -14.00 | -10.58 | 244.33 | -25.64 | 124.27 | 0.5168 | 1051.9 | 999999 | |
| 5.66 | -14.00 | 3.29 | -14.00 | -10.99 | 243.75 | -26.23 | 124.33 | 0.5274 | 857.3 | 999999 | |
| 0.00 | 4.33 | 0.00 | 2.50 | -9.32 | 243.86 | -26.11 | 121.71 | 0.5126 | 194.0 | 171.8 | |
| 7.07 | -14.00 | 4.13 | -14.00 | -11.20 | 243.45 | -26.52 | 124.35 | 0.5326 | 777.1 | 999999 | |
| 0.53 | 1.59 | 0.31 | 0.92 | -8.97 | 243.52 | -26.46 | 120.78 | 0.5142 | 624.0 | 523.7 | |
| 1.95 | -14.00 | 1.14 | -14.00 | -10.99 | 243.23 | -26.74 | 123.80 | 0.5336 | 715.1 | 999999 | |
| 3.71 | -14.00 | 2.18 | -14.00 | -11.11 | 242.77 | -27.20 | 123.53 | 0.5402 | 777.0 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.54 | -15.07 | 242.29 | -27.69 | 128.89 | 0.5786 | 610.0 | 521.8 | |
| 6.90 | 9.55 | 4.22 | 5.84 | -15.80 | 241.97 | -28.01 | 129.57 | 0.5884 | 776.5 | 553.5 | |
| 0.00 | 2.03 | 0.00 | 1.20 | -11.98 | 242.47 | -27.50 | 124.58 | 0.5508 | 735.0 | 672.4 | |
| 0.00 | 0.53 | 0.00 | 0.32 | -12.27 | 242.37 | -27.60 | 124.93 | 0.5544 | 534.0 | 485.3 | |
| 0.00 | 1.95 | 0.00 | 1.18 | -14.77 | 241.94 | -28.03 | 128.12 | 0.5799 | 678.0 | 557.2 | |
| 0.00 | 0.62 | 0.00 | 0.36 | -8.05 | 242.67 | -27.31 | 118.42 | 0.5185 | 731.0 | 595.0 | |
| 4.86 | -14.00 | 2.86 | -14.00 | -10.82 | 242.39 | -27.58 | 122.70 | 0.5426 | 848.6 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.63 | -12.12 | 242.25 | -27.73 | 124.58 | 0.5546 | 462.0 | 381.1 | |
| 0.00 | 0.80 | 0.00 | 0.46 | -9.31 | 242.46 | -27.51 | 120.34 | 0.5303 | -581.0 | -560.9 | |
| 0.00 | 1.06 | 0.00 | 0.64 | -13.12 | 242.02 | -27.95 | 125.85 | 0.5653 | 624.0 | 533.1 | |
| 0.00 | 1.77 | 0.00 | 1.05 | -11.81 | 242.18 | -27.79 | 124.04 | 0.5529 | 779.0 | 666.3 | |
| 2.30 | -14.00 | 1.35 | -14.00 | -10.64 | 242.24 | -27.74 | 122.27 | 0.5431 | 687.8 | 999999 | |
| 0.00 | 1.86 | 0.00 | 1.08 | -8.00 | 242.47 | -27.51 | 118.15 | 0.5208 | 810.0 | 611.2 | |
| 0.00 | 2.39 | 0.00 | 1.43 | -12.81 | 241.92 | -28.05 | 125.29 | 0.5640 | 757.0 | 675.0 | |
| 0.00 | 2.21 | 0.00 | 1.31 | -11.79 | 241.94 | -28.04 | 123.78 | 0.5557 | 812.0 | 635.2 | |
| 0.00 | 6.01 | 0.00 | 3.59 | -12.01 | 241.53 | -28.45 | 123.72 | 0.5623 | 530.0 | 633.2 | |
| 0.00 | 1.15 | 0.00 | 0.68 | -10.23 | 241.58 | -28.39 | 121.03 | 0.5482 | 816.0 | 646.9 | |
| 0.00 | 1.24 | 0.00 | 0.74 | -11.80 | 241.31 | -28.67 | 123.19 | 0.5633 | 837.0 | 706.9 | |
| 1.15 | 4.16 | 0.68 | 2.46 | -10.31 | 241.37 | -28.61 | 120.95 | 0.5515 | 615.5 | 587.7 | |
| 0.00 | 0.80 | 0.00 | 0.47 | -10.03 | 241.29 | -28.69 | 120.44 | 0.5504 | 447.0 | 368.1 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -12.39 | 240.99 | -28.98 | 123.79 | 0.5716 | 532.0 | 473.5 | |
| 0.00 | 1.15 | 0.00 | 0.69 | -11.66 | 240.97 | -29.00 | 122.68 | 0.5663 | 404.0 | 371.2 | |
| 12.82 | 69.15 | 7.65 | 41.44 | -10.87 | 241.03 | -28.95 | 121.52 | 0.5597 | 805.6 | 16.1 | |
| 1.24 | -48.00 | 0.74 | -48.00 | -10.46 | 240.47 | -29.50 | 120.40 | 0.5636 | 431.1 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.55 | -14.55 | 239.62 | -30.35 | 125.65 | 0.6042 | -614.0 | -436.2 | |
| 0.62 | 14.24 | 0.37 | 8.56 | -10.61 | 240.00 | -29.98 | 120.23 | 0.5706 | 490.9 | 39.2 | |
| 0.35 | 2.21 | 0.22 | 1.40 | -16.41 | 238.98 | -30.99 | 127.59 | 0.6256 | -800.2 | -651.3 | |
| 0.00 | 1.24 | 0.00 | 0.74 | -10.12 | 239.84 | -30.14 | 119.34 | 0.5691 | 332.0 | 107.9 | |
| 0.00 | 2.30 | 0.00 | 1.43 | -14.71 | 239.20 | -30.78 | 125.49 | 0.6101 | -591.0 | -474.0 | |
| 0.53 | 1.77 | 0.32 | 1.07 | -10.76 | 239.59 | -30.38 | 120.12 | 0.5766 | 321.0 | 238.0 | |
| 0.00 | 3.36 | 0.00 | 2.04 | -10.97 | 239.28 | -30.69 | 120.18 | 0.5819 | 487.0 | 346.1 | |
| 1.06 | 40.94 | 0.64 | 24.85 | -10.54 | 239.15 | -30.82 | 119.42 | 0.5805 | 143.1 | -547.3 | |
| 2.12 | -57.00 | 1.29 | -57.00 | -10.11 | 238.95 | -31.02 | 118.61 | 0.5801 | -1011.8 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.81 | -11.04 | 238.81 | -31.16 | 119.89 | 0.5881 | 455.0 | 293.7 | |
| 1.41 | -57.00 | 0.86 | -57.00 | -10.16 | 238.73 | -31.24 | 118.51 | 0.5832 | -963.1 | 999999 | |
| 5.39 | -57.00 | 3.29 | -57.00 | -10.36 | 238.60 | -31.37 | 118.70 | 0.5861 | -952.8 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.81 | -10.74 | 238.52 | -31.45 | 119.22 | 0.5896 | -213.0 | -227.5 | |
| 0.00 | 1.24 | 0.00 | 0.75 | -9.96 | 238.47 | -31.51 | 117.99 | 0.5851 | -779.0 | -711.7 | |
| 0.00 | 1.24 | 0.00 | 0.76 | -10.39 | 238.10 | -31.88 | 118.36 | 0.5925 | -699.0 | -585.4 | |
| 0.00 | 1.33 | 0.00 | 0.83 | -13.20 | 237.68 | -32.29 | 122.13 | 0.6164 | -751.0 | -601.0 | |
| 0.00 | 1.06 | 0.00 | 0.65 | -9.92 | 238.08 | -31.90 | 117.64 | 0.5898 | -734.0 | -620.2 | |
| 0.00 | 1.33 | 0.00 | 0.83 | -12.32 | 237.63 | -32.34 | 120.83 | 0.6109 | -279.0 | -258.1 | |
| 0.00 | 0.88 | 0.00 | 0.56 | -12.81 | 237.41 | -32.56 | 121.36 | 0.6168 | -671.0 | -532.8 | |
| 0.00 | 1.06 | 0.00 | 0.67 | -12.53 | 237.27 | -32.70 | 120.85 | 0.6166 | -613.0 | -503.7 | |
| 5.39 | 49.87 | 3.38 | 31.09 | -12.12 | 237.18 | -32.79 | 120.20 | 0.6150 | -903.4 | -672.8 | |
| 0.00 | 1.77 | 0.00 | 1.10 | -11.07 | 237.32 | -32.65 | 118.79 | 0.6064 | -866.0 | -753.7 | |
| 0.00 | 1.41 | 0.00 | 0.88 | -11.30 | 237.22 | -32.75 | 119.04 | 0.6091 | -817.0 | -694.9 | |
| 3.45 | -70.00 | 2.16 | -70.00 | -11.81 | 237.12 | -32.86 | 119.71 | 0.6137 | -898.3 | 999999 | |
| 0.00 | 2.21 | 0.00 | 1.37 | -10.09 | 237.33 | -32.64 | 117.35 | 0.6001 | -785.0 | -647.2 | |
| 0.00 | 0.80 | 0.00 | 0.50 | -11.50 | 237.09 | -32.89 | 119.23 | 0.6120 | -632.0 | -526.2 | |
| 0.00 | 1.33 | 0.00 | 0.84 | -13.40 | 236.62 | -33.35 | 121.58 | 0.6301 | -754.0 | -626.1 | |
| 0.00 | 0.97 | 0.00 | 0.60 | -10.27 | 237.06 | -32.92 | 117.41 | 0.6046 | -780.0 | -602.5 | |
| 0.00 | 0.88 | 0.00 | 0.56 | -12.42 | 236.51 | -33.46 | 120.12 | 0.6248 | -530.0 | -412.2 | |
| 0.00 | 1.06 | 0.00 | 0.67 | -11.22 | 236.50 | -33.48 | 118.39 | 0.6173 | -592.0 | -543.6 | |
| 0.00 | 1.24 | 0.00 | 0.78 | -11.78 | 236.24 | -33.74 | 119.00 | 0.6239 | -577.0 | -487.1 | |
| 0.00 | 5.92 | 0.00 | 3.76 | -12.00 | 236.17 | -33.81 | 119.27 | 0.6262 | -220.0 | -213.2 | |
| 0.00 | 0.53 | 0.00 | 0.35 | -15.86 | 235.51 | -34.47 | 124.03 | 0.6592 | 550.0 | 499.0 | |
| 0.00 | 0.71 | 0.00 | 0.46 | -15.64 | 235.44 | -34.54 | 123.69 | 0.6585 | 632.0 | 523.0 | |
| 0.00 | 0.71 | 0.00 | 0.46 | -15.25 | 235.44 | -34.54 | 123.18 | 0.6559 | 587.0 | 482.9 | |
| 1.15 | 457.44 | 0.72 | 291.85 | -10.05 | 236.17 | -33.81 | 116.45 | 0.6142 | -1034.0 | -370.7 | |
| 0.00 | 0.97 | 0.00 | 0.63 | -14.61 | 235.40 | -34.57 | 122.30 | 0.6519 | -837.0 | -727.9 | |
| 1.59 | -85.00 | 1.01 | -85.00 | -11.29 | 235.90 | -34.08 | 118.07 | 0.6250 | -766.7 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.66 | -7.76 | 236.30 | -33.67 | 113.09 | 0.5994 | -619.0 | -544.2 | |
| 0.00 | 0.97 | 0.00 | 0.64 | -15.30 | 235.20 | -34.78 | 123.07 | 0.6588 | 423.0 | 410.7 | |
| 0.00 | 0.88 | 0.00 | 0.58 | -14.98 | 235.26 | -34.71 | 122.68 | 0.6559 | 548.0 | 384.6 | |
| 0.00 | 1.06 | 0.00 | 0.68 | -12.08 | 235.56 | -34.41 | 118.94 | 0.6338 | -398.0 | -377.6 | |
| 0.00 | 1.68 | 0.00 | 1.10 | -14.96 | 235.07 | -34.90 | 122.52 | 0.6579 | 469.0 | 343.5 | |
| 3.80 | -85.00 | 2.41 | -85.00 | -10.83 | 235.70 | -34.28 | 117.27 | 0.6246 | -923.3 | 999999 | |
| 0.62 | -85.00 | 0.39 | -85.00 | -11.19 | 235.61 | -34.36 | 117.72 | 0.6277 | -702.0 | 999999 | |
| 2.92 | 6.46 | 1.89 | 4.18 | -13.38 | 235.17 | -34.81 | 120.46 | 0.6466 | -691.4 | -326.3 | |
| 0.27 | -85.00 | 0.17 | -85.00 | -10.12 | 235.57 | -34.41 | 116.14 | 0.6219 | -1195.3 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.51 | -12.67 | 235.21 | -34.77 | 119.52 | 0.6417 | -316.0 | -297.8 | |
| 0.00 | 1.24 | 0.00 | 0.79 | -11.71 | 235.31 | -34.66 | 118.26 | 0.6345 | -774.0 | -621.5 | |
| 0.00 | 0.80 | 0.00 | 0.51 | -12.27 | 235.04 | -34.93 | 118.85 | 0.6411 | -670.0 | -599.2 | |
| 52.70 | -85.00 | 33.49 | -85.00 | -10.49 | 235.19 | -34.79 | 116.43 | 0.6288 | -1092.7 | 999999 | |
| 2.65 | -85.00 | 1.71 | -85.00 | -12.00 | 234.86 | -35.12 | 118.34 | 0.6416 | -772.7 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.69 | -13.26 | 234.62 | -35.36 | 119.91 | 0.6521 | -603.0 | -505.2 | |
| 4.42 | 38.82 | 2.88 | 25.30 | -12.98 | 234.51 | -35.46 | 119.46 | 0.6516 | -868.6 | -600.1 | |
| 2.30 | -103.00 | 1.50 | -103.00 | -12.83 | 234.35 | -35.63 | 119.14 | 0.6526 | -828.7 | 999999 | |
| 1.15 | -103.00 | 0.75 | -103.00 | -12.41 | 234.42 | -35.56 | 118.61 | 0.6492 | -886.3 | 999999 | |
| 2.39 | -85.00 | 1.54 | -85.00 | -11.71 | 234.45 | -35.53 | 117.66 | 0.6447 | -746.9 | 999999 | |
| 2.65 | -103.00 | 1.73 | -103.00 | -12.64 | 234.30 | -35.67 | 118.85 | 0.6519 | -818.1 | 999999 | |
| 1.50 | -103.00 | 0.98 | -103.00 | -12.26 | 234.29 | -35.69 | 118.32 | 0.6498 | -858.2 | 999999 | |
| 25.73 | -85.00 | 16.51 | -85.00 | -10.52 | 234.43 | -35.54 | 115.96 | 0.6380 | -822.3 | 999999 | |
| 0.62 | -85.00 | 0.40 | -85.00 | -11.47 | 234.26 | -35.72 | 117.20 | 0.6455 | -473.3 | 999999 | |
| 0.53 | 1.77 | 0.34 | 1.15 | -11.99 | 234.18 | -35.79 | 117.86 | 0.6495 | -649.3 | -603.5 | |
| 6.01 | -85.00 | 3.88 | -85.00 | -10.93 | 234.30 | -35.68 | 116.47 | 0.6420 | -637.4 | 999999 | |
| 3.63 | -103.00 | 2.37 | -103.00 | -12.41 | 234.08 | -35.90 | 118.37 | 0.6532 | -615.0 | 999999 | |
| 2.83 | -85.00 | 1.83 | -85.00 | -10.88 | 234.19 | -35.78 | 116.32 | 0.6429 | -604.6 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.46 | -12.77 | 233.86 | -36.11 | 118.73 | 0.6578 | -247.0 | -255.1 | |
| 0.88 | 22.11 | 0.58 | 14.57 | -13.10 | 233.77 | -36.21 | 119.11 | 0.6608 | -648.3 | -233.5 | |
| 1.86 | -85.00 | 1.19 | -85.00 | -10.25 | 234.17 | -35.81 | 115.41 | 0.6397 | -656.3 | 999999 | |
| 0.00 | 0.80 | 0.00 | 0.52 | -12.62 | 233.77 | -36.20 | 118.46 | 0.6579 | -286.0 | -276.6 | |
| 0.00 | 1.68 | 0.00 | 1.10 | -12.32 | 233.55 | -36.42 | 117.91 | 0.6587 | -488.0 | -426.7 | |
| 0.00 | 1.06 | 0.00 | 0.70 | -12.70 | 233.49 | -36.48 | 118.39 | 0.6617 | -354.0 | -265.2 | |
| 0.00 | 1.50 | 0.00 | 0.96 | -7.98 | 234.02 | -35.96 | 112.02 | 0.6295 | -495.0 | -430.6 | |
| 0.80 | 12.82 | 0.52 | 8.37 | -10.27 | 233.14 | -36.84 | 114.79 | 0.6522 | -670.2 | -335.7 | |
| 0.00 | 1.15 | 0.00 | 0.75 | -10.55 | 233.06 | -36.92 | 115.15 | 0.6546 | 175.0 | 142.2 | |
| 0.00 | 1.95 | 0.00 | 1.29 | -11.56 | 232.71 | -37.26 | 116.33 | 0.6641 | -683.0 | -498.8 | |
| 0.00 | 0.27 | 0.00 | 0.18 | -11.97 | 232.65 | -37.33 | 116.86 | 0.6672 | -657.0 | -564.7 | |
| 0.00 | 1.24 | 0.00 | 0.82 | -11.30 | 232.33 | -37.65 | 115.74 | 0.6672 | -662.0 | -628.6 | |
| 0.00 | 1.24 | 0.00 | 0.83 | -11.11 | 231.50 | -38.48 | 114.99 | 0.6759 | -578.0 | -517.4 | |
| 0.00 | 2.12 | 0.00 | 1.42 | -10.90 | 231.38 | -38.60 | 114.63 | 0.6763 | -444.0 | -343.5 | |
| 0.00 | 1.06 | 0.00 | 0.73 | -13.21 | 230.97 | -39.00 | 117.49 | 0.6930 | -497.0 | -423.2 | |
| 0.00 | 0.62 | 0.00 | 0.42 | -10.29 | 230.76 | -39.22 | 113.45 | 0.6804 | -478.0 | -425.7 | |
| 0.00 | 0.88 | 0.00 | 0.60 | -10.06 | 230.48 | -39.50 | 112.99 | 0.6826 | -507.0 | -415.3 | |
| 0.00 | 0.97 | 0.00 | 0.71 | -15.41 | 227.65 | -42.33 | 118.35 | 0.7399 | -616.0 | -493.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
