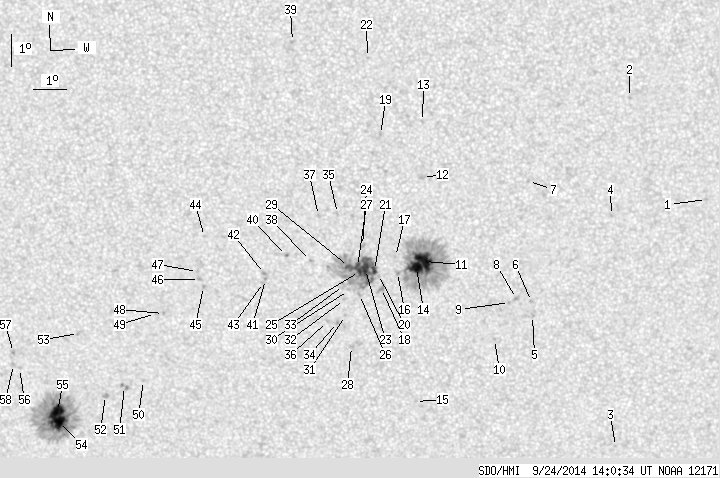

SDO HMI 2014-09-24 14:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 78.33 | 522.68 | 40.96 | 273.28 | -10.40 | 265.82 | -3.61 | 170.82 | 0.3149 | 333.2 | 150.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-24 14:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.33 | 0.00 | 0.69 | -6.77 | 278.94 | 9.52 | 214.84 | 0.2887 | 773.0 | 491.3 | |
| 0.00 | 1.41 | 0.00 | 0.72 | -3.59 | 276.55 | 7.13 | 214.19 | 0.2214 | 583.0 | 506.5 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -14.52 | 276.33 | 6.90 | 197.65 | 0.3852 | 717.0 | 512.7 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -7.21 | 276.04 | 6.62 | 205.08 | 0.2709 | 878.0 | 687.3 | |
| 0.00 | 1.59 | 0.00 | 0.83 | -10.30 | 273.67 | 4.24 | 193.79 | 0.3068 | 662.0 | 642.6 | |
| 0.00 | 1.33 | 0.00 | 0.69 | -9.86 | 273.63 | 4.21 | 194.03 | 0.2995 | 920.0 | 726.4 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -6.12 | 273.51 | 4.08 | 197.37 | 0.2382 | 795.0 | 532.6 | |
| 0.00 | 2.48 | 0.00 | 1.28 | -9.76 | 273.17 | 3.75 | 192.62 | 0.2962 | 929.0 | 784.2 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -9.89 | 272.96 | 3.54 | 191.84 | 0.2974 | 977.0 | 810.2 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -11.05 | 272.51 | 3.09 | 189.70 | 0.3151 | 742.0 | 563.5 | |
| 18.57 | 181.51 | 9.55 | 93.39 | -8.59 | 270.36 | 0.94 | 183.45 | 0.2699 | 1361.3 | 402.4 | |
| 0.00 | 3.09 | 0.00 | 1.57 | -5.98 | 270.30 | 0.87 | 183.88 | 0.2257 | 898.0 | 657.5 | |
| 0.00 | 1.68 | 0.00 | 0.85 | -4.26 | 270.30 | 0.87 | 184.47 | 0.1963 | 30.0 | 94.4 | |
| 12.64 | -11.00 | 6.51 | -11.00 | -8.77 | 270.12 | 0.69 | 182.53 | 0.2729 | 1212.1 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -13.01 | 270.09 | 0.67 | 181.91 | 0.3434 | 786.0 | 546.3 | |
| 0.00 | 2.92 | 0.00 | 1.50 | -8.93 | 269.54 | 0.12 | 180.42 | 0.2752 | 812.0 | 545.4 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -8.43 | 269.48 | 0.06 | 180.21 | 0.2668 | 762.0 | 689.9 | |
| 0.00 | 5.48 | 0.00 | 2.83 | -9.43 | 269.05 | -0.37 | 178.70 | 0.2837 | 881.0 | 695.3 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -4.65 | 269.03 | -0.39 | 178.06 | 0.2026 | 1002.0 | 830.7 | |
| 0.00 | 1.50 | 0.00 | 0.77 | -8.99 | 268.96 | -0.46 | 178.34 | 0.2764 | 603.0 | 661.6 | |
| 3.27 | 96.11 | 1.68 | 49.50 | -8.87 | 268.84 | -0.58 | 177.89 | 0.2743 | 1147.9 | 592.2 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -2.30 | 268.65 | -0.78 | 175.18 | 0.1625 | 710.0 | 578.2 | |
| 8.22 | -21.00 | 4.23 | -21.00 | -8.83 | 268.57 | -0.86 | 176.89 | 0.2740 | 1273.8 | 999999 | |
| 0.00 | 2.12 | 0.00 | 1.09 | -8.09 | 268.48 | -0.95 | 176.40 | 0.2615 | 859.0 | 807.0 | |
| 3.27 | -21.00 | 1.69 | -21.00 | -8.90 | 268.39 | -1.04 | 176.25 | 0.2753 | 1027.7 | 999999 | |
| 0.00 | 1.77 | 0.00 | 0.91 | -9.62 | 268.38 | -1.04 | 176.40 | 0.2874 | 555.0 | 403.9 | |
| 3.62 | -21.00 | 1.87 | -21.00 | -8.74 | 268.33 | -1.10 | 175.99 | 0.2727 | 1108.6 | 999999 | |
| 0.00 | 2.03 | 0.00 | 1.06 | -11.26 | 268.13 | -1.30 | 175.95 | 0.3150 | 576.0 | 526.4 | |
| 1.77 | -21.00 | 0.91 | -21.00 | -8.74 | 268.05 | -1.37 | 175.00 | 0.2731 | 1101.3 | 999999 | |
| 0.00 | 0.44 | 0.00 | 0.23 | -9.49 | 268.05 | -1.38 | 175.22 | 0.2857 | 697.0 | 565.6 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -10.28 | 267.95 | -1.47 | 175.12 | 0.2989 | 805.0 | 674.9 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -9.77 | 267.92 | -1.50 | 174.88 | 0.2906 | 681.0 | 397.1 | |
| 0.00 | 2.83 | 0.00 | 1.46 | -9.34 | 267.90 | -1.53 | 174.64 | 0.2833 | 589.0 | 419.9 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -10.50 | 267.71 | -1.72 | 174.39 | 0.3030 | 942.0 | 836.3 | |
| 0.00 | 1.50 | 0.00 | 0.77 | -7.09 | 267.73 | -1.70 | 173.09 | 0.2459 | 882.0 | 602.7 | |
| 0.00 | 1.86 | 0.00 | 0.96 | -10.47 | 267.40 | -2.03 | 173.39 | 0.3030 | 795.0 | 556.7 | |
| 0.00 | 1.59 | 0.00 | 0.81 | -7.16 | 267.15 | -2.28 | 170.83 | 0.2483 | 812.0 | 660.6 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -8.56 | 266.90 | -2.53 | 170.74 | 0.2724 | 863.0 | 661.1 | |
| 0.00 | 1.59 | 0.00 | 0.80 | -1.82 | 266.39 | -3.04 | 160.89 | 0.1624 | 895.0 | 772.9 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -8.40 | 266.17 | -3.26 | 168.02 | 0.2721 | -864.0 | -734.3 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -9.16 | 265.52 | -3.91 | 166.38 | 0.2869 | -931.0 | -766.0 | |
| 0.00 | 1.77 | 0.00 | 0.91 | -8.97 | 265.49 | -3.93 | 166.13 | 0.2840 | -1143.0 | -903.0 | |
| 0.00 | 1.68 | 0.00 | 0.87 | -9.25 | 265.46 | -3.97 | 166.25 | 0.2887 | -563.0 | -576.1 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -7.83 | 263.68 | -5.75 | 158.74 | 0.2748 | 820.0 | 577.5 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -9.40 | 263.62 | -5.81 | 160.46 | 0.2997 | -947.0 | -756.7 | |
| 0.00 | 1.68 | 0.00 | 0.87 | -9.18 | 263.50 | -5.92 | 159.84 | 0.2970 | -986.0 | -759.2 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -8.93 | 263.44 | -5.98 | 159.37 | 0.2934 | -790.0 | -631.6 | |
| 0.00 | 1.24 | 0.00 | 0.65 | -10.26 | 262.37 | -7.05 | 157.76 | 0.3205 | -809.0 | -677.9 | |
| 0.00 | 0.62 | 0.00 | 0.32 | -10.26 | 262.13 | -7.30 | 157.06 | 0.3222 | -763.0 | -593.0 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -12.39 | 261.70 | -7.73 | 158.33 | 0.3572 | -715.0 | -599.2 | |
| 0.00 | 3.71 | 0.00 | 1.97 | -12.59 | 261.10 | -8.33 | 157.05 | 0.3640 | 487.0 | 623.4 | |
| 0.00 | 2.74 | 0.00 | 1.46 | -12.89 | 260.50 | -8.93 | 155.91 | 0.3723 | -823.0 | -696.6 | |
| 0.00 | 1.24 | 0.00 | 0.65 | -10.94 | 259.73 | -9.70 | 151.59 | 0.3492 | 574.0 | 436.1 | |
| 14.77 | 165.77 | 7.96 | 89.28 | -13.79 | 258.98 | -10.44 | 153.47 | 0.3957 | -1105.7 | -406.2 | |
| 12.20 | -54.00 | 6.56 | -54.00 | -13.44 | 258.97 | -10.46 | 153.02 | 0.3908 | -1333.7 | 999999 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -12.09 | 257.84 | -11.59 | 148.79 | 0.3807 | -685.0 | -603.5 | |
| 0.00 | 1.59 | 0.00 | 0.85 | -11.58 | 257.67 | -11.75 | 147.71 | 0.3752 | -1008.0 | -792.9 | |
| 0.00 | 2.30 | 0.00 | 1.23 | -11.97 | 257.65 | -11.77 | 148.22 | 0.3805 | -761.0 | -558.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
