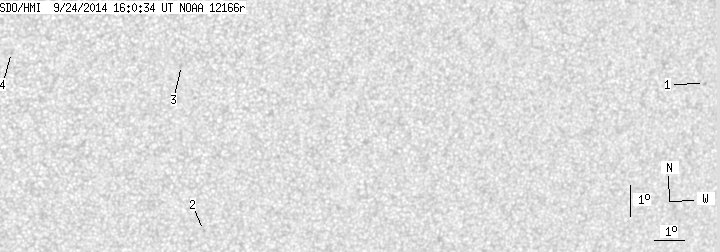

SDO HMI 2014-09-24 16:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.86 | 0.00 | 2.71 | -12.22 | 285.62 | 17.30 | 218.91 | 0.4444 | 562.2 | 531.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-24 16:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.24 | 0.00 | 0.76 | -12.43 | 299.45 | 31.13 | 238.02 | 0.5974 | 219.0 | 379.8 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -16.33 | 282.91 | 14.59 | 211.66 | 0.4623 | 547.0 | 496.5 | |
| 0.00 | 1.41 | 0.00 | 0.76 | -11.00 | 281.89 | 13.56 | 217.02 | 0.3840 | 752.0 | 592.7 | |
| 0.00 | 1.33 | 0.00 | 0.70 | -10.45 | 276.57 | 8.24 | 205.30 | 0.3314 | 731.0 | 654.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
