SDO HMI 2014-09-24 16:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.35 | 90.43 | 10.39 | 47.93 | 8.38 | 287.79 | 19.47 | 270.11 | 0.3502 | -207.4 | -310.5 | |
|
previous
or next observation for the same group /

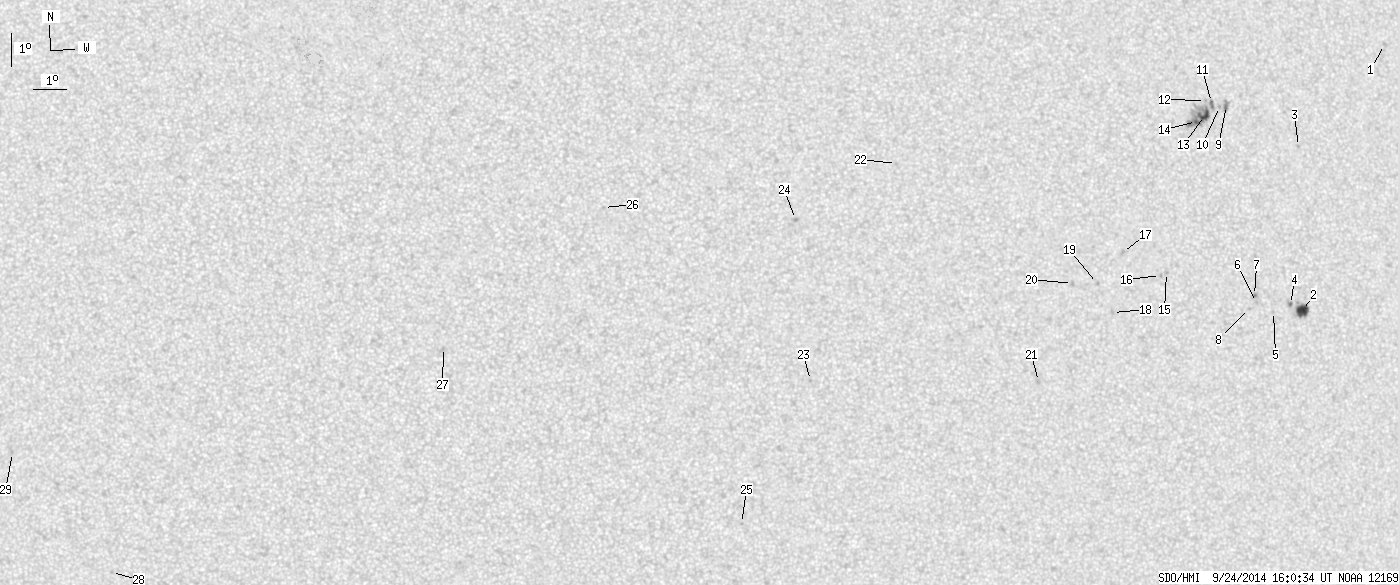

back to the solar disc SDO HMI 2014-09-24 16:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.74 | 0.00 | 1.53 | 12.95 | 295.76 | 27.44 | 284.65 | 0.4661 | -727.0 | -504.9 | |
| 9.99 | 12.73 | 5.41 | 6.90 | 5.11 | 292.37 | 24.04 | 266.88 | 0.4081 | -1020.0 | -707.9 | |
| 0.00 | 1.24 | 0.00 | 0.67 | 10.04 | 292.53 | 24.21 | 278.99 | 0.4106 | -797.0 | -679.1 | |
| 0.53 | 3.01 | 0.29 | 1.62 | 5.31 | 291.98 | 23.66 | 267.28 | 0.4017 | -1016.5 | -804.4 | |
| 0.00 | 1.33 | 0.00 | 0.71 | 5.12 | 291.41 | 23.09 | 266.68 | 0.3929 | -721.0 | -479.1 | |
| 0.00 | 1.33 | 0.00 | 0.71 | 5.42 | 290.87 | 22.54 | 267.31 | 0.3837 | -825.0 | -702.1 | |
| 0.00 | 1.06 | 0.00 | 0.57 | 5.63 | 290.81 | 22.49 | 267.86 | 0.3825 | -879.0 | -825.8 | |
| 0.00 | 1.24 | 0.00 | 0.66 | 5.25 | 290.63 | 22.31 | 266.81 | 0.3802 | -867.0 | -667.0 | |
| 0.00 | 5.04 | 0.00 | 2.69 | 11.38 | 290.25 | 21.92 | 283.14 | 0.3775 | -830.0 | -685.0 | |
| 0.00 | 1.06 | 0.00 | 0.57 | 11.36 | 290.01 | 21.69 | 283.19 | 0.3738 | -886.0 | -702.6 | |
| 0.53 | 3.27 | 0.28 | 1.74 | 11.50 | 289.76 | 21.44 | 283.66 | 0.3702 | -856.0 | -793.3 | |
| 0.00 | 0.97 | 0.00 | 0.52 | 11.57 | 289.57 | 21.25 | 283.94 | 0.3674 | -697.0 | -604.7 | |
| 6.36 | 32.79 | 3.38 | 17.42 | 11.12 | 289.50 | 21.18 | 282.75 | 0.3650 | -1126.2 | -810.4 | |
| 1.94 | -13.00 | 1.03 | -13.00 | 10.95 | 289.23 | 20.90 | 282.41 | 0.3602 | -1196.6 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.84 | 6.45 | 287.99 | 19.67 | 269.64 | 0.3359 | 822.0 | 614.7 | |
| 0.00 | 1.41 | 0.00 | 0.74 | 6.37 | 287.79 | 19.47 | 269.36 | 0.3328 | 713.0 | 567.1 | |
| 0.00 | 2.39 | 0.00 | 1.24 | 7.11 | 286.61 | 18.29 | 271.55 | 0.3128 | 847.0 | 683.2 | |
| 0.00 | 1.77 | 0.00 | 0.92 | 5.32 | 286.22 | 17.90 | 265.69 | 0.3083 | 780.0 | 593.0 | |
| 0.00 | 1.41 | 0.00 | 0.73 | 6.21 | 285.78 | 17.46 | 268.49 | 0.2996 | 800.0 | 649.5 | |
| 0.00 | 2.47 | 0.00 | 1.28 | 6.24 | 284.99 | 16.67 | 268.43 | 0.2865 | 883.0 | 670.2 | |
| 0.00 | 2.03 | 0.00 | 1.05 | 3.33 | 283.85 | 15.52 | 257.50 | 0.2749 | 789.0 | 641.4 | |
| 0.00 | 1.15 | 0.00 | 0.58 | 10.01 | 279.61 | 11.29 | 285.98 | 0.2015 | 881.0 | 659.9 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 3.54 | 276.82 | 8.50 | 248.36 | 0.1595 | 883.0 | 668.2 | |
| 0.00 | 1.68 | 0.00 | 0.84 | 8.39 | 276.45 | 8.12 | 280.51 | 0.1428 | 1057.0 | 911.6 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -0.74 | 274.71 | 6.39 | 219.81 | 0.1746 | 812.0 | 691.8 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 8.82 | 270.59 | 2.27 | 309.61 | 0.0510 | 820.0 | 493.9 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 4.62 | 265.74 | -2.58 | 132.37 | 0.0611 | 870.0 | 670.0 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -2.33 | 255.65 | -12.68 | 125.92 | 0.2719 | 826.0 | 676.6 | |
| 0.00 | 1.33 | 0.00 | 0.69 | 1.22 | 252.59 | -15.73 | 109.46 | 0.2888 | 864.0 | 703.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
