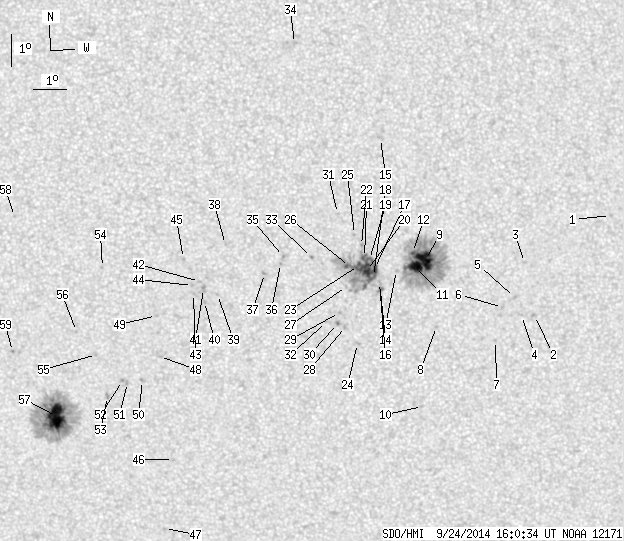

SDO HMI 2014-09-24 16:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 91.12 | 518.81 | 47.56 | 271.09 | -10.44 | 265.76 | -2.57 | 174.00 | 0.3132 | 329.7 | 124.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-24 16:00:34 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.55 | -7.26 | 276.04 | 7.72 | 208.55 | 0.2799 | 768.0 | 654.2 | |
| 0.00 | 2.03 | 0.00 | 1.06 | -10.34 | 273.76 | 5.44 | 197.42 | 0.3129 | 727.0 | 601.3 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -8.68 | 273.43 | 5.11 | 198.10 | 0.2847 | 895.0 | 684.9 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -10.34 | 273.36 | 5.04 | 196.22 | 0.3109 | 833.0 | 629.5 | |
| 0.00 | 1.94 | 0.00 | 1.01 | -9.77 | 273.14 | 4.82 | 196.05 | 0.3007 | 976.0 | 751.1 | |
| 0.00 | 1.33 | 0.00 | 0.69 | -10.08 | 272.78 | 4.45 | 194.63 | 0.3041 | 882.0 | 627.2 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -11.12 | 272.58 | 4.25 | 193.20 | 0.3201 | 725.0 | 537.2 | |
| 0.00 | 1.41 | 0.00 | 0.74 | -10.66 | 270.76 | 2.44 | 187.86 | 0.3071 | 661.0 | 547.7 | |
| 17.24 | 190.48 | 8.87 | 98.06 | -8.56 | 270.42 | 2.09 | 187.68 | 0.2714 | 1413.4 | 394.9 | |
| 0.00 | 1.50 | 0.00 | 0.79 | -13.20 | 270.35 | 2.03 | 185.70 | 0.3481 | 827.0 | 541.5 | |
| 12.29 | -9.00 | 6.33 | -9.00 | -8.77 | 270.11 | 1.79 | 186.48 | 0.2744 | 1271.4 | 999999 | |
| 0.88 | -9.00 | 0.45 | -9.00 | -8.34 | 270.02 | 1.70 | 186.33 | 0.2669 | 1096.3 | 999999 | |
| 0.00 | 1.59 | 0.00 | 0.82 | -8.90 | 269.53 | 1.21 | 184.36 | 0.2755 | 687.0 | 520.9 | |
| 0.00 | 2.65 | 0.00 | 1.37 | -9.52 | 269.05 | 0.72 | 182.51 | 0.2855 | 812.0 | 748.3 | |
| 0.00 | 2.83 | 0.00 | 1.43 | -4.81 | 269.05 | 0.72 | 183.52 | 0.2055 | 657.0 | 530.5 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -9.27 | 269.02 | 0.69 | 182.45 | 0.2813 | 711.0 | 652.7 | |
| 3.89 | 93.51 | 2.00 | 48.17 | -8.83 | 268.86 | 0.54 | 181.96 | 0.2738 | 1180.1 | 552.1 | |
| 1.41 | -17.00 | 0.73 | -17.00 | -9.08 | 268.83 | 0.51 | 181.82 | 0.2780 | 944.0 | 999999 | |
| 1.94 | -17.00 | 1.00 | -17.00 | -8.55 | 268.71 | 0.39 | 181.44 | 0.2690 | 1033.0 | 999999 | |
| 16.35 | -17.00 | 8.42 | -17.00 | -8.89 | 268.62 | 0.30 | 181.08 | 0.2747 | 1172.1 | 999999 | |
| 2.21 | -17.00 | 1.14 | -17.00 | -8.49 | 268.56 | 0.24 | 180.88 | 0.2679 | 1129.9 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -8.11 | 268.47 | 0.15 | 180.56 | 0.2615 | 1006.0 | 776.4 | |
| 2.56 | -17.00 | 1.32 | -17.00 | -8.74 | 268.38 | 0.05 | 180.20 | 0.2720 | 1157.4 | 999999 | |
| 0.00 | 1.77 | 0.00 | 0.92 | -11.19 | 268.34 | 0.02 | 180.07 | 0.3131 | 915.0 | 725.3 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -7.77 | 268.26 | -0.07 | 179.74 | 0.2557 | 798.0 | 610.5 | |
| 2.56 | -17.00 | 1.32 | -17.00 | -8.77 | 268.10 | -0.22 | 179.20 | 0.2726 | 1089.1 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -9.39 | 268.01 | -0.31 | 178.91 | 0.2832 | 775.0 | 585.7 | |
| 0.00 | 2.56 | 0.00 | 1.33 | -10.65 | 267.98 | -0.34 | 178.88 | 0.3042 | 729.0 | 662.3 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -10.21 | 267.80 | -0.53 | 178.24 | 0.2969 | 682.0 | 585.9 | |
| 0.00 | 1.50 | 0.00 | 0.78 | -10.56 | 267.73 | -0.59 | 178.08 | 0.3028 | 983.0 | 889.4 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -7.12 | 267.74 | -0.58 | 177.64 | 0.2448 | 688.0 | 605.8 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -10.49 | 267.40 | -0.93 | 176.97 | 0.3020 | 737.0 | 566.2 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -8.49 | 266.95 | -1.37 | 174.92 | 0.2689 | 856.0 | 750.2 | |
| 0.00 | 2.21 | 0.00 | 1.11 | -1.90 | 266.46 | -1.86 | 168.11 | 0.1584 | 800.0 | 609.2 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -8.46 | 266.10 | -2.22 | 171.79 | 0.2700 | -941.0 | -817.7 | |
| 0.00 | 1.15 | 0.00 | 0.59 | -8.68 | 266.01 | -2.32 | 171.57 | 0.2739 | -711.0 | -615.6 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -8.99 | 265.52 | -2.81 | 170.02 | 0.2804 | -1005.0 | -837.7 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -8.09 | 264.34 | -3.99 | 165.16 | 0.2699 | 796.0 | 638.3 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -9.66 | 264.07 | -4.25 | 165.67 | 0.2965 | -779.0 | -573.1 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -9.88 | 263.67 | -4.65 | 164.58 | 0.3018 | -738.0 | -541.8 | |
| 0.00 | 3.09 | 0.00 | 1.60 | -9.48 | 263.65 | -4.67 | 164.13 | 0.2953 | -945.0 | -725.6 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -9.26 | 263.53 | -4.79 | 163.54 | 0.2924 | -977.0 | -747.2 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -9.63 | 263.34 | -4.98 | 163.30 | 0.2993 | -745.0 | -634.6 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -9.38 | 263.31 | -5.01 | 162.97 | 0.2954 | -839.0 | -647.3 | |
| 0.00 | 1.59 | 0.00 | 0.82 | -8.54 | 263.05 | -5.27 | 161.21 | 0.2833 | -783.0 | -583.2 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -14.93 | 262.61 | -5.72 | 165.51 | 0.3864 | 675.0 | 565.3 | |
| 0.00 | 1.24 | 0.00 | 0.68 | -17.19 | 262.25 | -6.07 | 166.12 | 0.4229 | 678.0 | 595.1 | |
| 0.00 | 2.30 | 0.00 | 1.21 | -11.63 | 262.26 | -6.07 | 161.99 | 0.3363 | -622.0 | -528.8 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -10.34 | 262.19 | -6.13 | 160.52 | 0.3164 | -707.0 | -652.7 | |
| 0.00 | 1.94 | 0.00 | 1.03 | -12.40 | 261.71 | -6.61 | 161.24 | 0.3512 | -747.0 | -585.2 | |
| 0.00 | 1.41 | 0.00 | 0.75 | -12.48 | 261.24 | -7.08 | 160.08 | 0.3548 | 686.0 | 523.6 | |
| 0.00 | 1.59 | 0.00 | 0.84 | -12.41 | 261.09 | -7.23 | 159.62 | 0.3547 | 909.0 | 684.6 | |
| 0.00 | 2.65 | 0.00 | 1.41 | -12.93 | 260.61 | -7.71 | 158.92 | 0.3654 | -859.0 | -698.9 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -8.86 | 260.57 | -7.76 | 153.86 | 0.3040 | 782.0 | 653.2 | |
| 0.00 | 1.15 | 0.00 | 0.61 | -11.60 | 260.31 | -8.01 | 156.72 | 0.3470 | -854.0 | -600.9 | |
| 0.00 | 0.80 | 0.00 | 0.42 | -10.88 | 259.71 | -8.61 | 154.28 | 0.3404 | 719.0 | 553.3 | |
| 29.79 | 164.05 | 15.98 | 88.04 | -13.60 | 258.99 | -9.33 | 155.75 | 0.3854 | -1280.1 | -402.5 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -7.32 | 257.90 | -10.43 | 143.76 | 0.3050 | 780.0 | 550.4 | |
| 0.00 | 1.33 | 0.00 | 0.71 | -11.55 | 257.70 | -10.63 | 150.23 | 0.3654 | -993.0 | -836.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
