SDO HMI 2014-09-24 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.17 | 83.50 | 10.35 | 44.39 | 8.28 | 286.84 | 19.07 | 265.17 | 0.3509 | -178.1 | -331.3 | |
|
previous
or next observation for the same group /

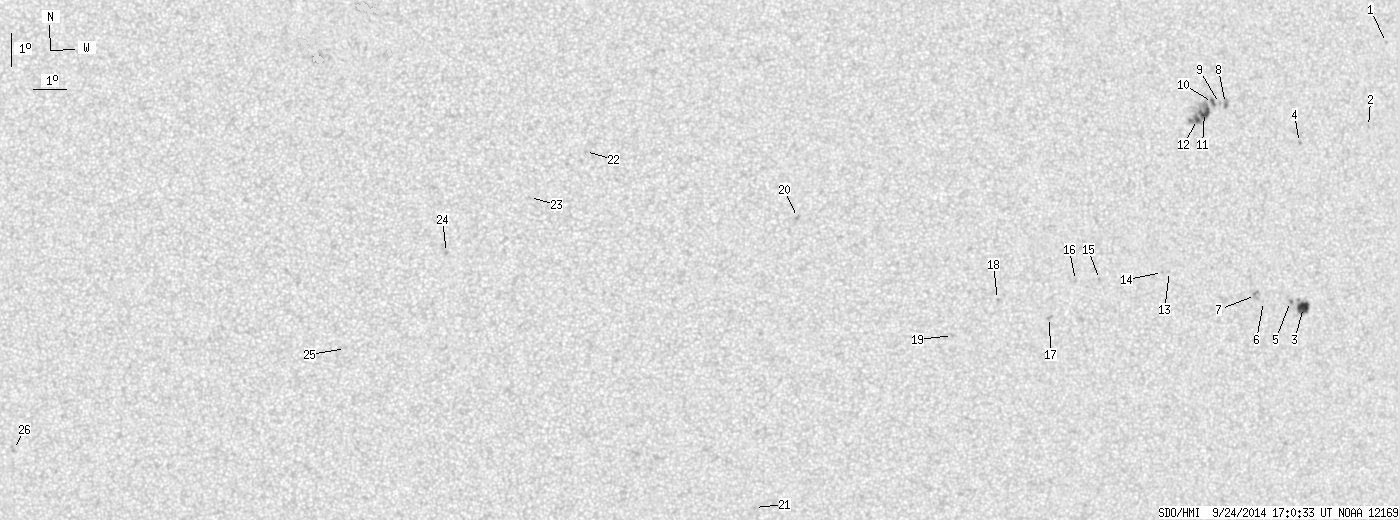

back to the solar disc SDO HMI 2014-09-24 17:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.55 | 12.92 | 295.83 | 28.06 | 284.36 | 0.4752 | -750.0 | -610.9 | |
| 0.00 | 1.15 | 0.00 | 0.64 | 10.43 | 294.93 | 27.16 | 279.27 | 0.4568 | -760.0 | -613.9 | |
| 9.63 | 14.76 | 5.25 | 8.04 | 5.11 | 292.38 | 24.61 | 267.02 | 0.4171 | -1020.7 | -658.3 | |
| 0.00 | 1.24 | 0.00 | 0.67 | 10.07 | 292.56 | 24.78 | 278.94 | 0.4196 | -700.0 | -639.9 | |
| 0.00 | 1.15 | 0.00 | 0.62 | 5.31 | 291.96 | 24.18 | 267.41 | 0.4101 | -922.0 | -870.2 | |
| 0.00 | 0.44 | 0.00 | 0.24 | 5.36 | 291.07 | 23.29 | 267.32 | 0.3958 | -722.0 | -568.6 | |
| 0.00 | 4.68 | 0.00 | 2.52 | 5.55 | 290.81 | 23.04 | 267.75 | 0.3915 | -896.0 | -756.5 | |
| 0.00 | 4.60 | 0.00 | 2.47 | 11.36 | 290.19 | 22.42 | 282.88 | 0.3852 | -903.0 | -699.2 | |
| 0.00 | 1.33 | 0.00 | 0.71 | 11.37 | 289.99 | 22.22 | 282.98 | 0.3821 | -795.0 | -686.1 | |
| 1.41 | 3.00 | 0.76 | 1.61 | 11.41 | 289.76 | 21.99 | 283.19 | 0.3787 | -883.8 | -737.1 | |
| 6.01 | 30.05 | 3.21 | 16.02 | 11.12 | 289.48 | 21.70 | 282.55 | 0.3734 | -1120.5 | -838.1 | |
| 2.12 | -11.00 | 1.13 | -11.00 | 10.92 | 289.23 | 21.46 | 282.11 | 0.3690 | -1149.0 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 6.40 | 288.05 | 20.28 | 269.56 | 0.3459 | 736.0 | 558.7 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 6.38 | 287.82 | 20.05 | 269.47 | 0.3422 | 778.0 | 648.6 | |
| 0.00 | 1.50 | 0.00 | 0.78 | 6.25 | 285.80 | 18.03 | 268.74 | 0.3091 | 828.0 | 566.8 | |
| 0.00 | 1.77 | 0.00 | 0.92 | 6.25 | 285.04 | 17.27 | 268.58 | 0.2965 | 783.0 | 645.2 | |
| 0.00 | 2.12 | 0.00 | 1.10 | 5.17 | 284.18 | 16.41 | 264.58 | 0.2839 | 900.0 | 749.5 | |
| 0.00 | 0.88 | 0.00 | 0.45 | 5.76 | 282.57 | 14.80 | 266.12 | 0.2558 | 730.0 | 575.5 | |
| 0.00 | 1.41 | 0.00 | 0.72 | 4.72 | 281.14 | 13.37 | 261.11 | 0.2343 | 906.0 | 704.8 | |
| 0.00 | 1.68 | 0.00 | 0.84 | 8.38 | 276.45 | 8.68 | 279.86 | 0.1522 | 994.0 | 850.1 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -0.33 | 275.04 | 7.27 | 225.08 | 0.1795 | 868.0 | 696.8 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 10.45 | 269.99 | 2.22 | 327.89 | 0.0720 | 849.0 | 609.4 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 9.07 | 268.27 | 0.50 | 346.66 | 0.0378 | 843.0 | 605.7 | |
| 0.00 | 1.59 | 0.00 | 0.79 | 7.42 | 265.75 | -2.02 | 77.41 | 0.0359 | 1034.0 | 789.6 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 4.52 | 262.71 | -5.06 | 115.79 | 0.0981 | 553.0 | 492.8 | |
| 0.00 | 3.09 | 0.00 | 1.60 | 1.27 | 252.57 | -15.20 | 109.97 | 0.2802 | 811.0 | 697.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
