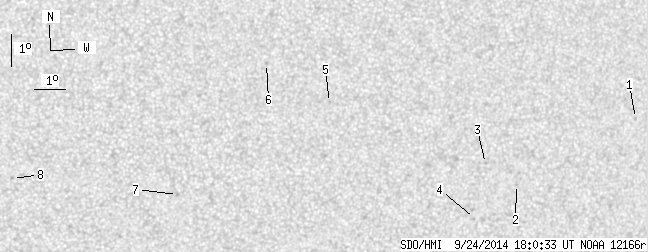

SDO HMI 2014-09-24 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.22 | 0.00 | 4.57 | -10.03 | 287.14 | 19.92 | 228.00 | 0.4465 | 683.8 | 557.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-24 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.58 | -9.37 | 296.94 | 29.72 | 241.48 | 0.5588 | 613.0 | 492.3 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -11.21 | 293.00 | 25.78 | 234.85 | 0.5238 | 555.0 | 480.0 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -10.49 | 291.88 | 24.66 | 234.81 | 0.5040 | 716.0 | 574.6 | |
| 0.00 | 0.62 | 0.00 | 0.36 | -12.22 | 291.67 | 24.45 | 231.81 | 0.5167 | 637.0 | 513.1 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -8.32 | 286.60 | 19.38 | 231.94 | 0.4188 | 559.0 | 541.6 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -7.03 | 284.53 | 17.31 | 231.30 | 0.3801 | 771.0 | 585.3 | |
| 0.00 | 1.77 | 0.00 | 0.95 | -11.03 | 281.89 | 14.67 | 219.16 | 0.3954 | 834.0 | 597.1 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -10.38 | 276.70 | 9.48 | 208.63 | 0.3396 | 785.0 | 639.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
