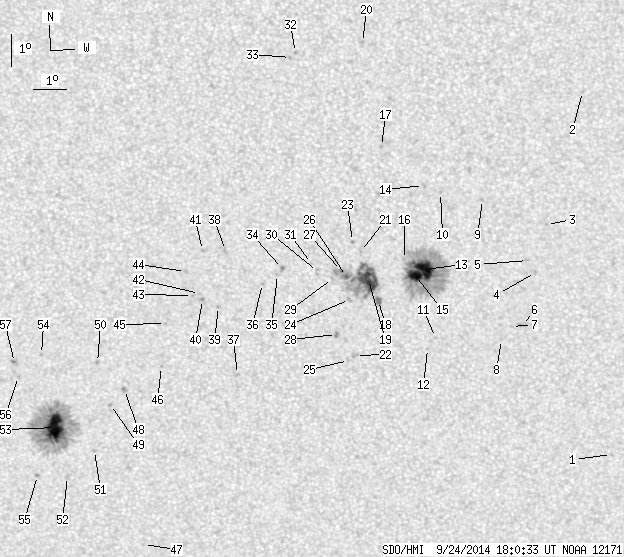

SDO HMI 2014-09-24 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89.51 | 499.06 | 46.71 | 260.84 | -10.56 | 265.47 | -1.75 | 176.74 | 0.3148 | 311.4 | 129.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-24 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.33 | 0.00 | 0.72 | -14.52 | 276.31 | 9.09 | 202.75 | 0.3974 | 668.0 | 483.7 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -3.13 | 275.16 | 7.94 | 218.35 | 0.2234 | 819.0 | 649.7 | |
| 0.00 | 0.80 | 0.00 | 0.41 | -7.21 | 274.11 | 6.89 | 205.99 | 0.2729 | 902.0 | 727.6 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -8.69 | 273.80 | 6.58 | 202.80 | 0.2935 | 936.0 | 762.2 | |
| 0.00 | 1.86 | 0.00 | 0.96 | -8.32 | 273.55 | 6.33 | 202.51 | 0.2861 | 843.0 | 641.5 | |
| 0.00 | 2.83 | 0.00 | 1.48 | -10.35 | 273.43 | 6.21 | 199.70 | 0.3171 | 759.0 | 724.3 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -10.38 | 273.09 | 5.87 | 198.67 | 0.3156 | 704.0 | 518.9 | |
| 0.00 | 0.80 | 0.00 | 0.42 | -10.78 | 272.79 | 5.57 | 197.39 | 0.3205 | 737.0 | 610.4 | |
| 0.00 | 1.50 | 0.00 | 0.77 | -6.40 | 272.15 | 4.93 | 200.30 | 0.2475 | 832.0 | 636.4 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -6.18 | 270.88 | 3.66 | 195.60 | 0.2371 | 811.0 | 641.4 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -10.70 | 270.76 | 3.54 | 191.32 | 0.3108 | 533.0 | 473.7 | |
| 0.00 | 0.80 | 0.00 | 0.42 | -11.04 | 270.52 | 3.30 | 190.36 | 0.3157 | 645.0 | 524.9 | |
| 17.85 | 166.76 | 9.19 | 85.93 | -8.56 | 270.41 | 3.19 | 191.61 | 0.2746 | 1431.2 | 426.9 | |
| 0.00 | 1.86 | 0.00 | 0.94 | -5.95 | 270.36 | 3.14 | 193.70 | 0.2313 | 821.0 | 710.1 | |
| 11.84 | -13.00 | 6.10 | -13.00 | -8.75 | 270.14 | 2.92 | 190.52 | 0.2767 | 1321.9 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.77 | -8.24 | 269.80 | 2.58 | 189.63 | 0.2674 | 495.0 | 506.2 | |
| 0.00 | 1.33 | 0.00 | 0.67 | -4.75 | 269.09 | 1.87 | 189.10 | 0.2067 | 870.0 | 650.7 | |
| 1.94 | 4.51 | 1.01 | 2.33 | -9.52 | 269.01 | 1.79 | 186.20 | 0.2869 | 863.7 | 707.6 | |
| 26.16 | 80.86 | 13.48 | 41.65 | -8.86 | 268.71 | 1.49 | 185.37 | 0.2754 | 1177.3 | 639.7 | |
| 0.00 | 1.68 | 0.00 | 0.84 | -1.57 | 268.52 | 1.30 | 188.66 | 0.1510 | 998.0 | 760.1 | |
| 0.00 | 2.21 | 0.00 | 1.13 | -7.99 | 268.46 | 1.24 | 184.75 | 0.2603 | 928.0 | 672.9 | |
| 0.00 | 2.39 | 0.00 | 1.24 | -11.25 | 268.32 | 1.10 | 183.43 | 0.3148 | 835.0 | 768.3 | |
| 0.00 | 1.24 | 0.00 | 0.63 | -7.68 | 268.22 | 1.00 | 183.90 | 0.2547 | 915.0 | 725.9 | |
| 0.00 | 2.12 | 0.00 | 1.10 | -9.49 | 268.13 | 0.91 | 183.16 | 0.2851 | 806.0 | 661.6 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -11.41 | 268.10 | 0.88 | 182.74 | 0.3172 | 750.0 | 513.8 | |
| 1.50 | -19.00 | 0.77 | -19.00 | -8.77 | 268.04 | 0.82 | 182.97 | 0.2729 | 1124.8 | 999999 | |
| 0.44 | -19.00 | 0.23 | -19.00 | -8.58 | 267.88 | 0.66 | 182.45 | 0.2697 | 915.8 | 999999 | |
| 0.00 | 2.47 | 0.00 | 1.29 | -10.59 | 267.73 | 0.51 | 181.67 | 0.3033 | 1051.0 | 849.0 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -8.83 | 267.61 | 0.39 | 181.42 | 0.2737 | 427.0 | 412.2 | |
| 0.00 | 2.56 | 0.00 | 1.32 | -8.61 | 267.15 | -0.06 | 179.76 | 0.2699 | -338.0 | -228.5 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -8.36 | 266.97 | -0.25 | 179.08 | 0.2657 | 510.0 | 465.1 | |
| 0.00 | 1.33 | 0.00 | 0.66 | -1.87 | 266.50 | -0.72 | 175.35 | 0.1550 | 990.0 | 797.7 | |
| 0.00 | 1.15 | 0.00 | 0.58 | -2.02 | 266.35 | -0.87 | 174.47 | 0.1579 | 1002.0 | 867.5 | |
| 0.00 | 2.56 | 0.00 | 1.32 | -8.51 | 266.09 | -1.13 | 175.83 | 0.2690 | -971.0 | -756.3 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -8.70 | 265.94 | -1.28 | 175.33 | 0.2724 | -810.0 | -681.6 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -8.98 | 265.48 | -1.74 | 173.78 | 0.2778 | -856.0 | -706.7 | |
| 0.00 | 1.50 | 0.00 | 0.79 | -11.85 | 264.69 | -2.53 | 172.38 | 0.3270 | 744.0 | 618.1 | |
| 0.00 | 2.47 | 0.00 | 1.27 | -7.96 | 264.36 | -2.86 | 169.15 | 0.2635 | 807.0 | 654.9 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -9.71 | 264.13 | -3.09 | 169.52 | 0.2932 | -700.0 | -722.9 | |
| 0.00 | 1.59 | 0.00 | 0.82 | -9.49 | 263.65 | -3.57 | 167.76 | 0.2912 | -1054.0 | -797.9 | |
| 0.00 | 1.33 | 0.00 | 0.68 | -7.96 | 263.66 | -3.56 | 166.59 | 0.2660 | 883.0 | 693.5 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -9.31 | 263.56 | -3.66 | 167.32 | 0.2885 | -949.0 | -737.7 | |
| 0.00 | 1.24 | 0.00 | 0.64 | -9.37 | 263.34 | -3.88 | 166.66 | 0.2903 | -826.0 | -666.1 | |
| 0.00 | 1.59 | 0.00 | 0.82 | -8.62 | 263.14 | -4.08 | 165.32 | 0.2789 | -947.0 | -711.1 | |
| 0.00 | 1.15 | 0.00 | 0.60 | -10.26 | 262.50 | -4.71 | 164.71 | 0.3081 | -719.0 | -497.7 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -11.62 | 262.36 | -4.86 | 165.39 | 0.3306 | -935.0 | -771.3 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -17.38 | 261.65 | -5.57 | 167.33 | 0.4240 | 619.0 | 490.6 | |
| 0.00 | 3.00 | 0.00 | 1.59 | -12.36 | 261.20 | -6.02 | 162.78 | 0.3475 | 989.0 | 722.8 | |
| 0.00 | 1.50 | 0.00 | 0.80 | -12.84 | 260.75 | -6.47 | 162.02 | 0.3573 | -771.0 | -626.5 | |
| 0.00 | 1.24 | 0.00 | 0.65 | -11.51 | 260.39 | -6.83 | 159.77 | 0.3386 | -847.0 | -658.6 | |
| 0.00 | 1.24 | 0.00 | 0.66 | -14.33 | 260.21 | -7.01 | 161.94 | 0.3830 | -677.0 | -672.5 | |
| 0.00 | 2.65 | 0.00 | 1.43 | -15.19 | 259.33 | -7.89 | 160.61 | 0.4005 | 575.0 | 428.1 | |
| 29.78 | 171.18 | 15.93 | 91.59 | -13.61 | 259.02 | -8.20 | 158.41 | 0.3785 | -1337.4 | -391.0 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -11.29 | 258.66 | -8.56 | 154.94 | 0.3461 | -900.0 | -753.7 | |
| 0.00 | 1.15 | 0.00 | 0.62 | -15.17 | 258.39 | -8.83 | 158.47 | 0.4055 | 752.0 | 637.0 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -12.00 | 257.92 | -9.30 | 153.97 | 0.3617 | -854.0 | -716.9 | |
| 0.00 | 2.39 | 0.00 | 1.26 | -11.56 | 257.81 | -9.41 | 153.15 | 0.3561 | -1020.0 | -848.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
