SDO HMI 2014-09-24 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.30 | 10.70 | 2.23 | 10.27 | 6.64 | 207.85 | -59.37 | 86.43 | 0.8582 | -311.9 | 31.3 | |
|
previous
or next observation for the same group /

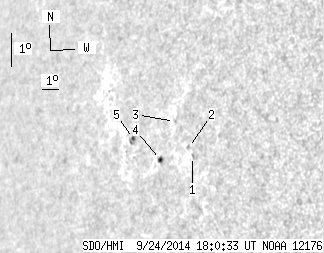

back to the solar disc SDO HMI 2014-09-24 18:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.59 | 0.00 | 1.44 | 6.56 | 209.93 | -57.29 | 86.70 | 0.8394 | -596.0 | -426.9 | |
| 0.00 | 1.33 | 0.00 | 1.21 | 6.81 | 209.66 | -57.56 | 86.39 | 0.8418 | -408.0 | -350.4 | |
| 0.00 | 0.53 | 0.00 | 0.50 | 7.50 | 208.72 | -58.50 | 85.50 | 0.8501 | -495.0 | -433.5 | |
| 1.50 | 2.83 | 1.43 | 2.69 | 6.29 | 208.13 | -59.09 | 86.87 | 0.8561 | -447.8 | -351.7 | |
| 0.80 | 4.42 | 0.80 | 4.43 | 6.74 | 206.40 | -60.82 | 86.19 | 0.8710 | 634.9 | 536.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
