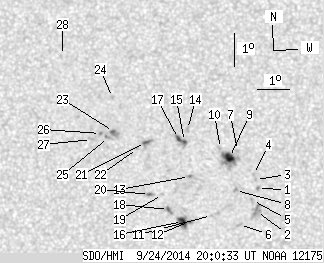

SDO HMI 2014-09-24 20:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.16 | 89.18 | 8.59 | 44.66 | 14.42 | 262.28 | -3.84 | 25.89 | 0.1471 | -97.7 | -54.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-24 20:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.33 | 0.00 | 0.66 | 13.96 | 264.22 | -1.90 | 14.81 | 0.1264 | -1035.0 | -814.9 | |
| 0.00 | 10.16 | 0.00 | 5.07 | 13.27 | 264.19 | -1.92 | 16.62 | 0.1148 | -950.0 | -756.0 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 14.24 | 264.15 | -1.96 | 14.72 | 0.1312 | -928.0 | -720.5 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 14.39 | 264.09 | -2.03 | 14.87 | 0.1340 | -615.0 | -389.5 | |
| 0.00 | 2.03 | 0.00 | 1.01 | 13.60 | 264.06 | -2.05 | 16.78 | 0.1210 | -198.0 | -254.4 | |
| 0.00 | 2.03 | 0.00 | 1.01 | 12.87 | 263.67 | -2.45 | 22.05 | 0.1114 | -752.0 | -656.0 | |
| 0.00 | 1.33 | 0.00 | 0.66 | 15.11 | 263.58 | -2.53 | 16.76 | 0.1485 | -955.0 | -727.9 | |
| 0.00 | 1.59 | 0.00 | 0.79 | 13.90 | 263.53 | -2.58 | 19.92 | 0.1288 | -867.0 | -552.0 | |
| 6.01 | 20.33 | 3.01 | 10.18 | 14.90 | 263.34 | -2.78 | 18.75 | 0.1463 | -926.7 | -15.8 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 15.17 | 263.05 | -3.06 | 19.87 | 0.1523 | -442.0 | -205.3 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 13.14 | 262.80 | -3.31 | 27.65 | 0.1219 | -665.0 | -462.6 | |
| 0.35 | 11.05 | 0.18 | 5.52 | 12.96 | 262.12 | -3.99 | 33.03 | 0.1250 | -755.2 | 234.2 | |
| 0.00 | 1.68 | 0.00 | 0.84 | 14.32 | 262.10 | -4.01 | 27.92 | 0.1455 | 1139.0 | 804.3 | |
| 0.00 | 2.21 | 0.00 | 1.11 | 15.74 | 262.01 | -4.10 | 24.28 | 0.1682 | -901.0 | -685.7 | |
| 1.24 | 7.16 | 0.62 | 3.59 | 15.38 | 261.93 | -4.19 | 25.70 | 0.1631 | -1023.9 | -447.8 | |
| 5.04 | -12.00 | 2.52 | -12.00 | 12.95 | 261.91 | -4.21 | 34.42 | 0.1271 | 1003.3 | 999999 | |
| 1.77 | -15.00 | 0.89 | -15.00 | 15.47 | 261.74 | -4.38 | 26.45 | 0.1659 | -983.6 | 999999 | |
| 0.71 | 3.98 | 0.35 | 1.99 | 13.31 | 261.47 | -4.65 | 35.47 | 0.1365 | 866.5 | 607.5 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 13.77 | 261.27 | -4.84 | 34.67 | 0.1448 | -740.0 | -482.6 | |
| 0.00 | 2.83 | 0.00 | 1.42 | 13.76 | 260.87 | -5.25 | 36.84 | 0.1488 | -942.0 | -665.1 | |
| 1.24 | 3.27 | 0.62 | 1.64 | 15.34 | 260.71 | -5.41 | 31.93 | 0.1726 | 1015.4 | 685.4 | |
| 0.00 | 0.97 | 0.00 | 0.49 | 15.15 | 260.46 | -5.65 | 33.68 | 0.1722 | 811.0 | 653.4 | |
| 0.80 | 5.04 | 0.40 | 2.54 | 15.66 | 259.70 | -6.42 | 35.38 | 0.1868 | 1149.4 | 935.9 | |
| 0.00 | 1.41 | 0.00 | 0.72 | 16.69 | 259.63 | -6.48 | 32.55 | 0.2019 | 895.0 | 661.1 | |
| 0.00 | 2.47 | 0.00 | 1.25 | 15.48 | 259.54 | -6.57 | 36.60 | 0.1858 | 999.0 | 812.3 | |
| 0.00 | 0.80 | 0.00 | 0.40 | 15.59 | 259.29 | -6.83 | 37.24 | 0.1900 | 1038.0 | 859.2 | |
| 0.00 | 2.21 | 0.00 | 1.11 | 15.41 | 259.01 | -7.10 | 38.96 | 0.1904 | 858.0 | 709.6 | |
| 0.00 | 0.44 | 0.00 | 0.23 | 17.96 | 257.99 | -8.12 | 35.05 | 0.2350 | 417.0 | 466.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
