SDO HMI 2014-09-24 21:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.54 | 0.00 | 5.60 | -12.97 | 289.37 | 23.81 | 228.47 | 0.5281 | 649.7 | 507.1 | |
|
previous
or next observation for the same group /

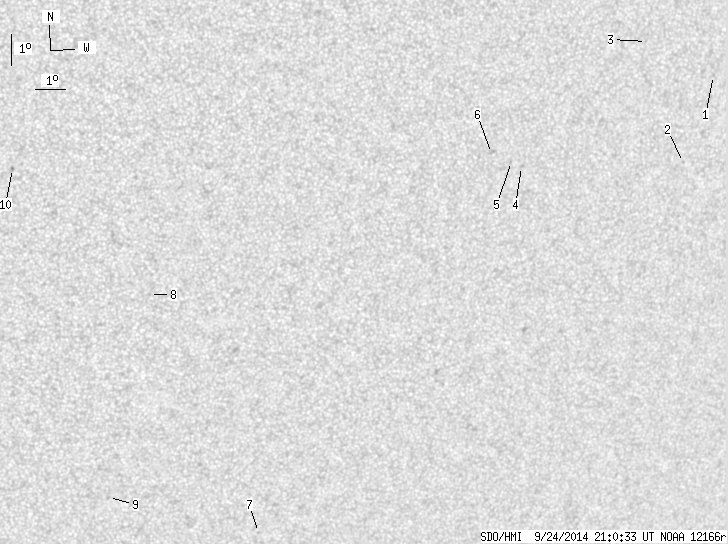

back to the solar disc SDO HMI 2014-09-24 21:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.55 | -8.58 | 299.69 | 34.13 | 245.95 | 0.6098 | 672.0 | 541.3 | |
| 0.00 | 1.06 | 0.00 | 0.67 | -11.25 | 298.90 | 33.34 | 241.45 | 0.6159 | 654.0 | 476.3 | |
| 0.00 | 0.44 | 0.00 | 0.27 | -7.35 | 297.16 | 31.60 | 246.16 | 0.5703 | 560.0 | 480.8 | |
| 0.00 | 1.33 | 0.00 | 0.78 | -10.99 | 293.10 | 27.54 | 236.96 | 0.5435 | 496.0 | 462.4 | |
| 0.00 | 0.71 | 0.00 | 0.41 | -10.82 | 292.74 | 27.18 | 236.89 | 0.5377 | 639.0 | 497.2 | |
| 0.00 | 1.06 | 0.00 | 0.62 | -10.52 | 292.02 | 26.46 | 236.65 | 0.5265 | 848.0 | 589.8 | |
| 0.00 | 0.88 | 0.00 | 0.54 | -22.61 | 285.56 | 19.99 | 212.94 | 0.5827 | 441.0 | 329.9 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -14.50 | 281.05 | 15.49 | 215.53 | 0.4467 | 646.0 | 392.4 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -21.20 | 280.28 | 14.72 | 206.82 | 0.5271 | 688.0 | 549.7 | |
| 0.00 | 1.24 | 0.00 | 0.65 | -10.35 | 276.50 | 10.94 | 212.26 | 0.3512 | 853.0 | 704.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
