SDO HMI 2014-09-24 21:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.26 | 68.57 | 8.92 | 37.08 | 8.25 | 288.13 | 22.57 | 273.31 | 0.3923 | -234.1 | -398.8 | |
|
previous
or next observation for the same group /

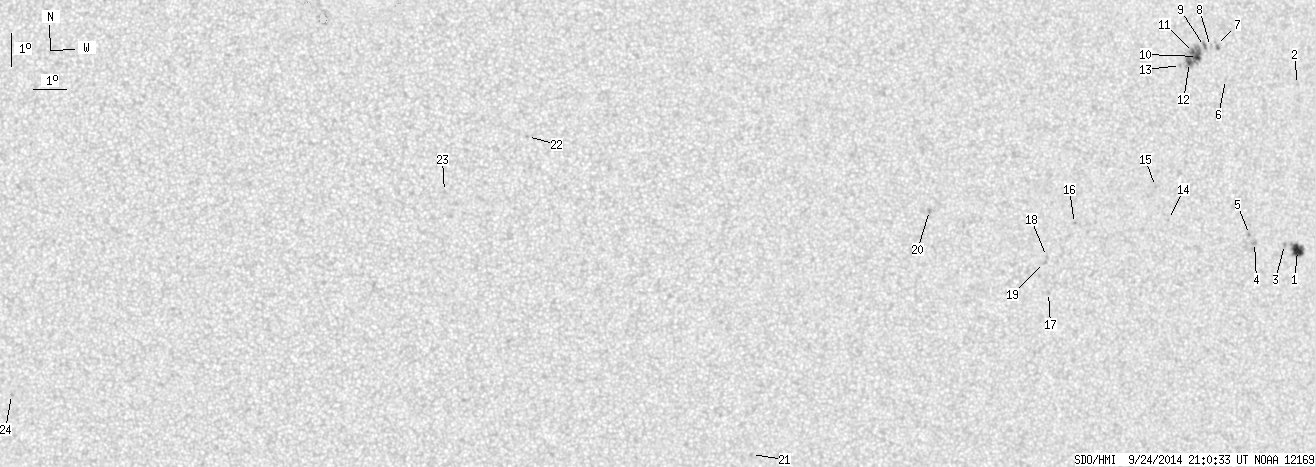

back to the solar disc SDO HMI 2014-09-24 21:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.63 | 14.14 | 5.34 | 7.84 | 5.11 | 292.41 | 26.85 | 267.51 | 0.4522 | -946.6 | -681.0 | |
| 0.00 | 1.50 | 0.00 | 0.84 | 10.10 | 292.76 | 27.20 | 278.53 | 0.4569 | -761.0 | -500.7 | |
| 0.00 | 1.68 | 0.00 | 0.93 | 5.32 | 291.98 | 26.42 | 267.88 | 0.4452 | -907.0 | -756.1 | |
| 0.00 | 2.47 | 0.00 | 1.36 | 5.43 | 290.98 | 25.42 | 267.94 | 0.4294 | -939.0 | -790.1 | |
| 0.00 | 1.15 | 0.00 | 0.63 | 5.68 | 290.83 | 25.26 | 268.50 | 0.4266 | -838.0 | -709.7 | |
| 0.00 | 0.97 | 0.00 | 0.53 | 10.38 | 290.34 | 24.78 | 279.66 | 0.4199 | -616.0 | -428.5 | |
| 0.00 | 2.92 | 0.00 | 1.59 | 11.41 | 290.13 | 24.57 | 282.19 | 0.4187 | -721.0 | -613.8 | |
| 0.00 | 1.94 | 0.00 | 1.06 | 11.39 | 289.92 | 24.36 | 282.21 | 0.4155 | -273.0 | -458.7 | |
| 0.71 | 2.92 | 0.38 | 1.58 | 11.40 | 289.72 | 24.16 | 282.30 | 0.4124 | -803.8 | -635.2 | |
| 2.92 | 23.95 | 1.58 | 12.97 | 11.12 | 289.46 | 23.90 | 281.69 | 0.4077 | -1056.8 | -877.0 | |
| 1.06 | -10.00 | 0.57 | -10.00 | 11.24 | 289.34 | 23.78 | 282.04 | 0.4060 | -1127.1 | 999999 | |
| 1.94 | -10.00 | 1.05 | -10.00 | 10.95 | 289.18 | 23.62 | 281.37 | 0.4029 | -1133.3 | 999999 | |
| 0.00 | 1.33 | 0.00 | 0.72 | 10.87 | 288.87 | 23.31 | 281.29 | 0.3979 | -842.0 | -690.1 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 6.27 | 288.17 | 22.61 | 269.51 | 0.3838 | 597.0 | 443.8 | |
| 0.00 | 0.35 | 0.00 | 0.19 | 7.28 | 287.80 | 22.24 | 272.15 | 0.3773 | 797.0 | 786.2 | |
| 0.00 | 1.33 | 0.00 | 0.70 | 6.28 | 285.12 | 19.56 | 269.09 | 0.3343 | 875.0 | 699.5 | |
| 0.00 | 1.50 | 0.00 | 0.79 | 4.24 | 284.23 | 18.66 | 262.60 | 0.3232 | 792.0 | 662.1 | |
| 0.00 | 0.97 | 0.00 | 0.51 | 5.33 | 284.19 | 18.63 | 265.94 | 0.3203 | 622.0 | 458.0 | |
| 0.00 | 1.68 | 0.00 | 0.88 | 5.15 | 284.12 | 18.56 | 265.36 | 0.3195 | 763.0 | 755.9 | |
| 0.00 | 2.21 | 0.00 | 1.13 | 6.84 | 280.55 | 14.99 | 270.37 | 0.2579 | 947.0 | 775.7 | |
| 0.00 | 1.50 | 0.00 | 0.76 | -0.36 | 274.95 | 9.39 | 232.28 | 0.2073 | 791.0 | 544.8 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 9.31 | 268.23 | 2.67 | 311.56 | 0.0616 | 985.0 | 731.1 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 7.67 | 265.70 | 0.14 | 348.86 | 0.0122 | 867.0 | 658.1 | |
| 0.00 | 1.15 | 0.00 | 0.59 | 1.40 | 252.56 | -13.00 | 112.74 | 0.2450 | 758.0 | 631.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
