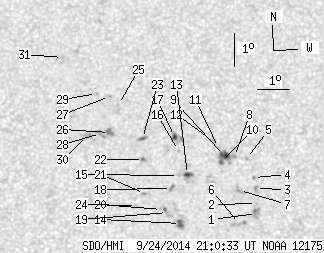

SDO HMI 2014-09-24 21:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.05 | 90.60 | 7.02 | 45.36 | 14.51 | 262.07 | -3.49 | 23.14 | 0.1461 | 99.8 | 23.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-09-24 21:00:33 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.16 | 0.00 | 3.57 | 13.18 | 264.32 | -1.24 | 11.08 | 0.1105 | -879.0 | -829.1 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 13.48 | 264.32 | -1.25 | 10.58 | 0.1157 | -861.0 | -691.8 | |
| 0.00 | 2.30 | 0.00 | 1.15 | 13.94 | 264.28 | -1.28 | 10.14 | 0.1235 | -914.0 | -703.7 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 14.27 | 264.22 | -1.34 | 10.14 | 0.1294 | -725.0 | -623.1 | |
| 0.00 | 1.33 | 0.00 | 0.66 | 14.84 | 264.00 | -1.56 | 10.90 | 0.1399 | -788.0 | -574.1 | |
| 0.00 | 5.74 | 0.00 | 2.86 | 12.88 | 263.79 | -1.77 | 16.32 | 0.1075 | -922.0 | -673.0 | |
| 0.00 | 4.15 | 0.00 | 2.07 | 13.87 | 263.79 | -1.77 | 14.05 | 0.1243 | -732.0 | -434.2 | |
| 0.00 | 1.59 | 0.00 | 0.80 | 14.90 | 263.63 | -1.94 | 13.32 | 0.1423 | 411.0 | 164.9 | |
| 4.86 | 11.05 | 2.43 | 5.53 | 14.93 | 263.31 | -2.25 | 15.31 | 0.1441 | -931.3 | -584.2 | |
| 1.15 | -9.00 | 0.57 | -9.00 | 14.75 | 263.22 | -2.34 | 16.27 | 0.1415 | -1023.8 | 999999 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 15.18 | 263.13 | -2.44 | 16.05 | 0.1490 | -370.0 | -278.0 | |
| 0.00 | 1.41 | 0.00 | 0.71 | 15.39 | 262.90 | -2.66 | 16.99 | 0.1536 | -265.0 | -176.6 | |
| 2.30 | 4.24 | 1.15 | 2.12 | 14.35 | 262.17 | -3.39 | 24.05 | 0.1413 | 908.2 | 520.3 | |
| 2.47 | 4.95 | 1.23 | 2.47 | 12.87 | 261.97 | -3.59 | 30.70 | 0.1200 | 1108.5 | 725.7 | |
| 0.00 | 1.24 | 0.00 | 0.62 | 14.32 | 261.89 | -3.67 | 25.87 | 0.1428 | 663.0 | 491.5 | |
| 0.00 | 1.06 | 0.00 | 0.53 | 15.08 | 261.88 | -3.68 | 23.73 | 0.1548 | 554.0 | 386.2 | |
| 2.12 | 8.40 | 1.06 | 4.21 | 15.50 | 261.75 | -3.81 | 23.36 | 0.1624 | -865.2 | -584.4 | |
| 0.00 | 2.47 | 0.00 | 1.24 | 13.92 | 261.68 | -3.88 | 28.48 | 0.1384 | 868.0 | 653.7 | |
| 0.00 | 4.07 | 0.00 | 2.03 | 13.20 | 261.57 | -3.99 | 32.00 | 0.1286 | 728.0 | 640.4 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 13.29 | 261.38 | -4.18 | 32.81 | 0.1316 | -250.0 | -167.1 | |
| 0.00 | 1.94 | 0.00 | 0.97 | 13.77 | 260.84 | -4.72 | 33.98 | 0.1436 | -942.0 | -698.1 | |
| 0.00 | 2.12 | 0.00 | 1.06 | 14.80 | 260.79 | -4.77 | 30.52 | 0.1590 | 1187.0 | 820.0 | |
| 1.15 | 3.45 | 0.58 | 1.73 | 15.43 | 260.75 | -4.81 | 28.76 | 0.1689 | 919.7 | 692.9 | |
| 0.00 | 1.15 | 0.00 | 0.57 | 13.40 | 260.60 | -4.96 | 36.84 | 0.1409 | 835.0 | 528.8 | |
| 0.00 | 0.71 | 0.00 | 0.36 | 16.46 | 259.97 | -5.59 | 29.50 | 0.1907 | 850.0 | 674.0 | |
| 0.00 | 4.33 | 0.00 | 2.18 | 15.61 | 259.71 | -5.85 | 33.12 | 0.1805 | 1208.0 | 991.7 | |
| 0.00 | 1.24 | 0.00 | 0.63 | 16.70 | 259.68 | -5.88 | 30.09 | 0.1967 | 866.0 | 674.6 | |
| 0.00 | 3.98 | 0.00 | 2.00 | 15.57 | 259.43 | -6.13 | 34.45 | 0.1827 | 974.0 | 858.4 | |
| 0.00 | 1.24 | 0.00 | 0.63 | 16.79 | 259.27 | -6.30 | 31.55 | 0.2016 | 754.0 | 599.4 | |
| 0.00 | 3.62 | 0.00 | 1.83 | 15.51 | 259.02 | -6.54 | 36.38 | 0.1859 | 962.0 | 772.7 | |
| 0.00 | 1.24 | 0.00 | 0.63 | 17.87 | 258.15 | -7.41 | 32.89 | 0.2272 | 807.0 | 713.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
